Excellent Machine.

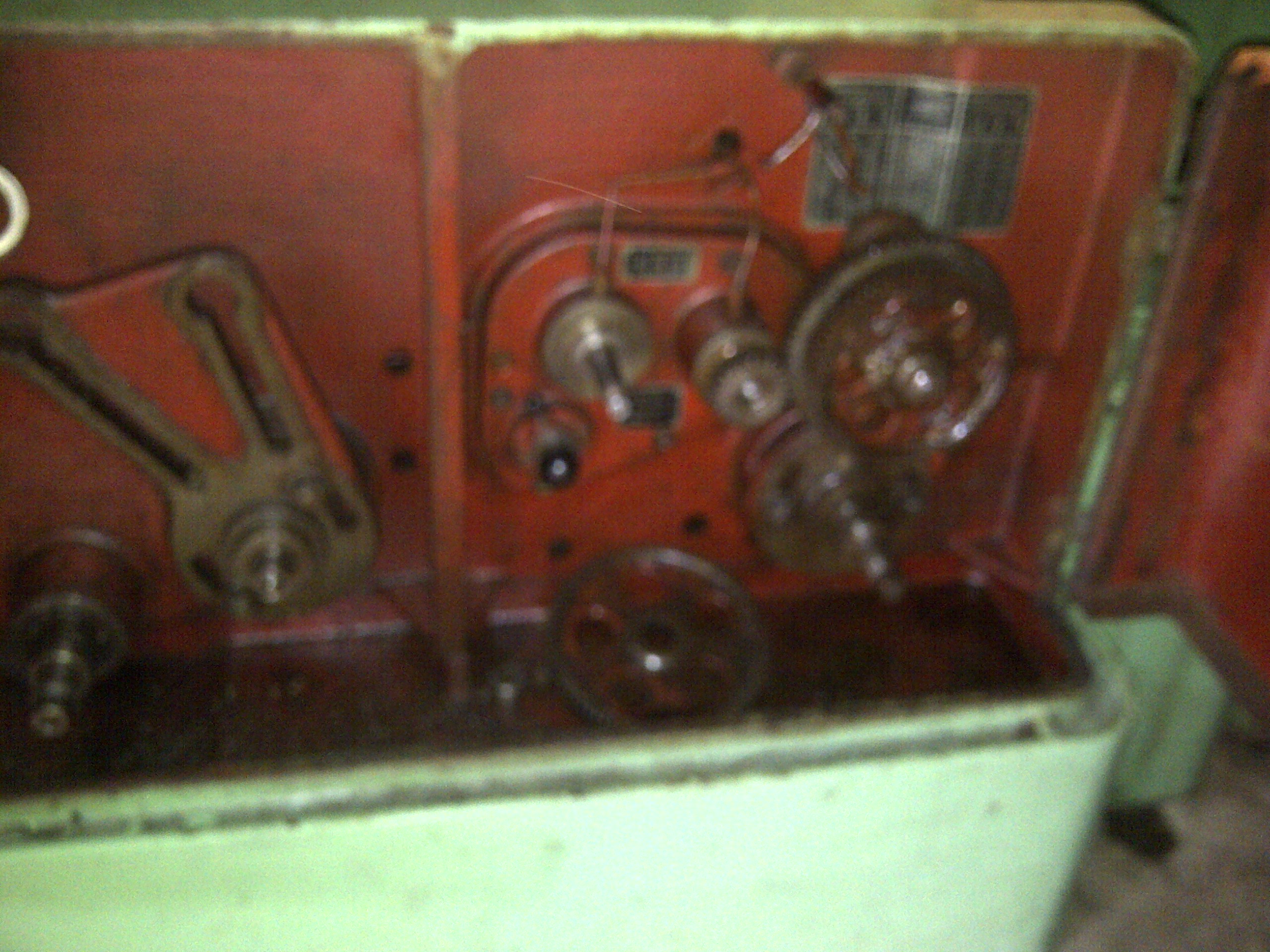

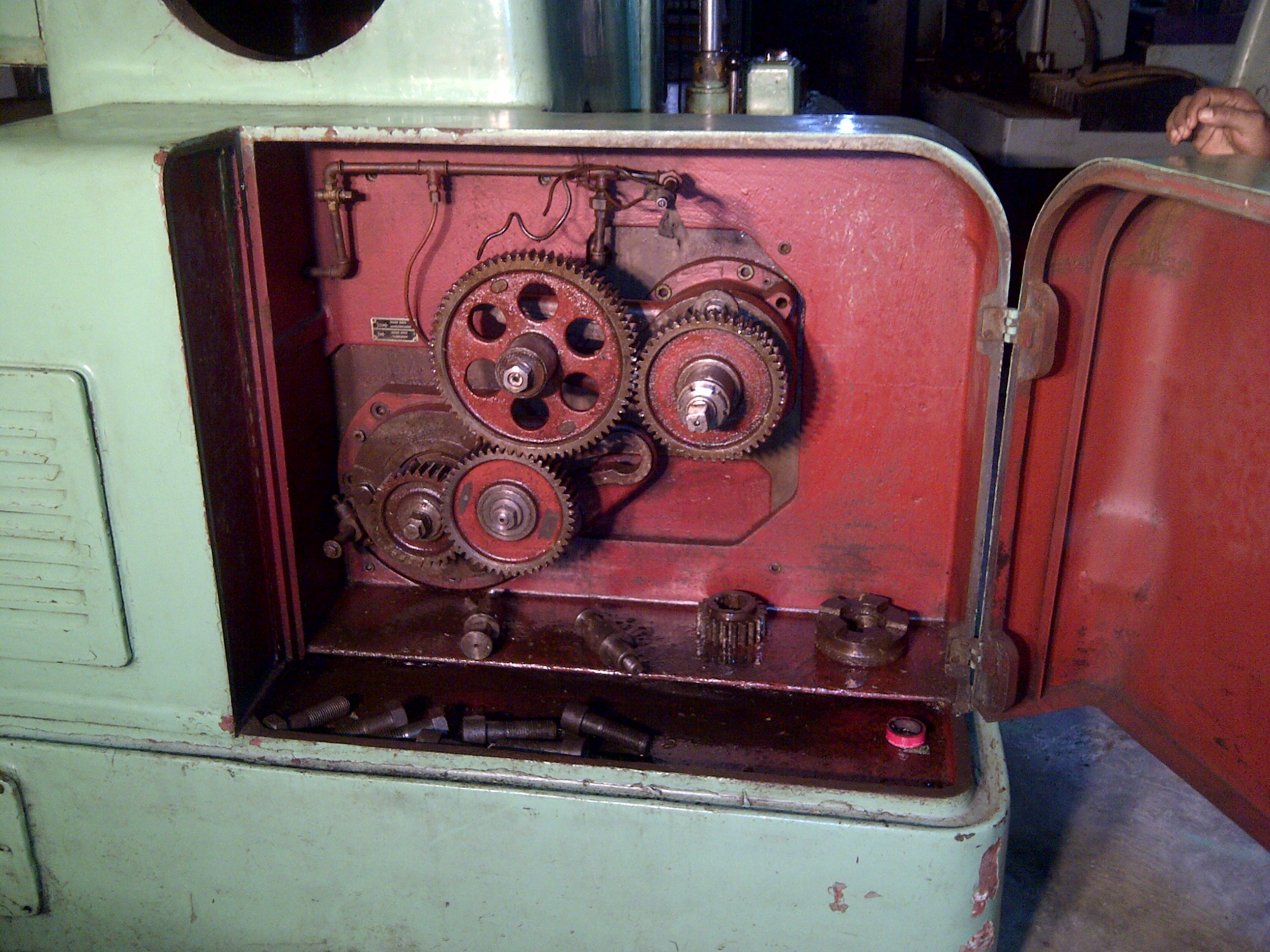

Full Set Of Change Gears.
Machine came out From Germany Workshop .

Machine Id: 705 Serial No:
Model: FO 16 Asking Price: onrequest
Make: Tos Country: Czech Republic
Year: Weight: 0.0
Dimensions: Location: Mumbai Warehouse, India
Power:
Category: Gear Related Machines

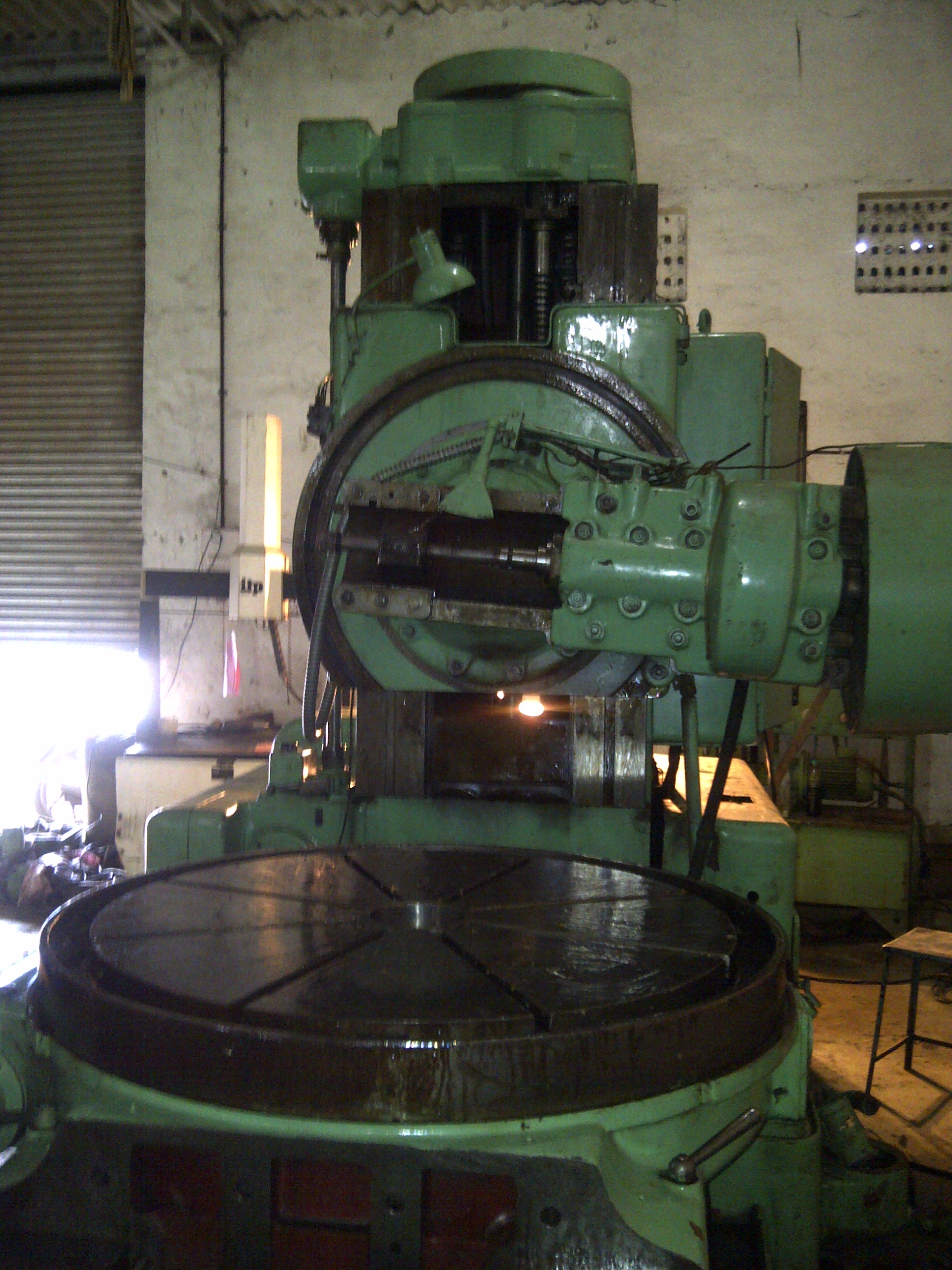

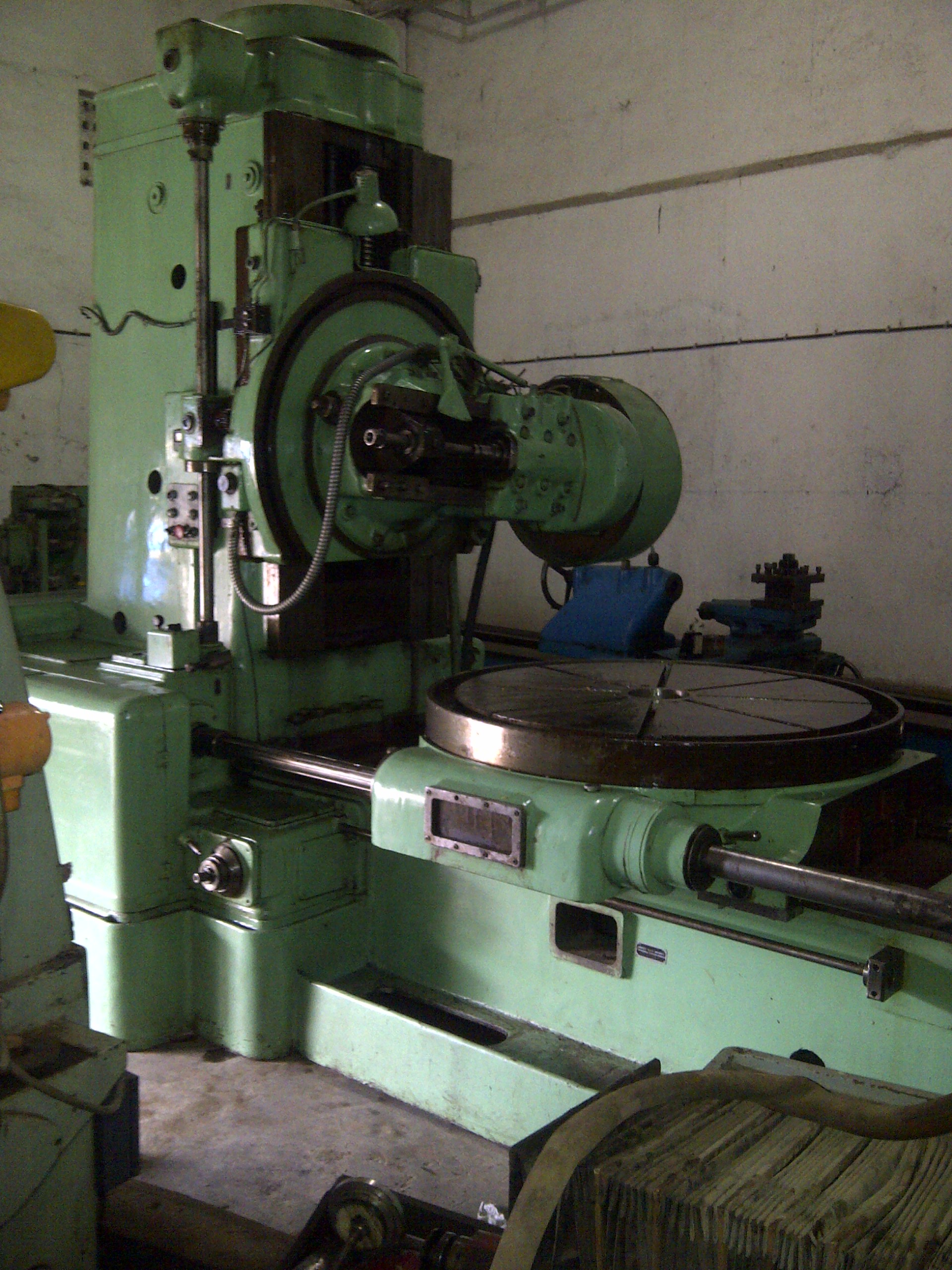

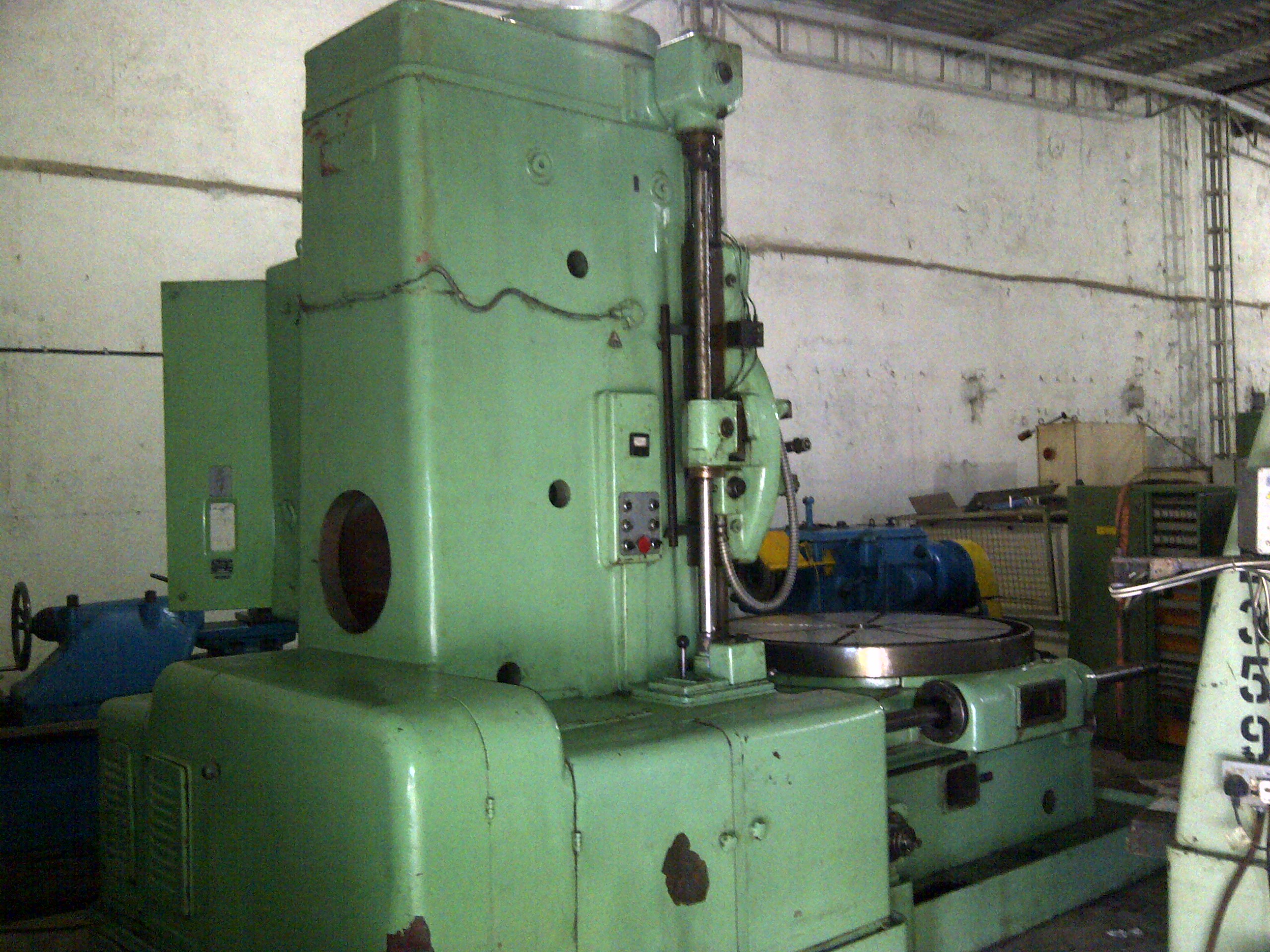

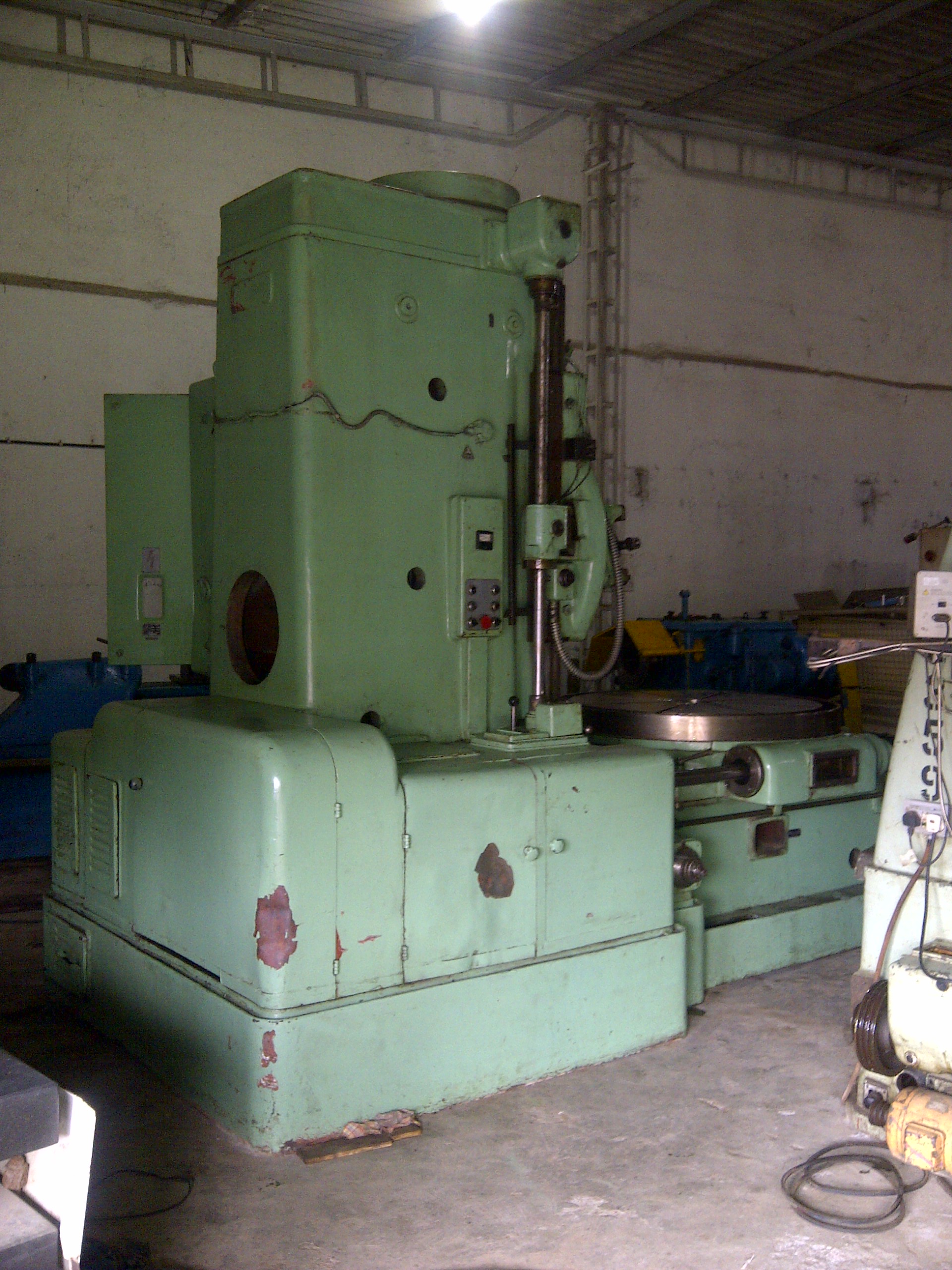

Type of Machine: gear hobber universal
Specification

Max. gear wheel module
- max. machining 16
- with normal machine loading 20
Max. gear wheel diametre mm 1600
Max. gear wheel diameter without steady with normal machine loading mm 2000
Max. gear wheel width with straight teeth
- gear wheel diameter above 1350 mm mm 560
- gear wheel diameter below 1350 mm mm 500
Max. distance between spindle and table surface mm 1050
Min. distance between spindle and table surface mm 400
Max. distance between spindle and table mm 1150
Min. distance between spindle and table mm 100

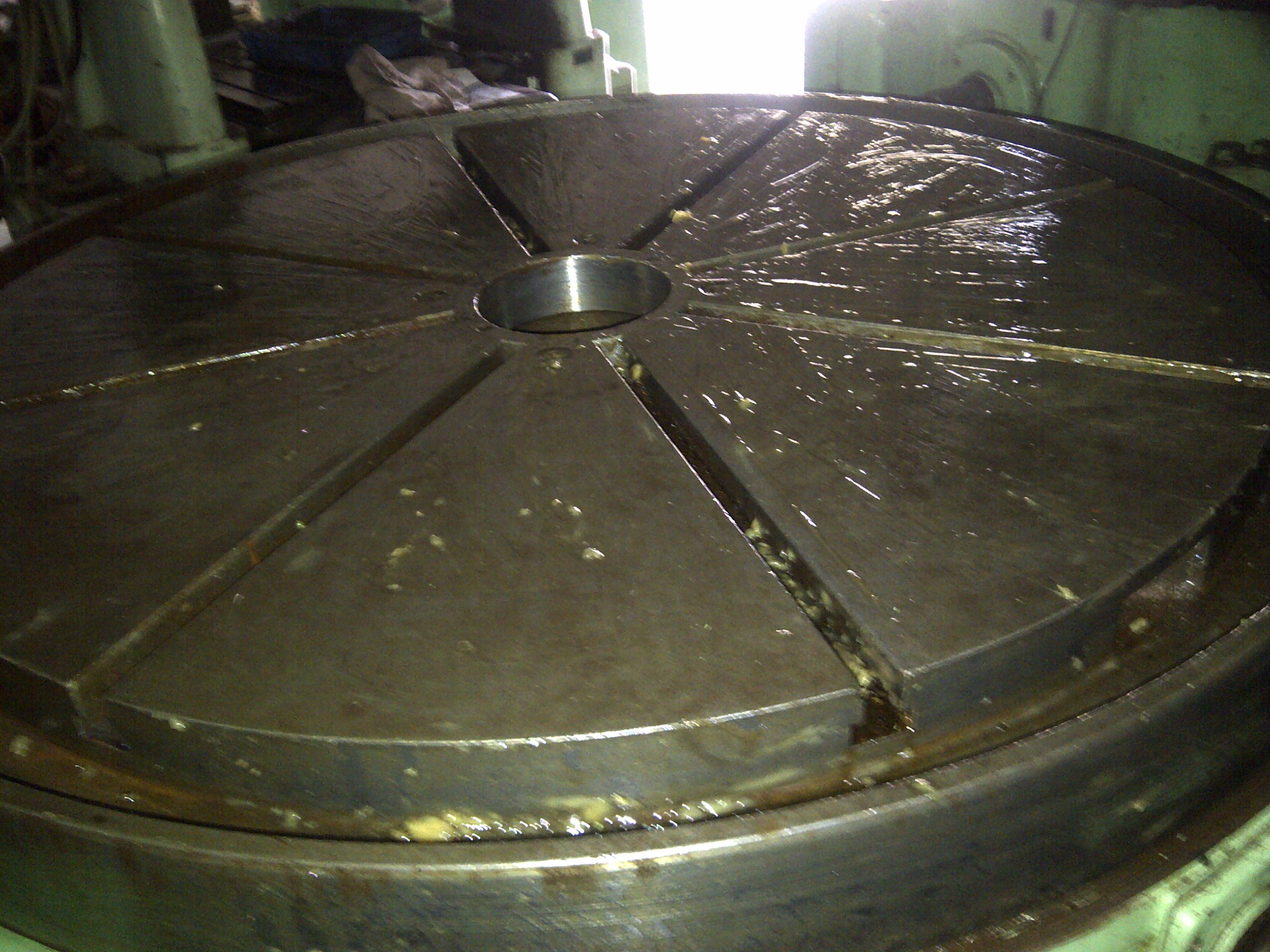

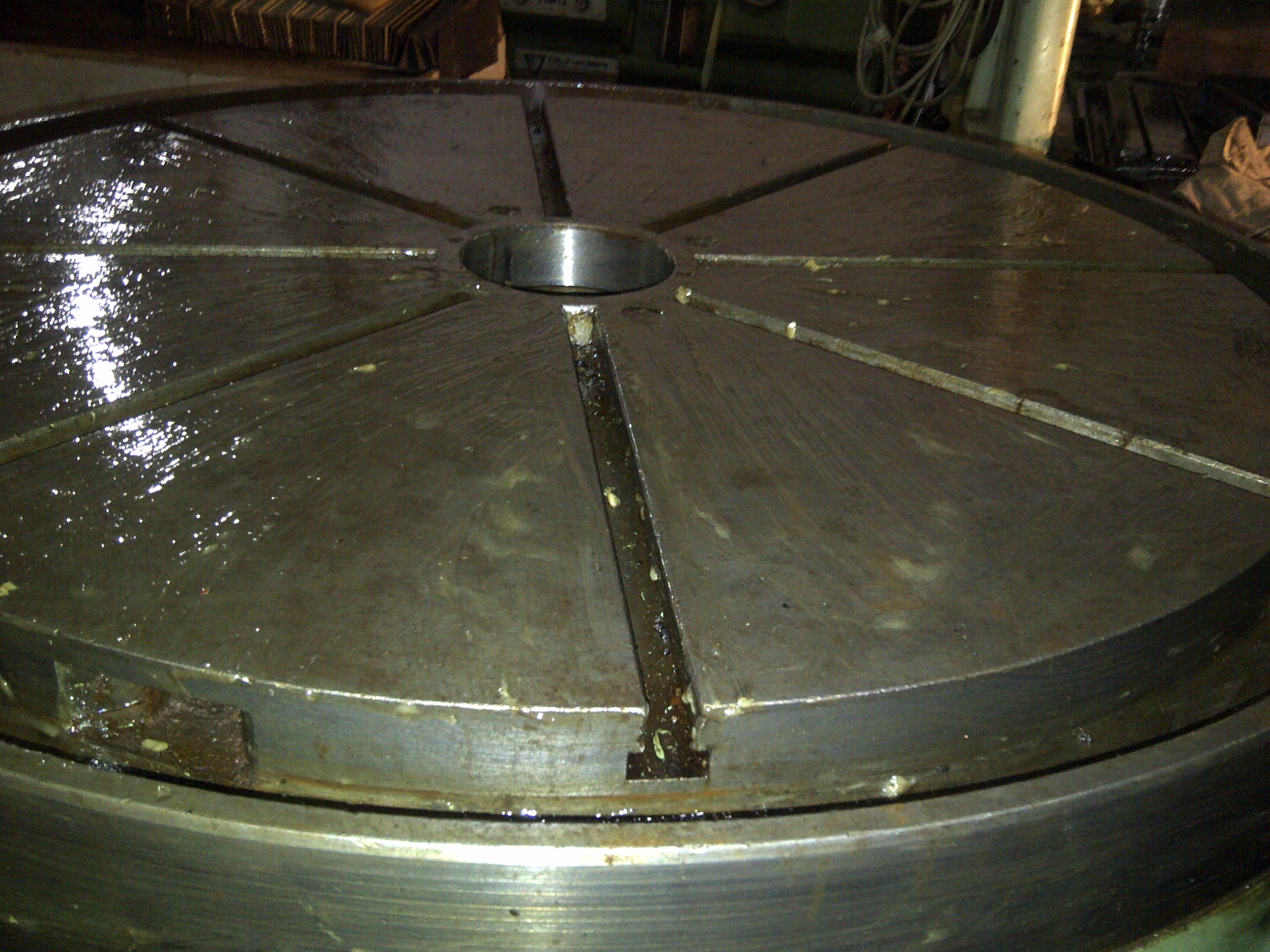

Table diametre mm 1350
Table boring diametre mm 180
Number of T-shaped groove mm 8

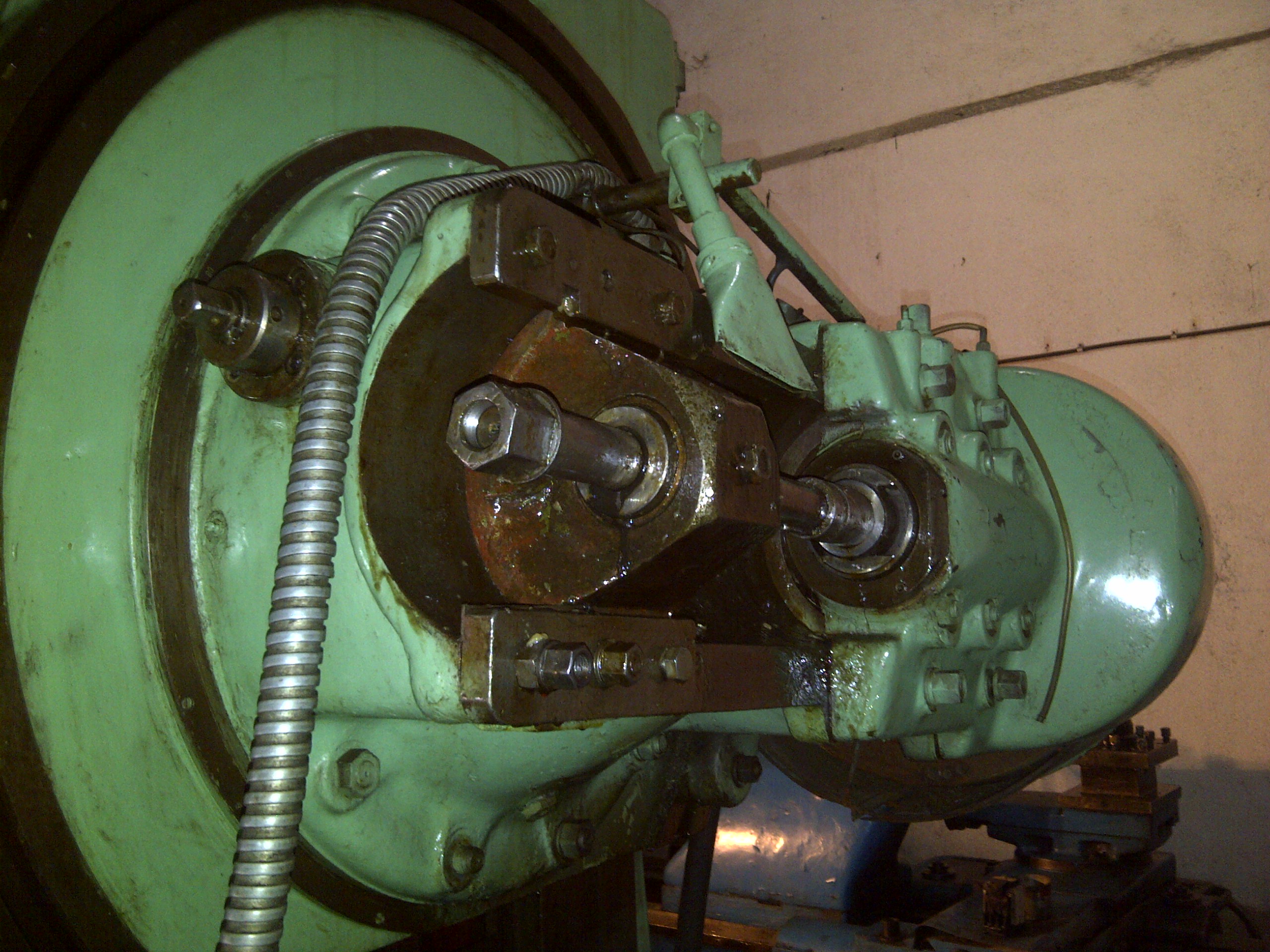

Milling arbor diameter mm 32-40-50-60
Number of milling spindle revolutions in R 10 row, =1,26 from-to U/min 16- 80
Main motor power PS 15
Fast motor power PS 7,5
Vertical feed number 36
Vertical feed range with table revolutions from- to mm 0,25- 6
Longitudinal feed number with table revolutions from- to mm 0,05-1,5
Machine surface needed mm 4300 x 2000
Weight with normal equipment kG 18 100
