Machine fully dismantled and thoroughly cleaned.

Bearings, bushings, seals, hoses, cables, connectors, and filters replaced wherever required.

Spindles reground and slides rescraped, with alignments corrected to OEM levels.

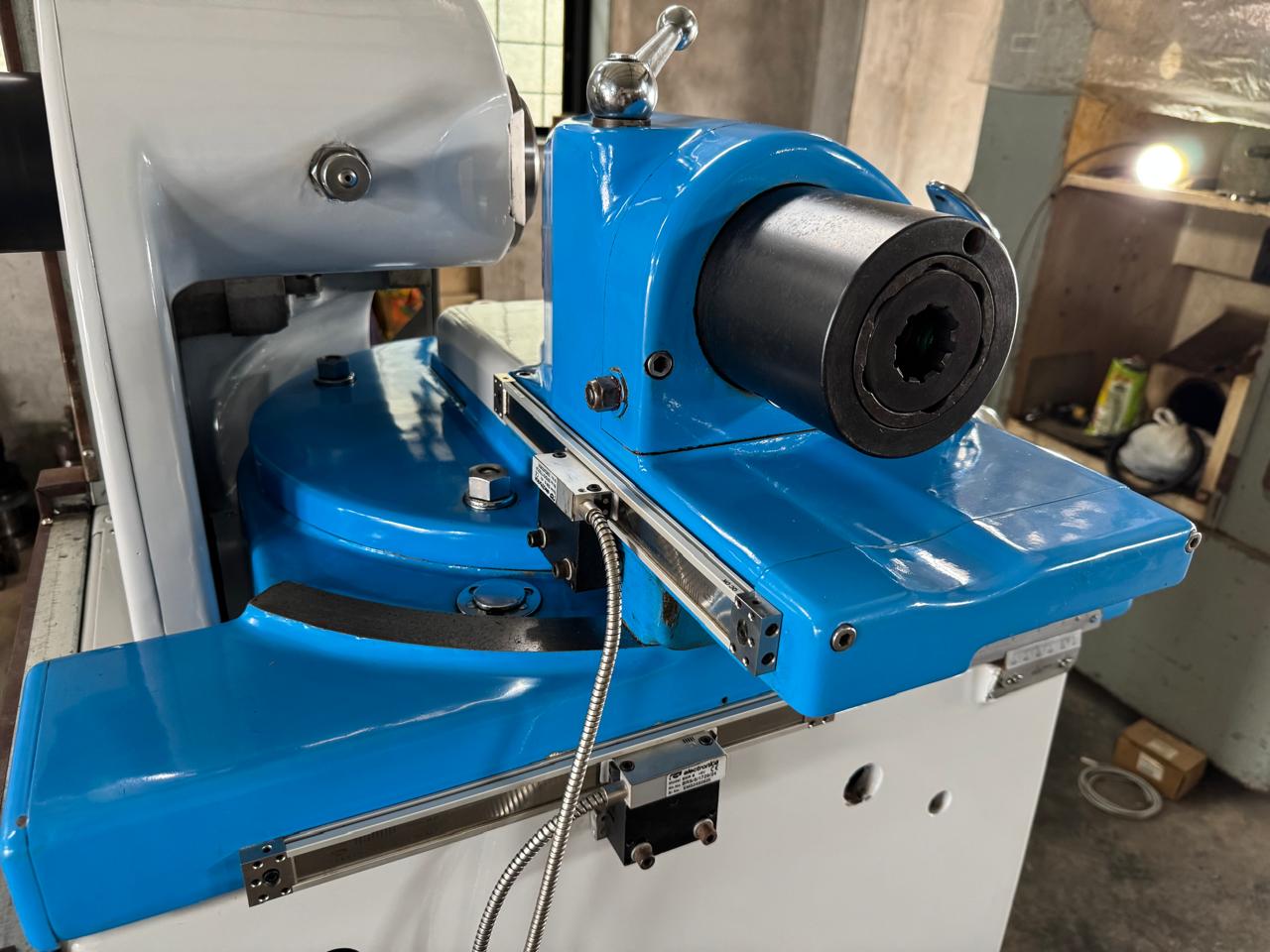

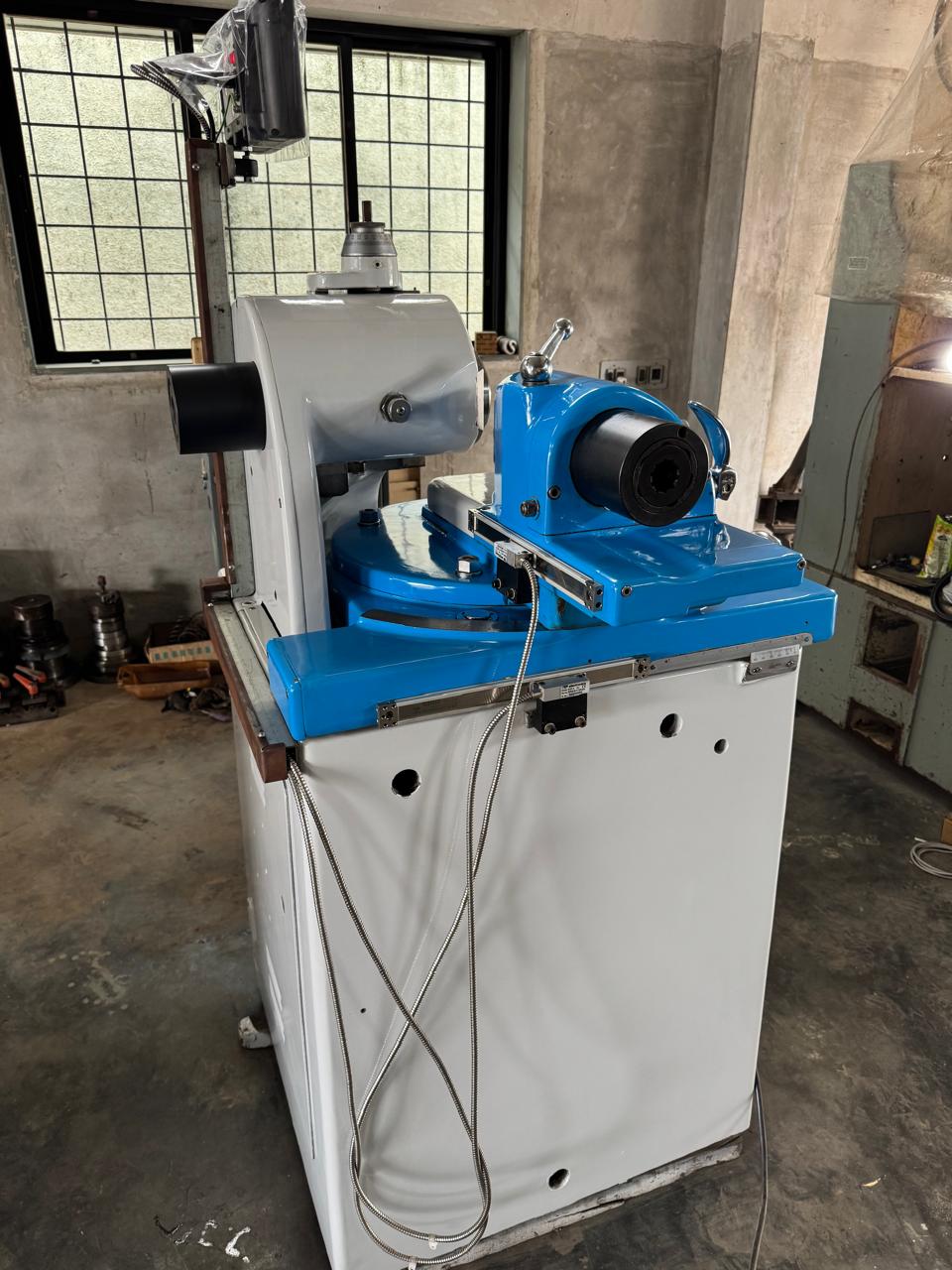

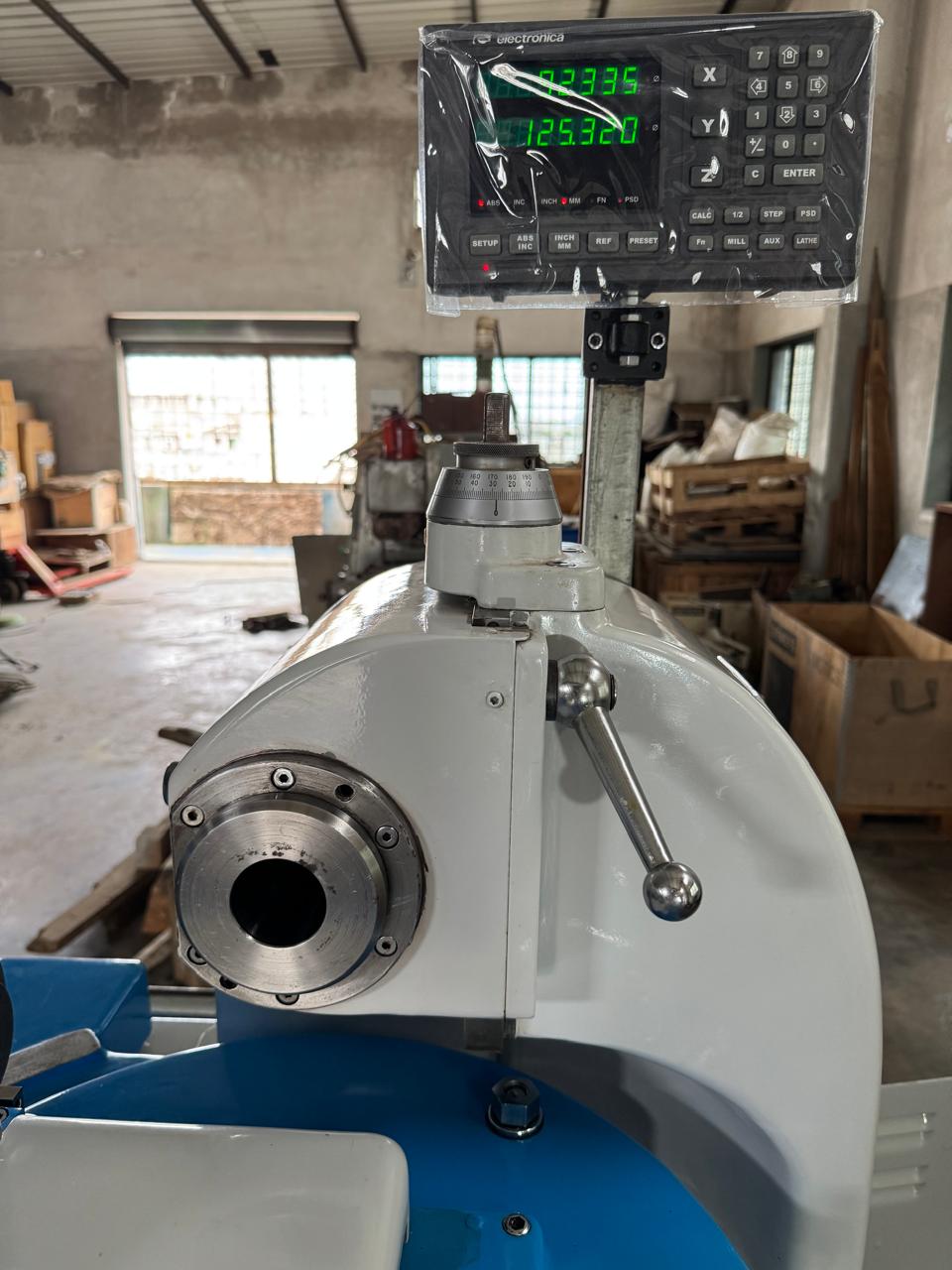

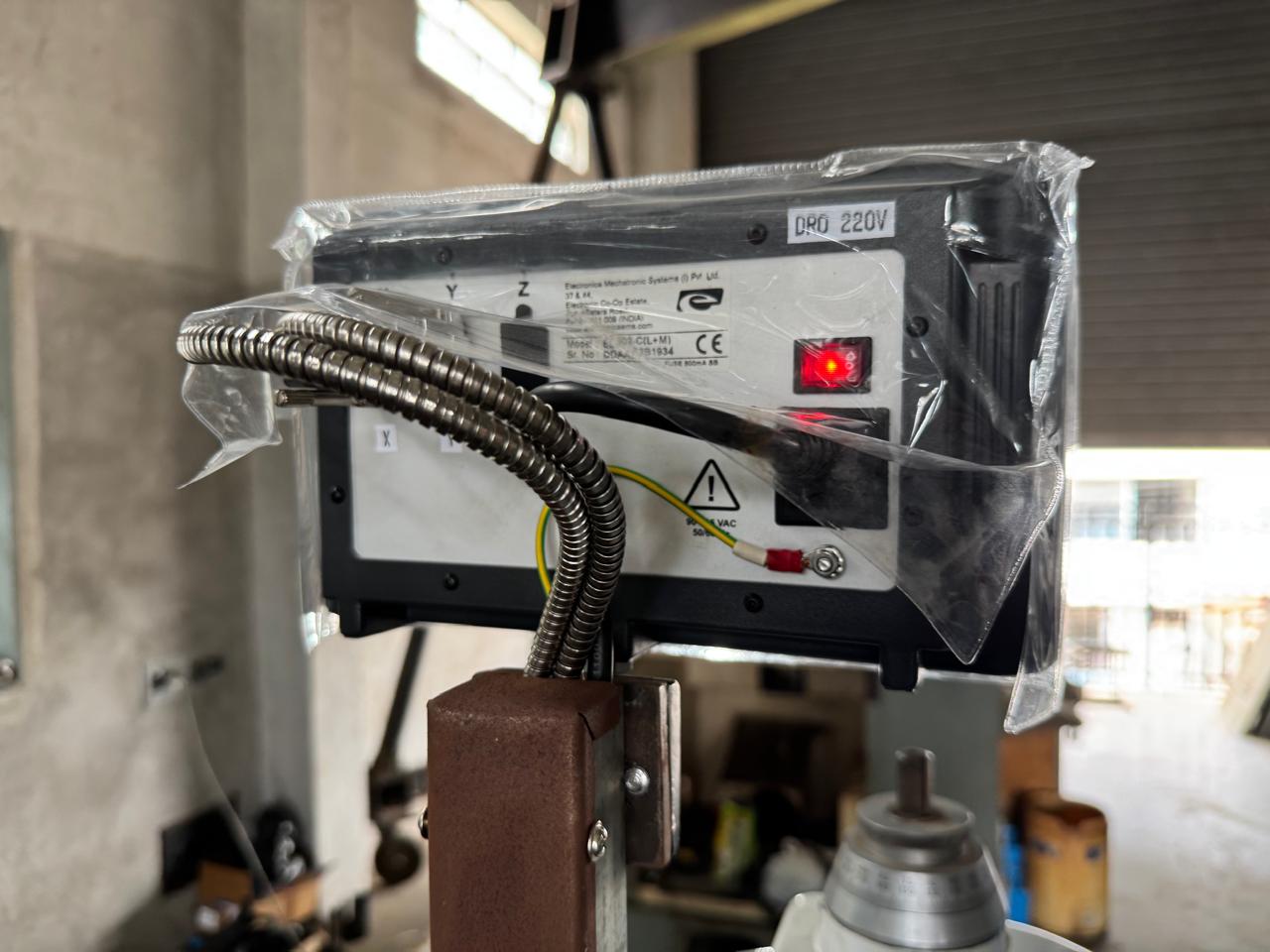

Installed a world-class Digital Readout (DRO) system for precise measurement of backlash, runout, and concentricity.

Rearrangement and recalibration carried out exactly as per Gleason standards.

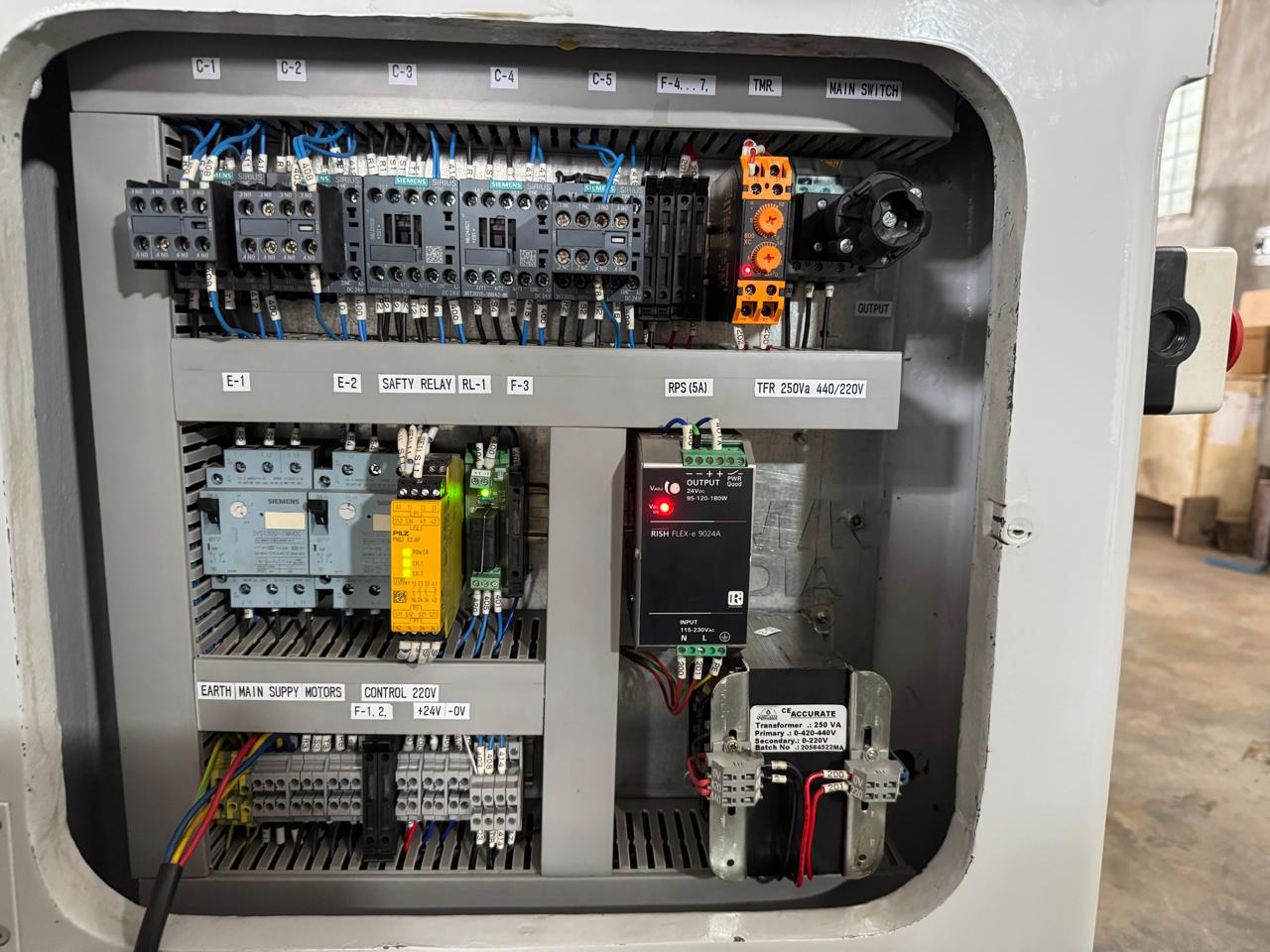

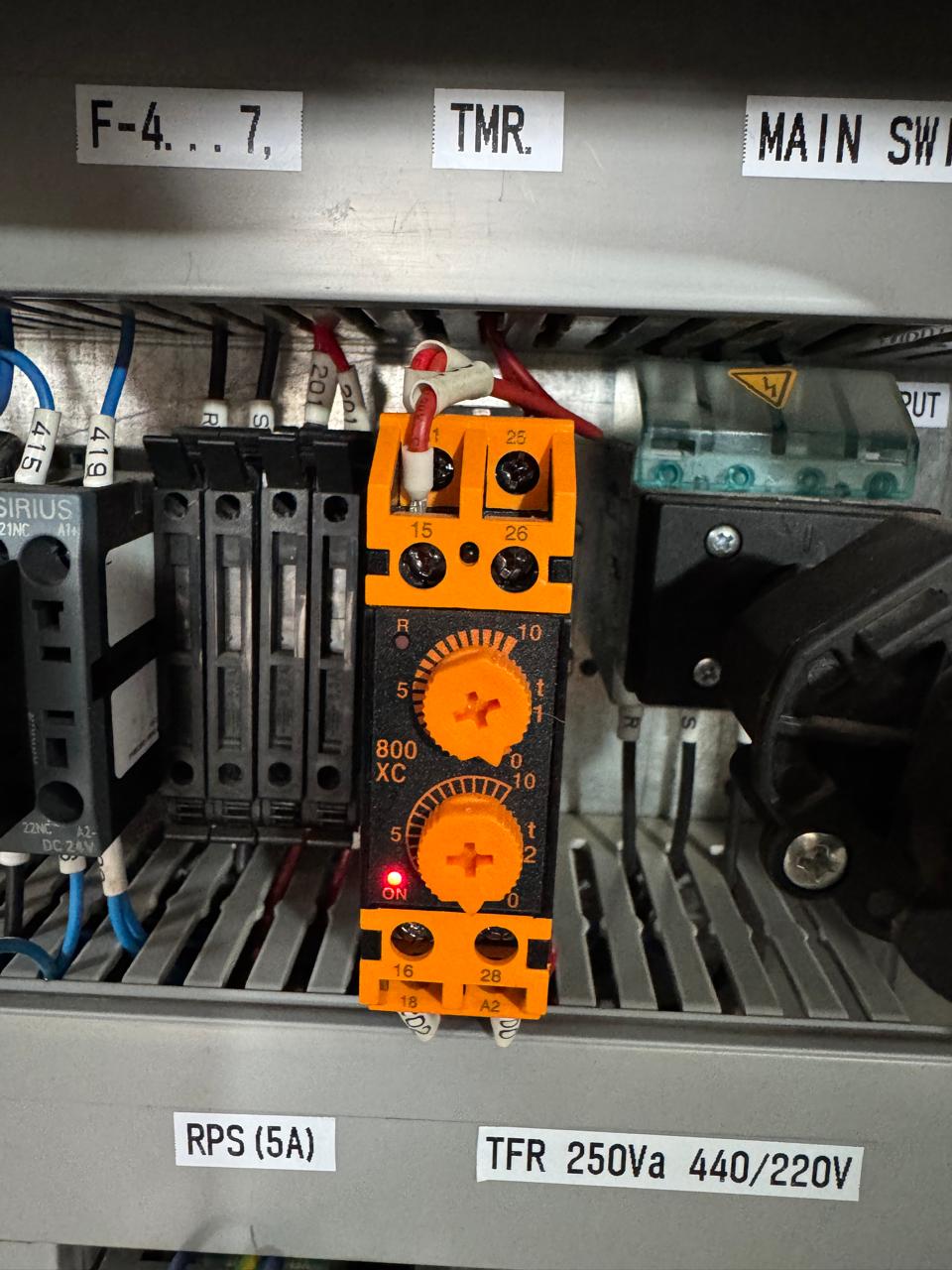

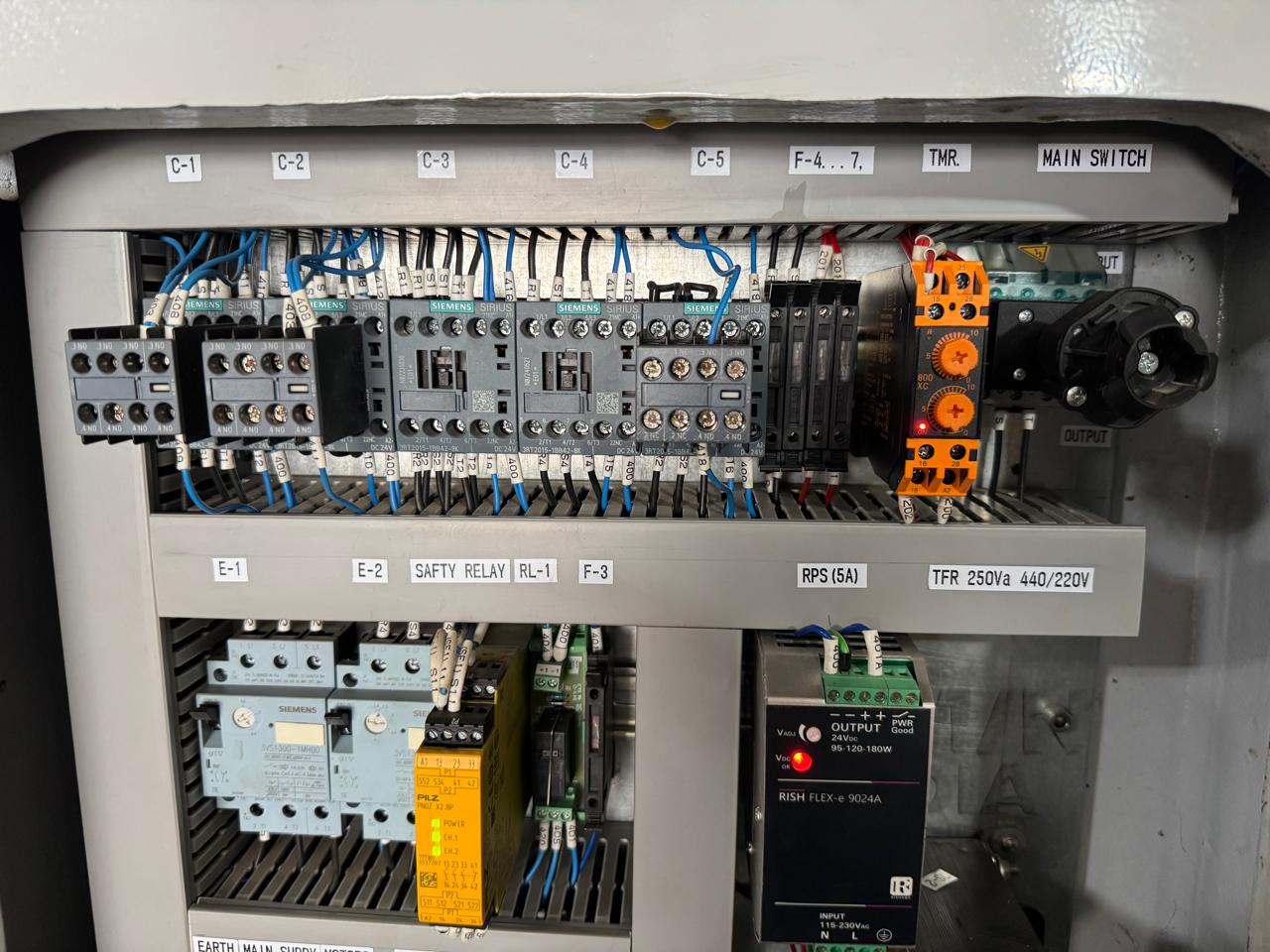

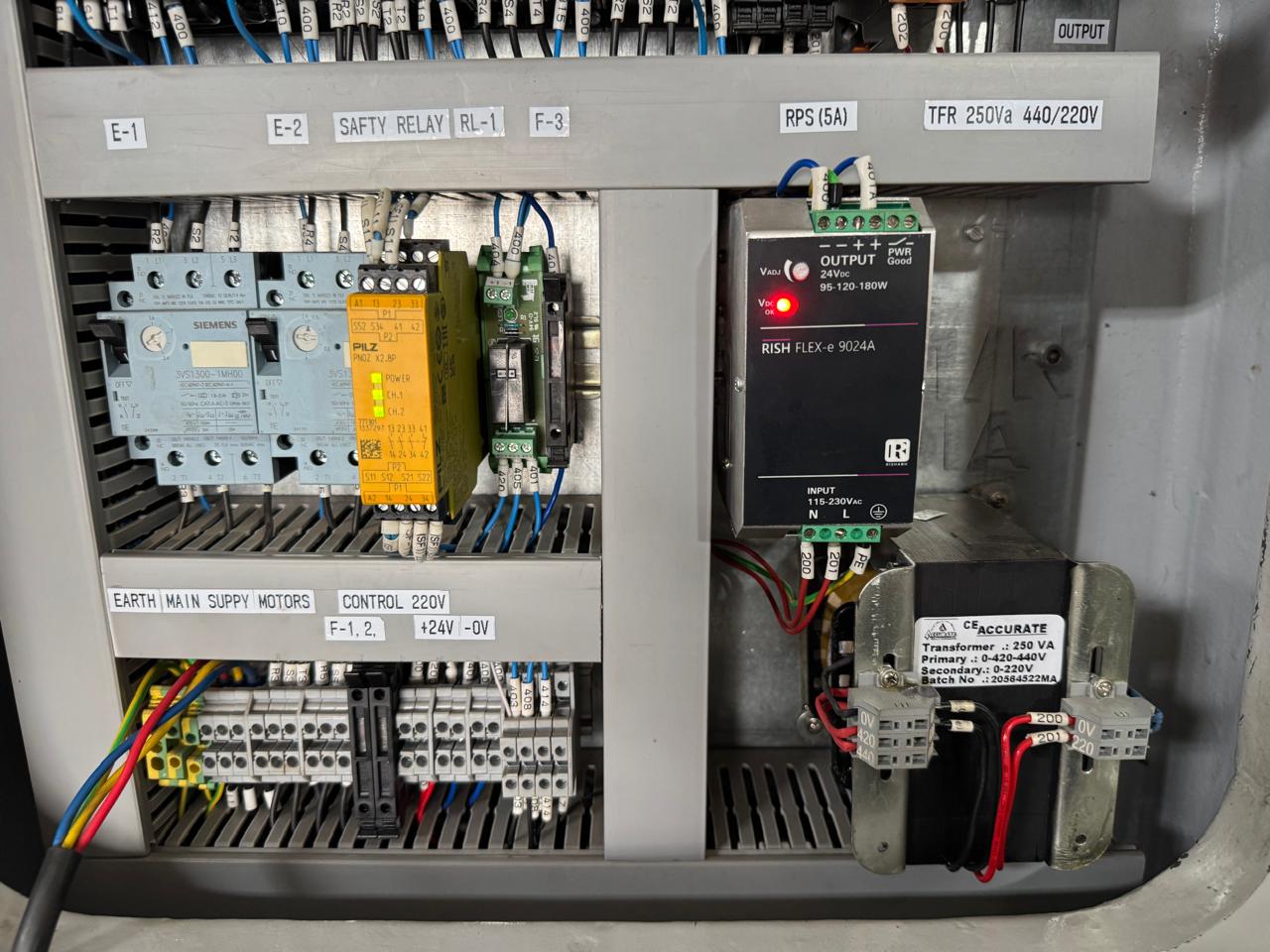

Siemens PLC :- Electricals completely renewed with upgraded wiring and safety interlocks.



Machine Id: 1305 Serial No:
Model: 6 Asking Price: onrequest
Make: Gleason Country: United States
Year: Weight: 0.0
Dimensions: Location: Mumbai Warehouse, India
Power:
Category: Gear Related Machines

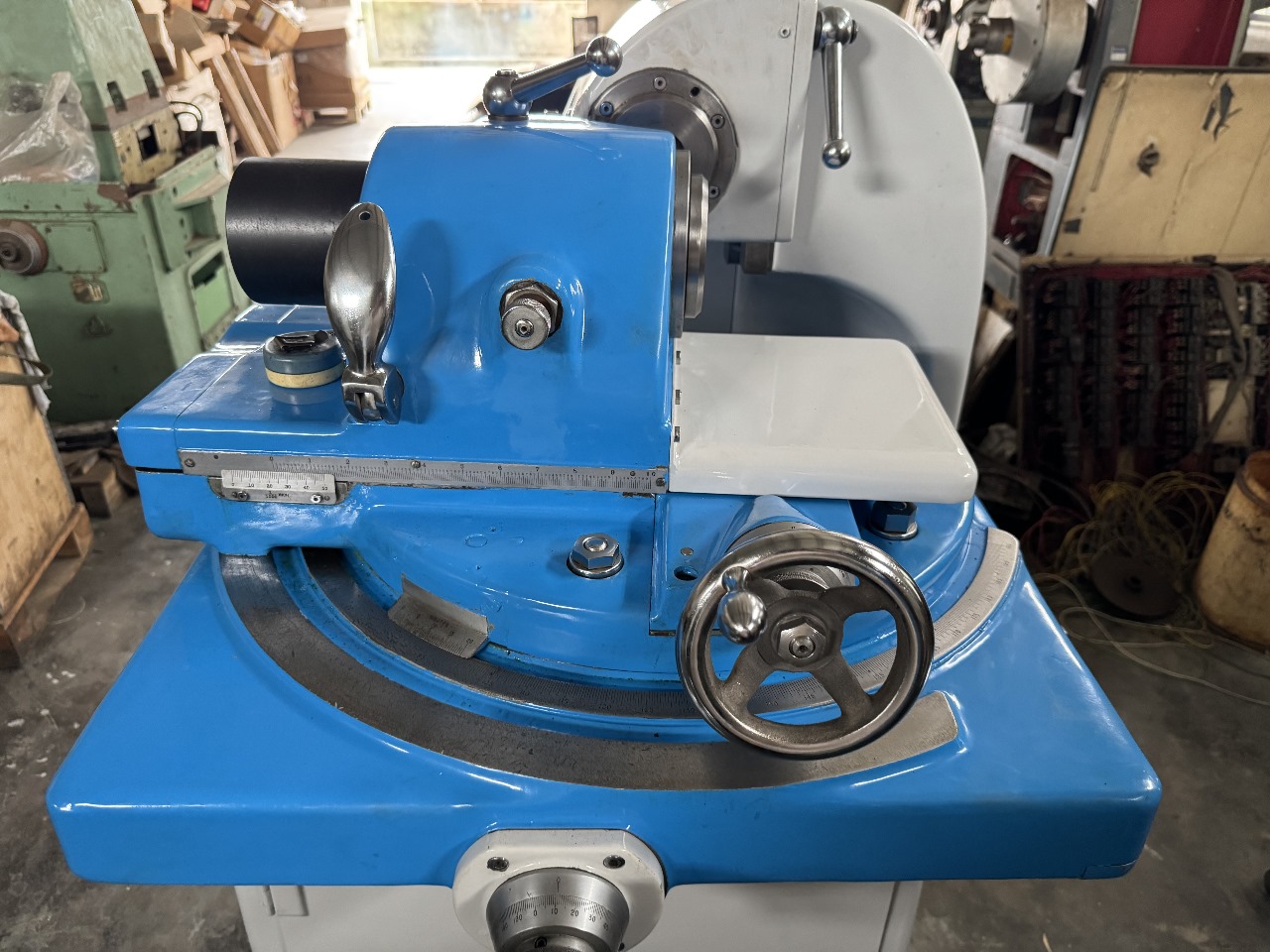

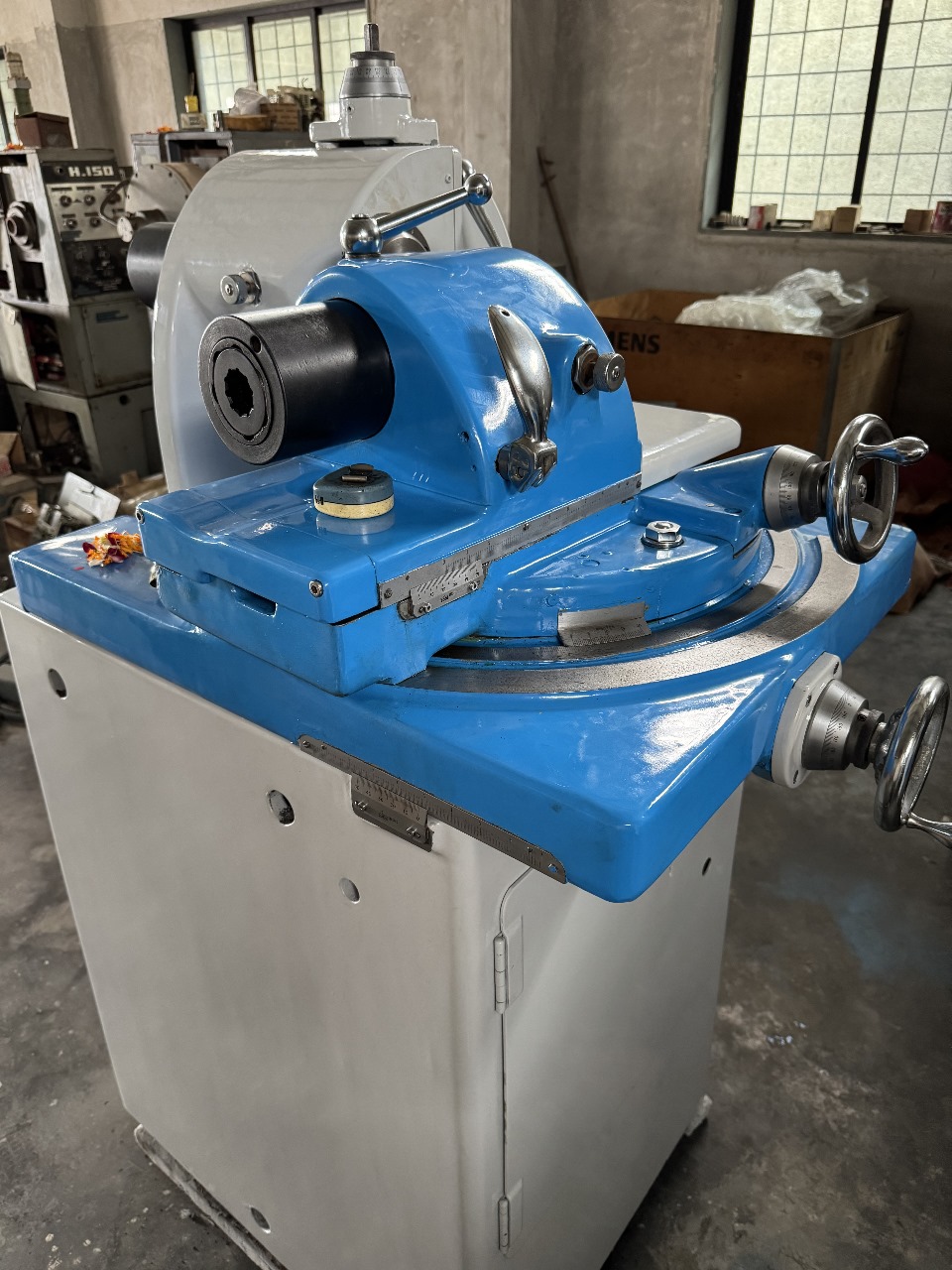

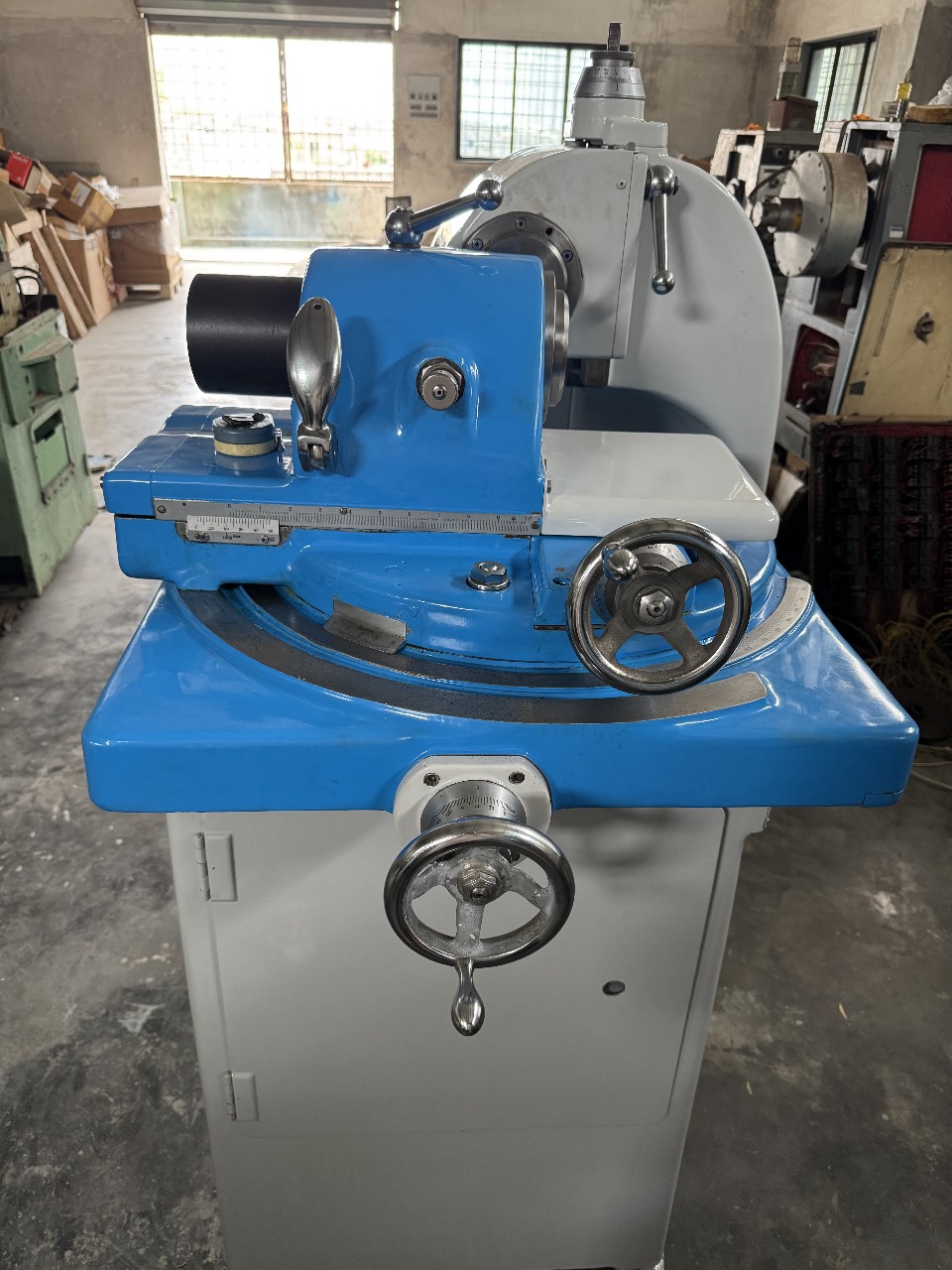

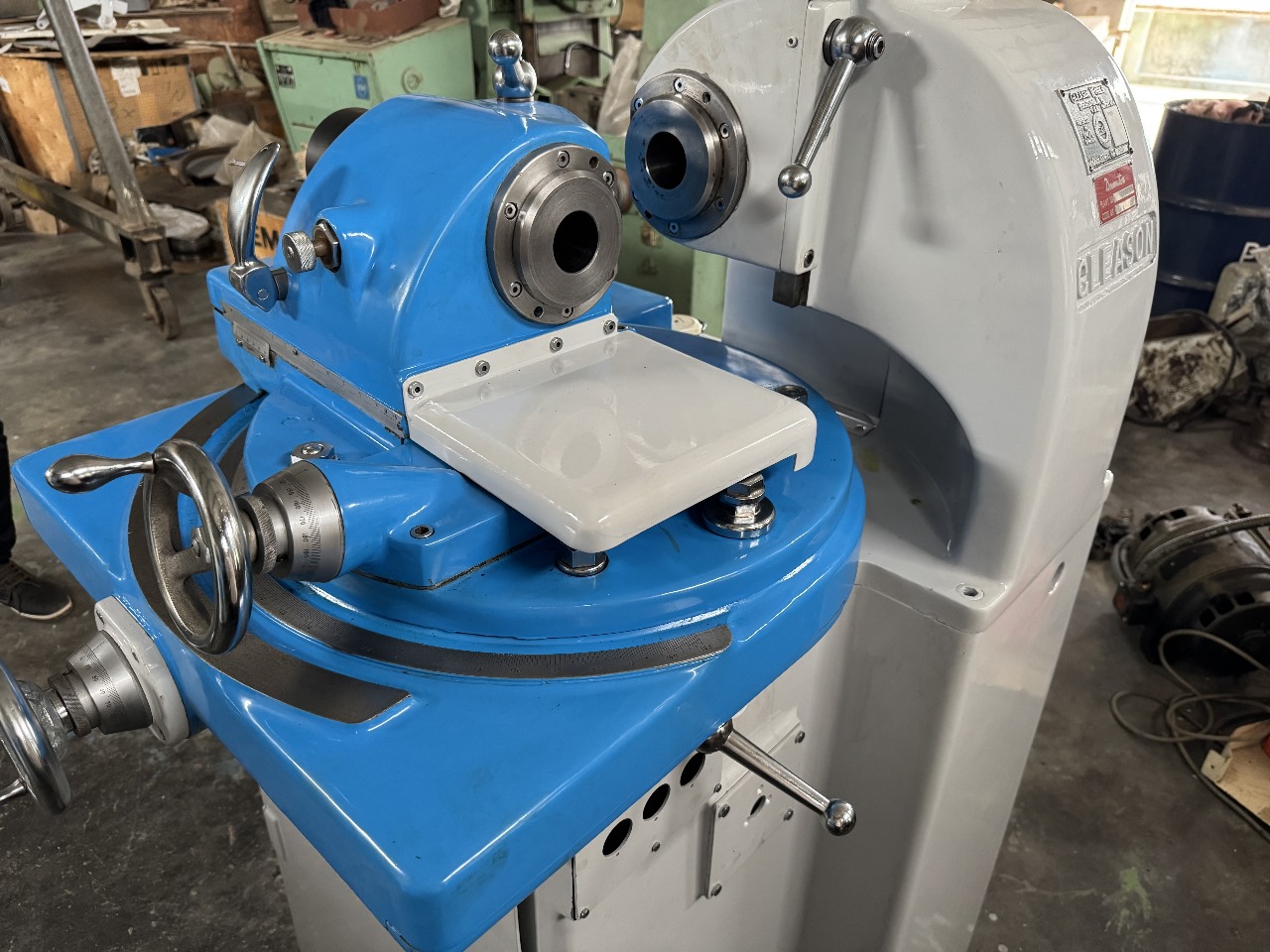

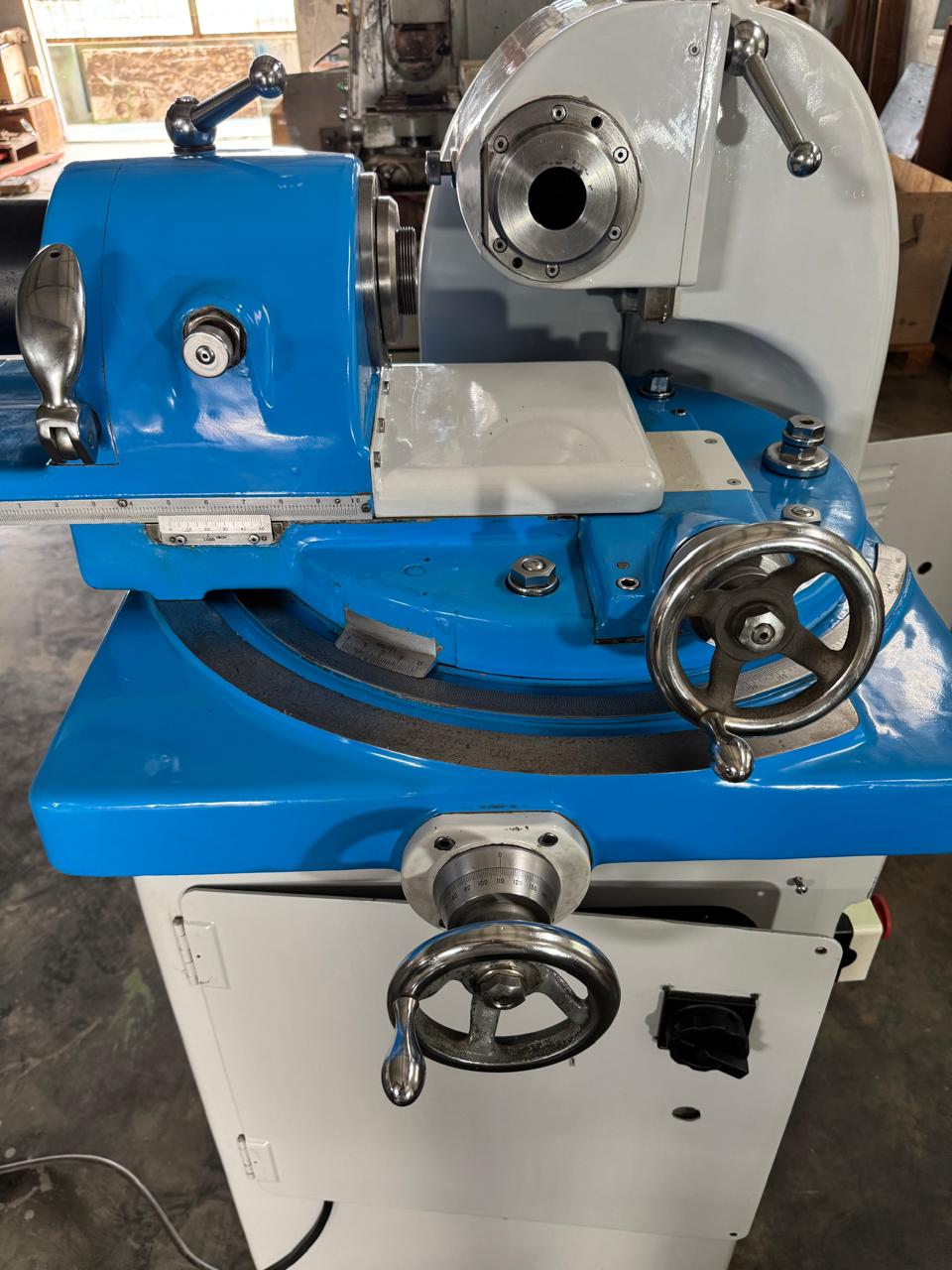

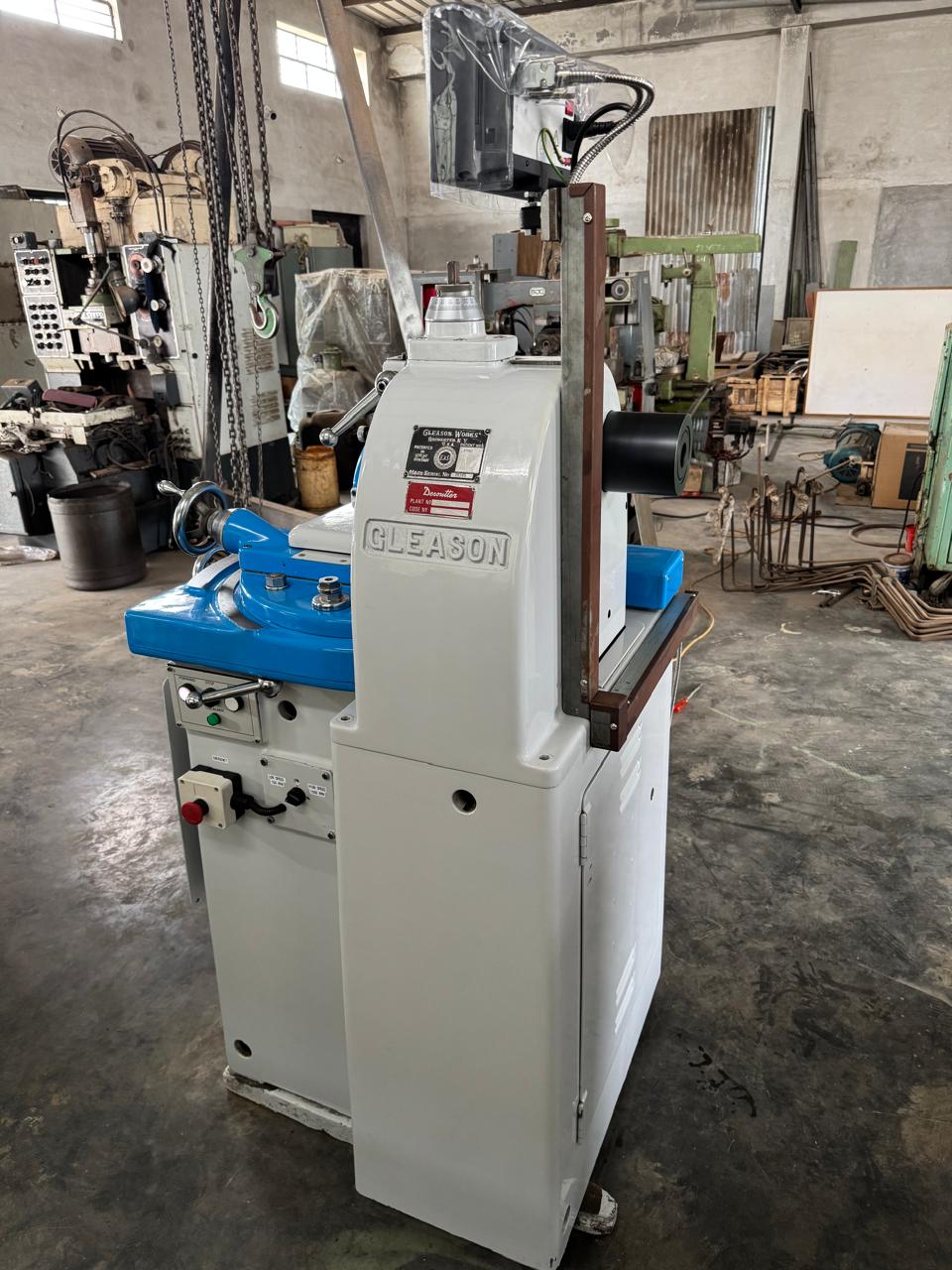

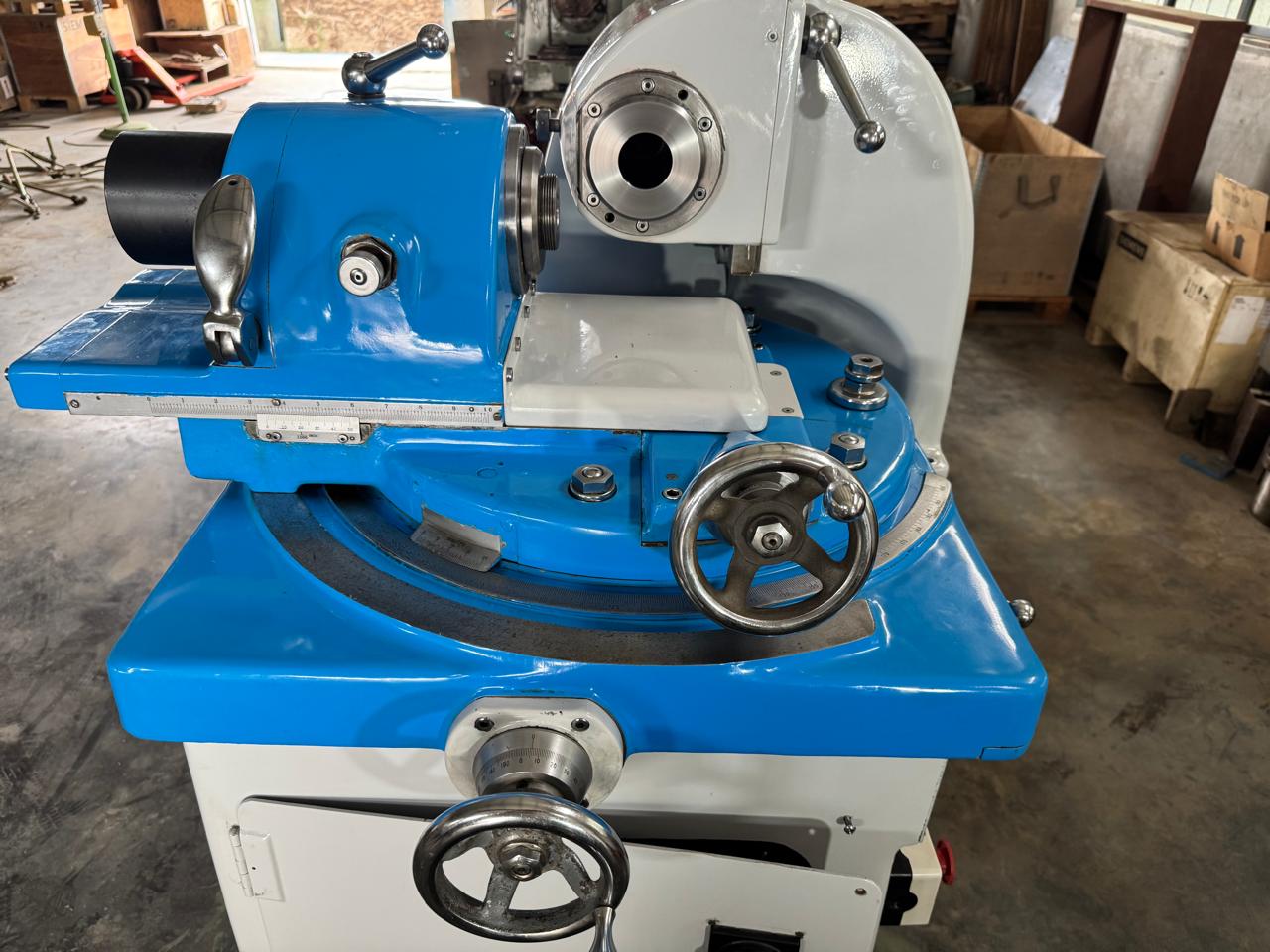

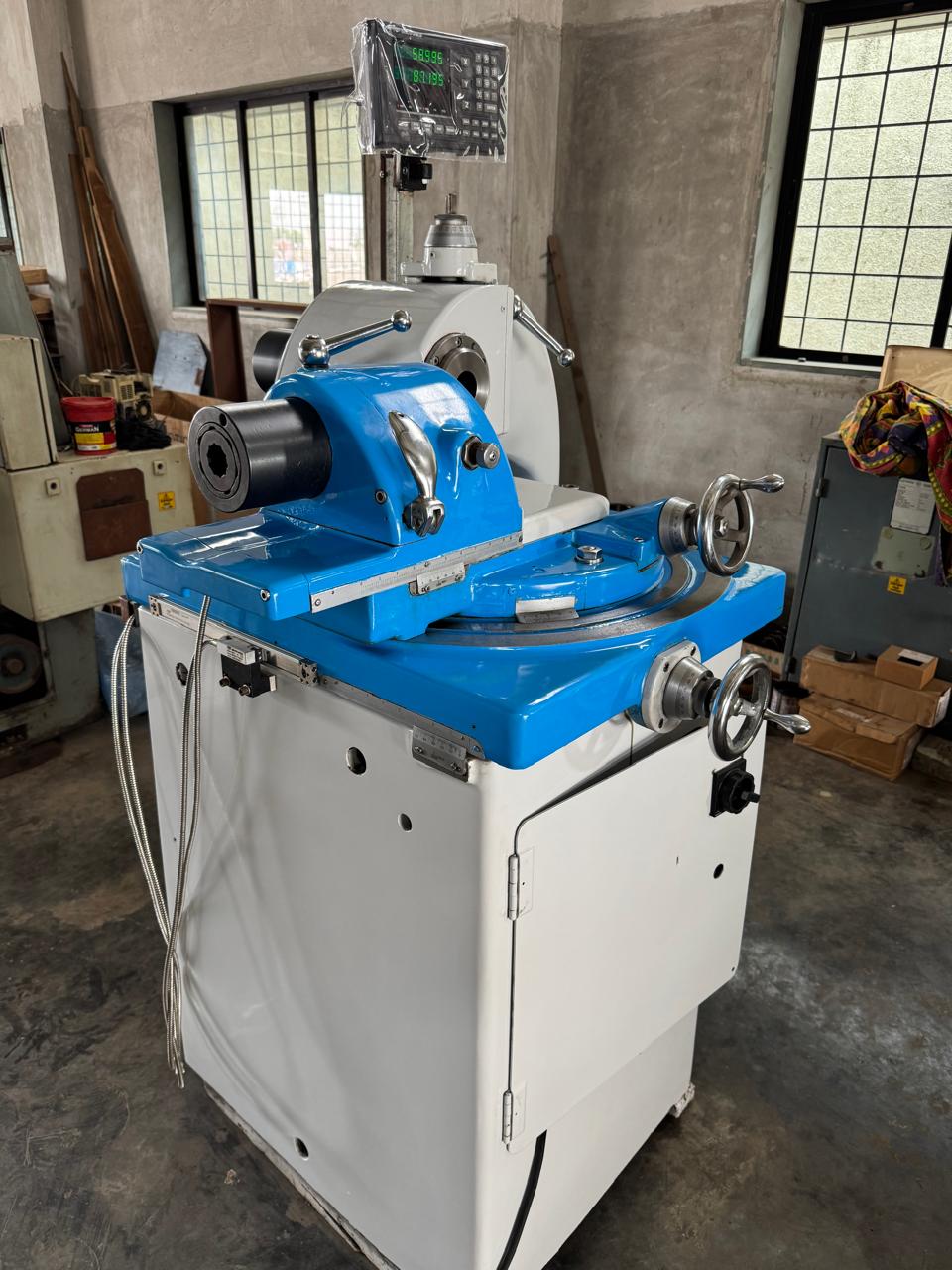

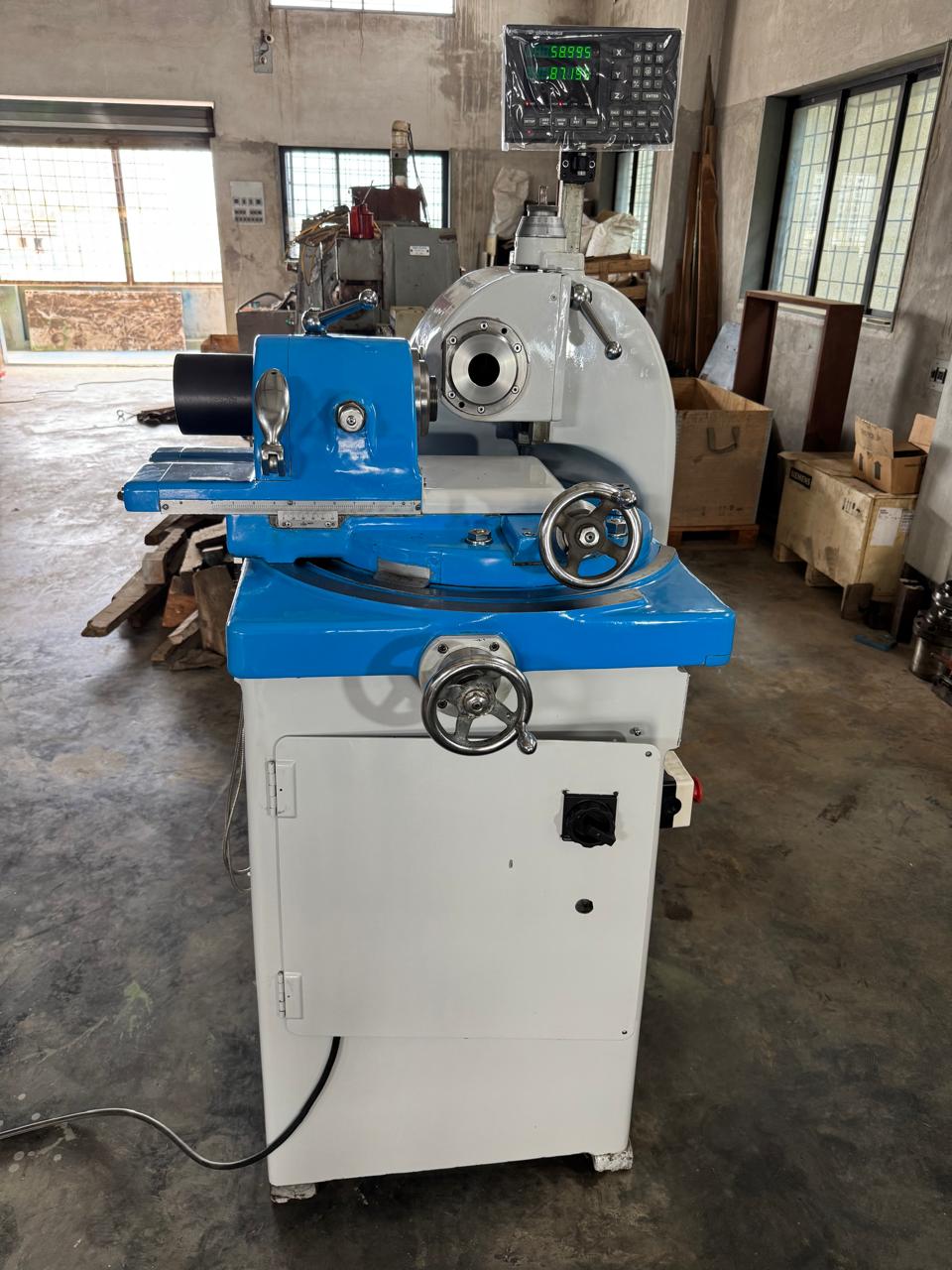

Type of Machine: Bevel Gear Tester (Rebult 2025)
Specification

Specifications :-
Testing Capabilities for Bevel & Hypoid Gears:
Rolling Qualities
Tooth Spacing
Tooth Profile
Concentricity
Backlash
Runout
SPINDLE RUNOUT:
Drive Spindle Bore:
Drive Spindle Face:
Driven Spindle Bore:
Driven Spindle Face:

SPECIFICATIONS:
Max. Diameter Of Gears: 7-1/2"
Range Of Angles: 0 Deg. - 180 Deg.
Range Of Pinion Spindle Offset Above/Below Center: 1-1/4"
Distance From Center Of Pinion Spindle:
To Nose Of Gear Spindle: 7"Max; 0"Min
Distance From Center Of Gear Spindle:
To Nose Of Pinion Spindle: 7"Max; 1"Min
Drive Spindle Speed (900 & 1800 RPM Motor): 1750 RPM & 3500 RPM
Diameter Of Taper Hole, Large End: 1-51/64"
Taper Per Foot: 1/2"
Depth Of Taper: 3"
Diameter Of Hole Through Spindle: 1-5/16"
Net Weight: 2100 lbs



Already rebuilt and certified — ready for immediate use.

As-good-as-new accuracy, restored to Gleason standards.

Modern reliability with DRO, renewed electricals, and fresh bearings.

Proven expertise: Over 40 years of gear industry experience.

Worldwide delivery & references available for overseas clients.
