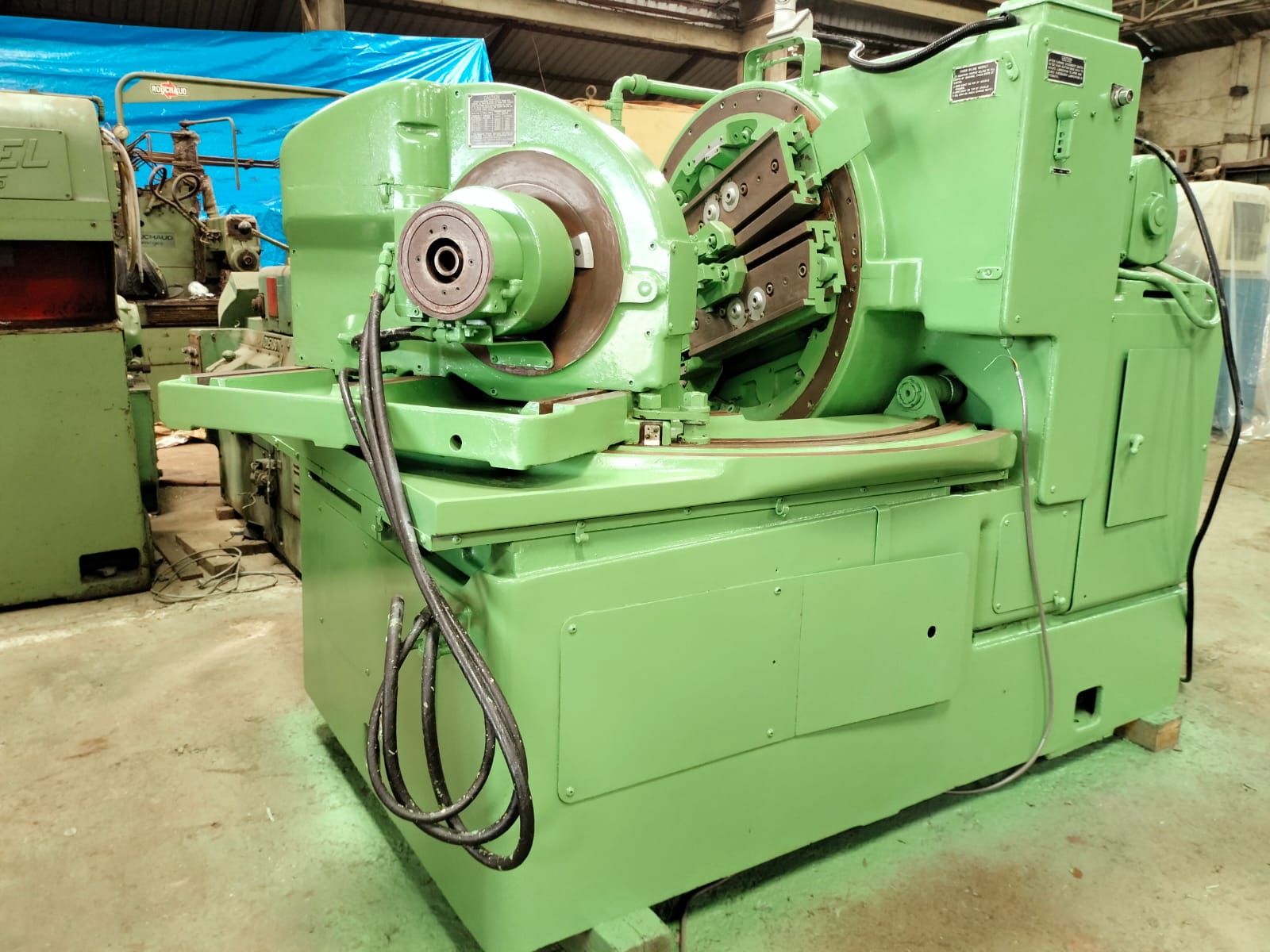

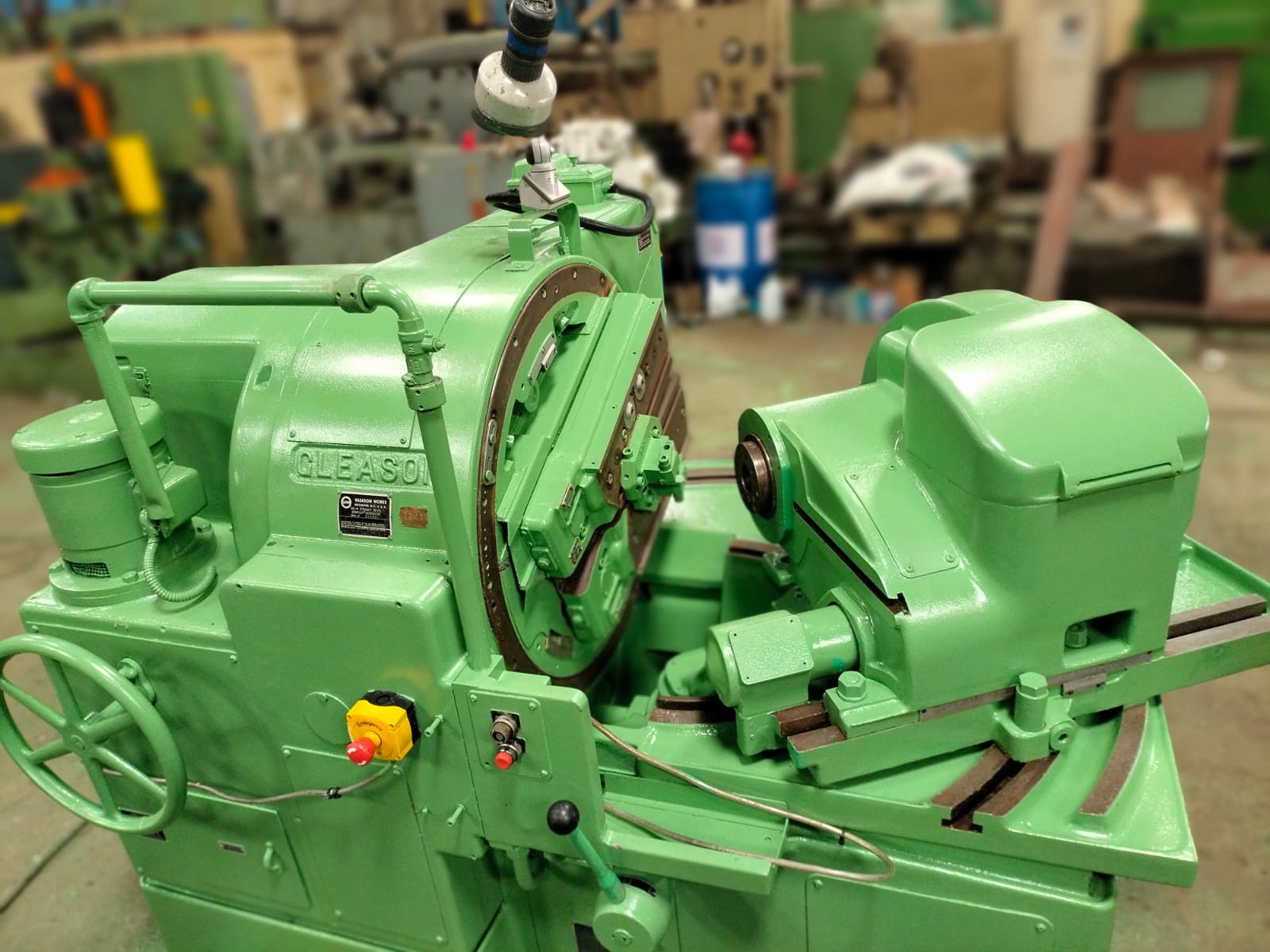

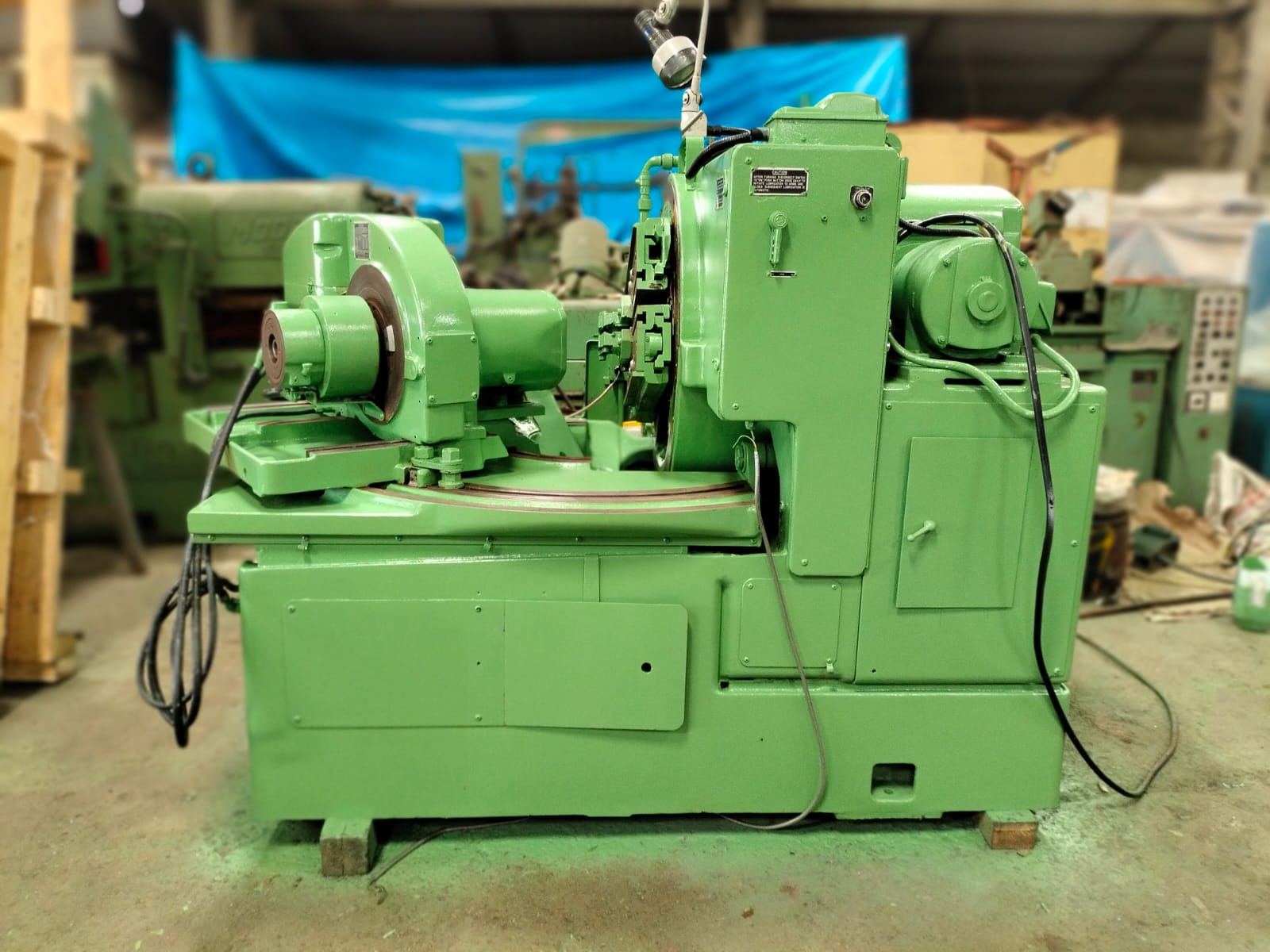

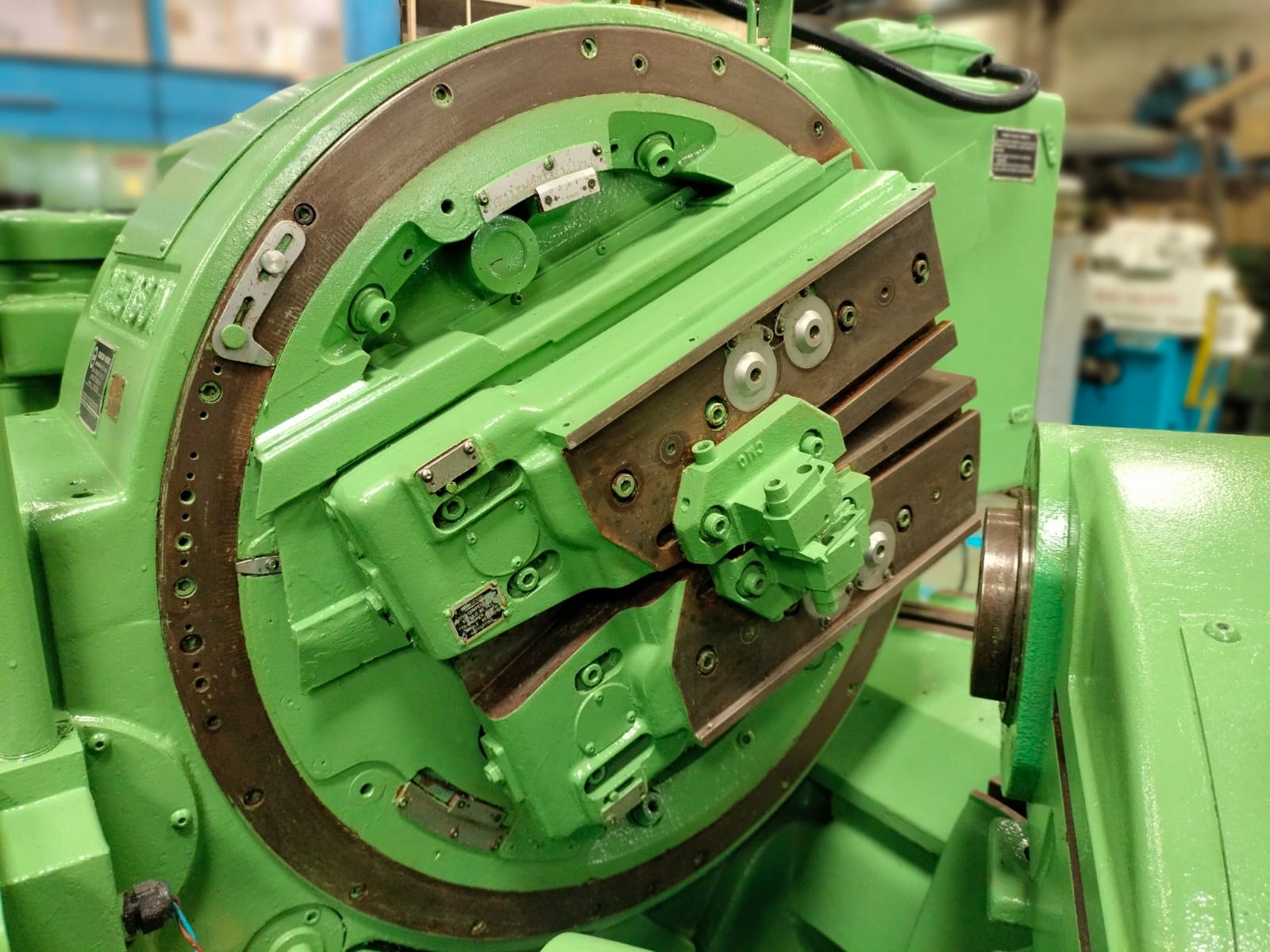

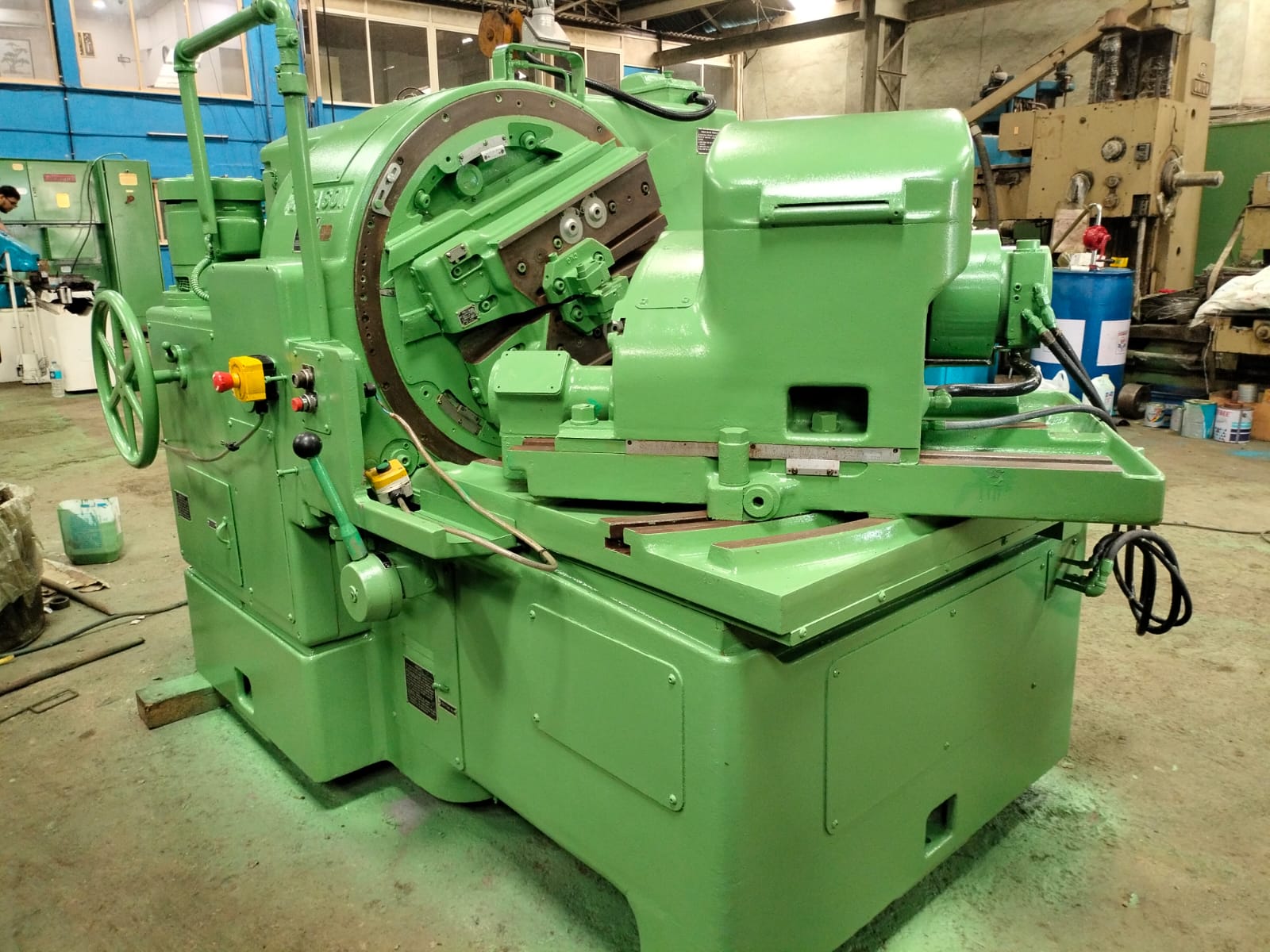

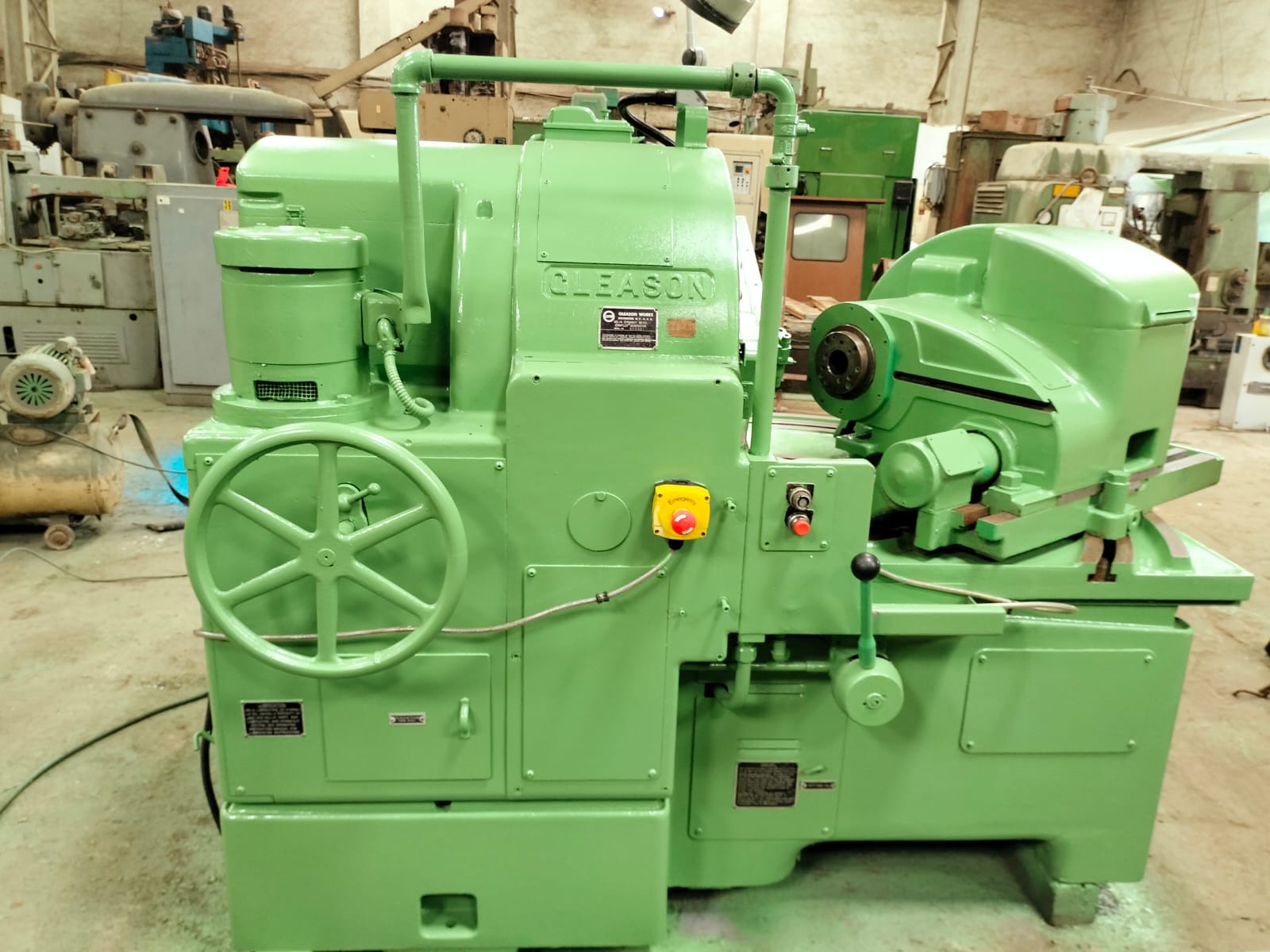

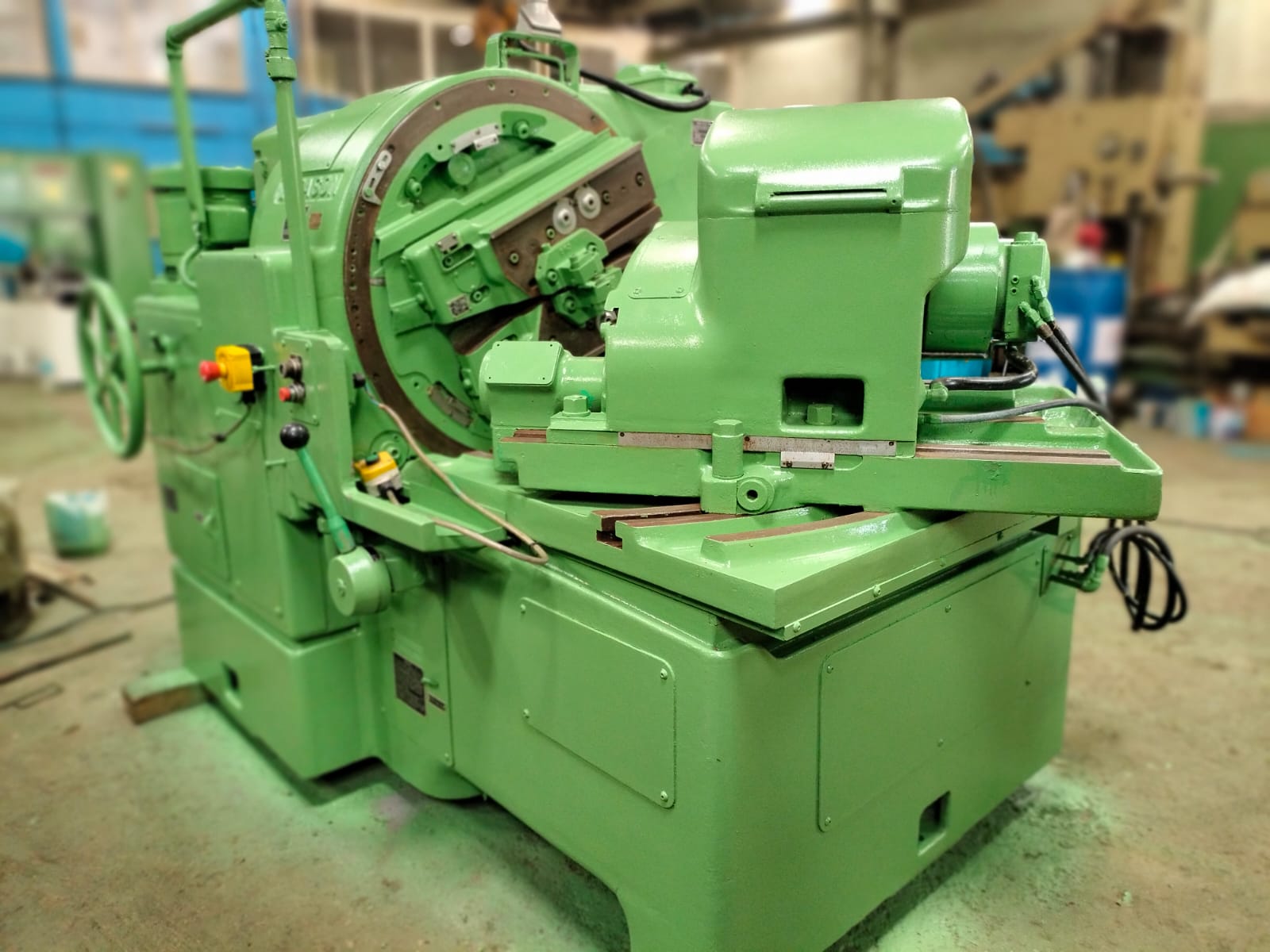

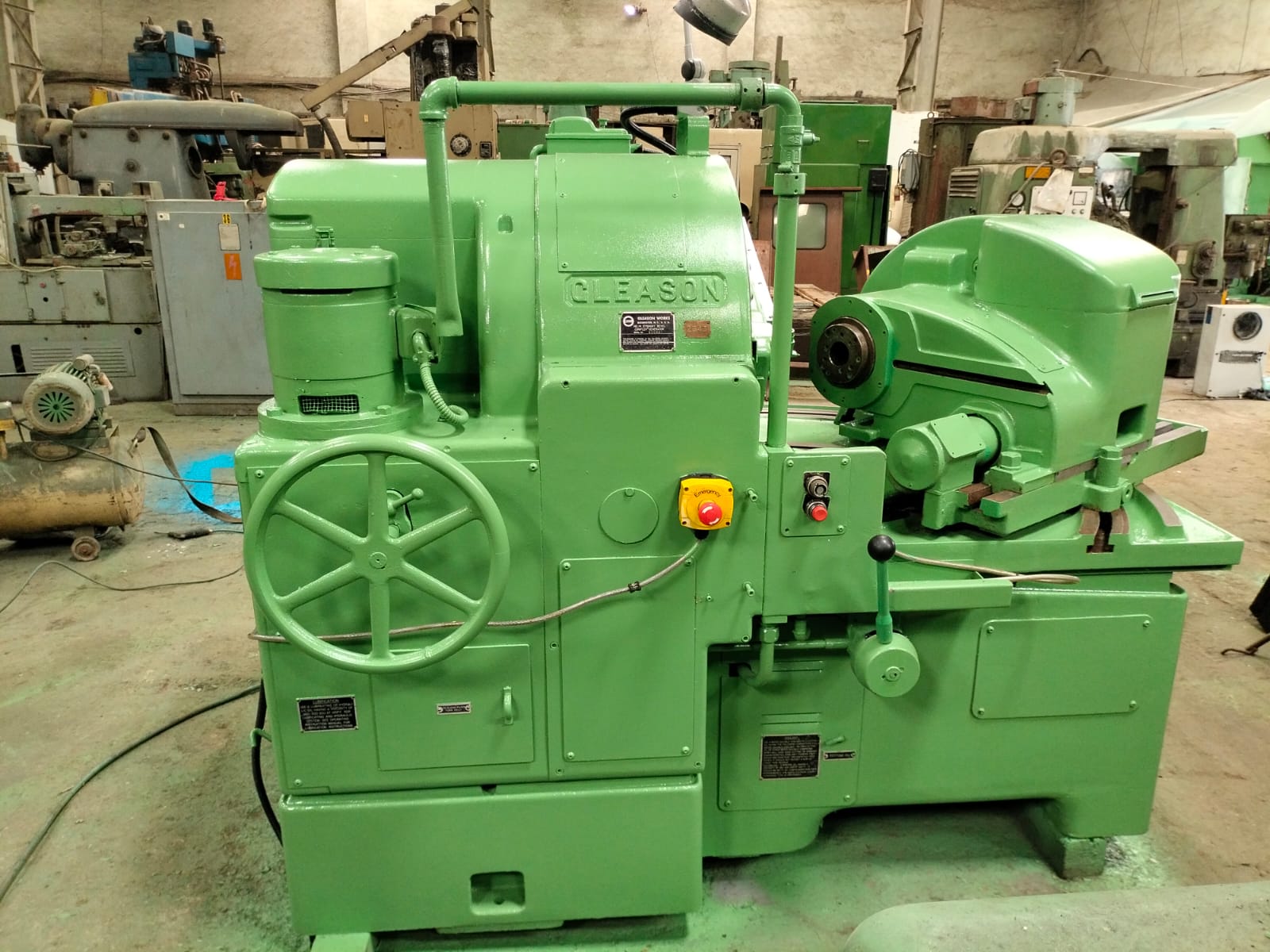

Excellent Machine Like New
Under Power

Machine Id: 351 Serial No: 23744
Model: 14 Asking Price: onrequest
Make: Gleason Country: United States
Year: 1980 Weight: 0.0
Dimensions: Location: Mumbai Warehouse
Power:
Category: Gear Related Machines

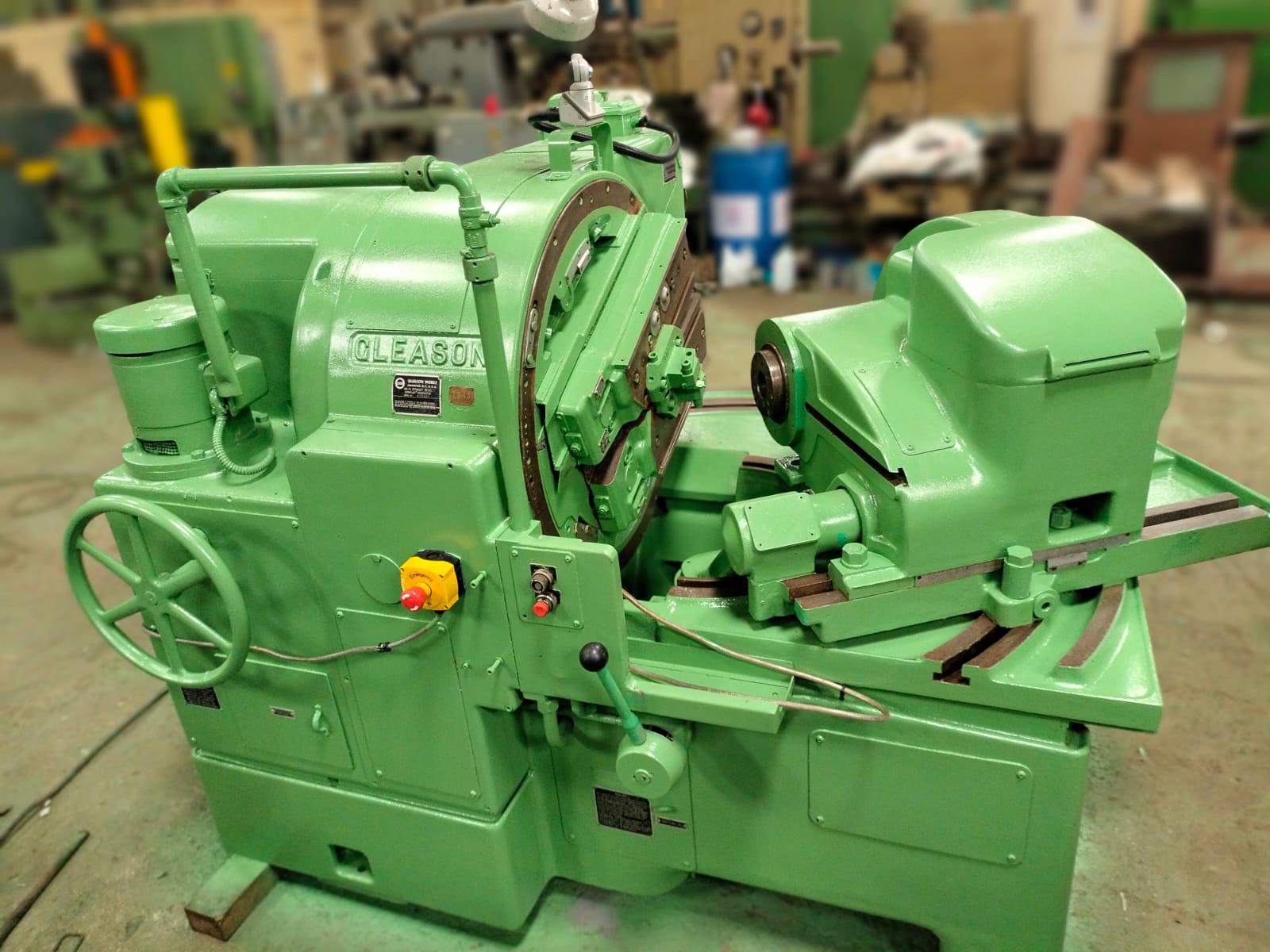

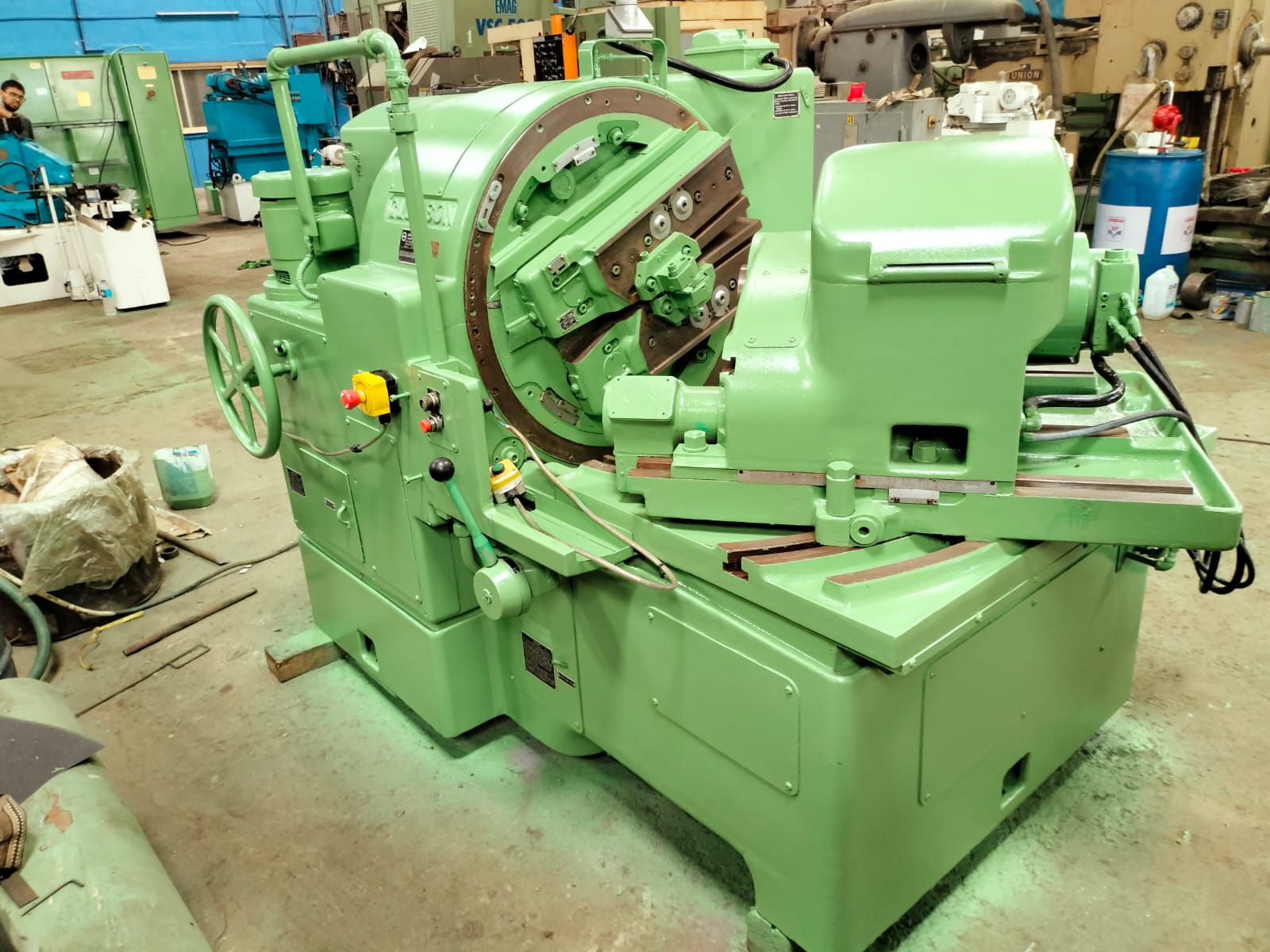

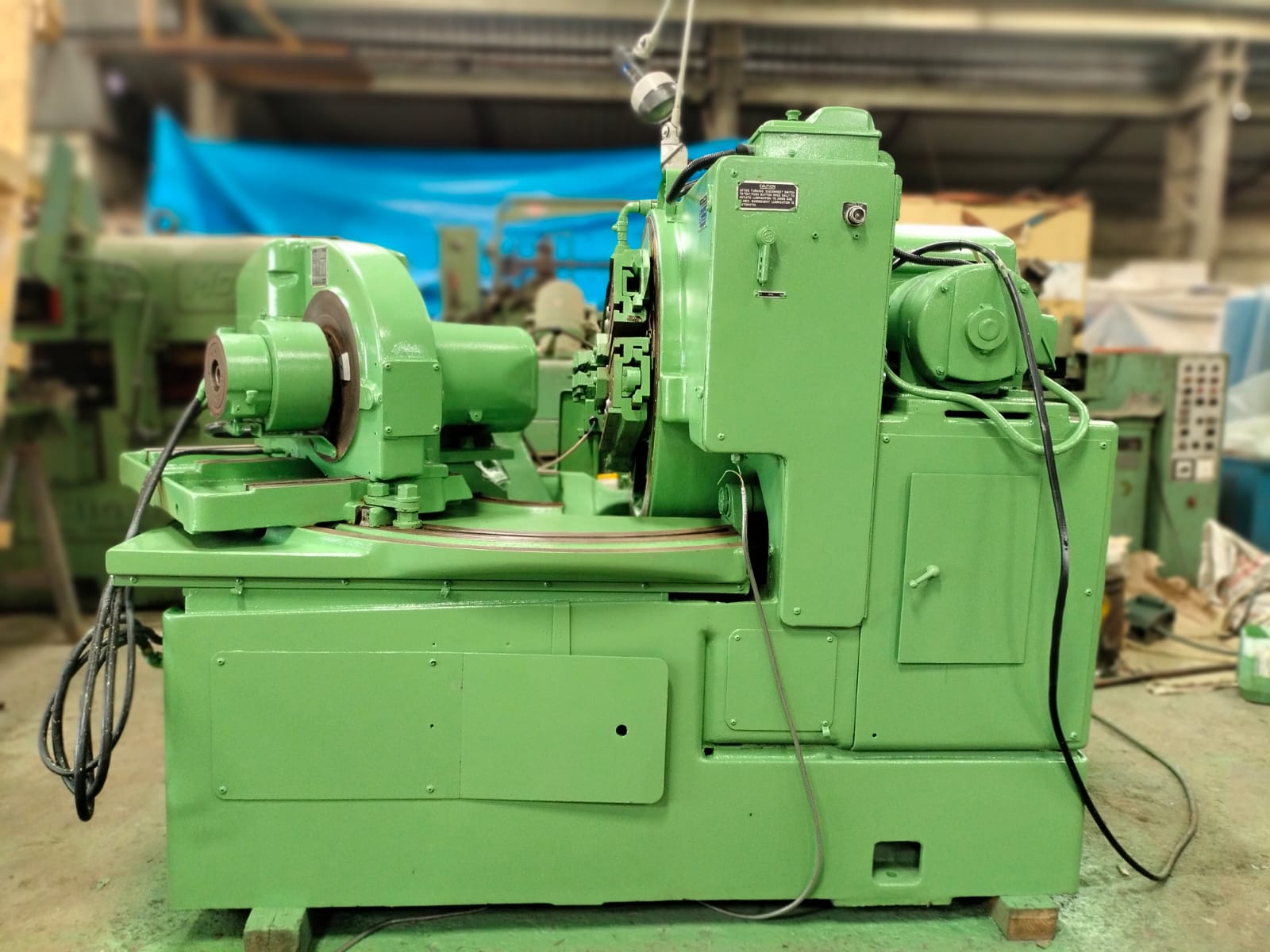

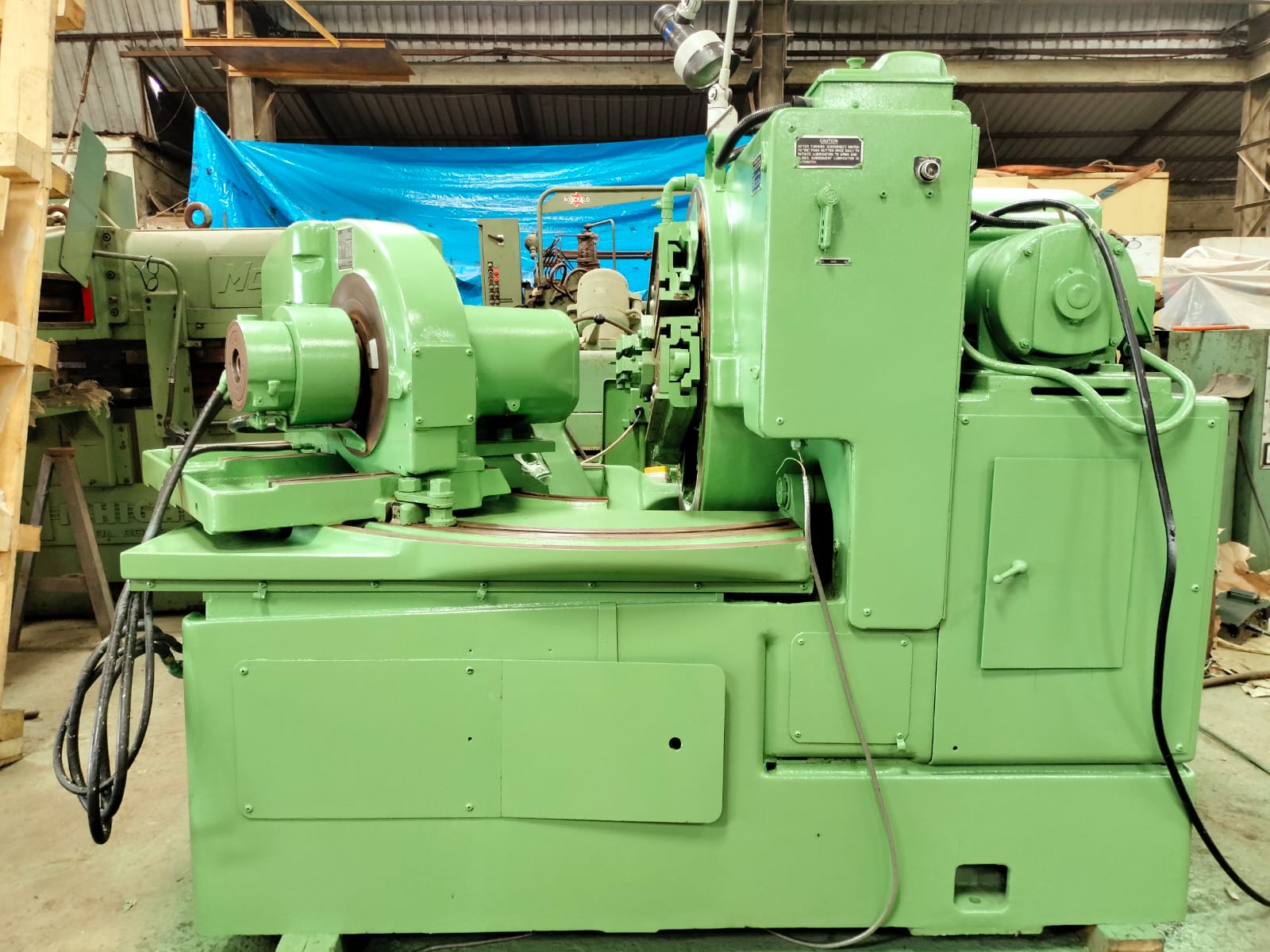

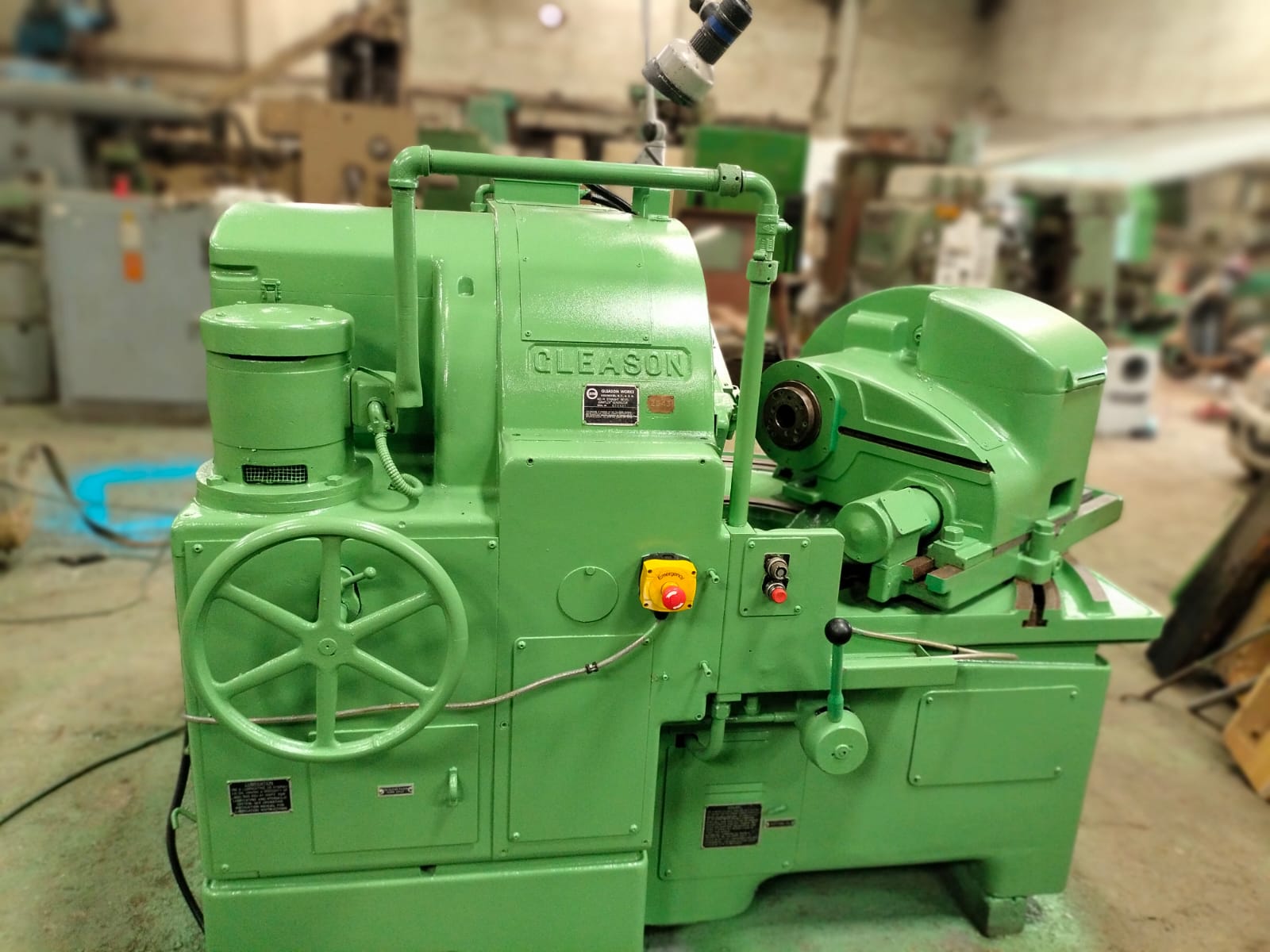

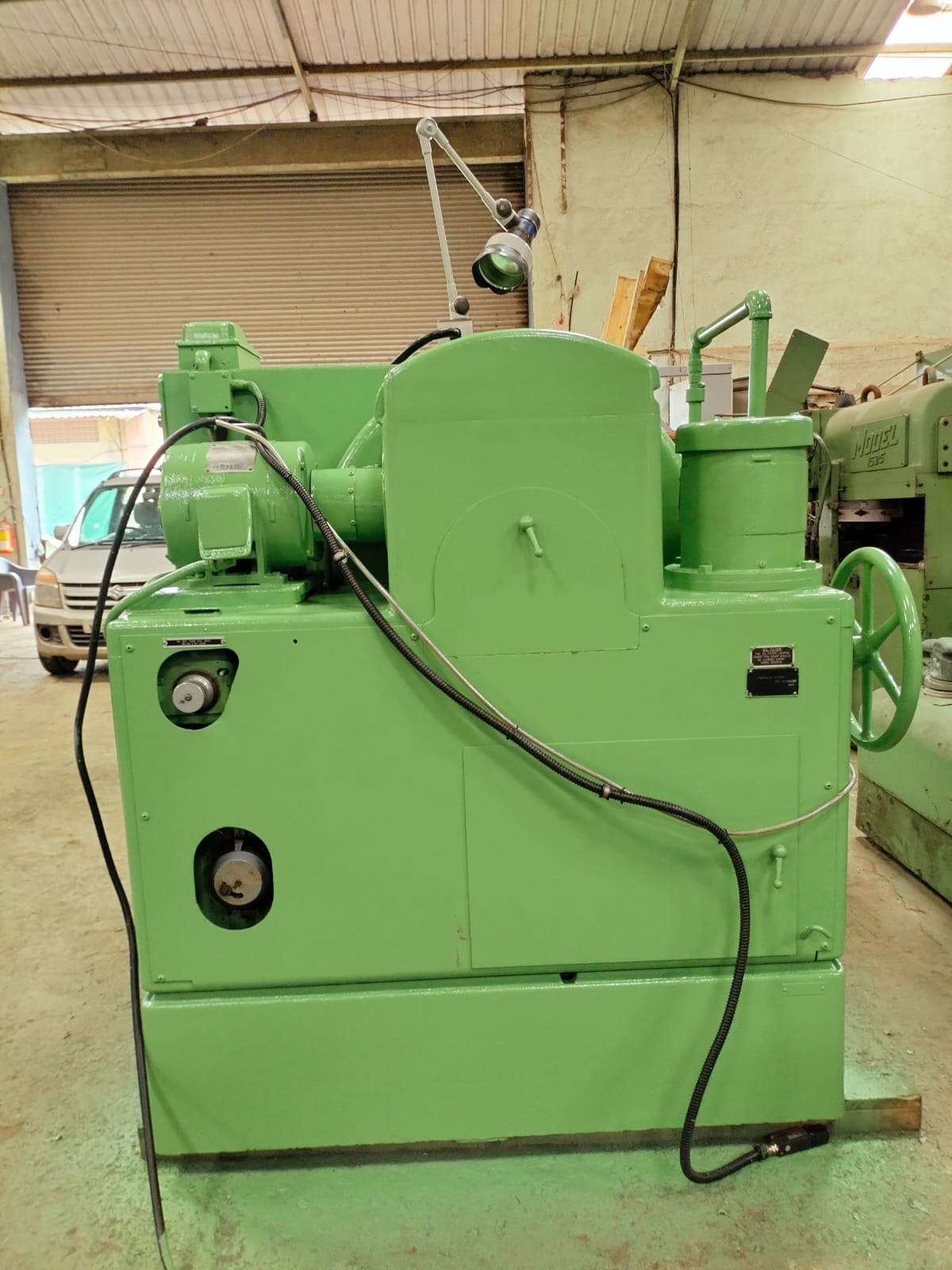

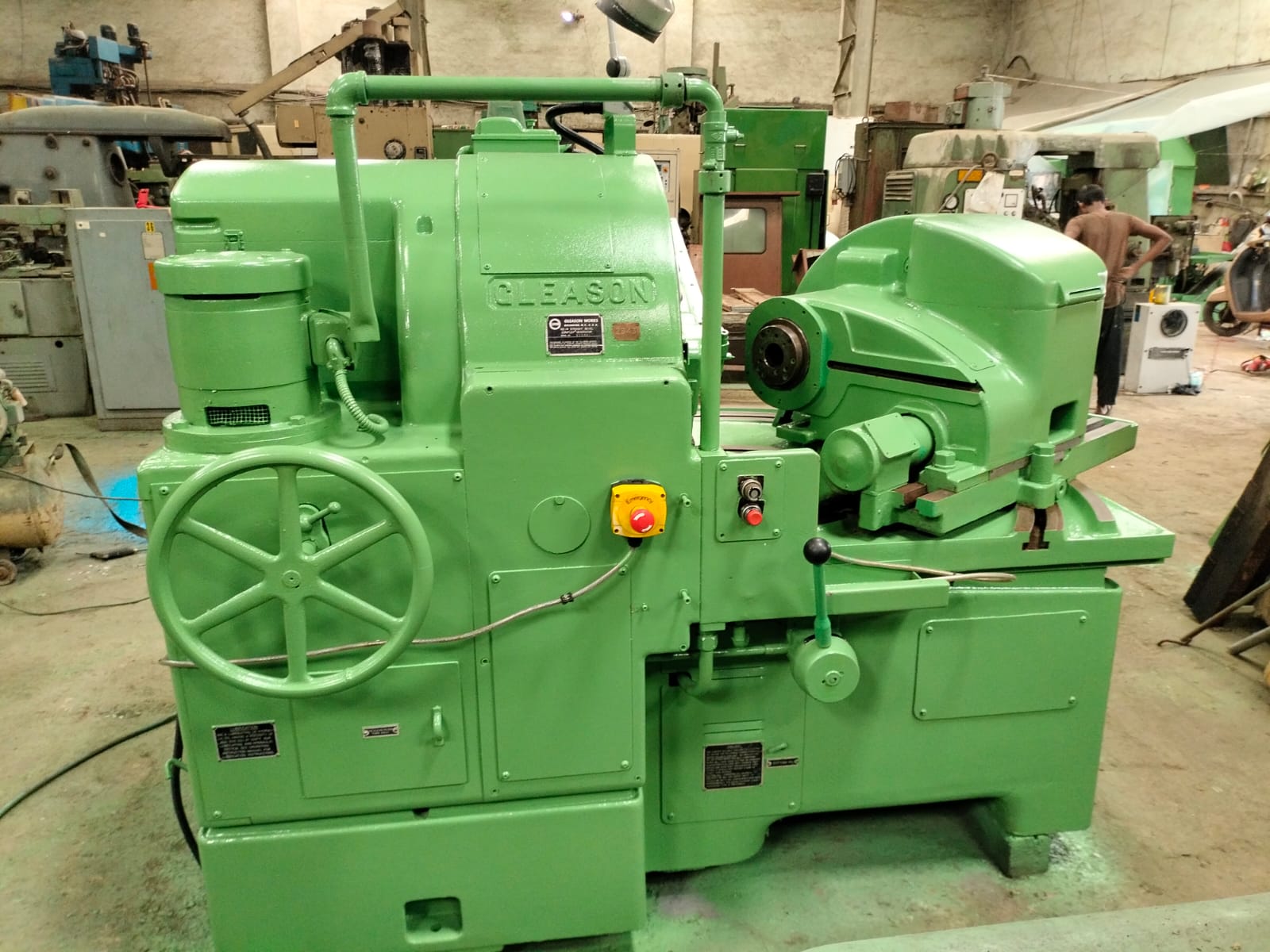

Type of Machine: Straight CONIFLEX STRAIGHT BEVEL GEAR GENERATOR
Specification


Maximum cone distance (2.75"-3.5" face)^12"


Maximum cone distance (1" face)^11-1/8"


Minimum cone distance^0"


Maximum pitch angle (angular gears)^105 deg


Maximum pitch angle (90-degree shafts)^84 deg/18min.


Minimum pitch angle^5 deg/42min.

Maximum ratio^10/1


Maximum pitch diameter^(see table)

Maximum face width^3.5"


Maximum Stroke Length^.5"-4.5"


Index Range (inclusive (+up to 200)^5-100


Maximum pitch^3 DP (nominal)


Diameter of hole in work spindle (large end)^3-29/32"


Spindle taper per foot^39/64"


Depth of spindle taper^6"


Diameter of spindle hole (15.75" deep)^3.25"


Spindle nose to center line^2.5 to 15"
