Machine Id: 1331 Serial No:
Model: 460 Asking Price: onrequest
Make: KLINK Country:
Year: Weight: 0.0
Dimensions: Location:
Power:
Category: Gear Related Machines
Type of Machine: Broach Sharpening Machine
Specification

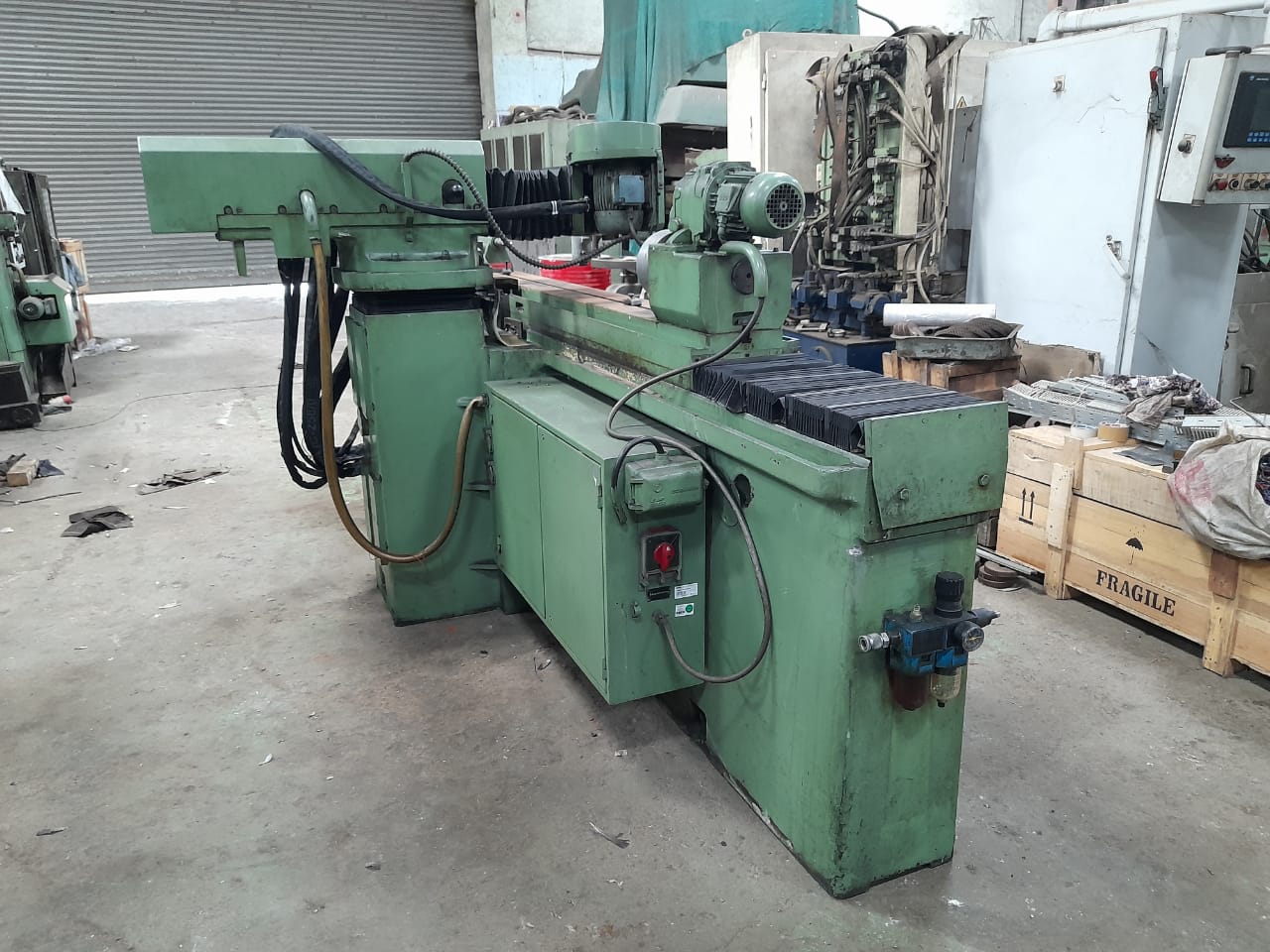

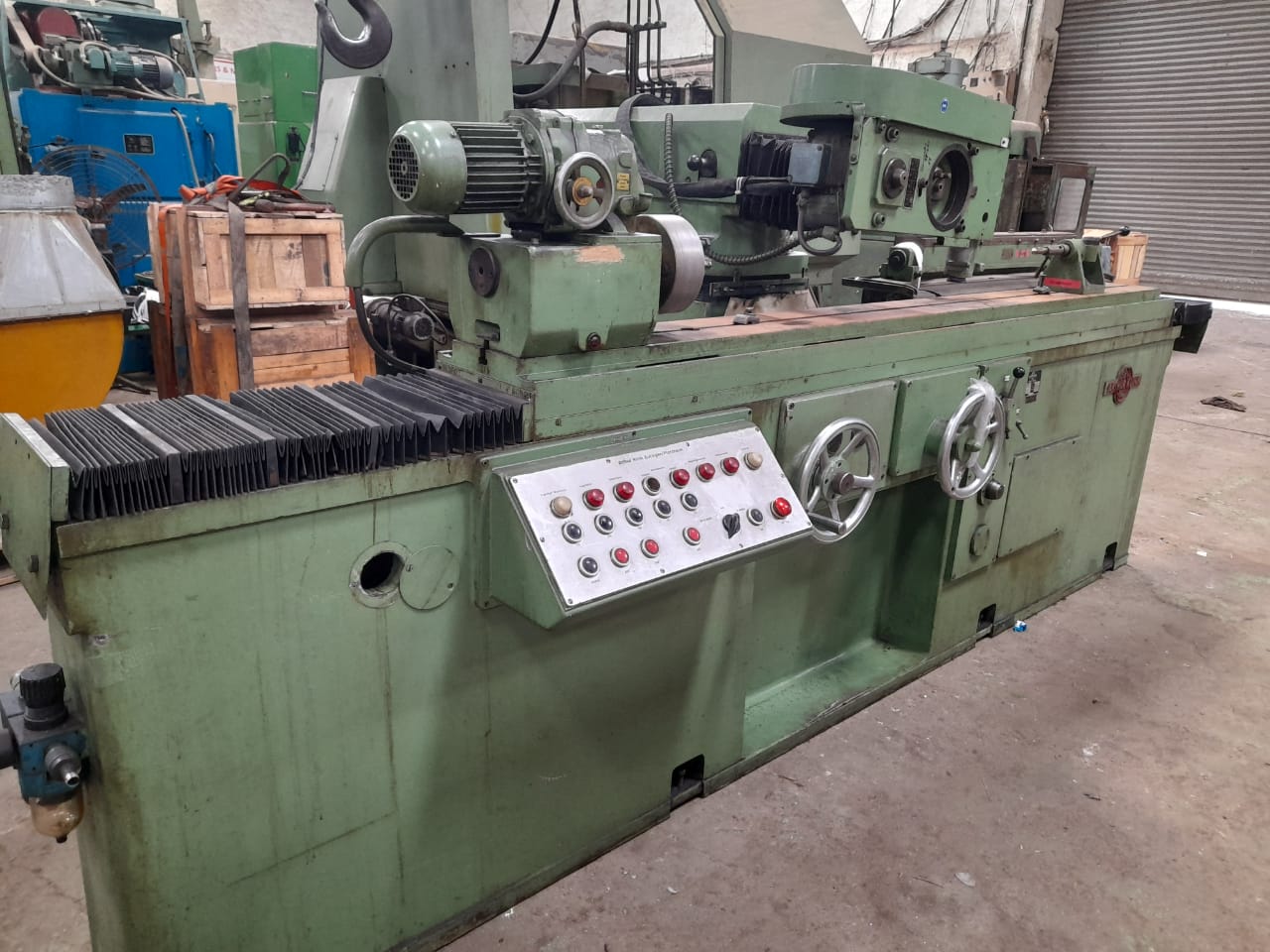

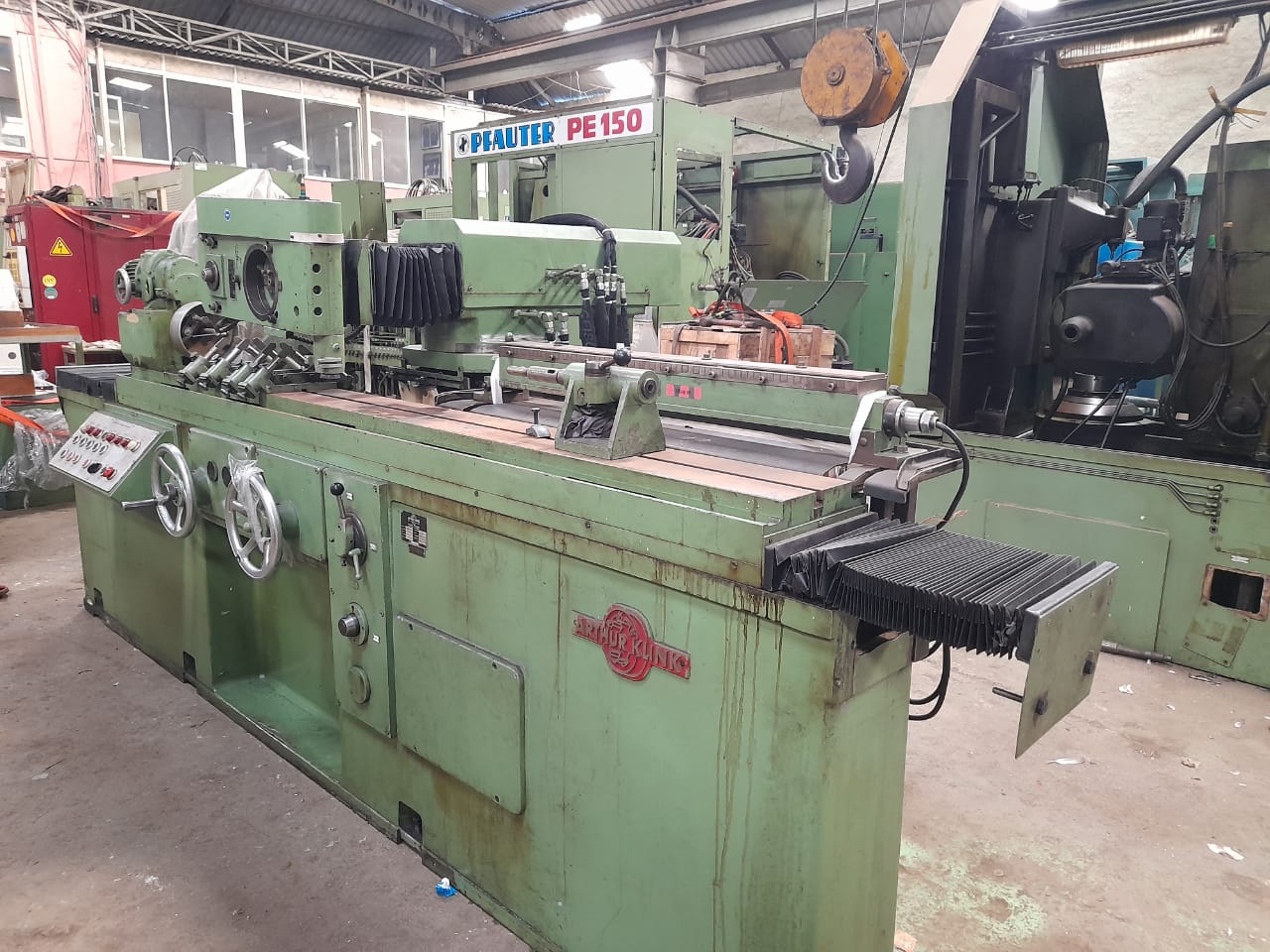

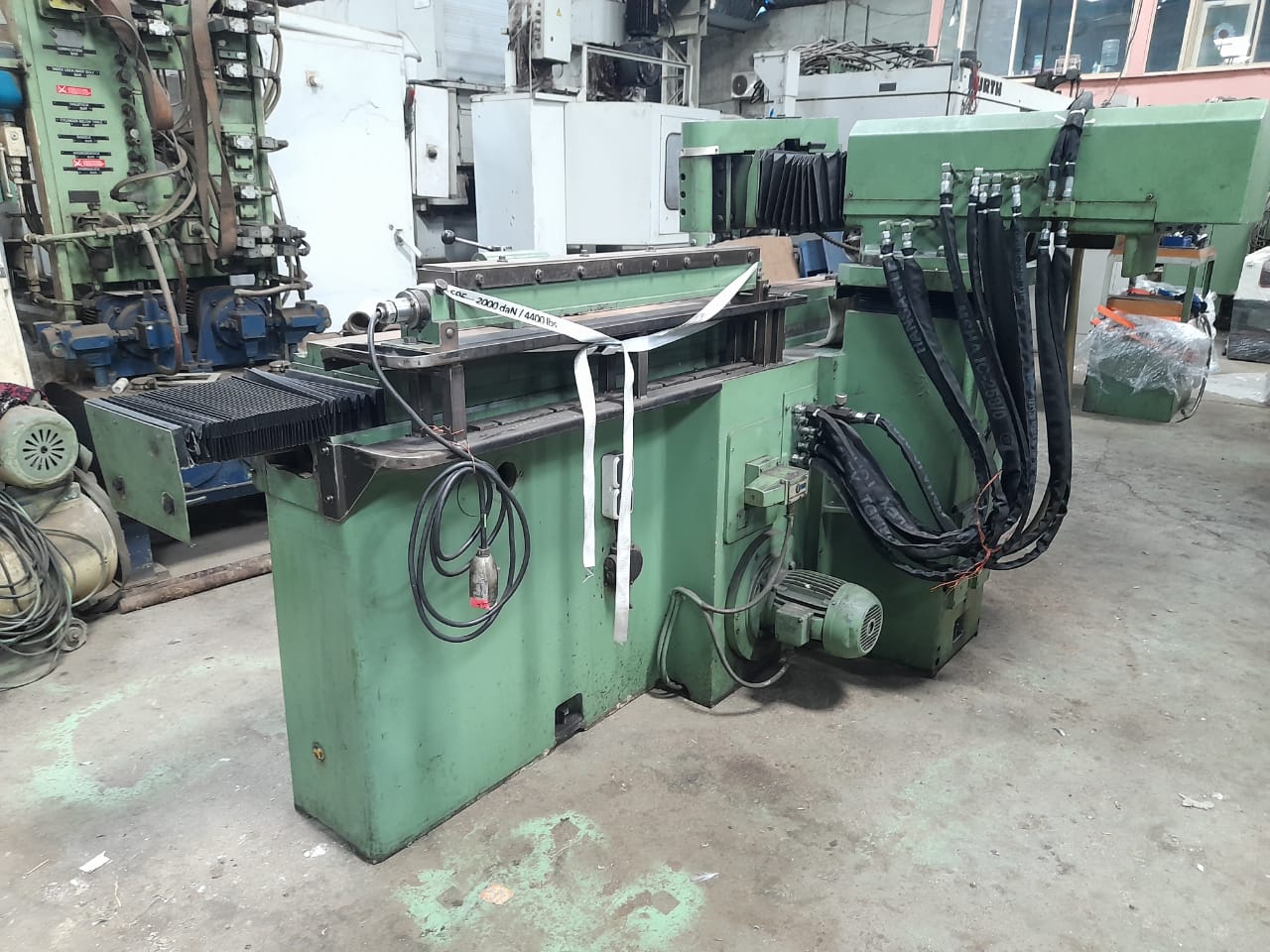

Broach Sharpening Machine

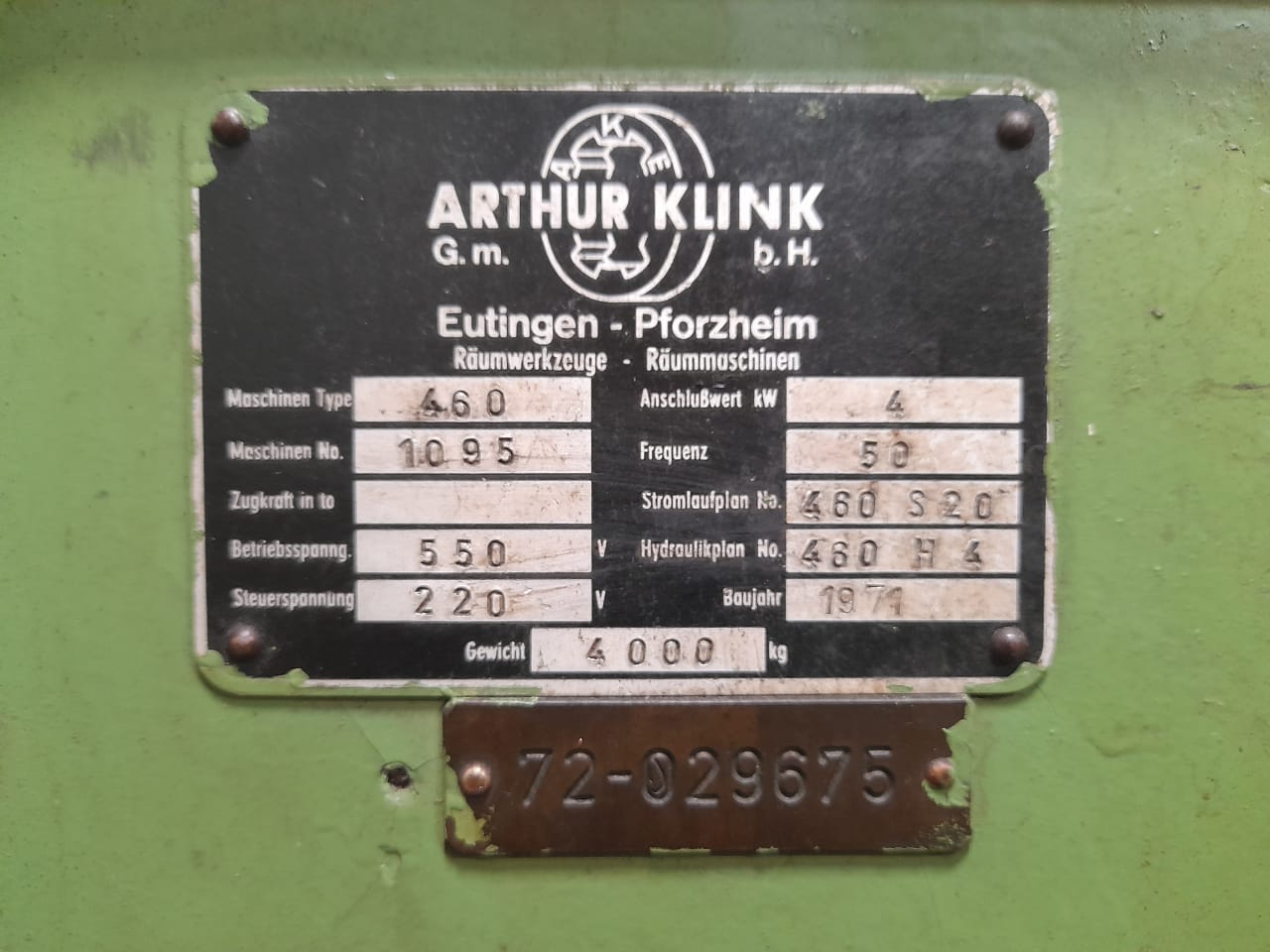

Manufacturer:  KLINK

Model / Type:    460

Manufacturing number 1090,

Grinding length max. 2000 mm,

Grinding width max. 300 mm,

Centre width 2000 mm,

Grinding table clamping surface 2700 x 200 mm,

Table movement by hand 2000 mm,

Grinding support: movement horizontal hydraulic 300 mm,

Vertical by hand 260 mm,

Swivelling 60°,

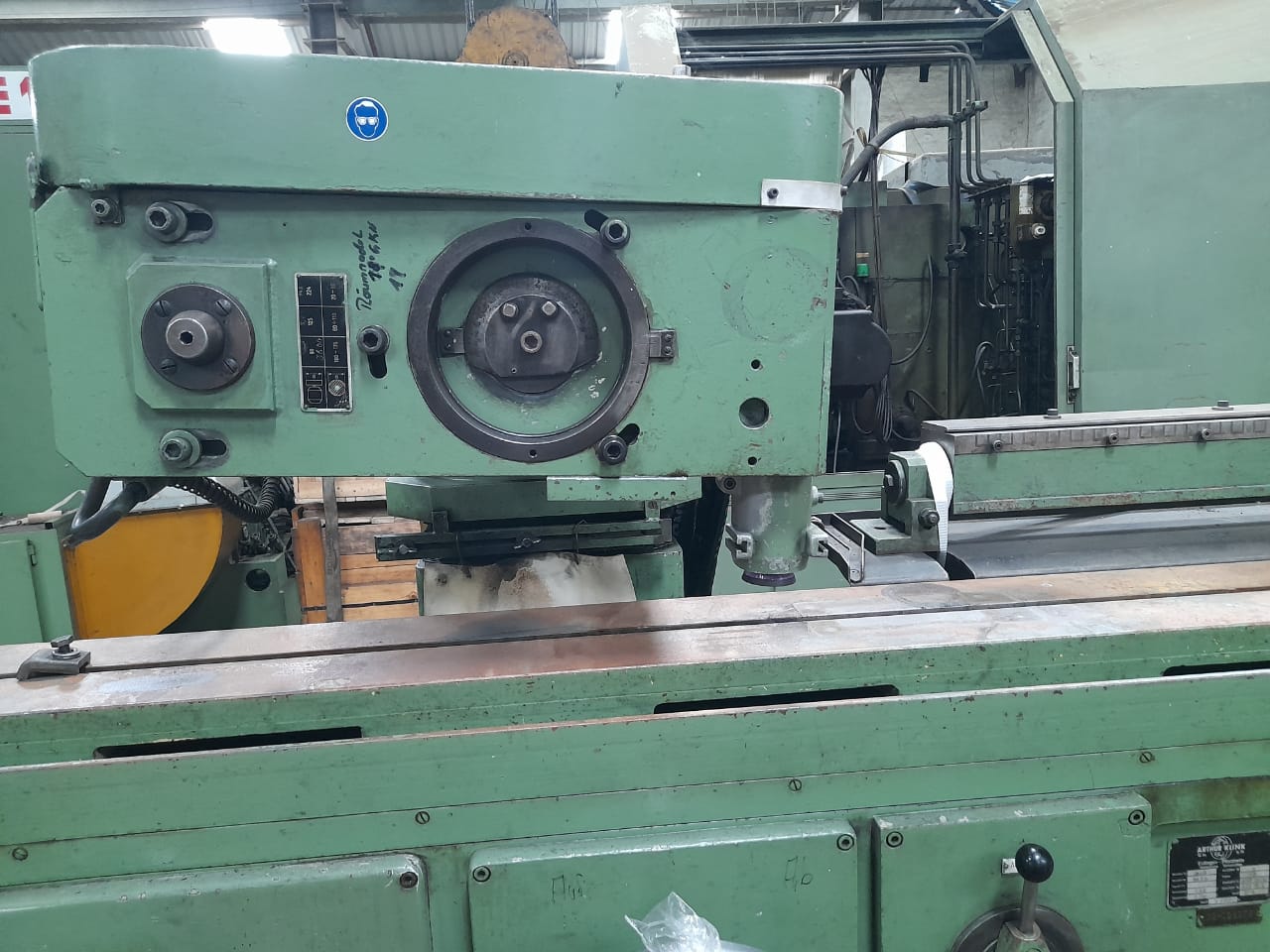

Grinding head swivelling range 90°,

Disengaging movement 25 mm,

Disengaging angle 11°,

Clamping breaker slide: Working stroke by hand 10 mm,

Movement horizontal by hand 115 mm,

Grinding spindle: taper 1:6,

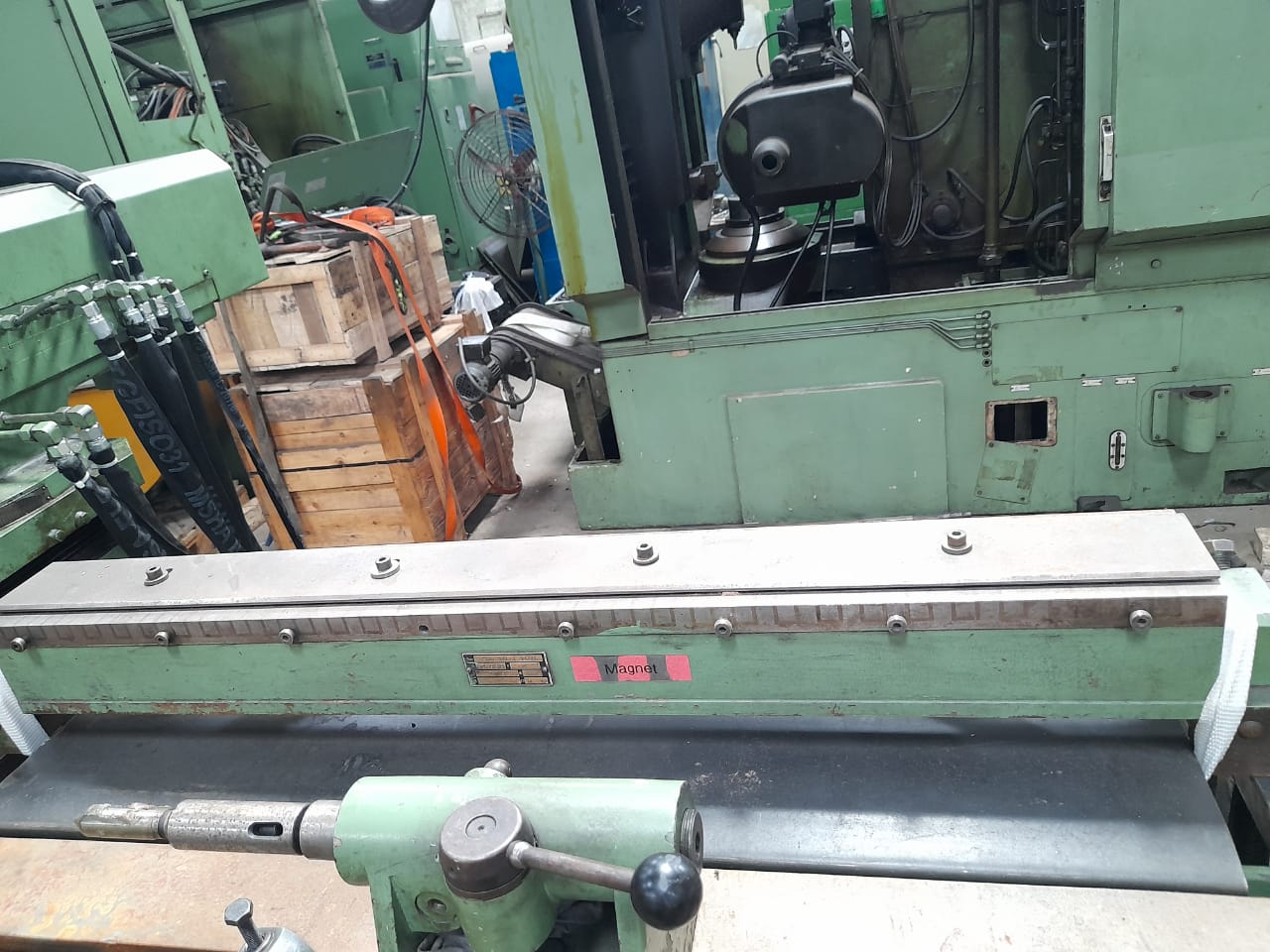

Magnetic clamping plate 1000 x 100 mm,

Swivel range 90°,

Height adjustment 12 mm,

Grinding spindle 60 mm diameter x 250 mm

Machine Weight approx. 4,200 kg

Dimensions (l x w x h) approx.    5,000 x 1,700 x 2,100 mm
