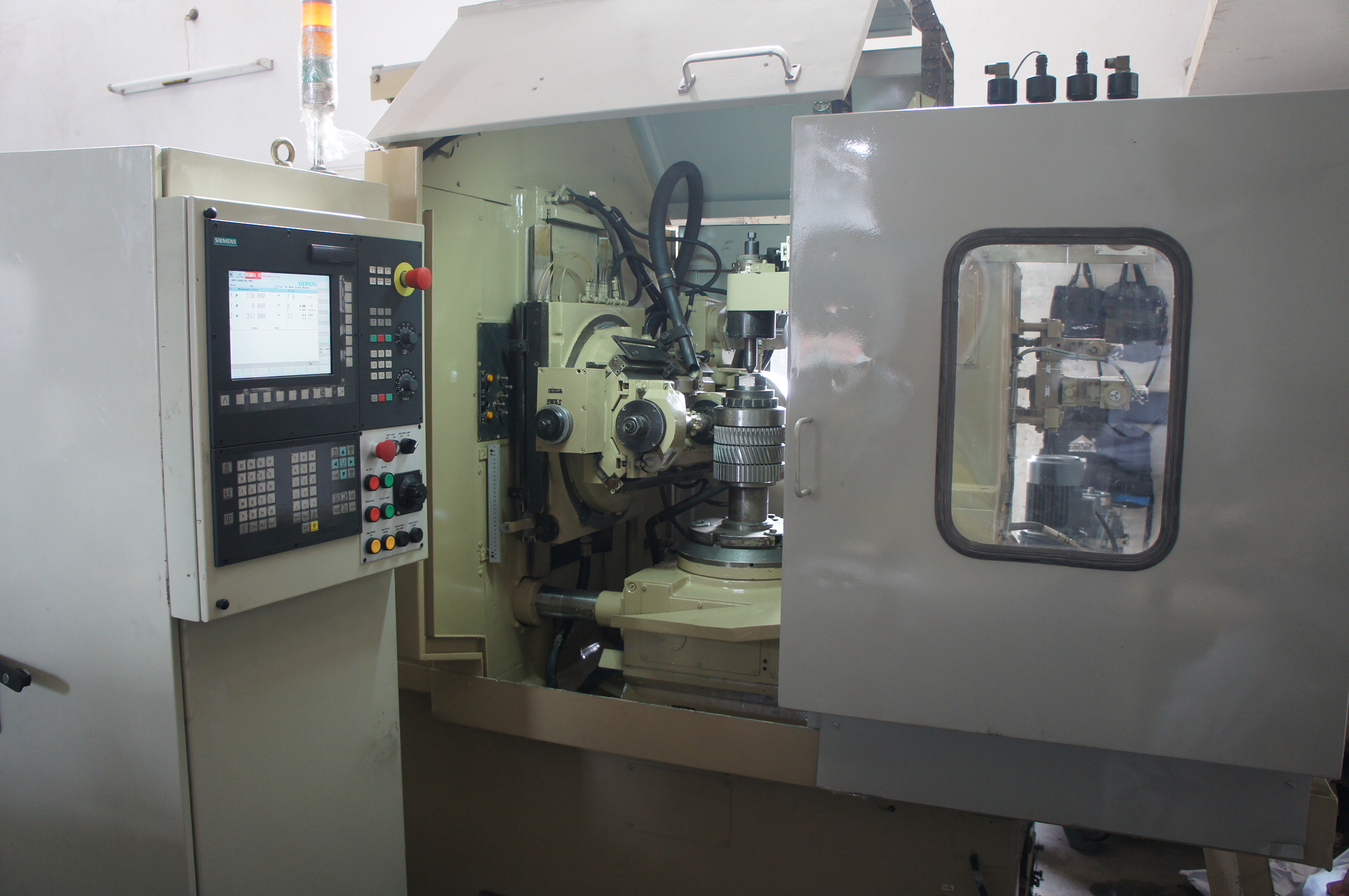

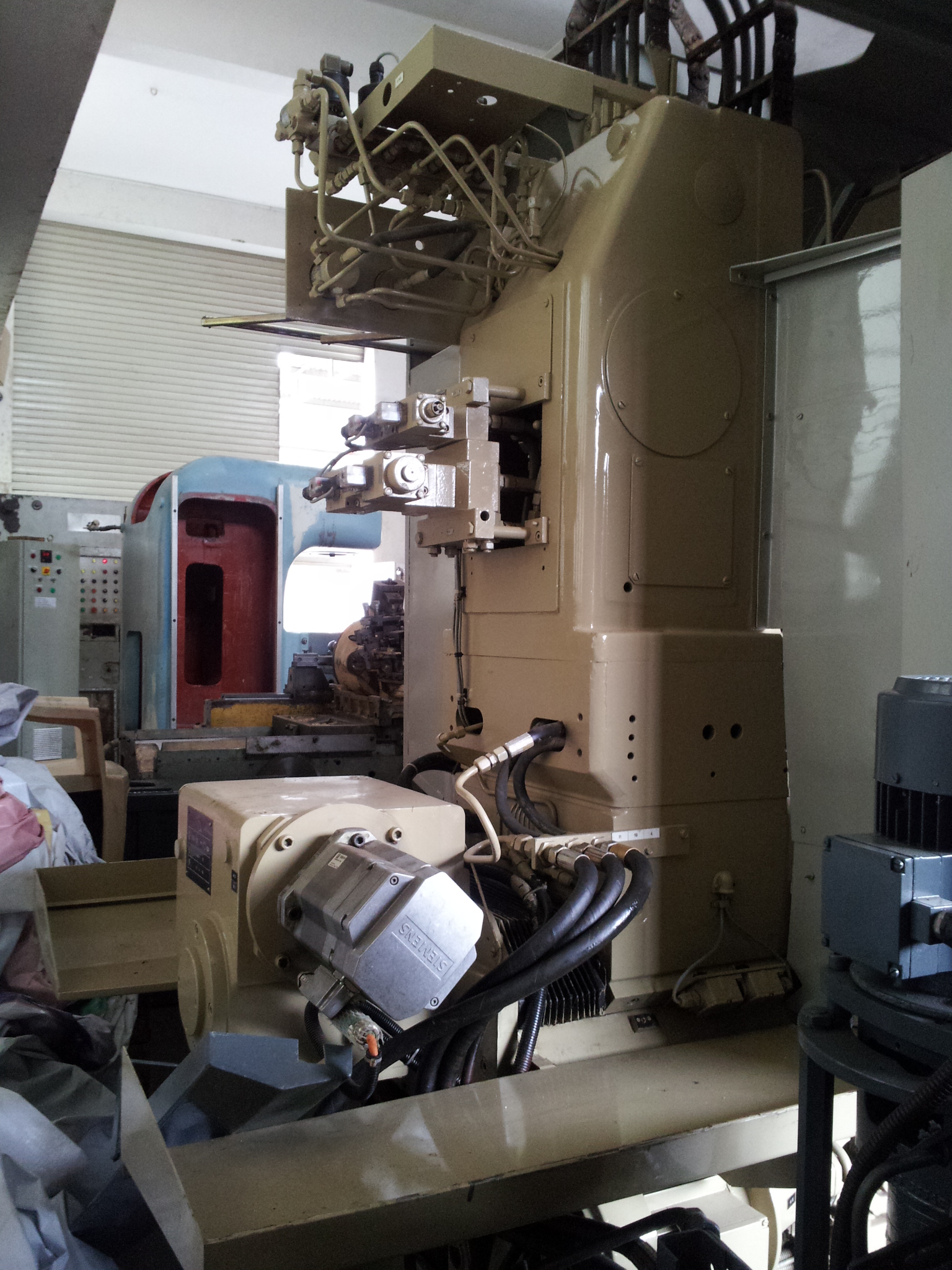

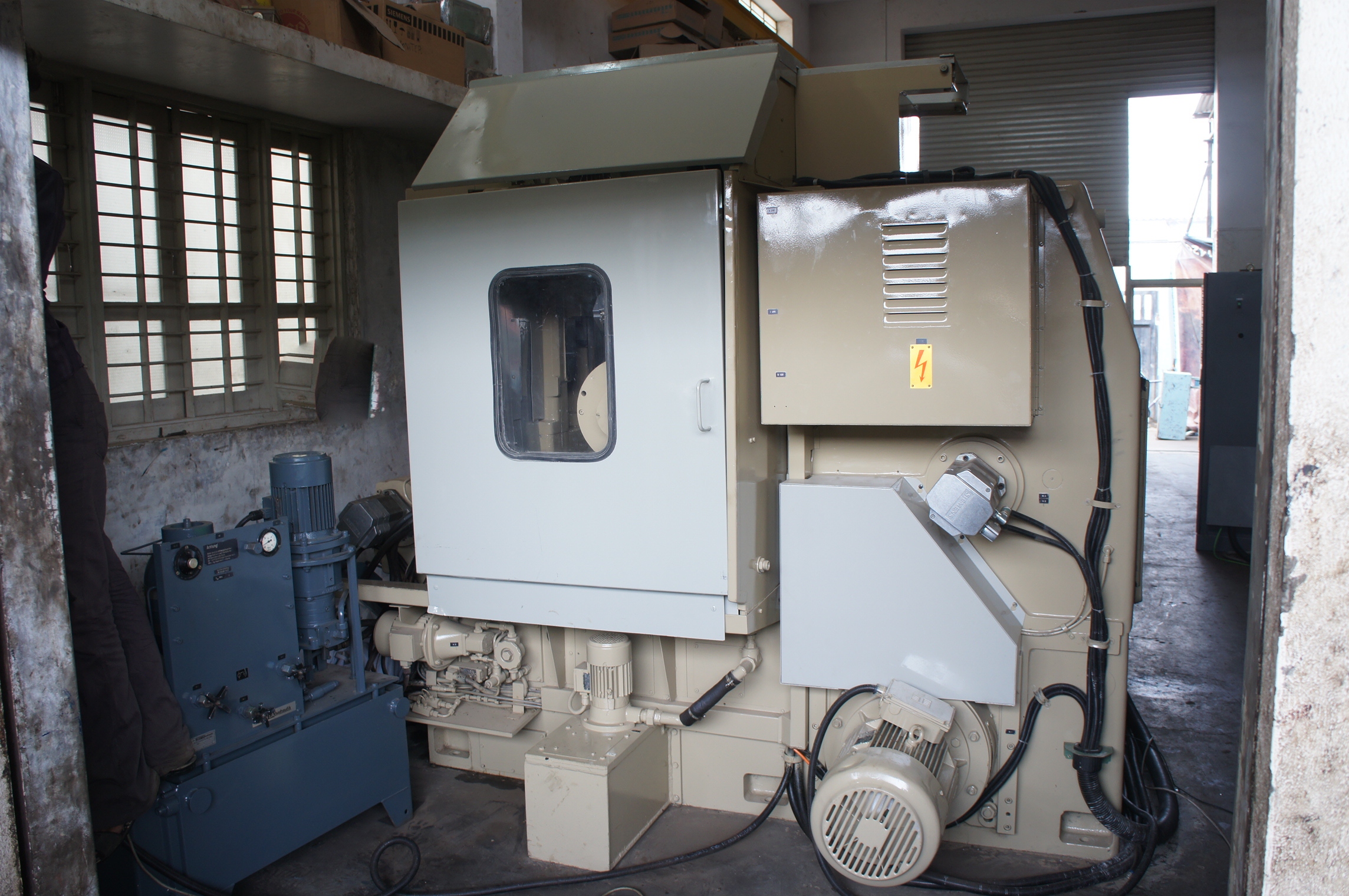

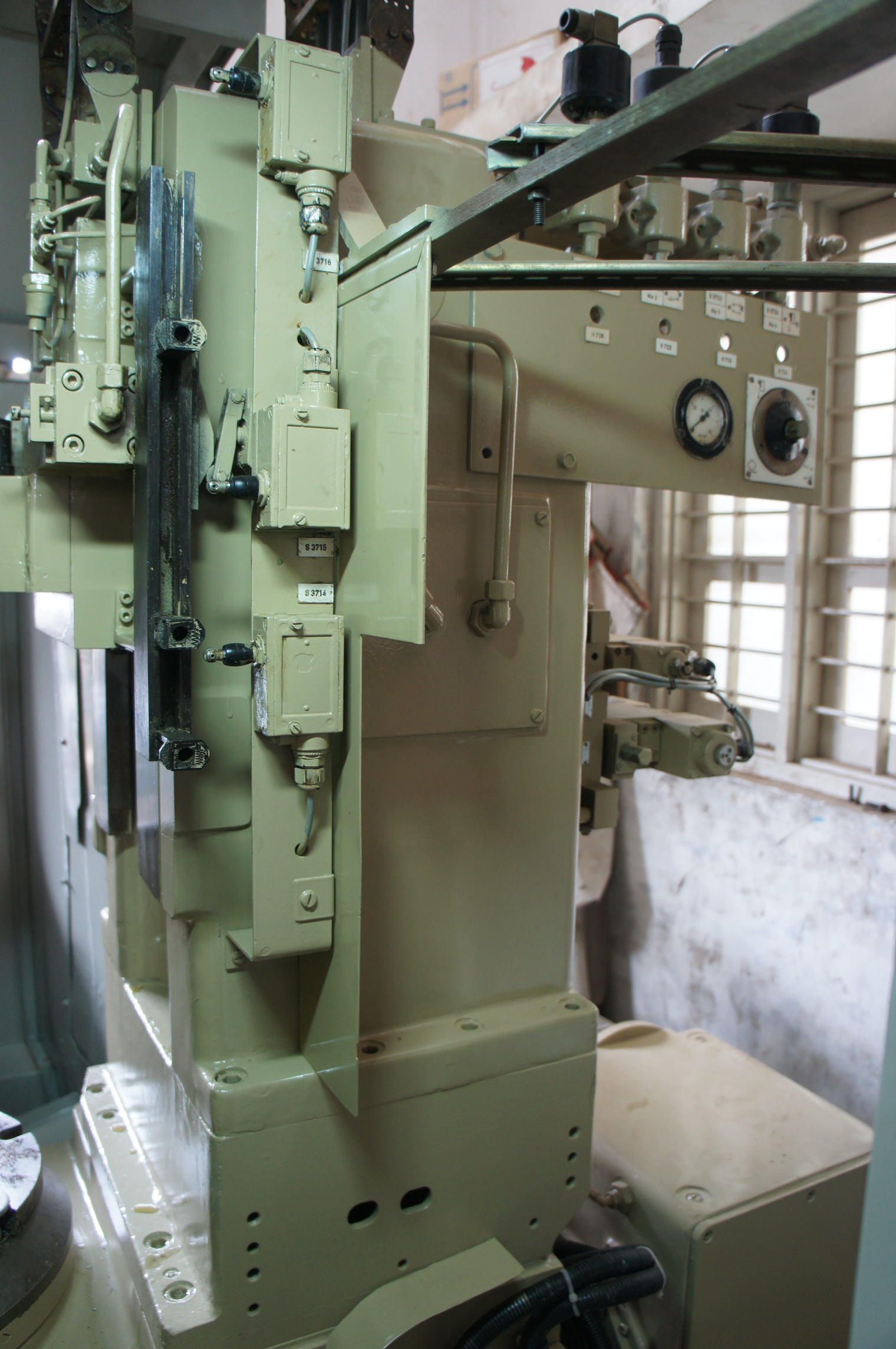

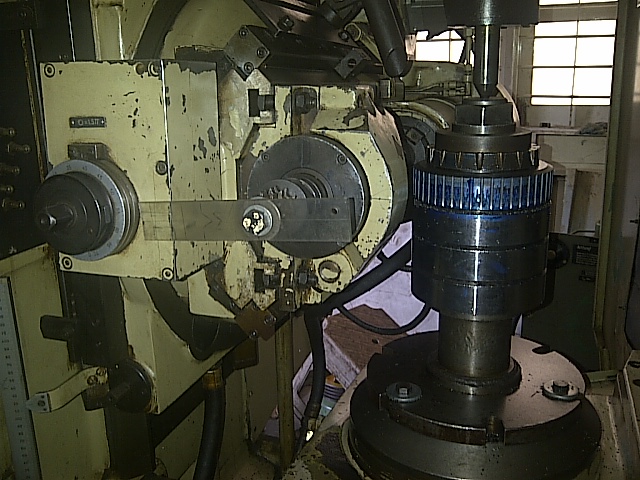

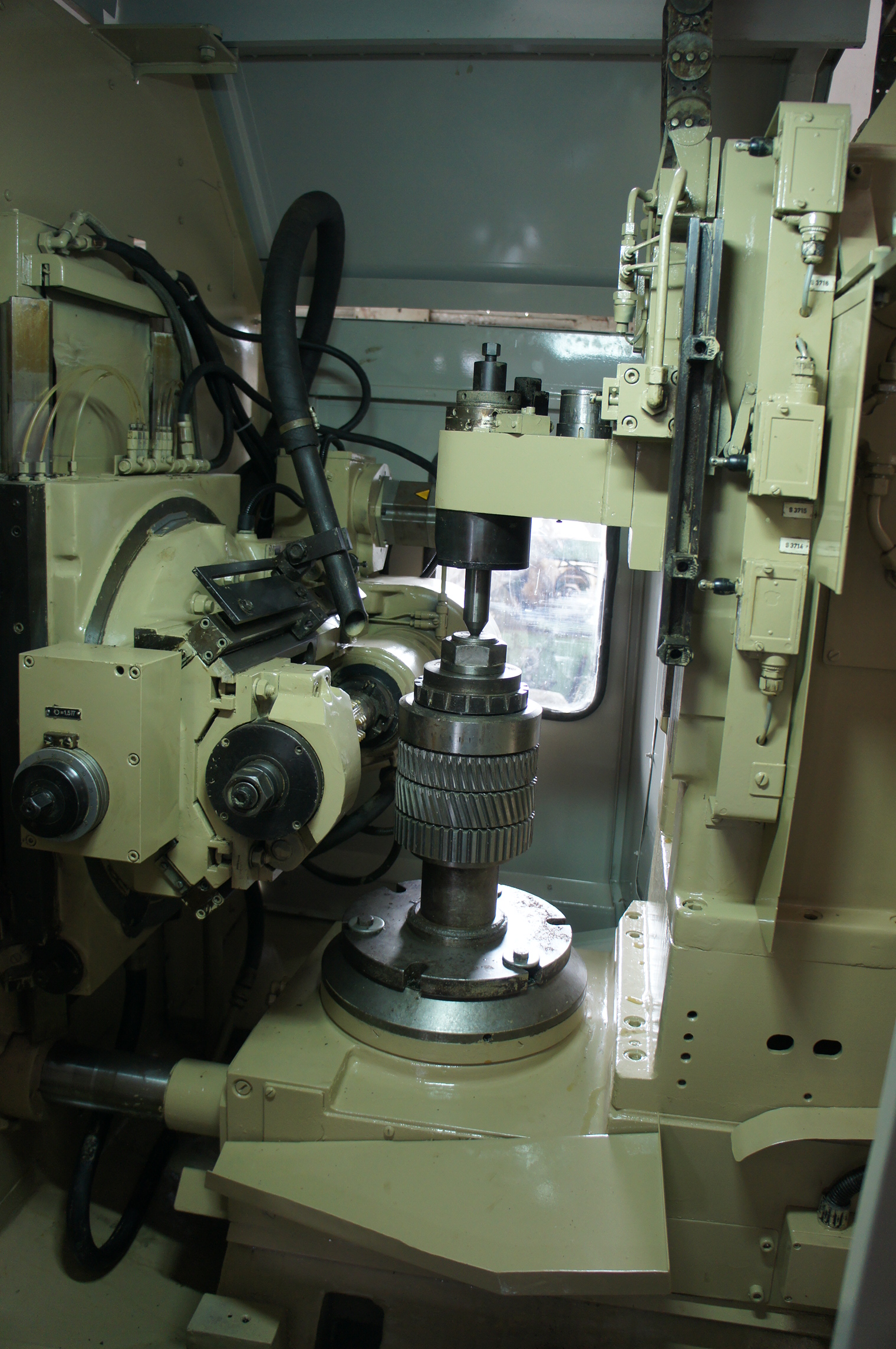

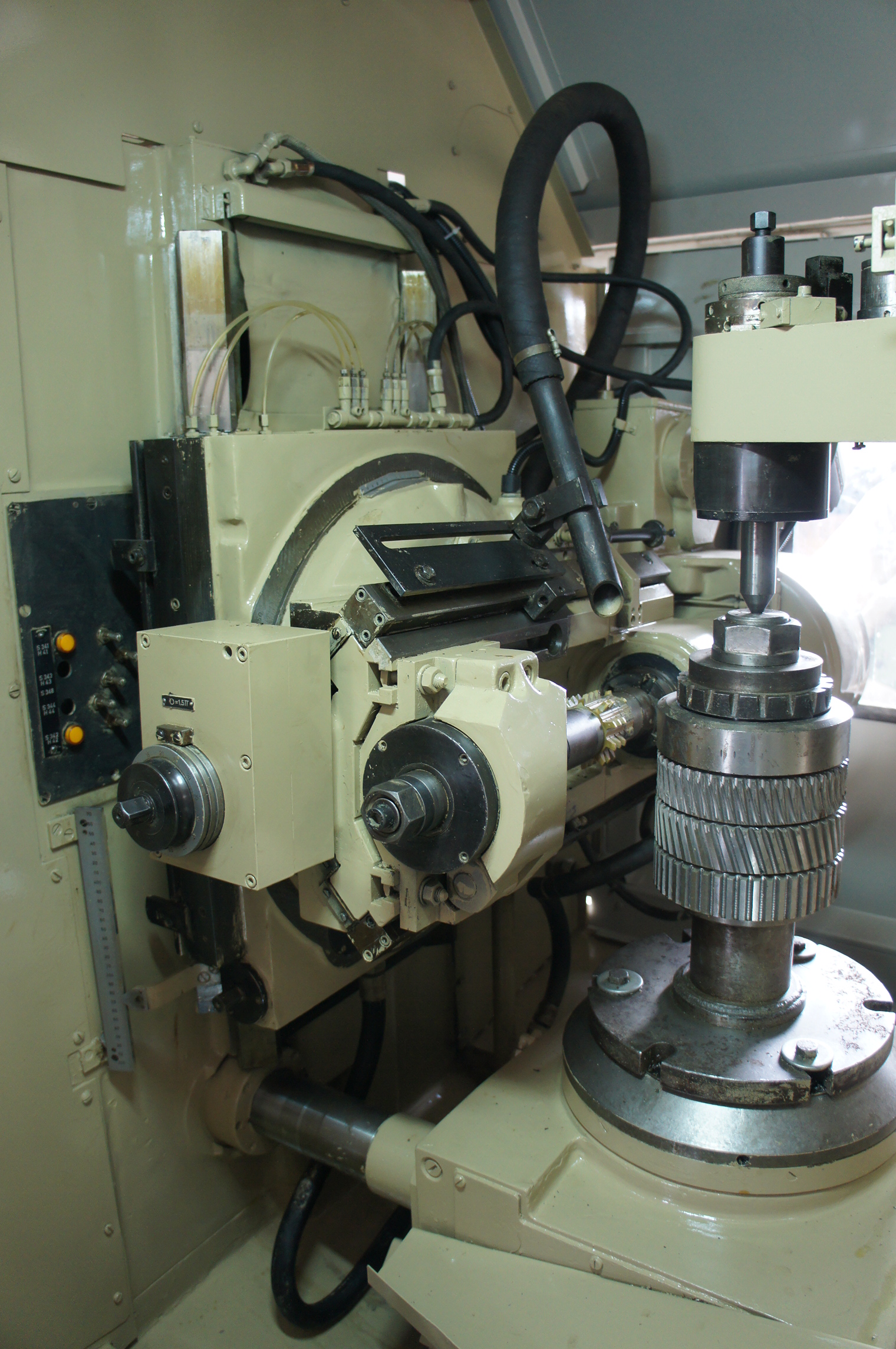

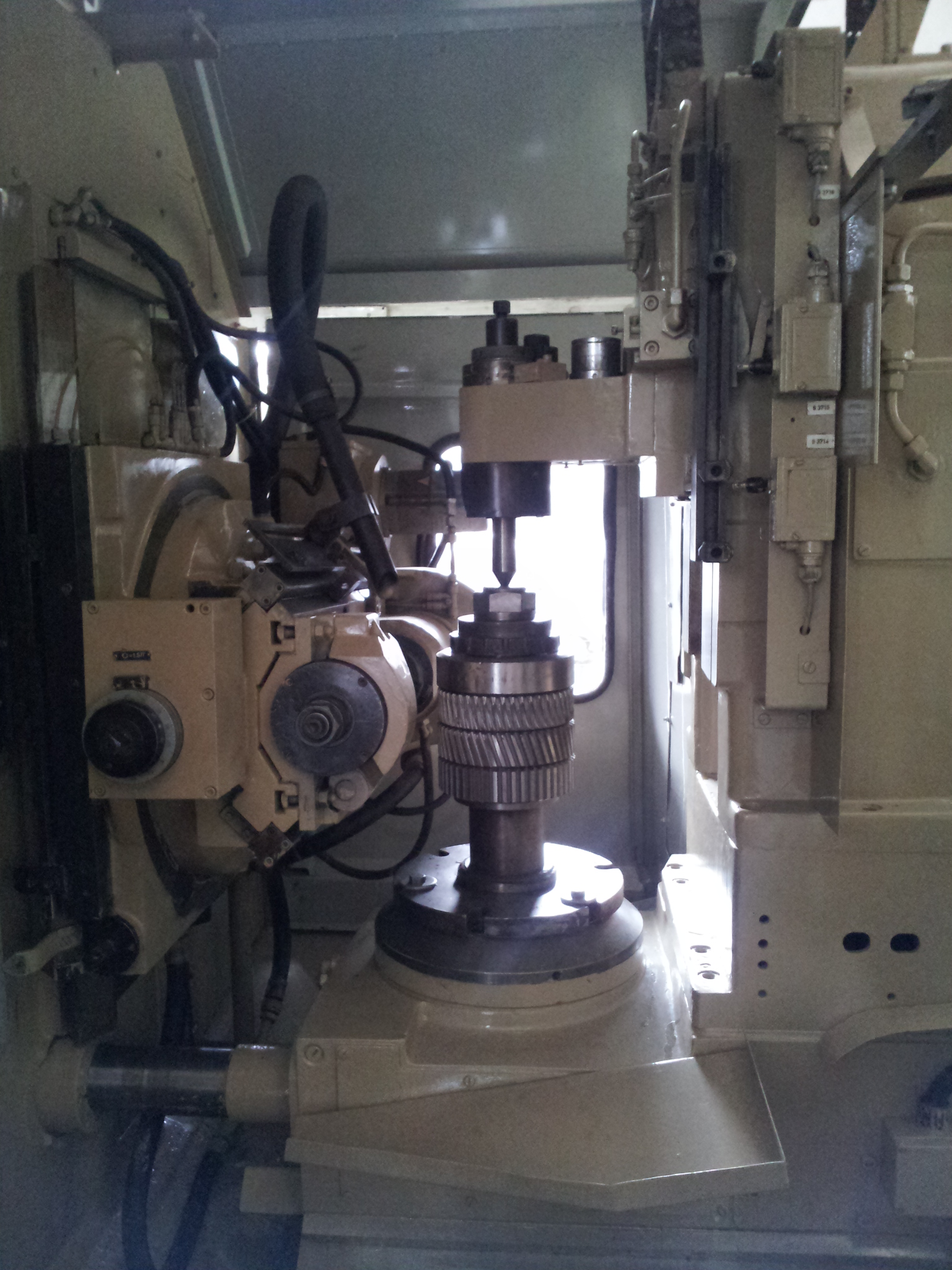

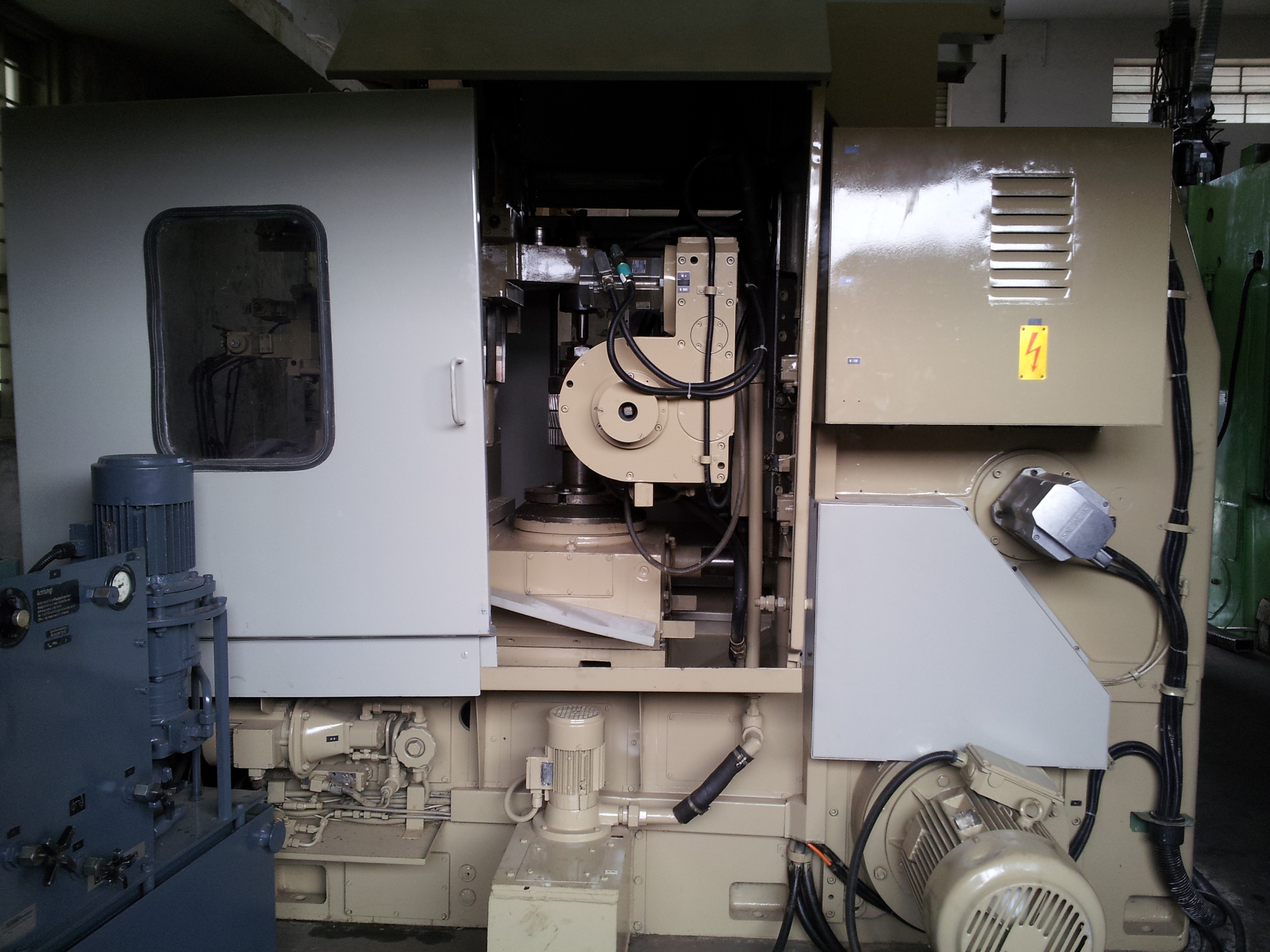

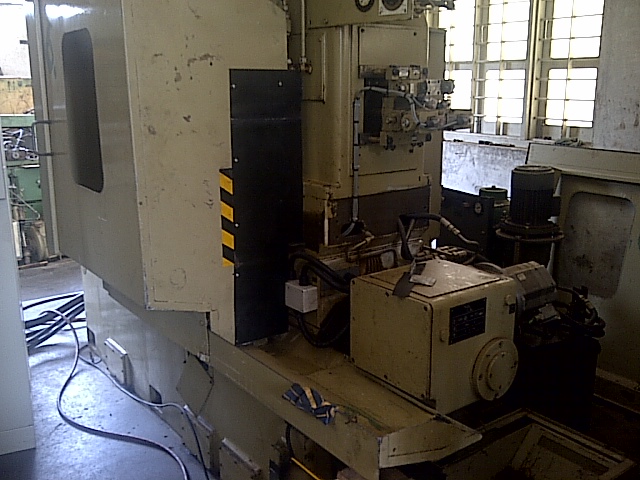

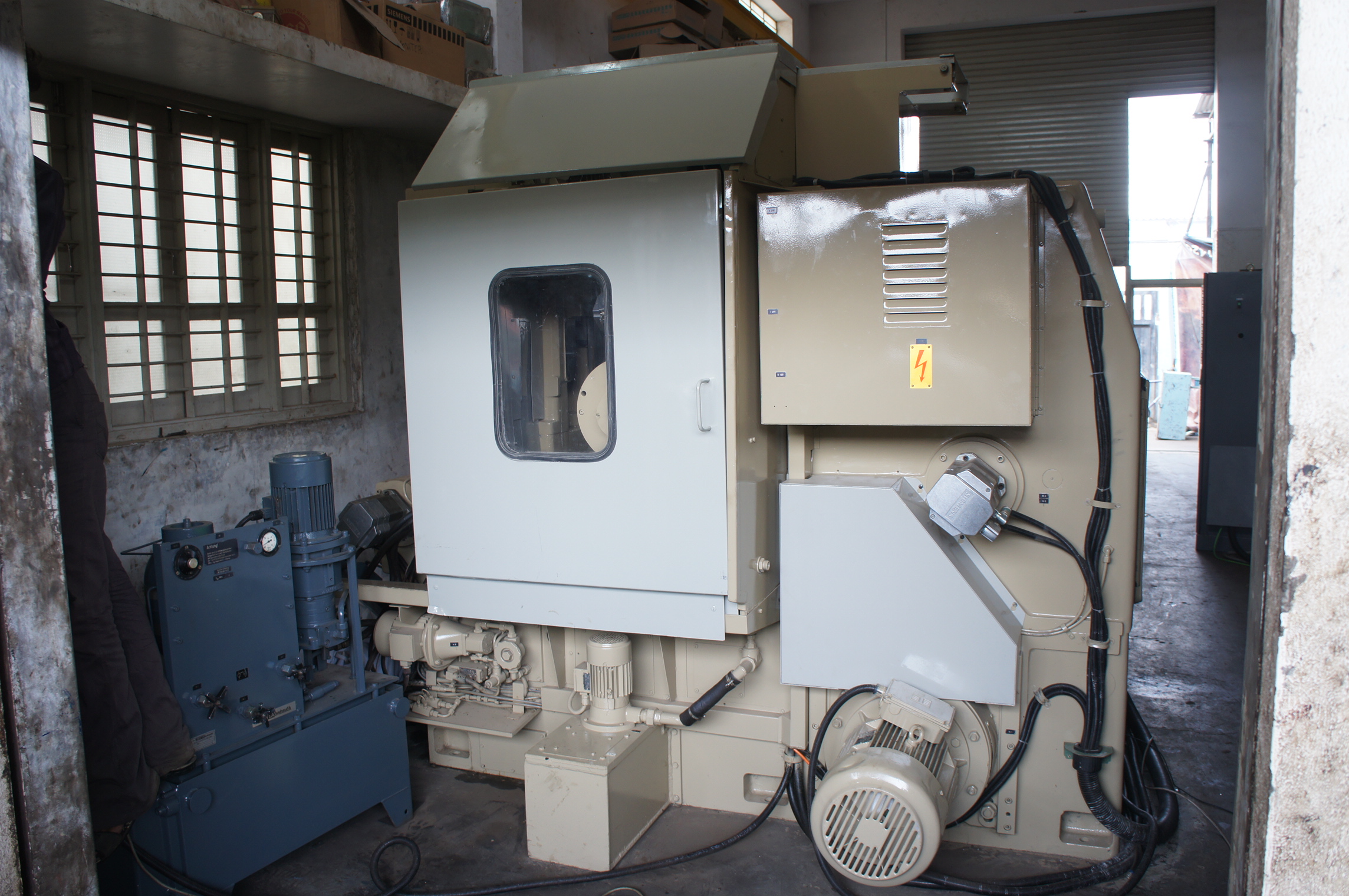

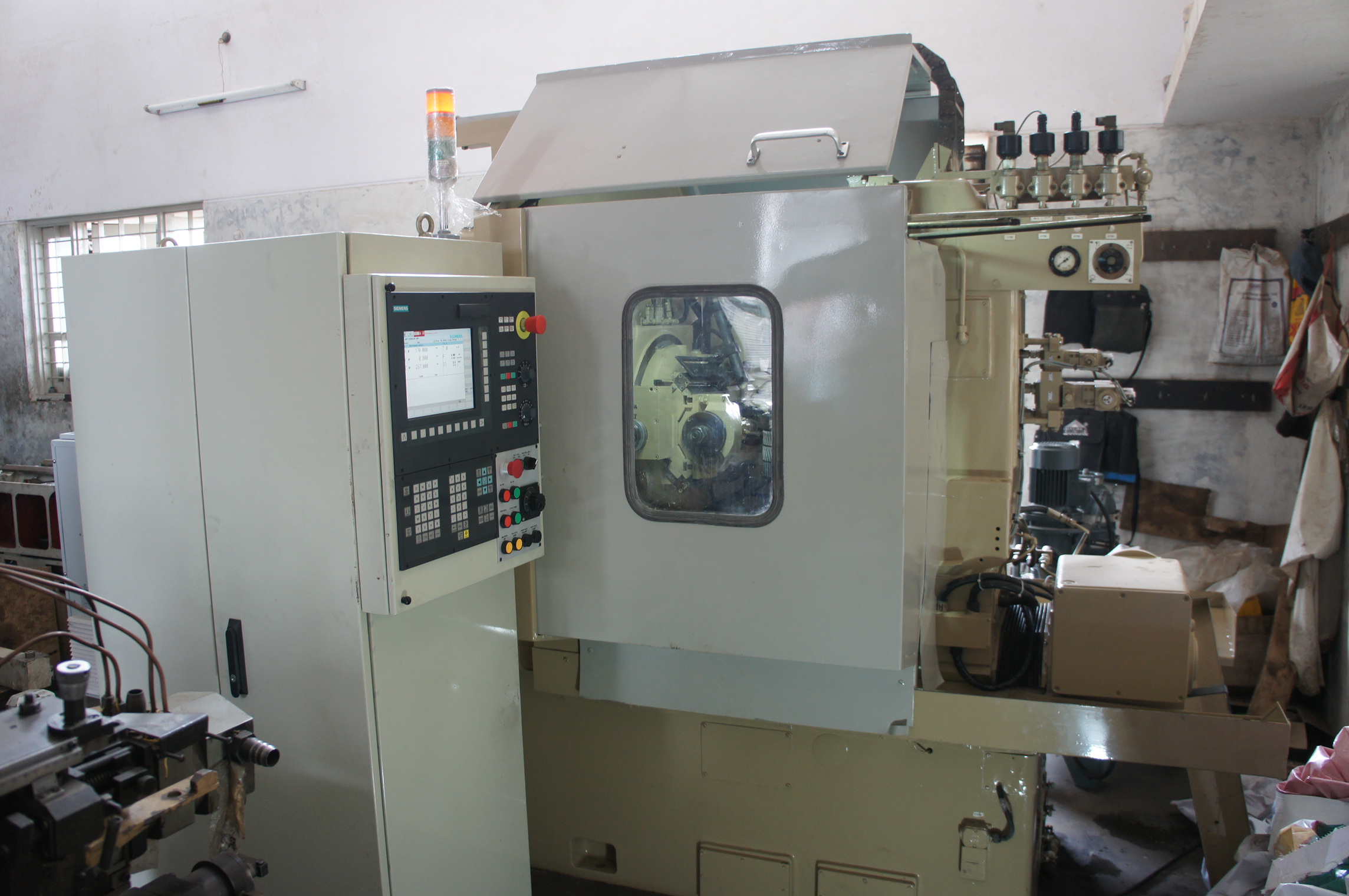

Type of machine :- 2 Axis Gear Hobbing Machine - Vertical

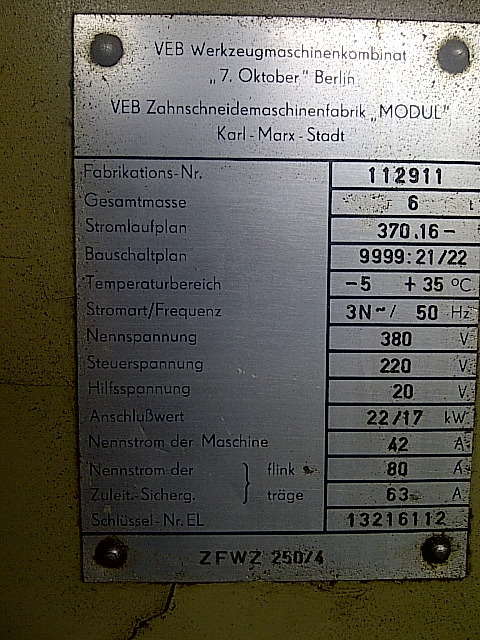

Make wmw MODUL:- Type ZFWZ 250/4

Two Axis CNC Controlled with  Siemens 802DSL (brand new 2012)

max. wheel diameter 250 mm
gear width 275 mm
max. module 6 to 8 (depending on hob dia)
max. angle of teeth 45 Degree
feeds axial 275 mm
shifting 100 mm
min. number of teeth 8
diameter of hob 145 x 170 mm
clamping table diameter 275 / 350 mm

Additional information

complete with change gears, etc
complete , handbooks and machine manuals etc.
fully rebuilt with BRAND NEW 2012 YOM

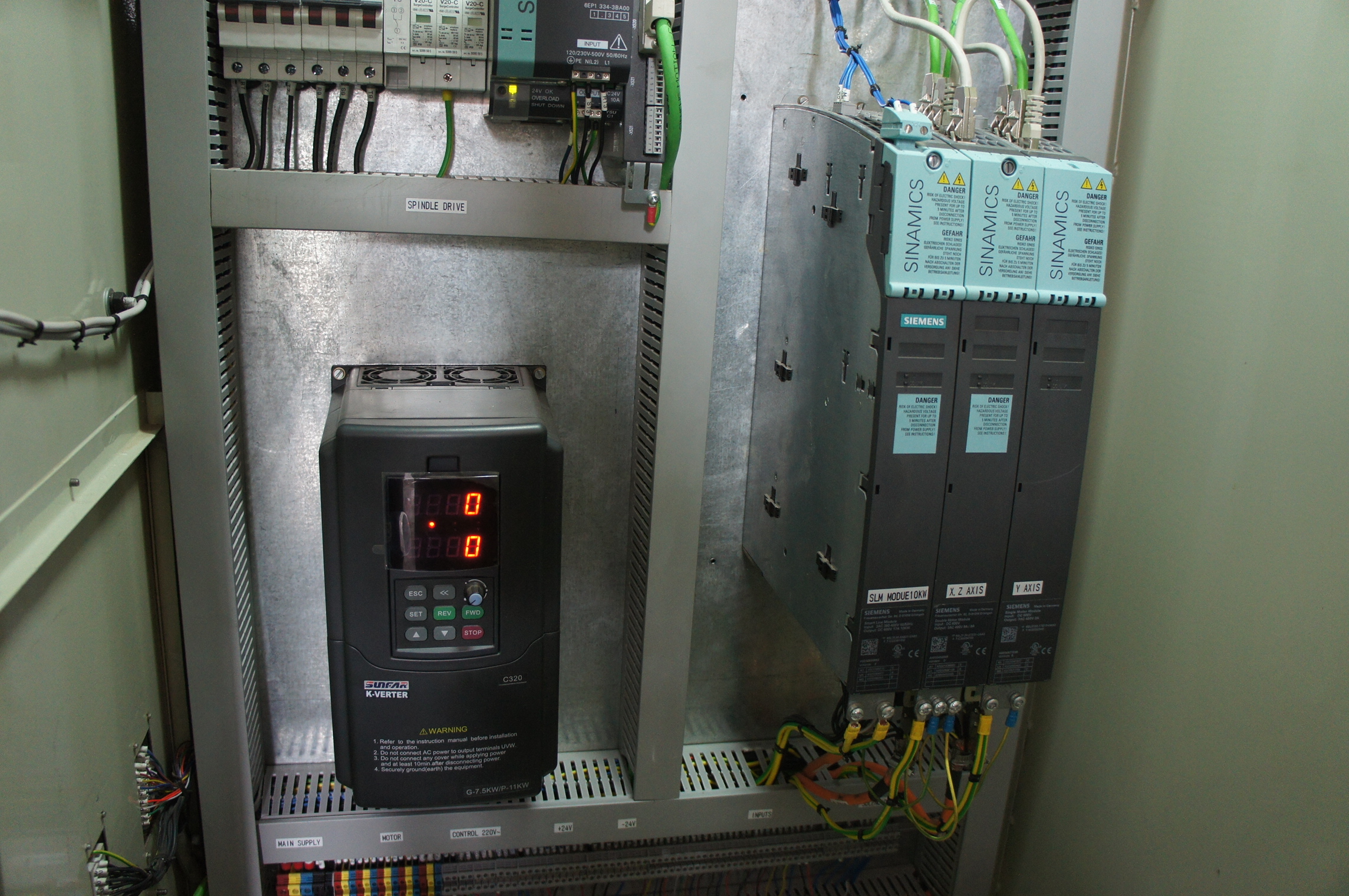

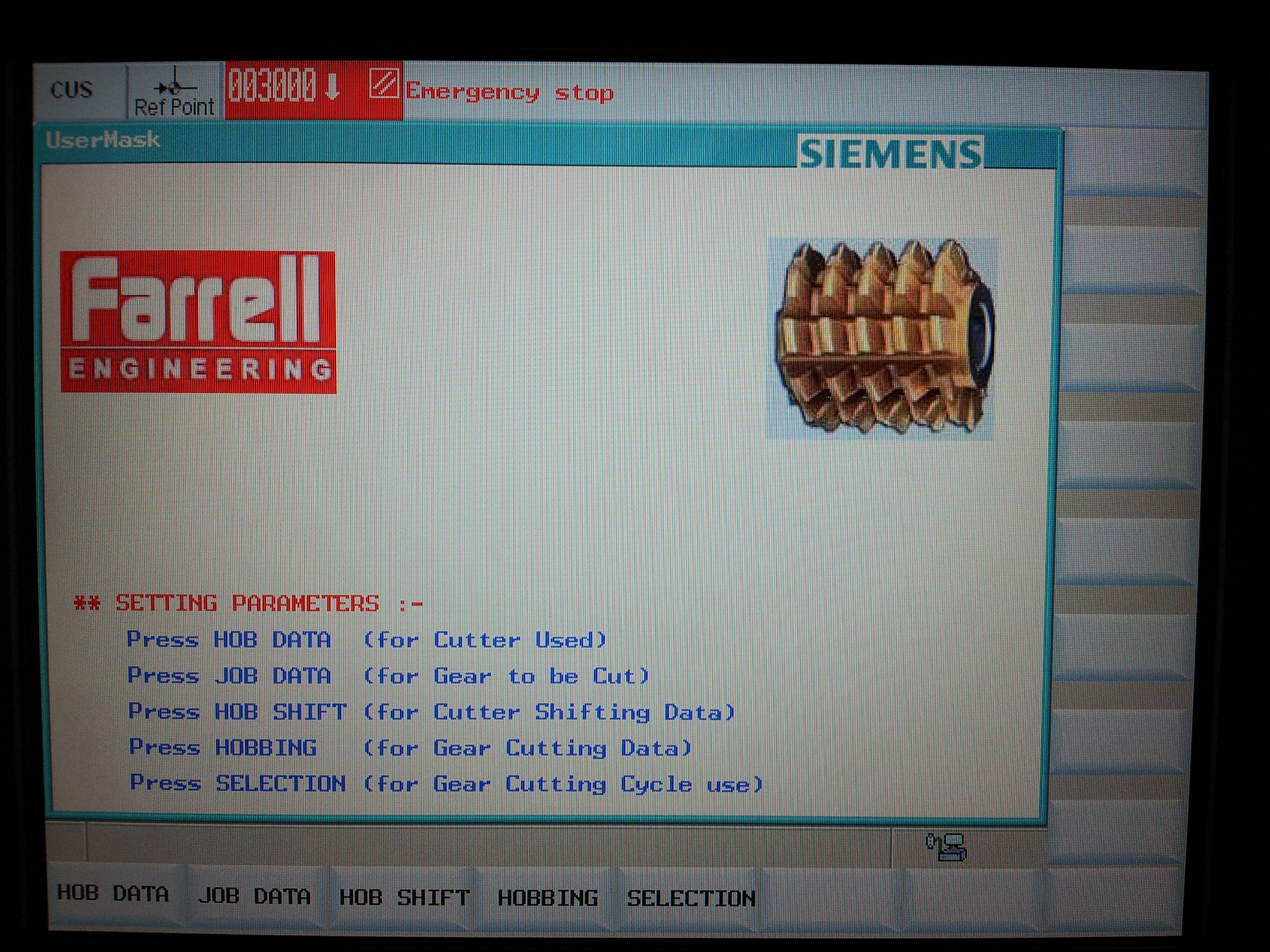

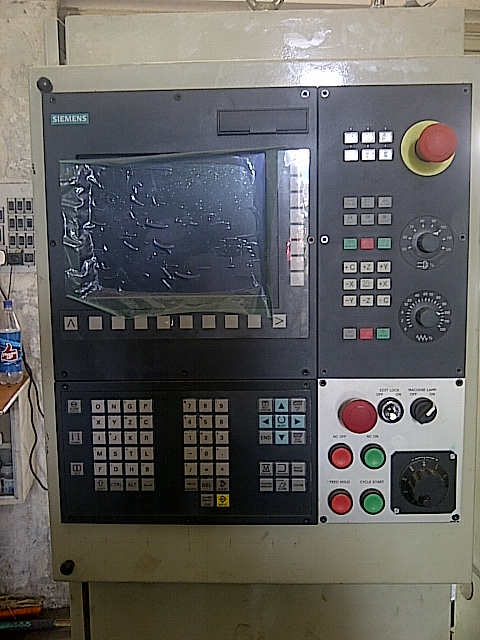

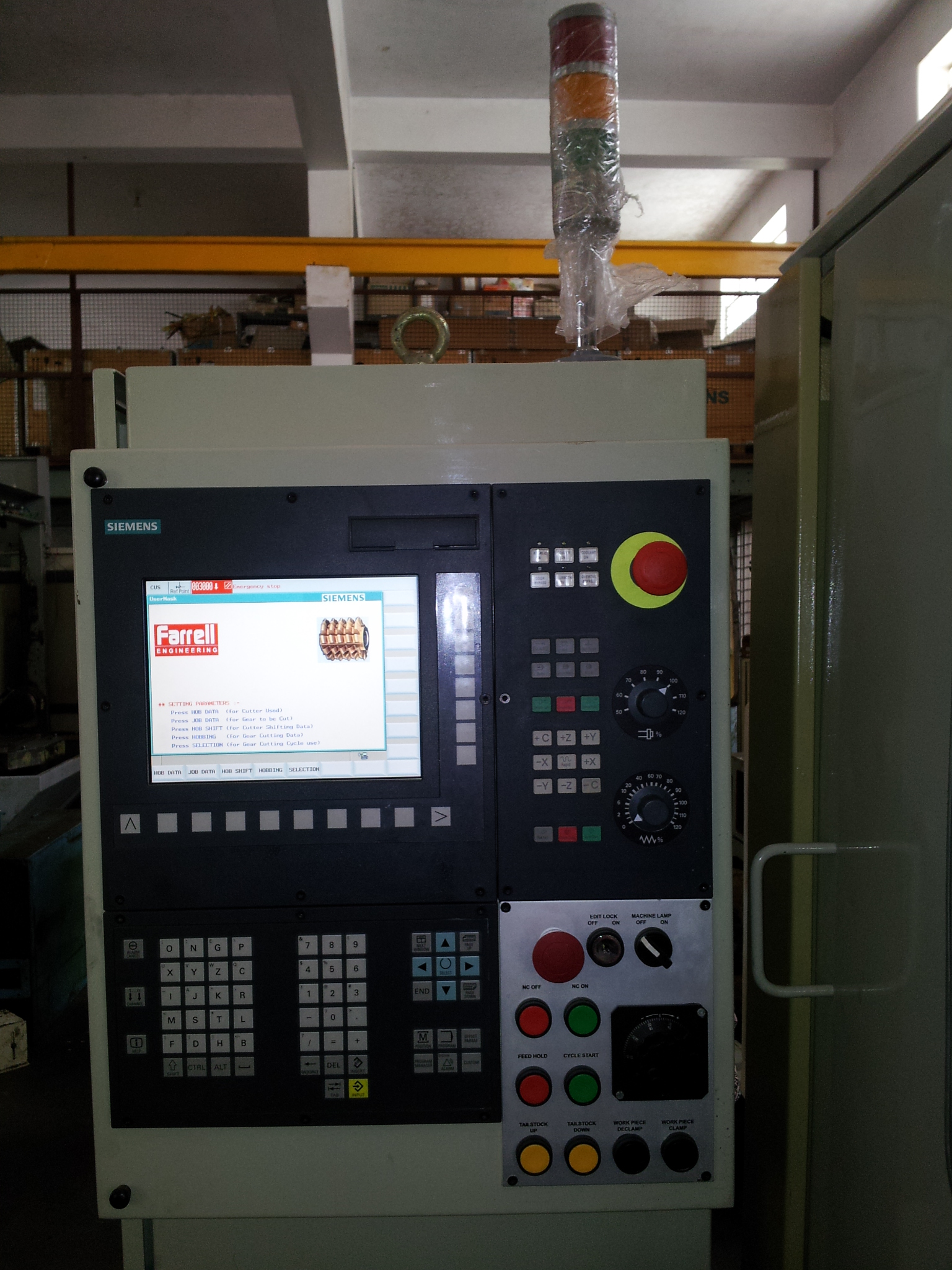

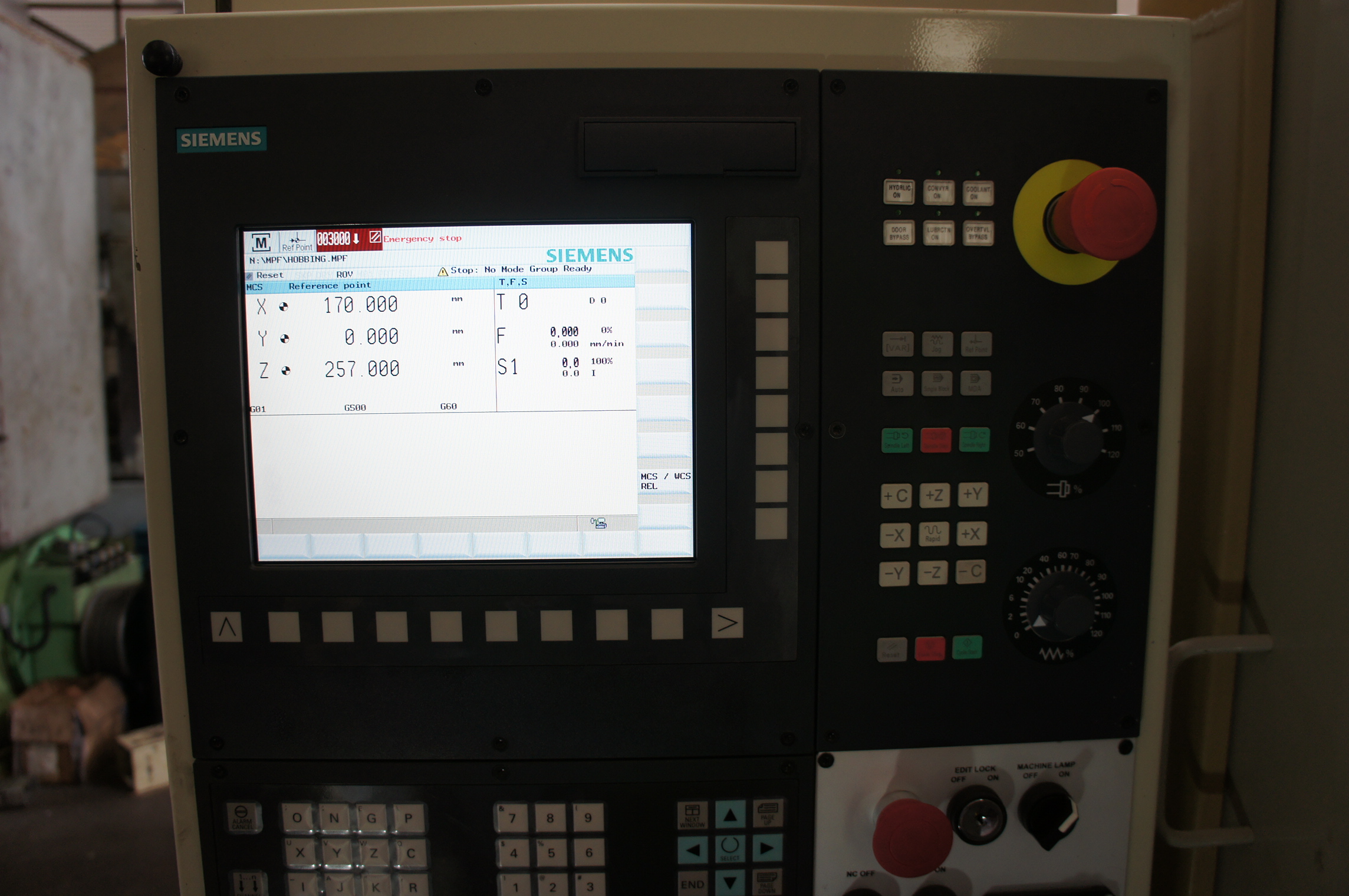

Siemens 802DSL  , Digital drives and AC servo motors

CNC Controlled Axis X and Z  ,

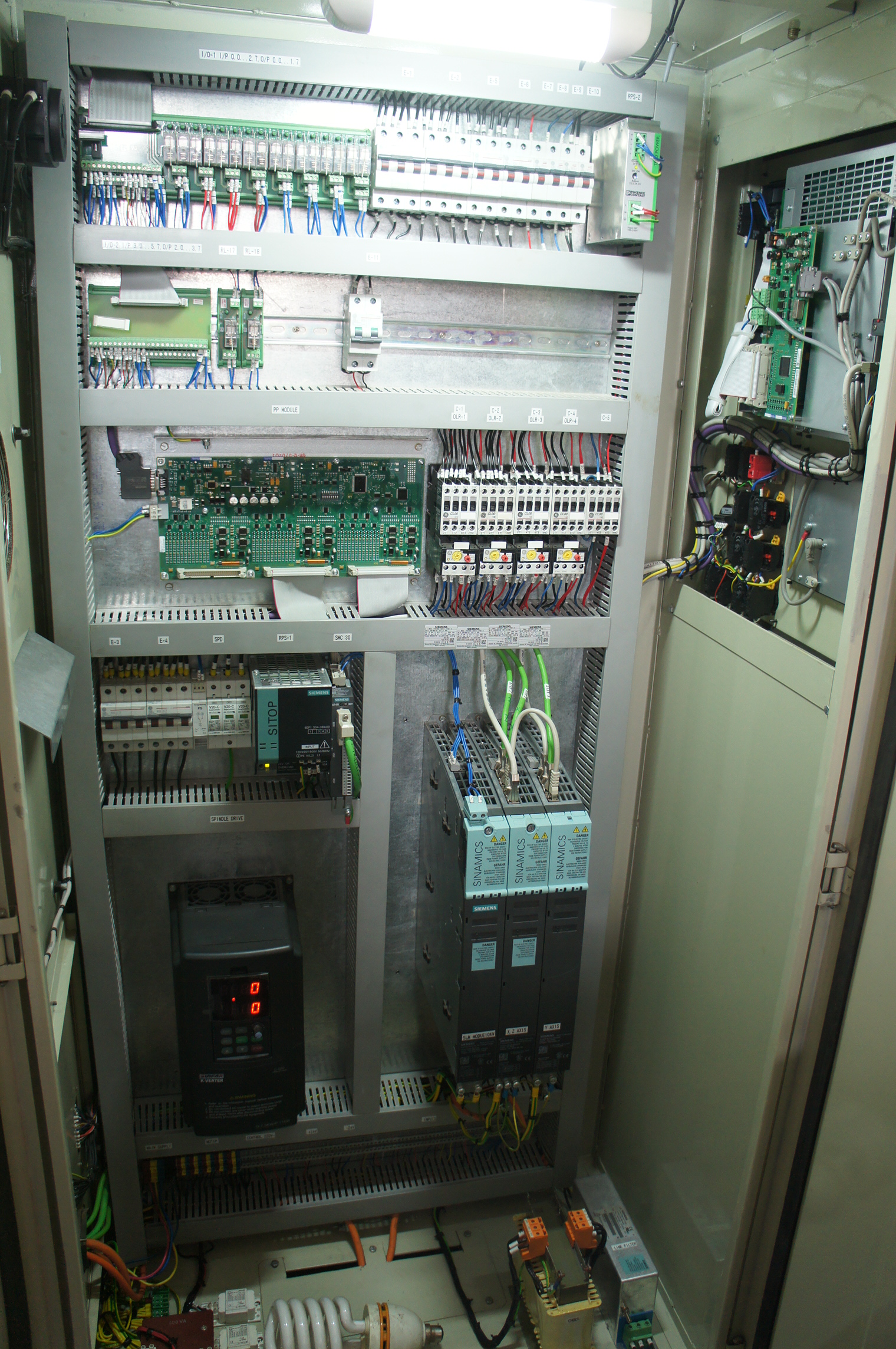

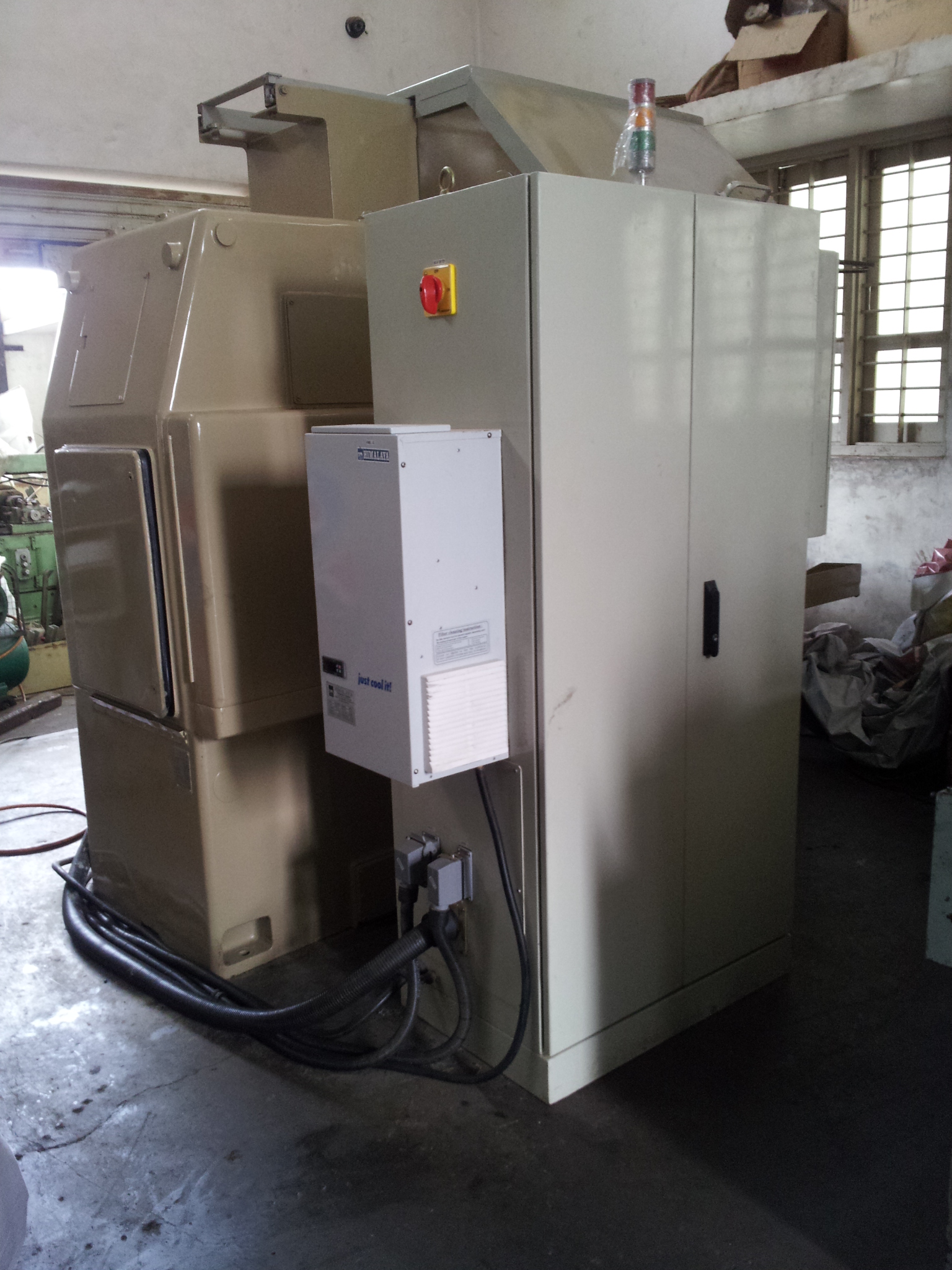

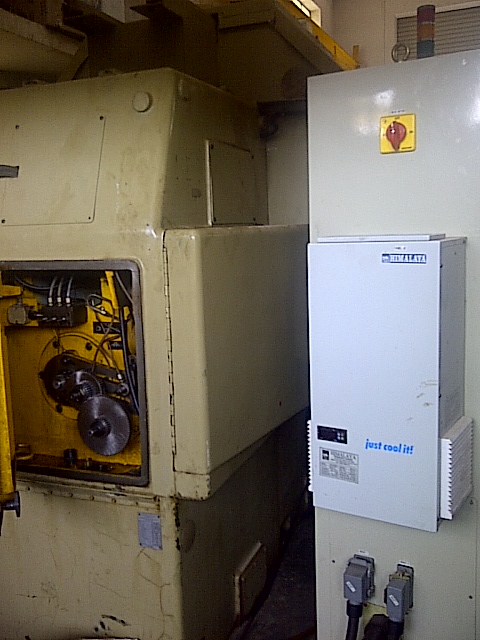

Free standing Electrical Cabinet fitted .

Suitable for Spur , Helical , Crowning & slightly tapered gears both for bath and heavy production of components

Machine Features

• Hydraulic Clamping & Tailstock ,
• Automatic Hob shift

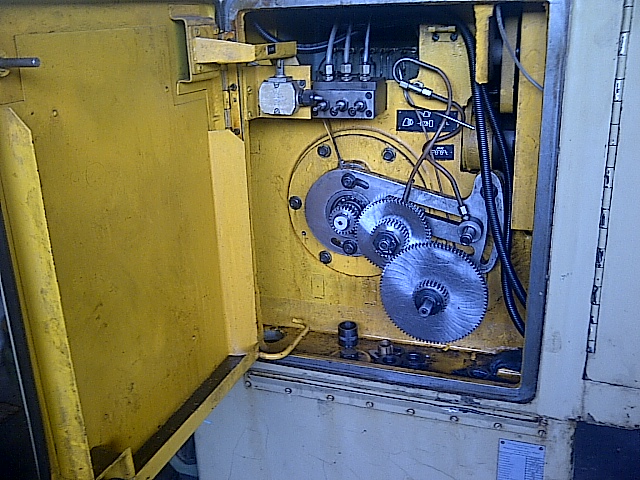

• Full change gear set
• One 1.25" hob arbor, outboard bearing, arbor wrench
• Two copies of the machine operators manual
• Two copies of all electrical and mechanical prints
• Can be tooled up  to customers as per customers requirement
• Machine is ready for immediate delivery subject to prior sale.
