Machine Id: 1282 Serial No:

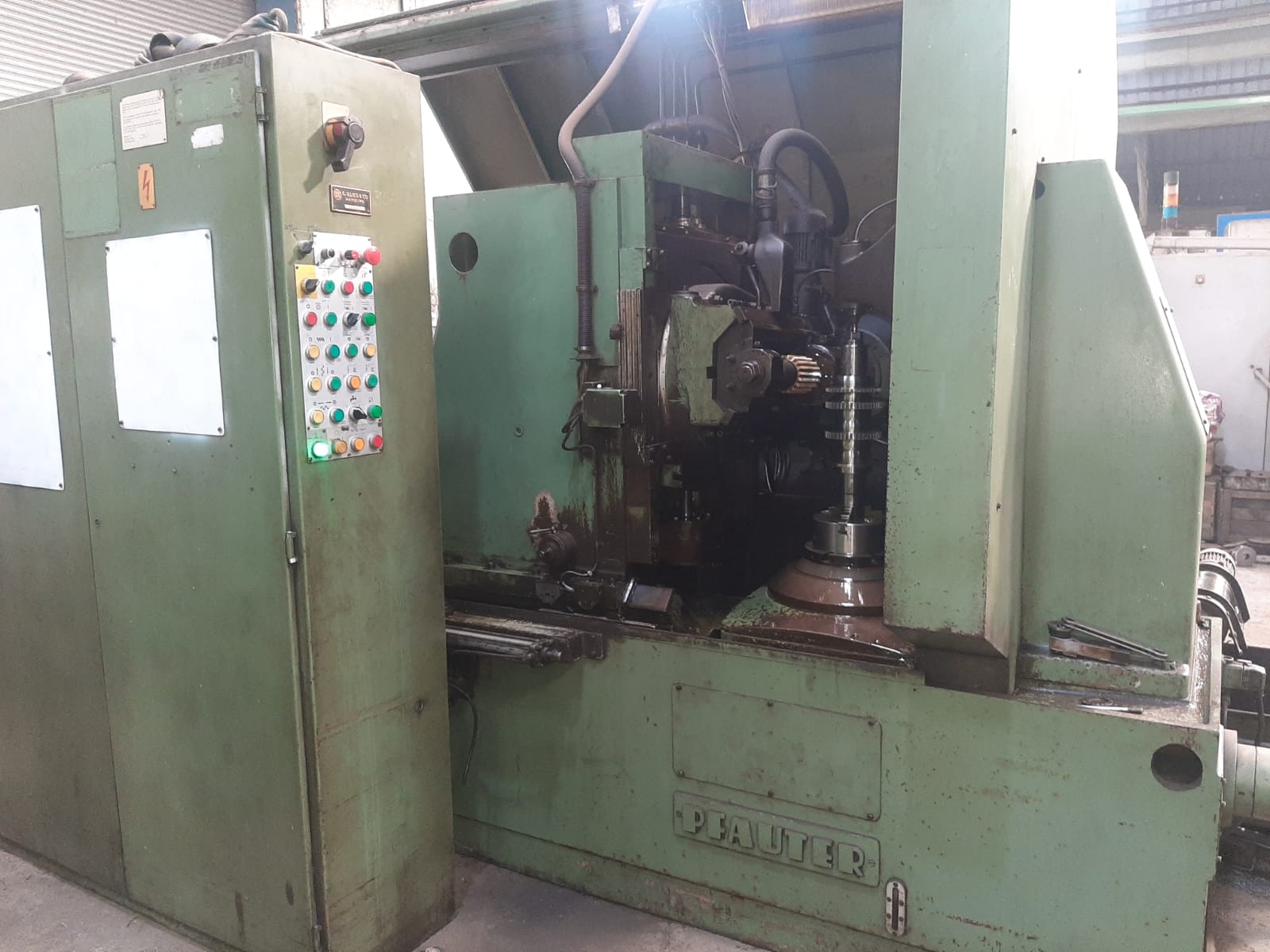

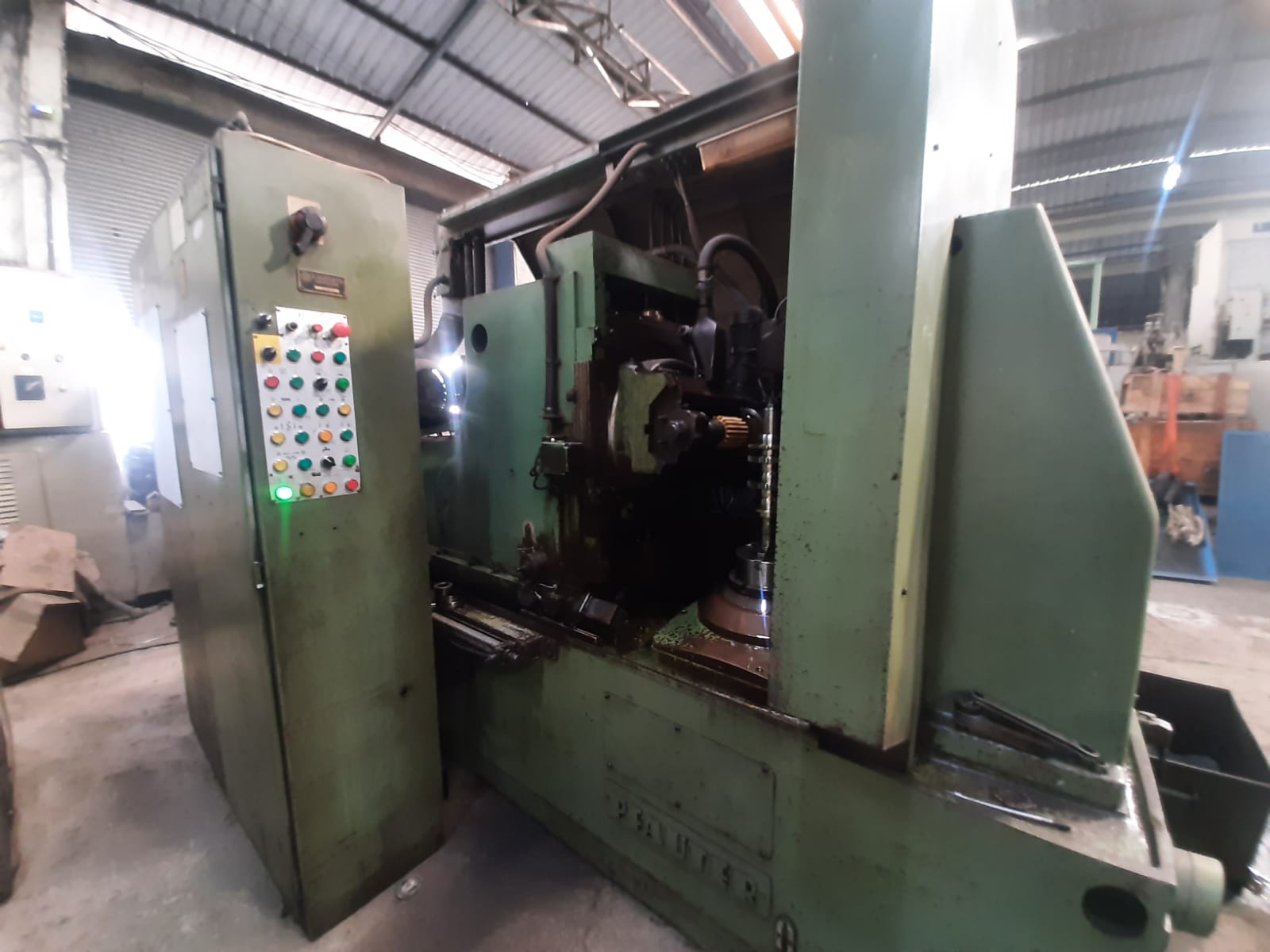

Model: PA210 Asking Price: onrequest
Make: PFAUTER Country: Germany
Year: Weight: 0.0
Dimensions: Location: Mumbai Warehouse,India
Power:
Category: Gear Related Machines
Type of Machine: Gear Hobbers Machine
Specification

General Characteristics
Ø Max. gear 210 mm
Module 6
Hobbing length 275 mm
Cone milling spindle MORSE 5
Distance between spindle axis and axis table Min 40 Max 200 mm + 60 de desplazamiento hidraulico
Hob spindle speeds 315 mm
Maximum inclination +/- 40º
Maximum length tool 228 mm
Maximum Ø of tool 163 mm
Minimum number milling teeth 4
Tangential Tour 170 mm
Table Features
Ø Hole table 90 mm
Ø Table 240 mm
Electrical Characteristics
Total Power 26 KVA
Voltage 220/380 V
Dimensions and Weights
High 3.085 mm
Long 5.970 mm
Weight 10.980 Kg
Width 2.940 mm



Description
