Machine Id: 1140 Serial No:

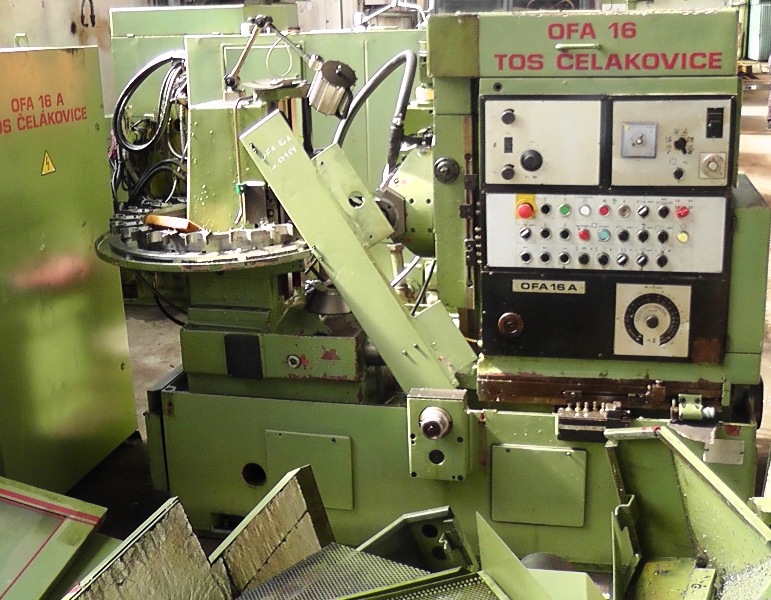

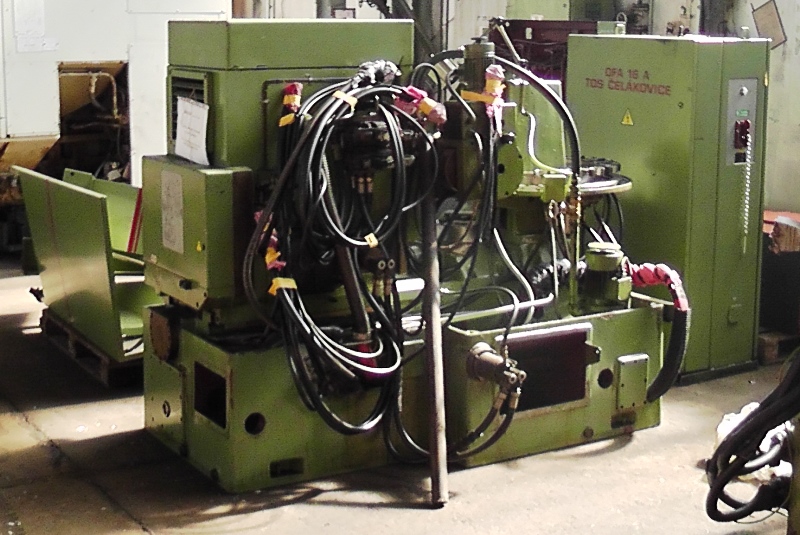

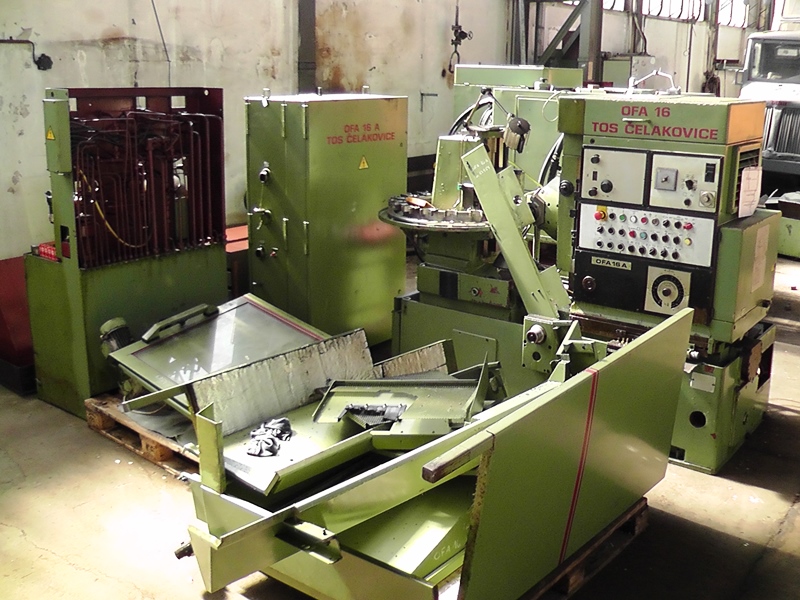

Model: OFA 16 A Asking Price: onrequest
Make: TOS Country:
Year: Weight: 0.0
Dimensions: Location: Mumbai Warehouse,India
Power:
Category: Gear Related Machines
Type of Machine: Gear Hobbing Machine
Specification

Technical data:

The largest module milled wheel: 3 (4) mm

The largest diameter milled wheel with straight teeth: 160 mm
Vertical adjustment tools: 160 mm
Number of milled teeth: 6-160
The distance from the axis of the mill axis of workpiece: 25 to 205 mm
The distance from the surface of the mill axis clamping table: 170-330 mm
Diameter of clamping table: 150 mm
Largest dimensions hobs - Diameter x Length: 115 x 140 mm
Milling mandrel diameters: 22 27 32 mm
Mandrel diameter for clamping the workpiece: 30 mm
Cone milling spindle: Morse 4
The largest axial displacement blowers: 12 mm
0Otácky tools - 13 degrees in the range: 112-450 min - 1
Axial movement of the tool - continuously: 1-220 mm.min - 1
Radial displacement tool - continuously: 0.5 - 30 mm.min - 1
Axial feed rate: 560 mm.min - 1
Rapid radial machines: 320 mm.min - 1
Main motor: 5.5 kW
Total power: 16 kV A
Floor area of the machine: Length x Width: 1990 x 1640 mm
Machine height: 1665 mm
Machine weight: 3650 kg
