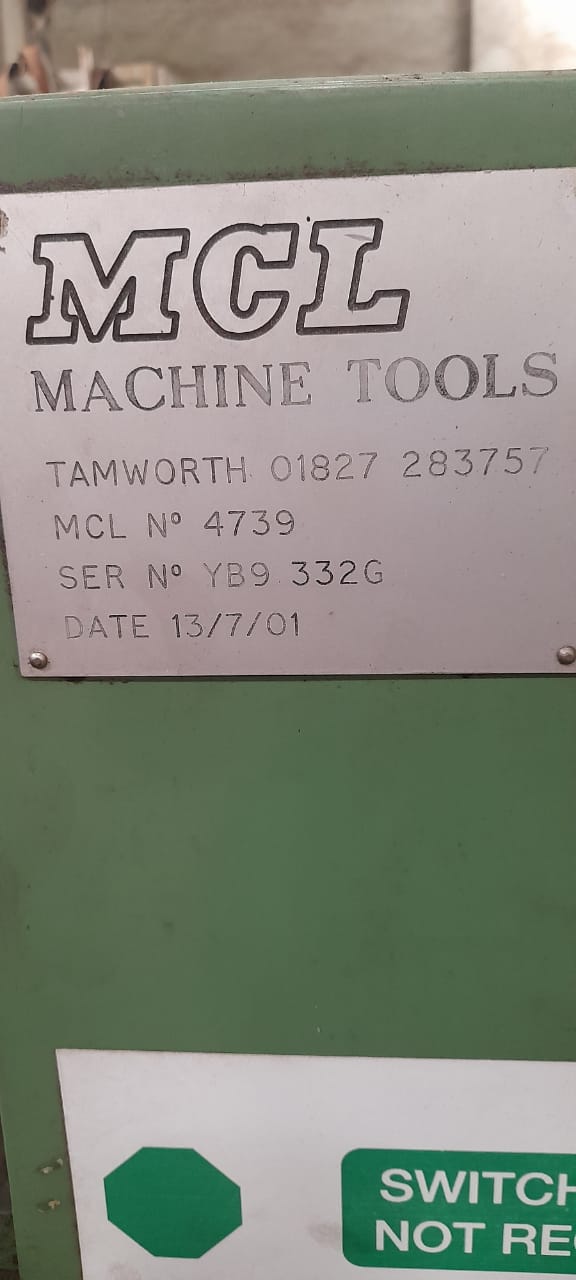

Machine Id: 1330 Serial No:
Model: YB9332G Asking Price: onrequest
Make: MCL UK Country: United Kingdom
Year: Weight: 0.0
Dimensions: Location: Mumbai Warehosue, India
Power:
Category: Gear Related Machines

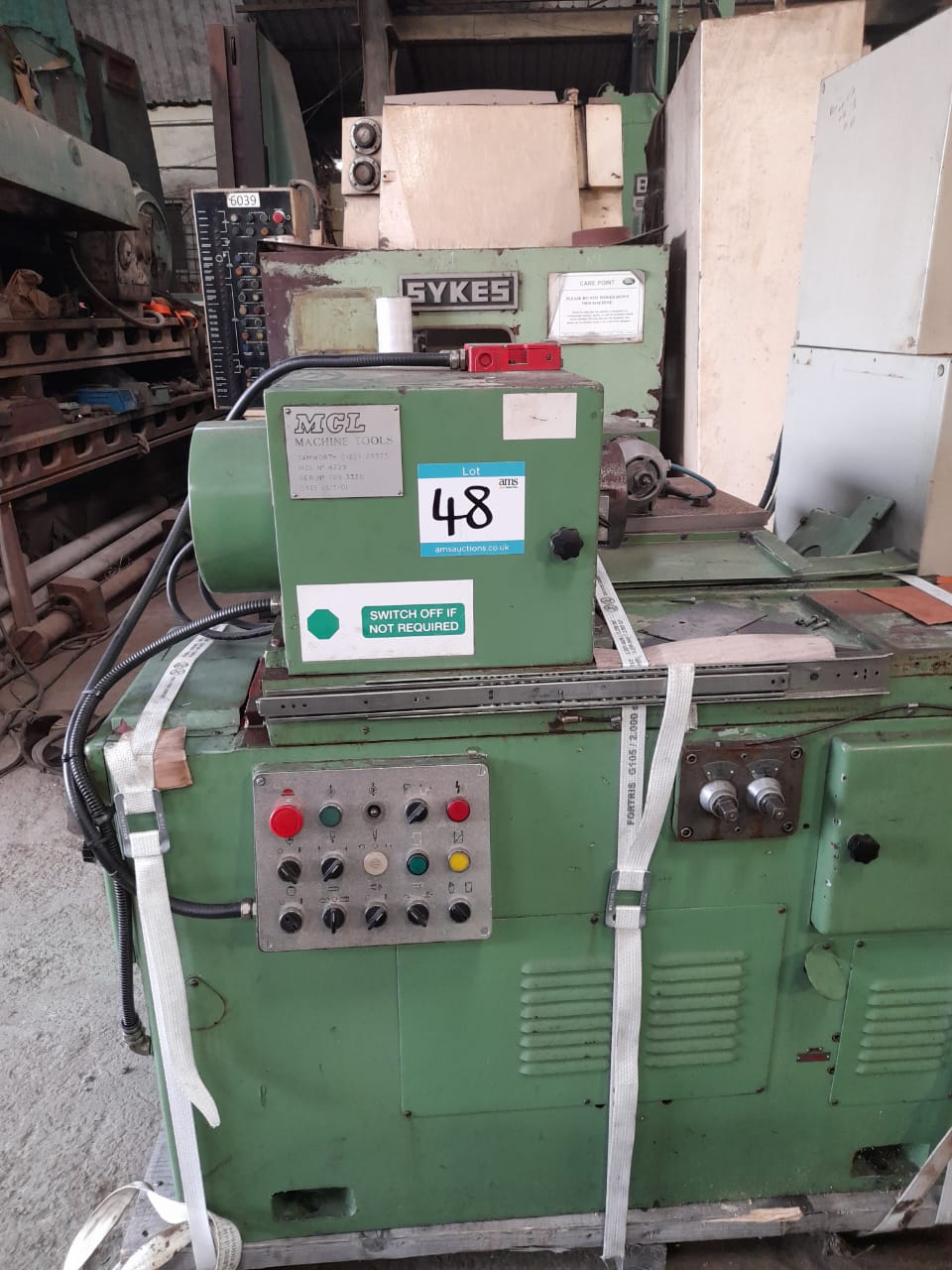

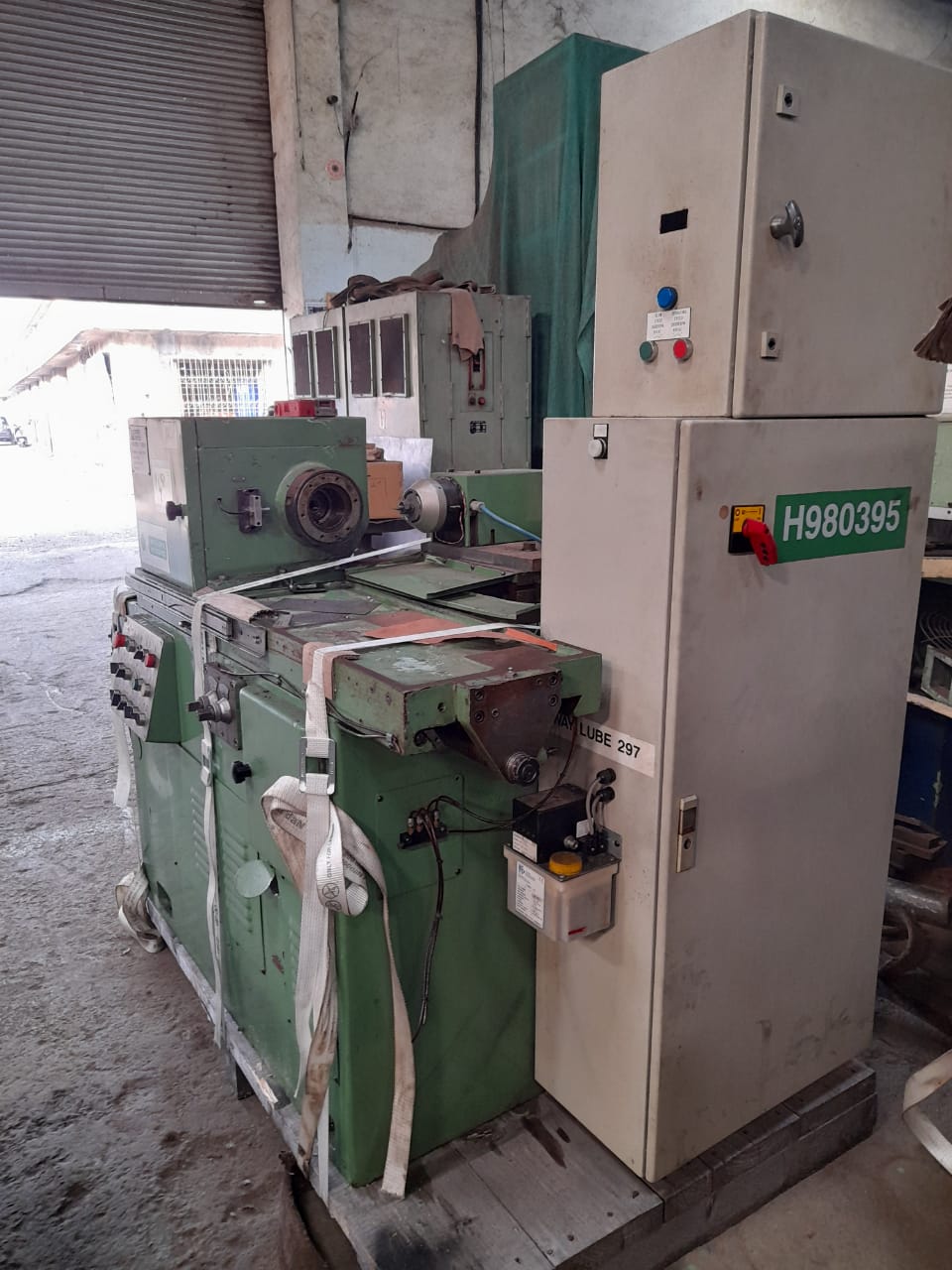

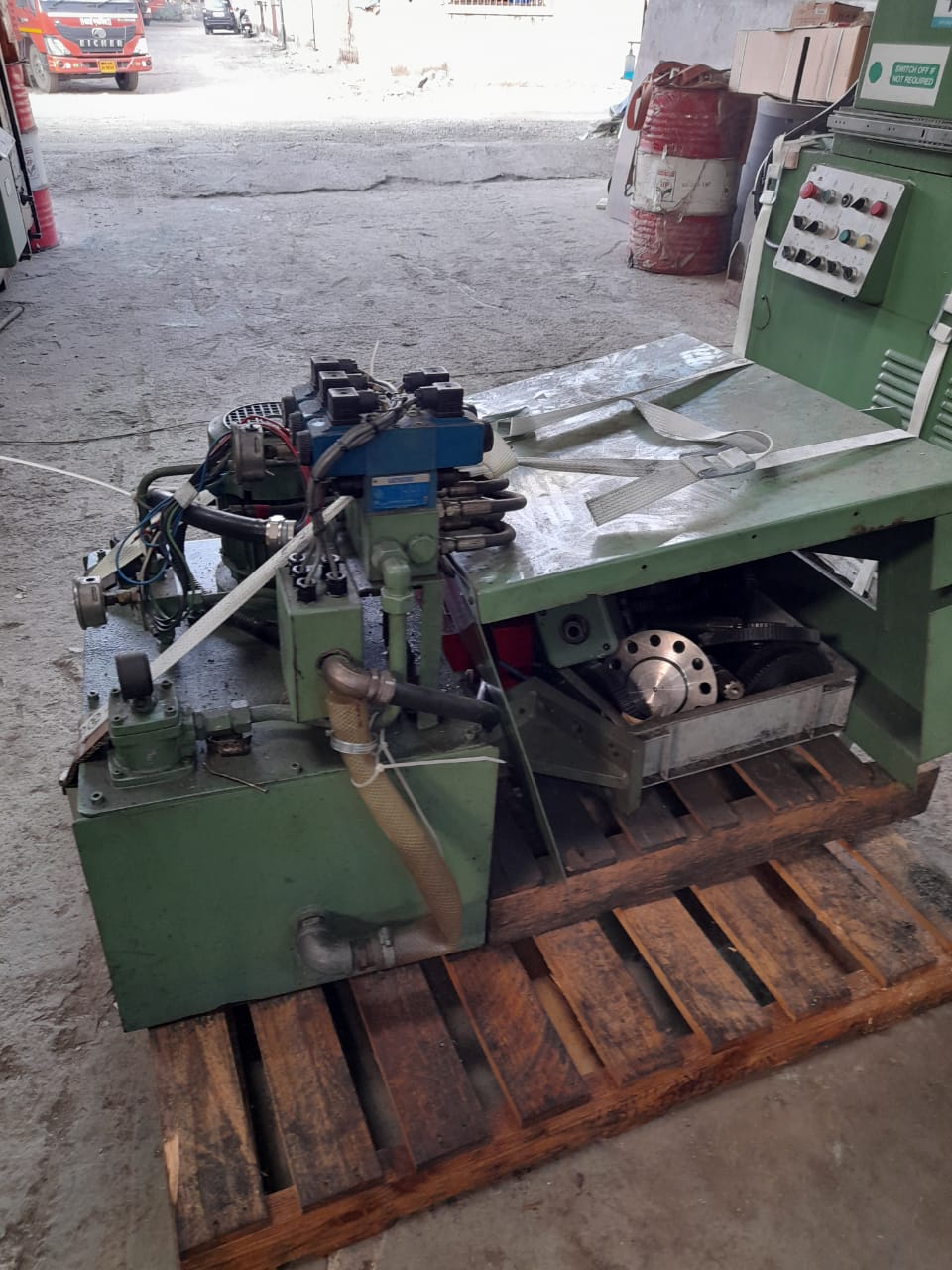

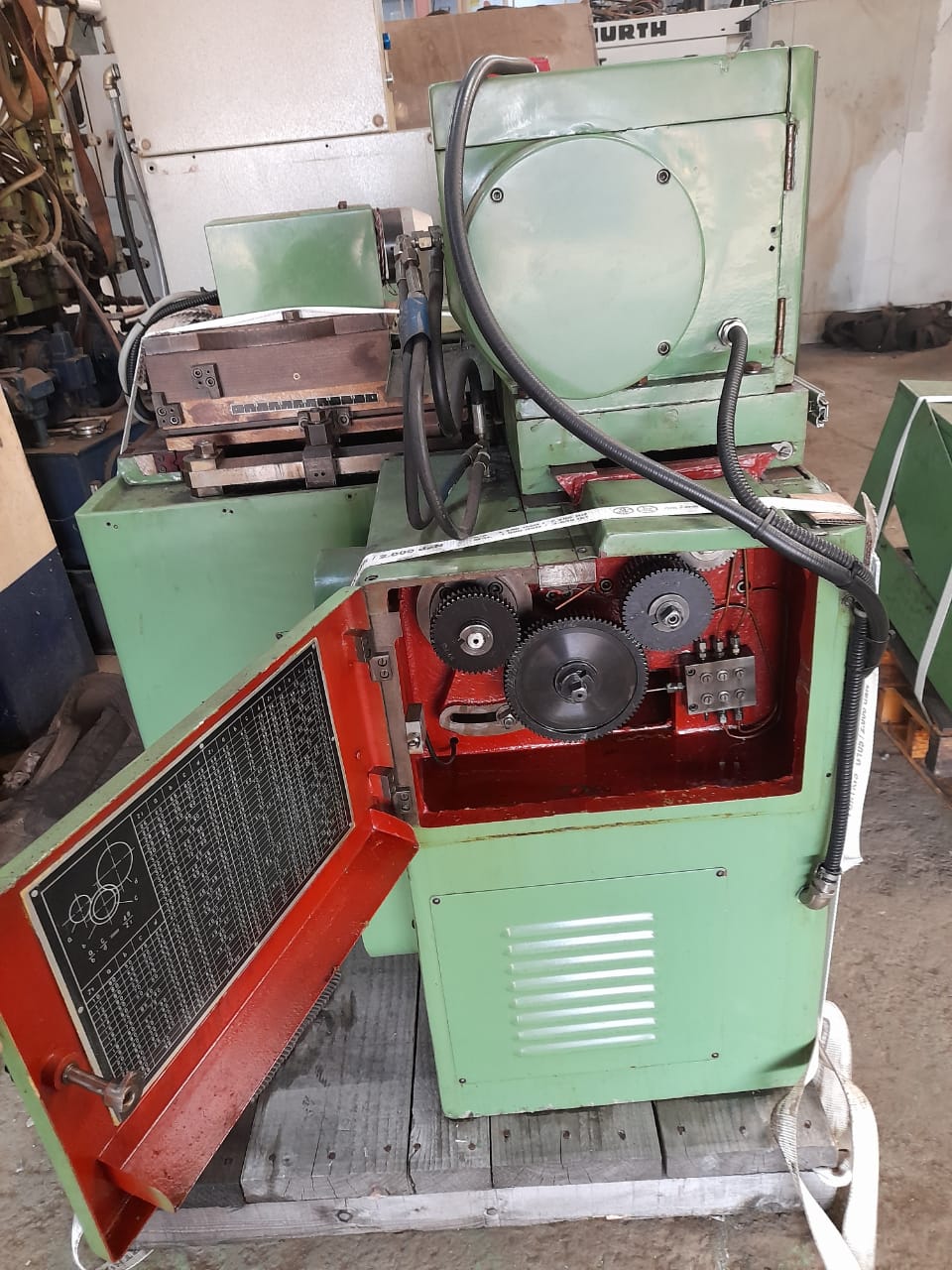

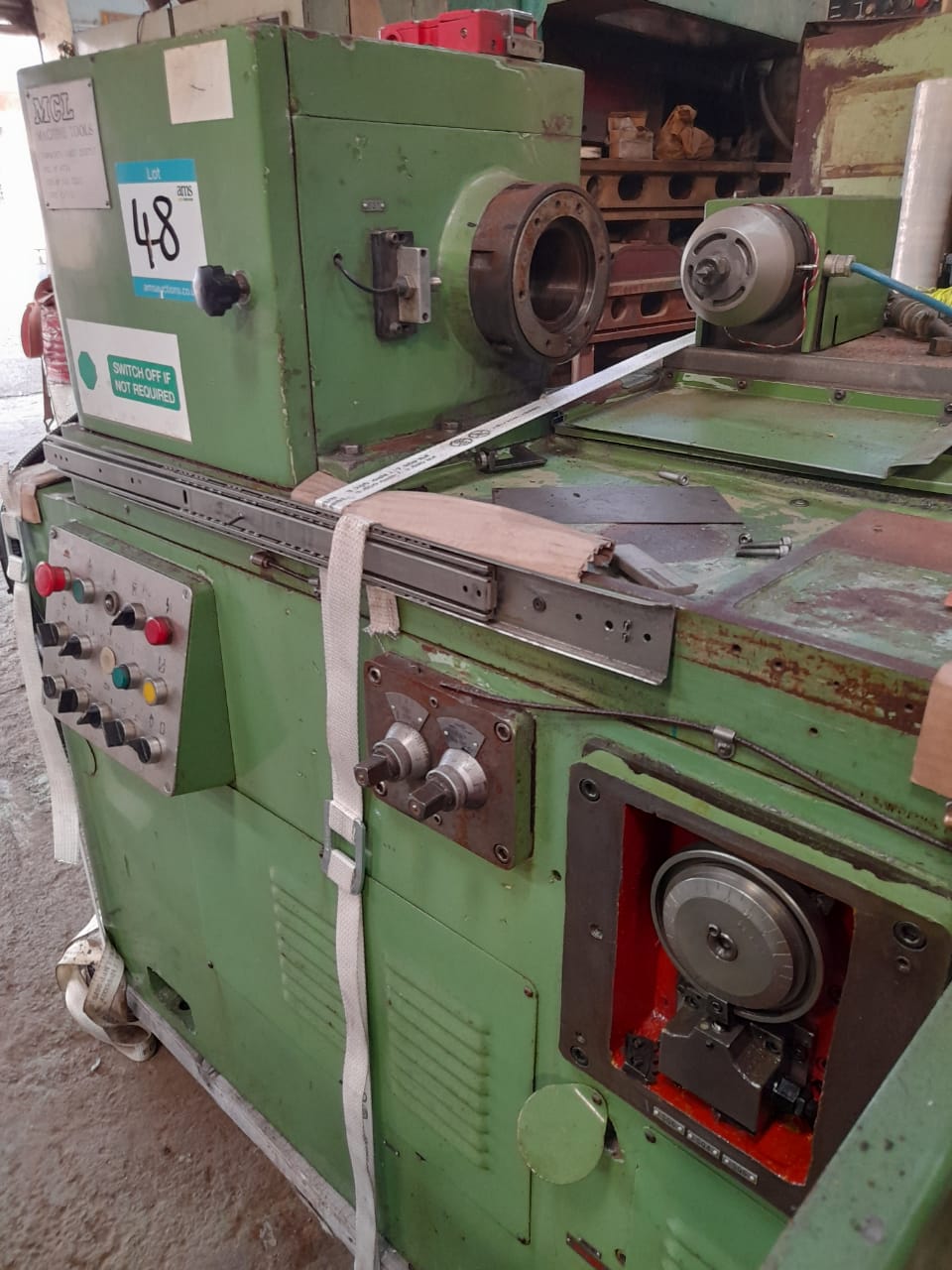

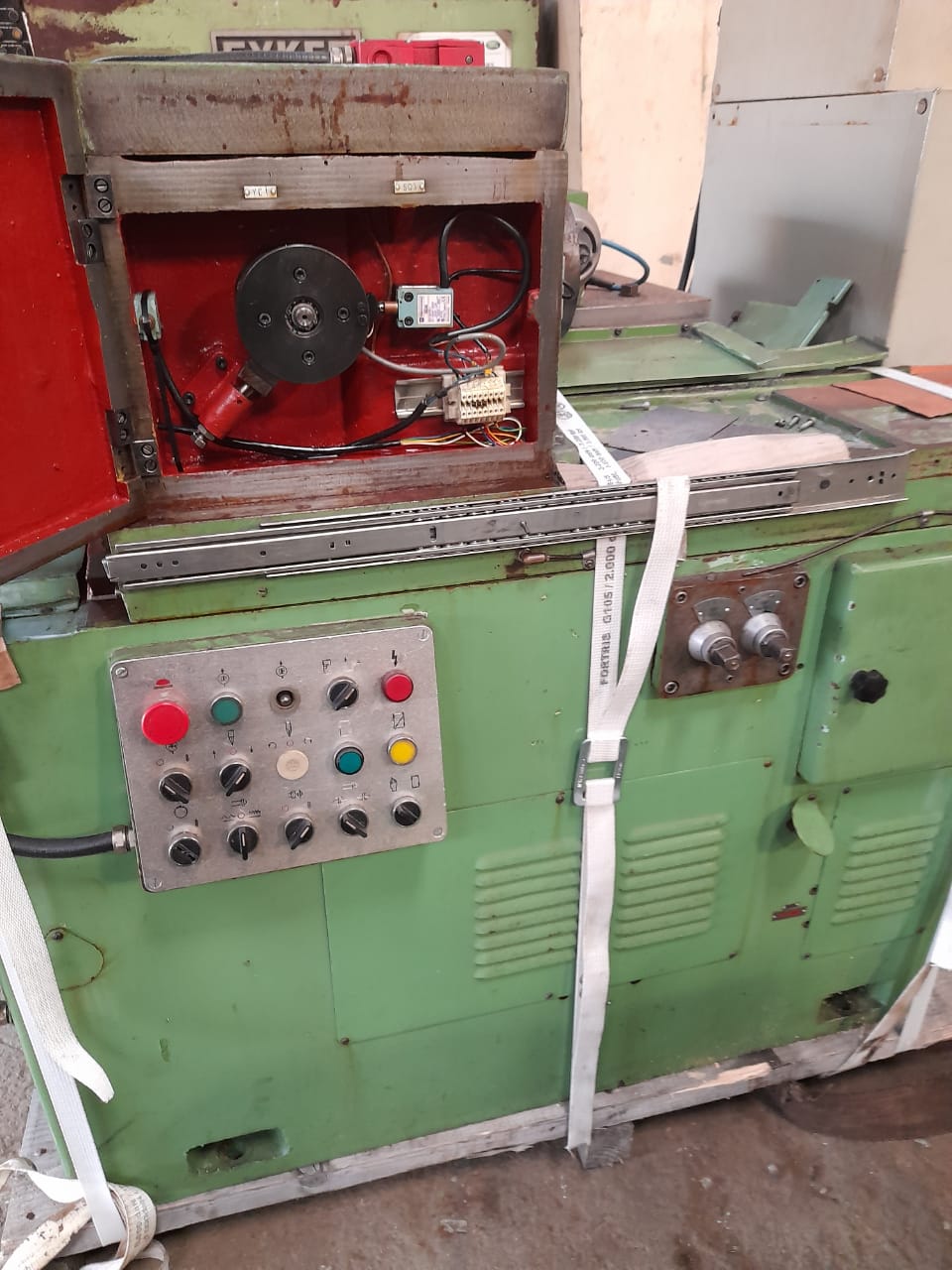

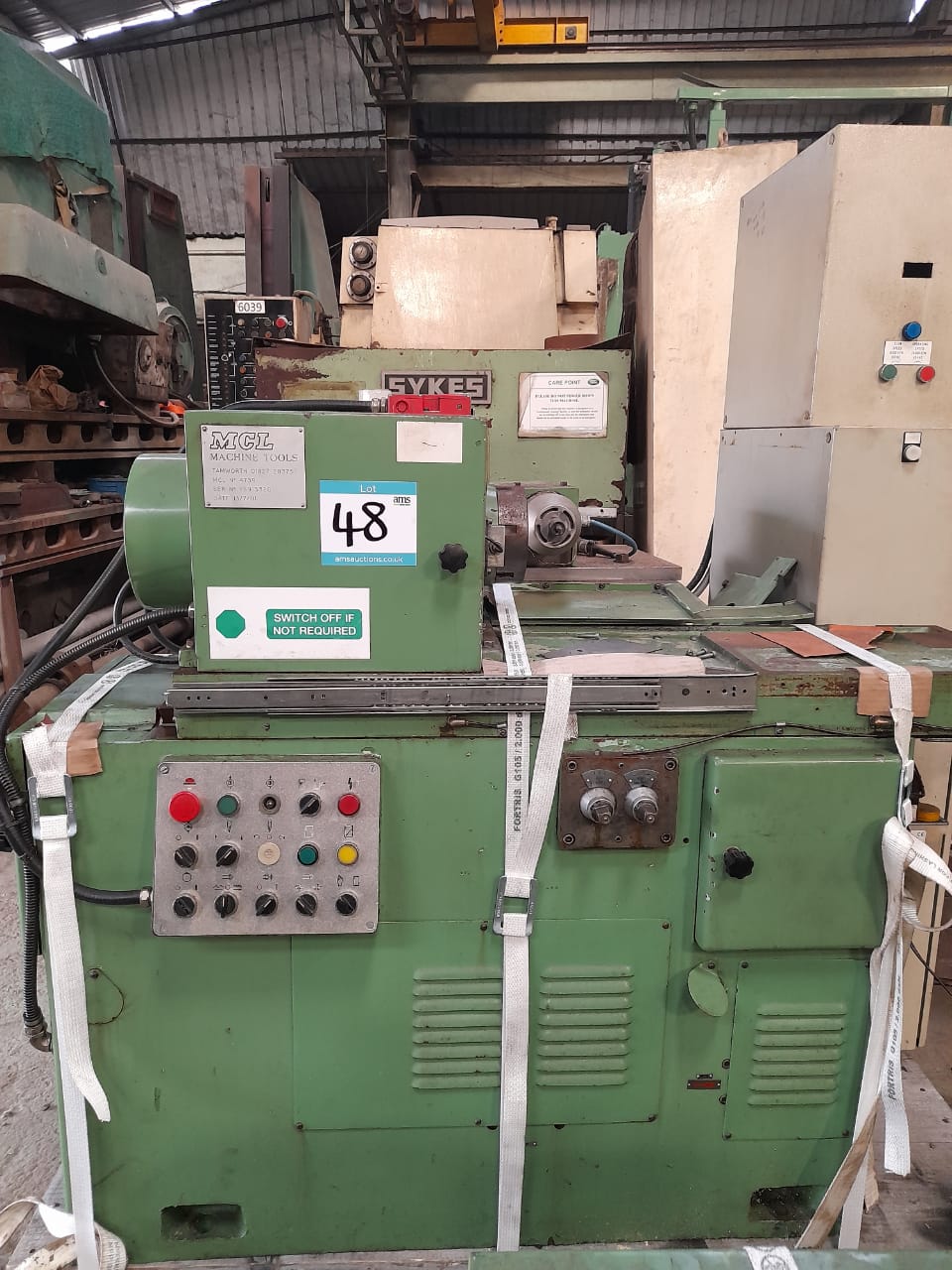

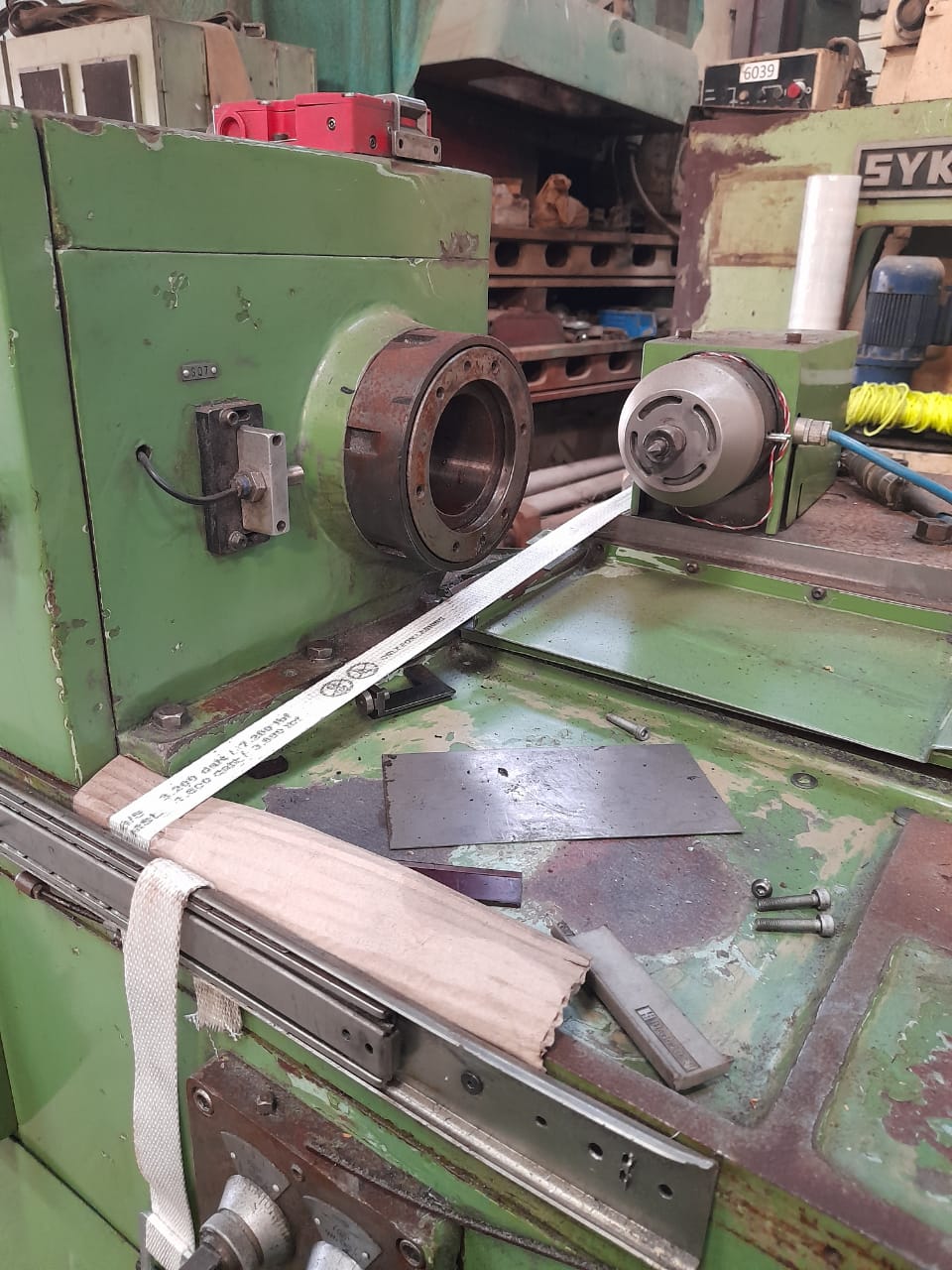

Type of Machine: GEAR TOOTH ROUNDING AND CHAMFERING MACHINE
Specification

SPECIFICATIONS:

1. MAX DIAMETER OF WORKPIECE, EXTERNAL GEAR : 320 MM

2. MAX. DIAMETER OF WORKPIECE, EXTERNAL GEAR : 150 MM

3. MAX. MODULE : 6 MM

4. NUMBER OF GEAR TEETH TO BE CHAMFERING : 10 TO 120

5. DISTANCE FROM THE FRONT FACE OF CUTTER SPINDLE TO THE AXIS OF WORK SPINDLE :
    MANUAL OPERATION : 50 TO 200 MM
    POWER OPERATION : 50 TO 220 MM

6. DISTANCE FROM THE CENTER OF TAILSTOCK TO THE END FACE OF WORK SPINDLE : 220 TO 455 MM

7. DISTANCE FROM THE AXIS OF CUTTER SPINDLE TO THE END FACE OF WORK SPINDLE : 50 TO 270 MM

8. AUTOMATIC FEED RANGE OF WORKTABLE : 0.5 TO 15 MM

9. SWIVELLING RANGE OF CUTER HEAD : (+ -) 200

10. CUTTER DIAMETER : 13 & 18 MM

11. HOLE DIAMETER OF WORK SPINDLE ADAPTOR : 100MM

12. RANGE OF CUTTER SPINDLE SPEED : 1600, 2000, 2500 RPM

13. CUTTING TIME PER TOOTH : 2.59, 1.47, 0.82 SEC.

14. CUTTER SPINDLE MOTOR POWER : 1.1 KW.
                                            SPEED : 2825 RPM

15. WORK SPINDLE MOTOR POWER : 0.75 KW.
                                          SPEED : 910 RPM

16. HYDRAULIC PUMP MOTOR POWER : 1.1 KW
                                          SPEED : 1400 RPM

17. COOLING PUMP MOTOR POWER : 0.09KW
                                  FLOW RATE : 25.1/ MIN

18. OVERALL DIMENSIONS (LXWXH) : 160.55X 114.3X 130.5 CM

19. NET WEIGHT, APPROX : 2150KG
