OD:- 500mm,
Stroke :- 120mm

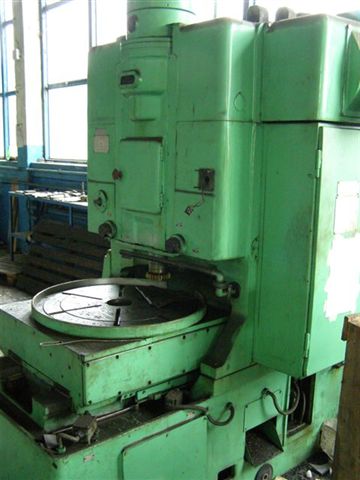

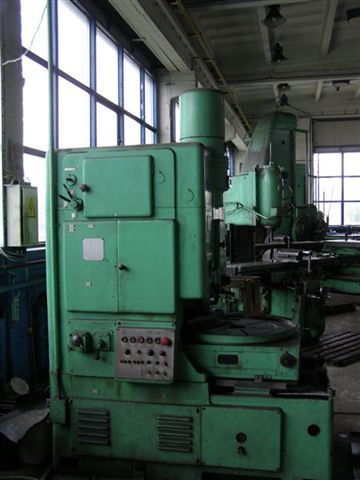

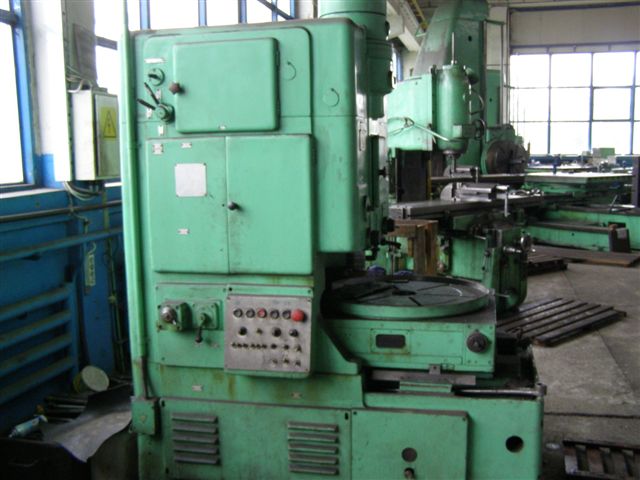

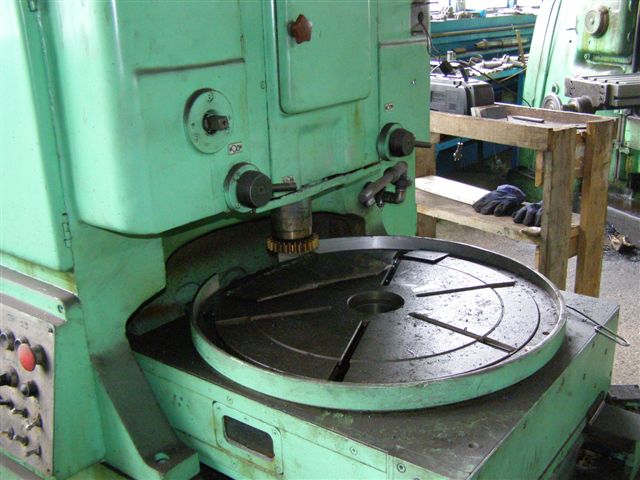

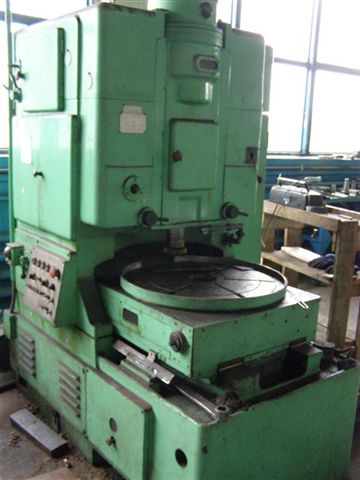

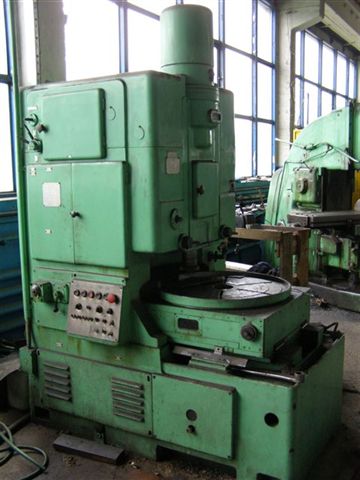

Hydraulic Gear Shaper
High Speed
Spindle double stroke range per minute 65...450

Video
Machine Id: 405 Serial No:
Model: 5140 Asking Price: onrequest
Make: Stanko Country: Russia
Year: 1985 Weight: 0.0
Dimensions: Location:
Power:
Category: Gear Related Machines
Type of Machine: Hydraulic Gear Shaper High Speed
Specification

OD:- 500mm

Stroke :- 120mm



Year of manufcature 1979

Max. work piece diameter, mm 500

Module 8

Table diameter, mm 500

Tooth length, mm 120

Spindle double stroke range per minute 65...450

Description
