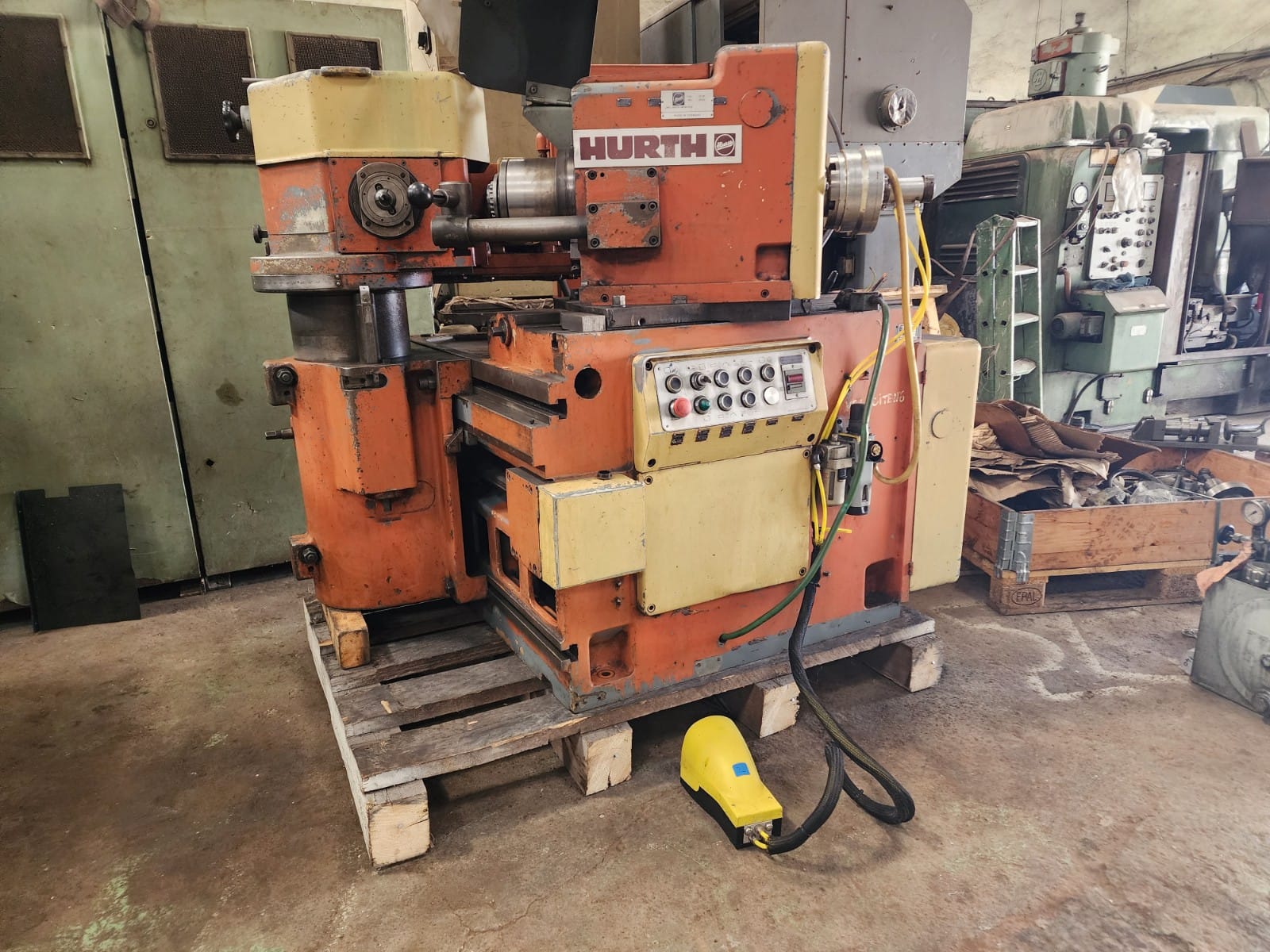

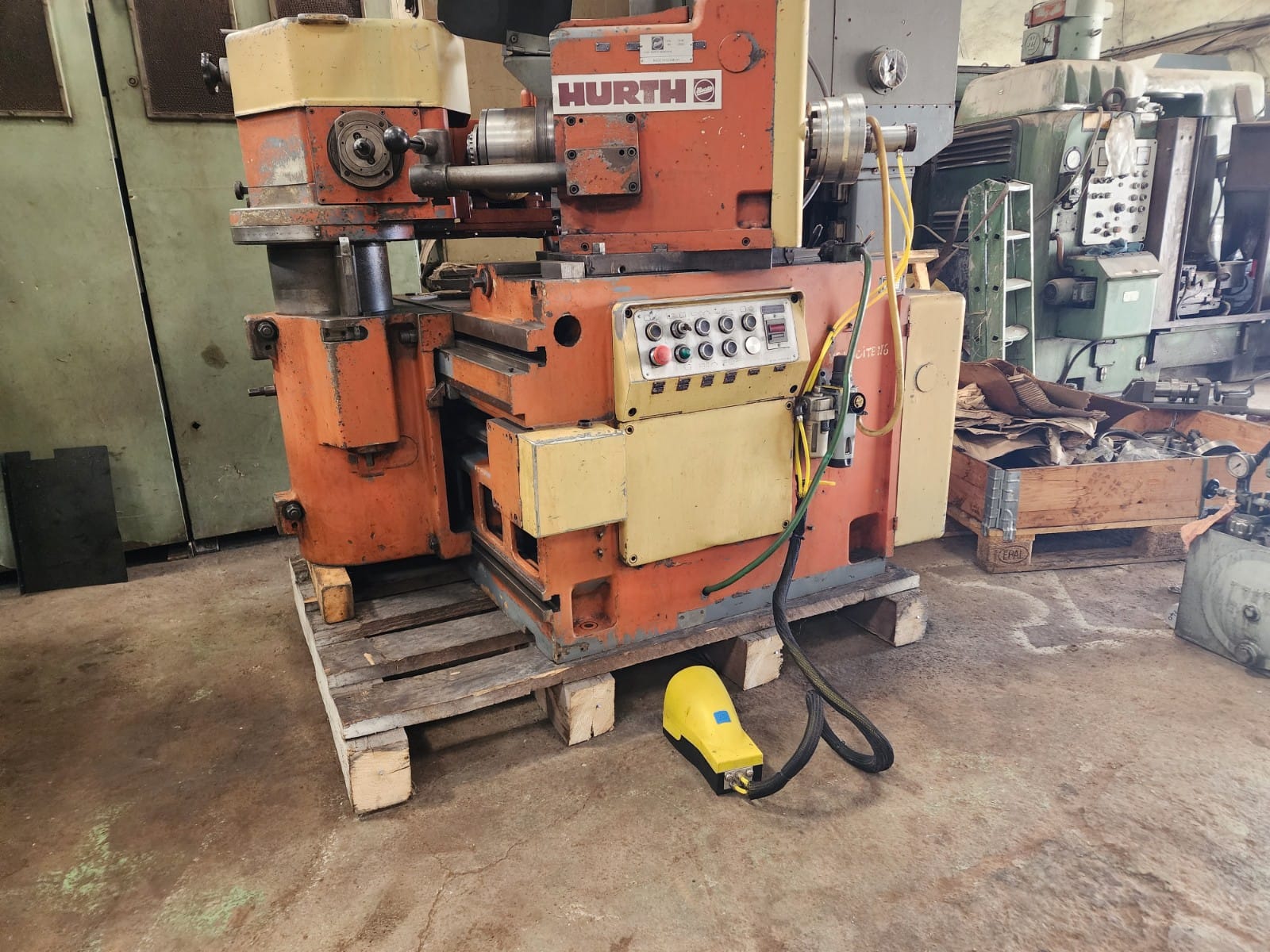

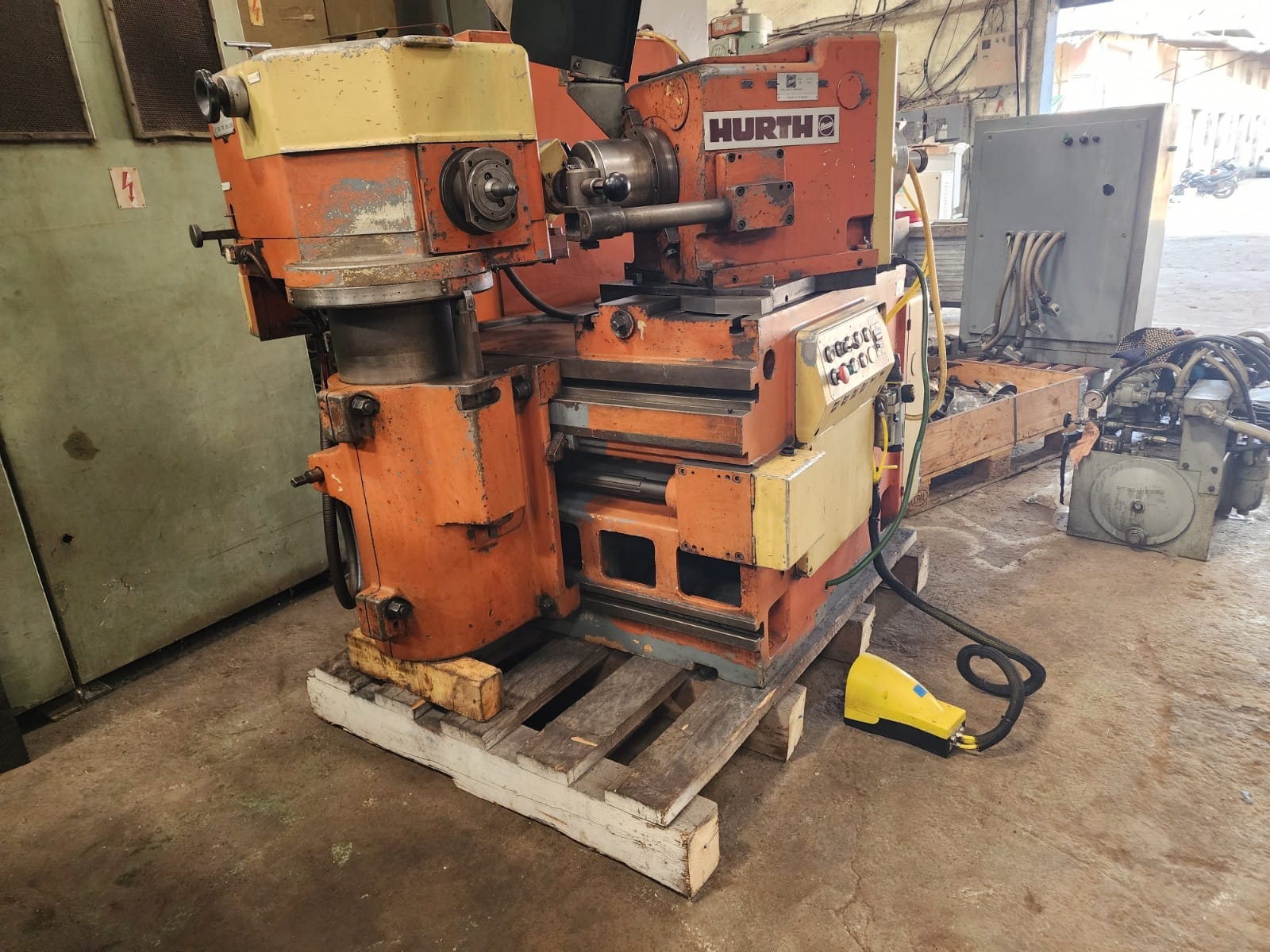

Machine With Double Spindle Fully Adjustable Heads

  2. Category List
  3. Gear Related Machines
  4. zk 10 (with adjustable head)

Gear Related Machines

Add this Favourite
Download Product PDF Enquiry / Quote / Interested For Agents Download Pics Download Photo / Zip

Enlargeable Images :

Video
Machine Id: 516 Serial No:
Model: zk 10 (with adjustable head) Asking Price: onrequest
Make: Hurth Country: Germany
Year: 1989 Weight: 0.0
Dimensions: Location: mumbai warehouse, india
Power:
Category: Gear Related Machines
Type of Machine: used tooth rounding and chamfering machine
Specification
Technical details
max. wheel diameter400 mm
max. number of teeth6 - 150
max. module10
min. module1
number of teeth6 - 200
axial adjustment7 - 80 mm
milling head return travel100 mm
kneetable adjustment vertical650 mm
indexing head adjustment horizontal565 mm
milling head vertical adjustment200 mm
swivelling of milling headmax. 90 Grad
milling spindle - taperSK 40 DIN 2079
bore25 mm
hob turning speeds250 - 2800 U/min
infinitely variable strokes of quill30 - 170 Hub/min
quill travel8 - 12 - 17 mm
main drive motor1,5 kW
milling spindle motor1,6 kW
total power requirement3,3 kW
weight of the machine ca.2 t
Additional information

for deburring, chamfering, rounding for spur and helical gears

Machine With Double Spindle Fully Adjustable Heads
