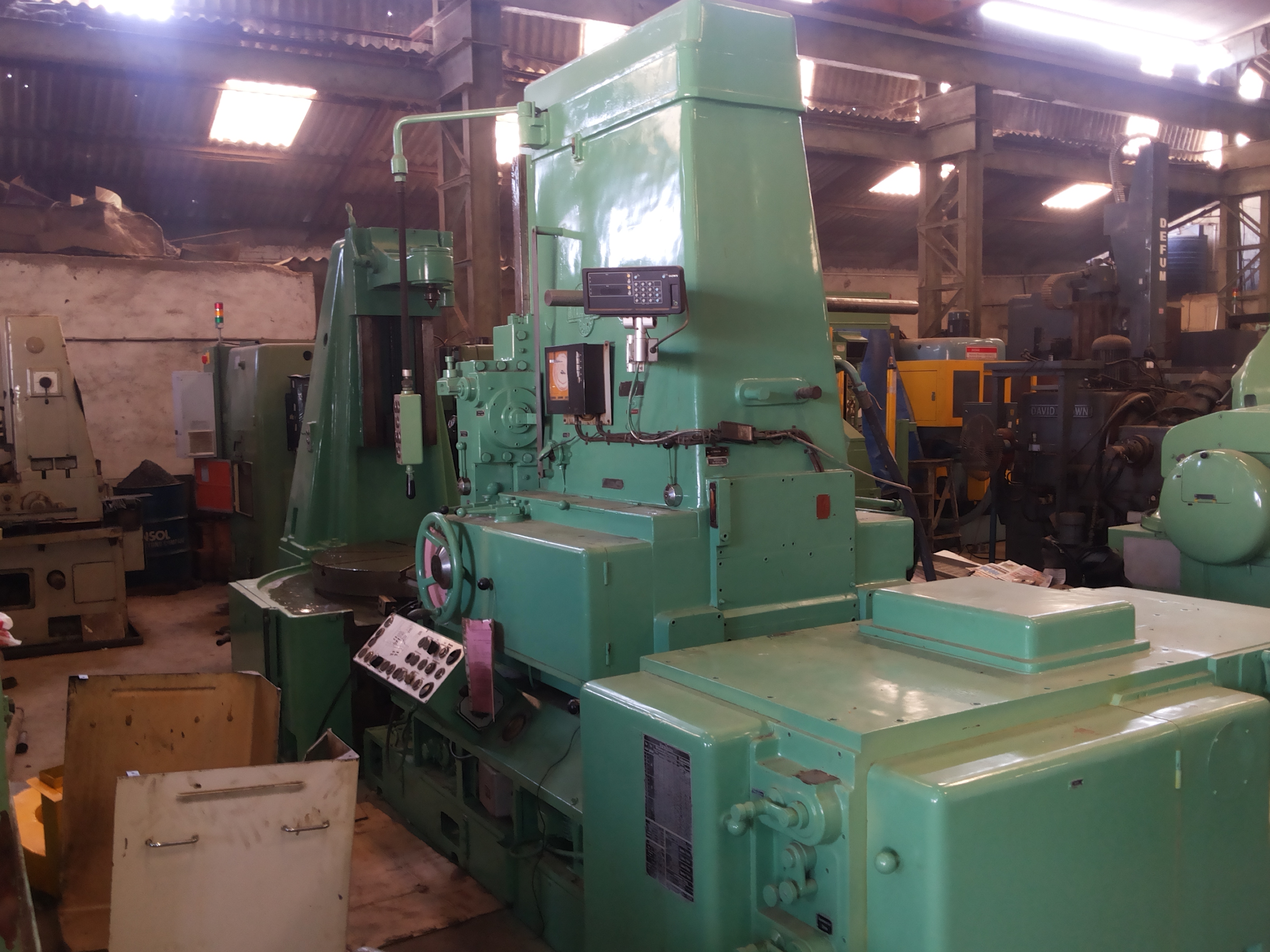

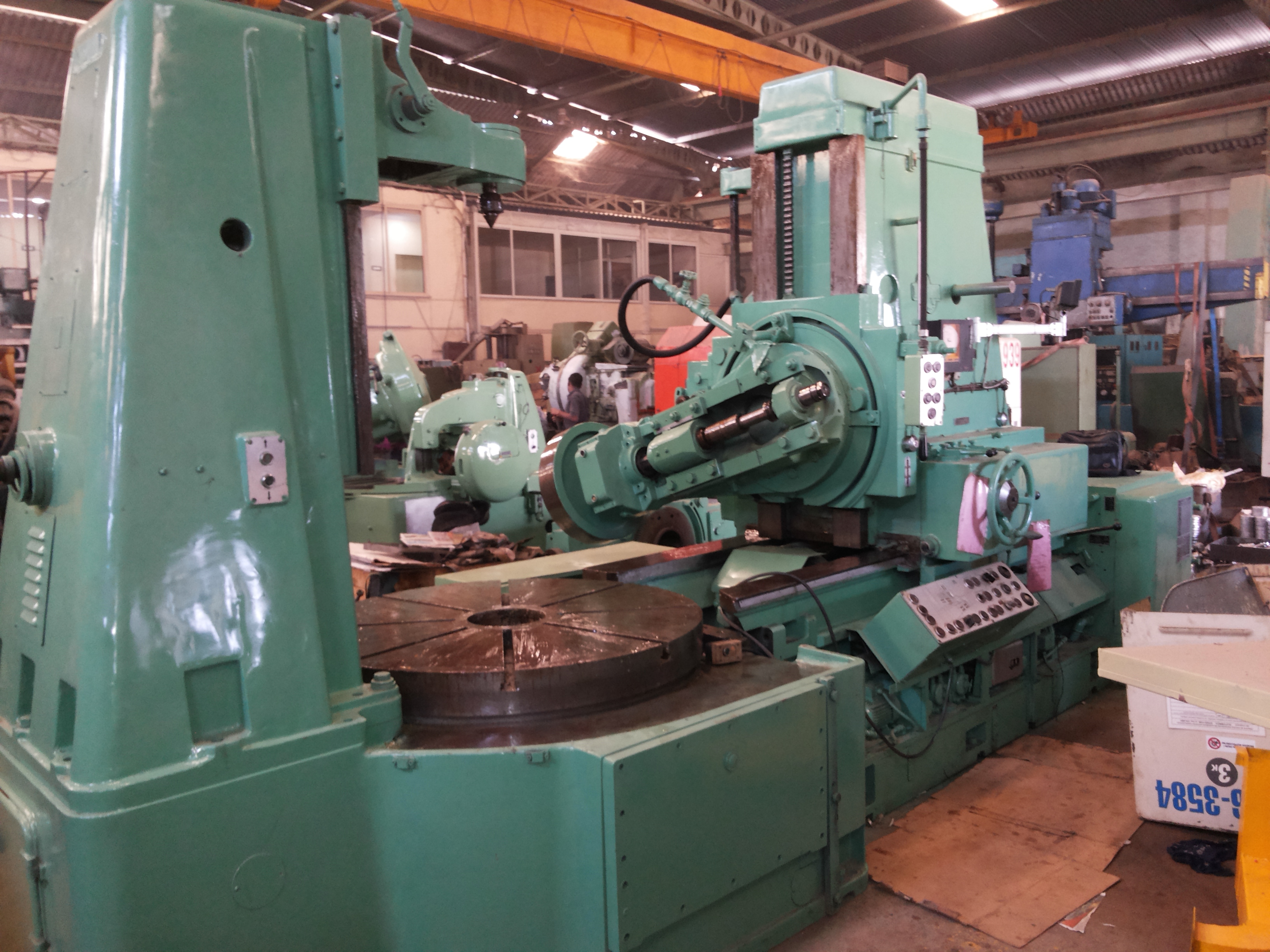

Machine with full change gears + Tailstock
Two Heads ie Hobbing + Tangential Head
Machine like New

Video
Machine Id: 931 Serial No:
Model: E 16 Asking Price: onrequest
Make: Lorenz Country: Germany
Year: 1982 Weight: 0.0
Dimensions: Space required l x w x h approx. 5220 x 2100 x 275 Location: Mumbai Warehouse,India
Power:
Category: Gear Related Machines
Type of Machine: 1600mm Universal Gear Hobber With Tailstock,Hobbing + Tangential Heads
Specification

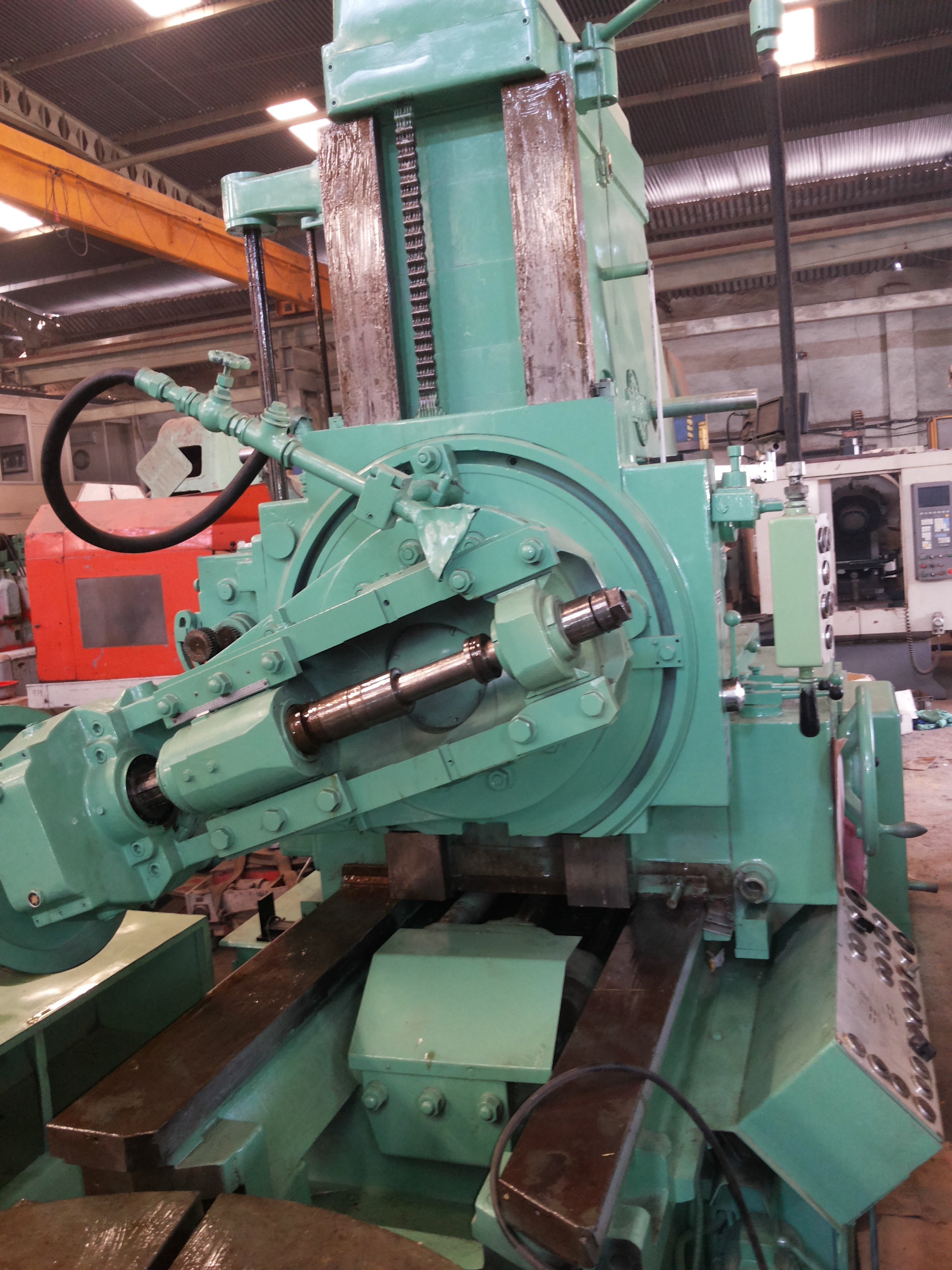

LORENZ - E 16 machien is equipped with Two Heads ie Universal Hobbing Head + Tangential Head



LORENZ gear hobber out of the E-line are suitable for the manufacture of spur-, helical-, and worm gears.

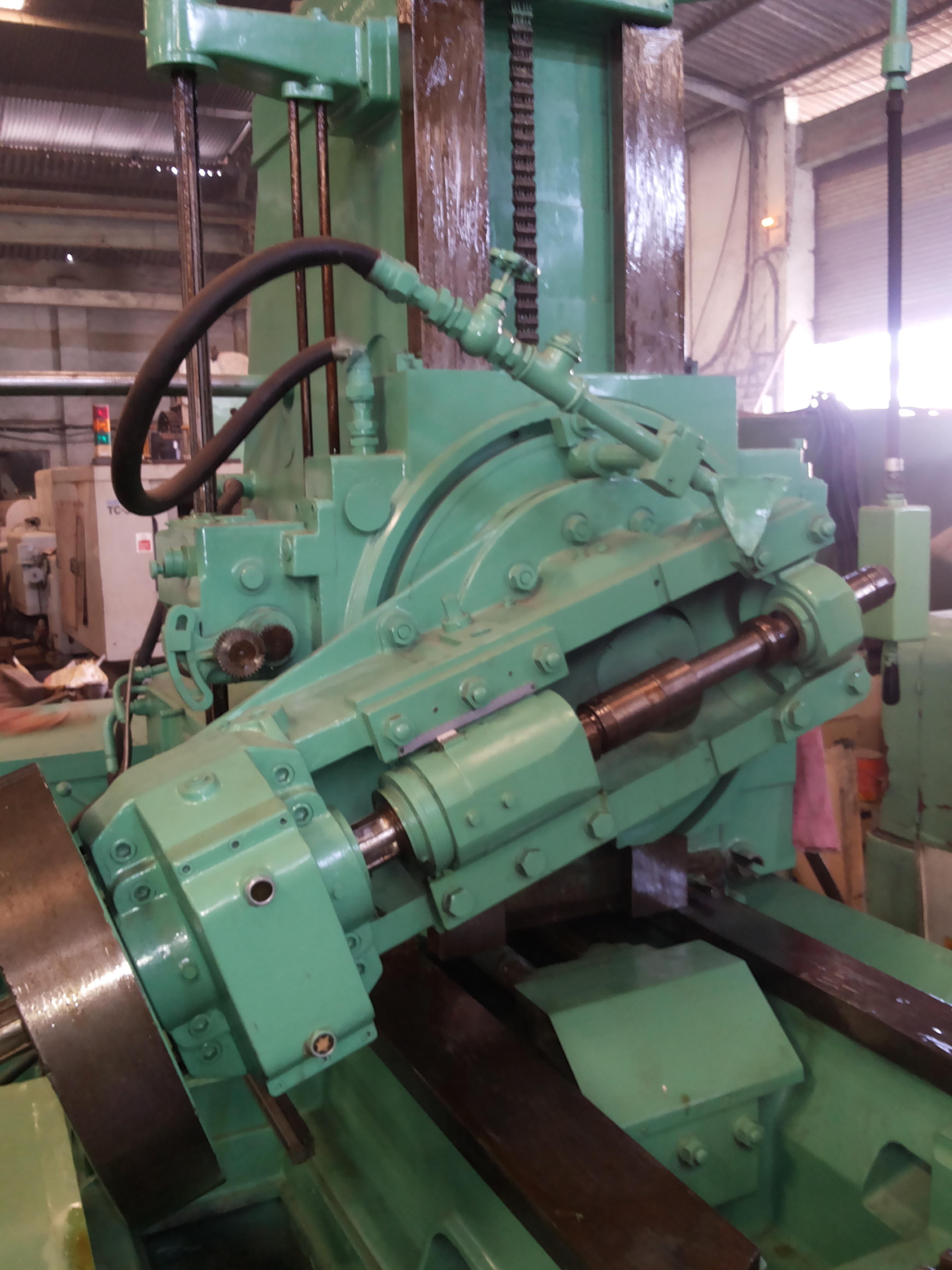

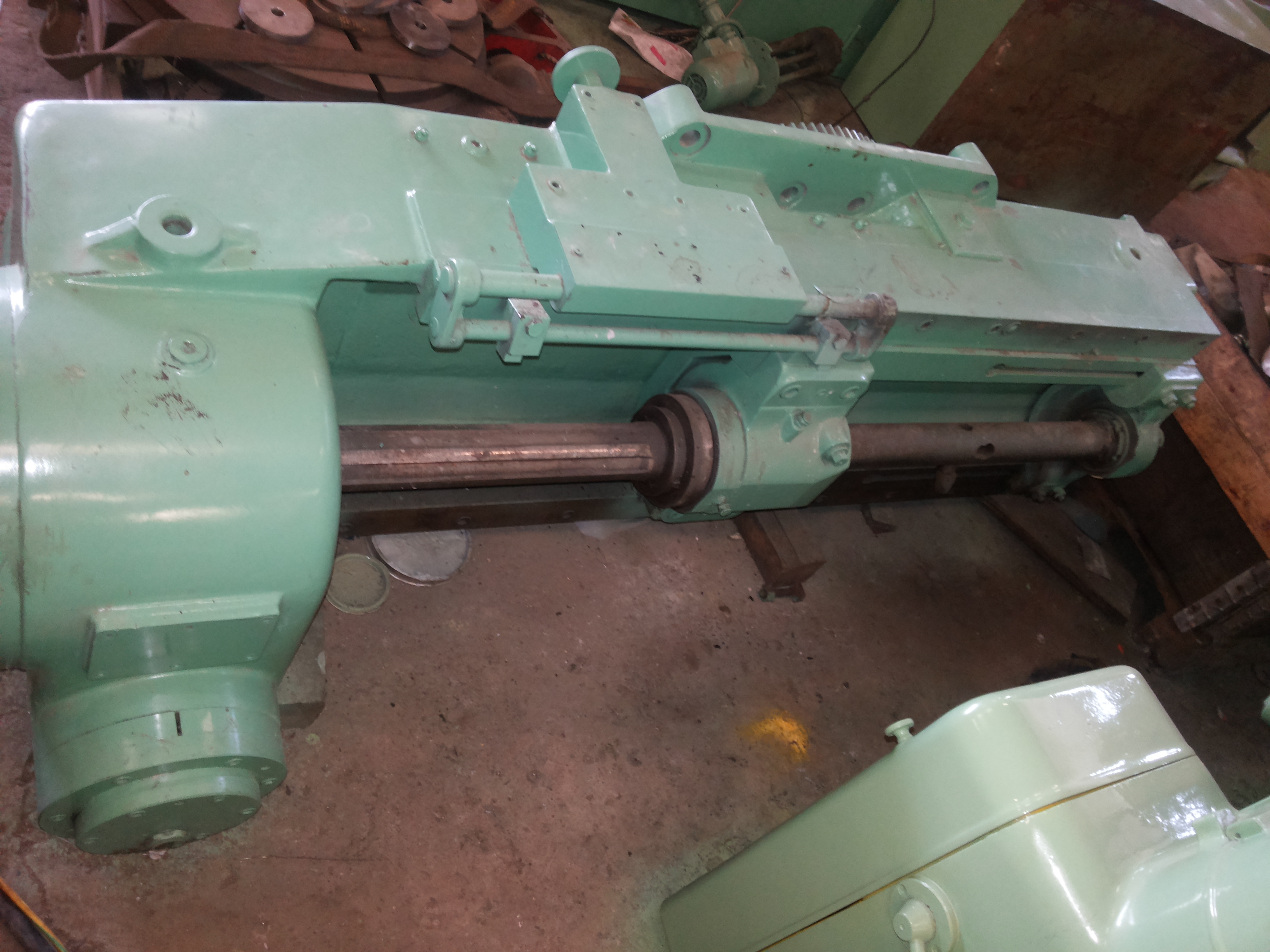

In addition this particular OUR machine is equipped with an Tangential Head for worm cutting .

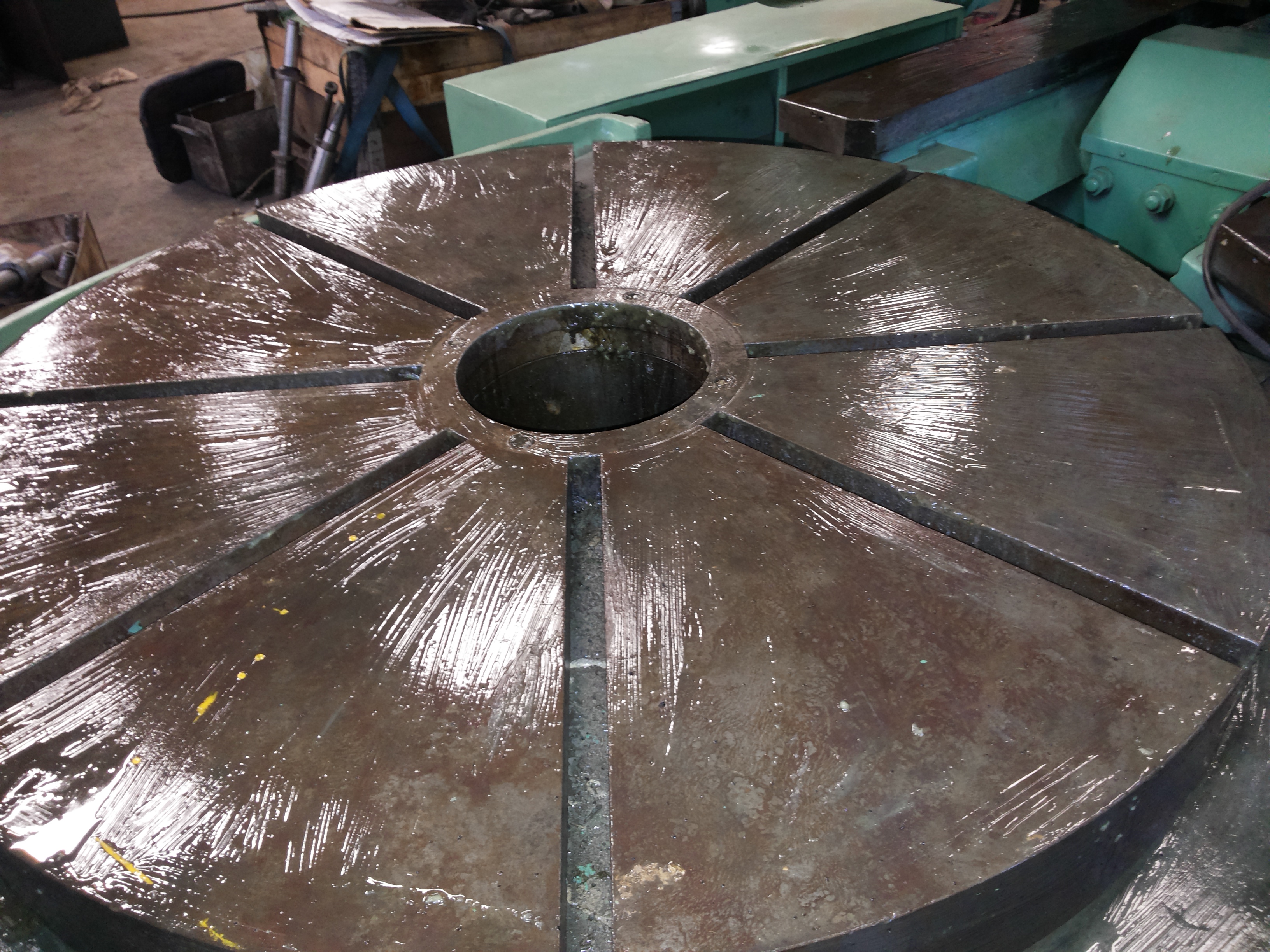

Our machine is supplied with a stationary table, bedded on ball bearings.







The hob column is adjustable on broad bed guides.







The hobbing column is carrying the tool slide with changeable tangential



heads whilst the hobbing column is sliding on a big-dimensioned machine bed.







The work piece table is suitable for very heavy work pieces.

 Subject its design the table transfers heavy loads and cutting motions/forces directly into the foundation







Max. workpiece-OD  without steady 1600 mm



Max. workpiece-OD with steady 1100 mm



Max. table load 5500 kg



Max. face width 660 mm



Max. module with - 25



- disc milling cutter 18



- cutter-head 16



Max. number of teeth 500



Min./Max distance between arbour and cutter center:- 50 / 950 mm



Max. vertical stroke of slide 740 mm



Clamping table- 1250 mm



Table bore- 250 mm



Mandrel-90 mm







RPM of hob cutter 18 from 18-125 U/min.







Hob feeds per table rotation 0,04-5



Part feed 2-250 mm/min.







Total connected load approx. 12,9 kW







Power required 220/380V, 50 Hz







Weight of the machine approx. 22500 kg







Space required l x w x h approx. 5220 x 2100 x 2750 mm
