      • Heavy Duty CNC gear Hobbing Machine
      • Rebuilt in Januaray 2019
      • 2-Axis CNC Gear Shaping Machine and Siemens 808D Advance System
      • Hydraulic Clamping & Tailstock ,
      • Two copies of the machine operators manual
      • Two copies of all electrical and mechanical prints
      • Can be tooled up to customers as per customers requirement at extra cost
      • Machine is ready for immediate delivery subject to prior sale
Video
Machine Id: 1290 Serial No: Not Available
Model: WS1 CNC Asking Price: onrequest
Make: Liebherr Country: Germany
Year: 2019 Weight: 0.0
Dimensions: Location: India
Power:
Category: Gear Related Machines

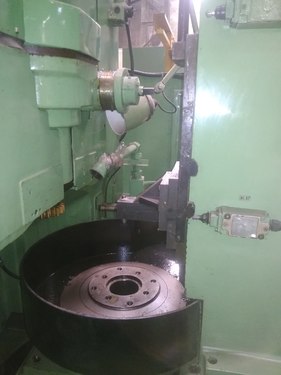

Type of Machine: High Speed Gear Shaper with CNC Control (CHOICE OF TWO MACHINES)
Specification

This machine was totally cleaned, hydraulic and coolant systems drained and cleaned, all gib adjustments were checked, all worm lashes were adjusted, all old parts specially bearings were replaced, all mostly oil leaks replaced and then the machine was fully recertified using the ISO alignment standards for CNC Gear Shaper.

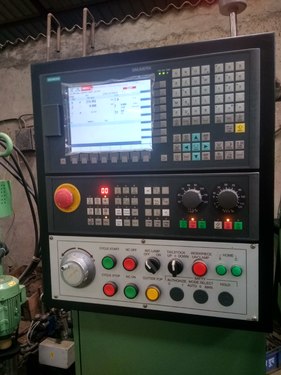

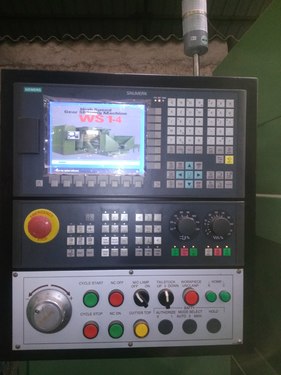

 All the old German controls were eliminated and replaced with new Siemens 808D.
This machine was recontrolled using a BRAND NEW 2019 YOM

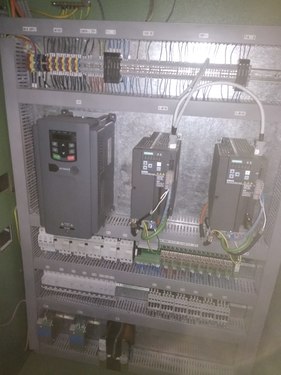

Siemens 808D, Digital drives and AC servo motors Power CNC controlling digital Servo drives for the axes.



External gears, max. Ø, approx.                                                         265   mm

Internal gears, max. workpiece Ø                                                       300   mm

Module range                                                                                  0.3 - 6



Length of stroke                                                                               0 - 55   mm



No. of strokes, infinitely variable                                            220 – 1,100   /min

Feed range                                                                              2.4 – 2,400   mm/min

Rotary feed                                                                             0.06 – 4.95   mm/rev



Weight, approx.                                                                                7,300   kg
