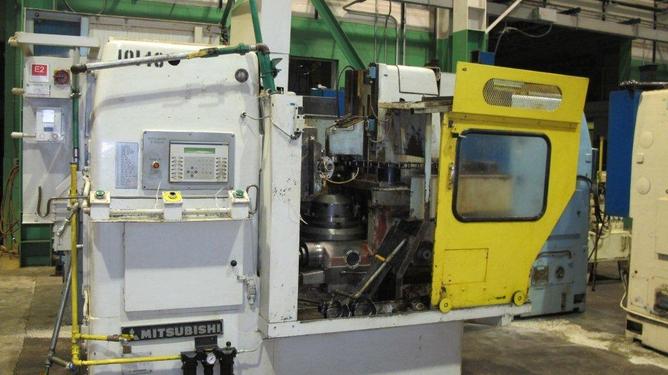

Mitsubishi GH 201 Gear Hobber

Description:

The Mitsubishi GH 201 Gear Hobber represents the pinnacle of gear cutting technology, offering unmatched precision and reliability for the production of high-quality gears. Engineered to meet the demands of modern manufacturing, the GH 201 combines advanced technology with robust performance to ensure optimal results in various industrial applications.

Specifications:

• Model: Mitsubishi GH 201

• Type: Gear Hobber

• Cutting Capacity:

  • Maximum Gear Diameter: 200 mm
  • Maximum Gear Module: 4 mm
  • Maximum Workpiece Length: 250 mm

• Spindle Speed:

  • Hob Spindle Speed Range: 100 to 1500 rpm
  • Work Spindle Speed Range: 20 to 500 rpm

• Hob Spindle:

  • Power: 7.5 kW
  • Maximum Hob Diameter: 100 mm

• Table Movement:

  • X-axis Travel: 400 mm
  • Y-axis Travel: 200 mm

• Feed Rates:

  • In-feed Rate: 0.01 to 2 mm/rev
  • Return Rate: 0.02 to 3 mm/rev

• Accuracy:

  • Cutting Accuracy: ±0.01 mm
  • Surface Finish: Ra 1.6 μm

• Control System: CNC (Computer Numerical Control) for enhanced precision and automation

• Dimensions:

  • Machine Size: 1600 x 1400 x 2200 mm

• Weight:

  • Approximate Weight: 2500 kg

• Power Supply: 400V, 50/60Hz, 10 kVA

Features:

• High Precision: Equipped with advanced gear cutting technology for superior accuracy and surface finish.
• Versatile Applications: Suitable for a range of gear sizes and types, accommodating various industrial needs.
• User-Friendly Electrical Control: Provides ease of operation and programming, enhancing productivity and flexibility.
• Robust Construction: Designed for durability and long-term reliability with minimal maintenance requirements.
• Enhanced Productivity: High-speed cutting capabilities to optimize manufacturing efficiency and reduce cycle times.

Applications:

Ideal for producing precision gears in:

• Automotive Transmissions
• Aerospace Components
• Industrial Machinery
• Power Transmission Systems
