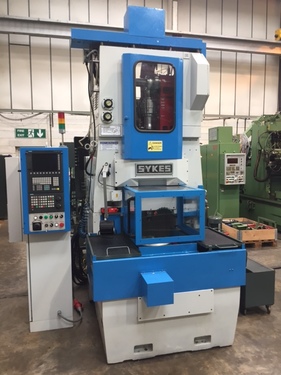

General Data:

Work Piece: Maximum diameter – external 400

Maximum diameter – internal 240 + cutter dia

Maximum Pitch 6 Mod

Maximum helix a LH & RH 450

Capacity: Cutter stroke length 70

Maximum face width 64

Cutter spindle speeds up to 1500 s.p.m

Maximum centre distance- 260 forwards

cutter to work 120 backwards

Cutter spindle shoulder to table top 202(+ -) 13

(mid Stroke)

Cutter: Nominal diameter 125

Cutter bore 44,45 dia.

Machine Dimensions: Cutter spindle diameter 90

Work Table diameter 250

Table bore diameter 100

Cutter wormwheel P.C.D 270

Table Workwheel P.C.D 270

Feeds: Rotary feed – 100 cutter 0, 05-2,5

Radial Feed 0, 02-0,2

Motors: Main Drives – Simplatrol/ Lienze

D.C. Shunt wound motor

GFQ112 440VA B3 + Brake

20kw at 3000 RPM

3 kw at 450 RPM

Fan Motor 415V/3/50 GFQ112/1

Axis drives- Contraves

Cutter & Work C404-OSH-05-04-F4

CRO /LT/PR1:1.8

Infeed C403-OSH-02-01-F4

CRO /LT/PR2.5:1

Motors: Continued

Lubrication - Brook

2.2 kw 1450 RPM

Frame D1005D

Coolant - ASEA

0.25 kw 1450 RPM

Frame MT63B

Swarf Screw - Normand

1/8 H.P. 1800 R.P.M

Frame SW479/F1

Swarf elevator - Normand

1/8 H.P. 1800 R.P.M

Frame SW479/F1

Overall Dimensions: Floor area 3385 X 2860

Height 3080

Length, Machine 2250

Width, Machine 1550

Weight, Machine 6600 kg

Coolant Capacity 140 Litres

Lubricant capacity 60 Liters
