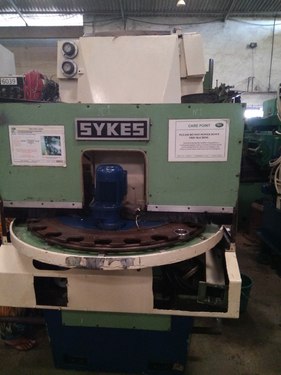

GENERAL DATA:

WORK PIECE:  Maximum diameter -external  : 200
                          Maximum Pitch  :  6,5 Mod
                          Maximum Helix (LH and RH)  :45 Digree

CAPACITY:  Cutter Stoke Length  :    56
                      Maximum Face Width   :    50
                       Cutter Spindle Speeds   : Up To 1500 Spm
                       Maximum Centre Distance Cutter To Work  :  260 Forward 50 Backword
                       Cutter Spindle Shoulder To Table Top     : 242 Maximum 156 Minimum

Cutter :  Nominal Diameter  :  125
              Cutter Bore    : 44, 45 Dia

Machine Dimensions :  Cutter Spindle Diameter   :  90
                                     Work Table Diameter        :  250
                                     Table Bore Diameter    : 100
                                     Cutter Wormwheel P.C.D.   :   270
                                     Table Wormwheel P.C.D.    :   270

FEEDS : ROTARY FEED :  0,13 - 0,5
              RADIAL FEED  : 0,02 - 0,2

MOTORS:   T.E.F.C. main motor 4.5/3 Kw 2 spped     :  1435/710  r.p.m.
                   T.E.F.C. lubrication pump 1,5Kw             :  1440 r.p.m.
                   T.E.F.C. coolant pump 0,25 Kw              : 2800 r.p.m.
                   Cutter Index Geared Motot                         :  101/52 r.p.m.
                   Swarf Screw Geared Motor 0,06 Kw                   : 1400/4 r.p.m.
                   Swarf Elevator Geared Motor 0,12 Kw               :  740/16 r.p.m.
                   Return Pump Motor   1,5 Kw                          : 1500 r.p.m.
