Type of machine :- 3 Axis Gear Hobbing Machine - Vertical

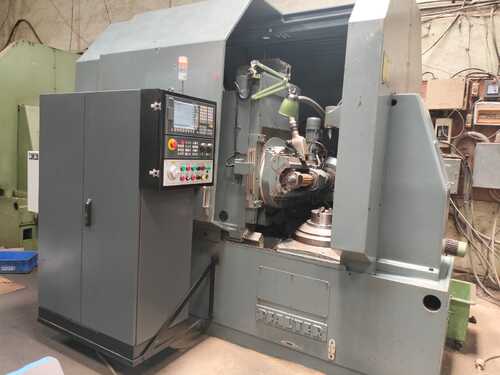

Make :- Pfauter PA 320CNC
Three Axis CNC Controlled with Siemens 808 (brand new 2023) Max. workpiece Ø 350 mm Max. modulus f. hobbing cutters 8 mm Max. addendum circle Ø 163 mm L max. 230 mm (depending on cutter arbour Ø) Cutter cutter Ø 22, 27, 32, 40 mm Mounting taper MK5 Radial carriage travel 225 mm Tangential carriage travel 170 mm Axial carriage travel 250 mm Max. cutter head pivoting angle +30°...-40° #workpiece spindle outside Ø 350 mm Workpiece spindle bore 150 mm Counter holder travel 550 mm Counter holder bore 150 mm Speed - tool 120-400 rpm Speed - tool spindle 1-40 rpm Rapid speed on X axis 5,000 mm/min. Rapid speed on Y axis 750 mm/min. Rapid speed on Z axis 1,000 mm/min. Automatic. workpiece feeding unit Cooling lubricant system Oil mist extraction and filtering system Additional information
complete with change gears, etc
complete , handbooks and machine manuals etc.
fully rebuilt with BRAND NEW 2023 YOM
Siemens 808 , Digital drives and AC servo motors
CNC Controlled Axis X and Z + hob shifting,
Free standing Electrical Cabinet fitted . Suitable for Spur , Helical , Crowning & slightly tapered gears both for batch and heavy production of components Machine Features - Hydraulic Clamping & Tailstock ,
- Automatic Hob shift
- Full change gear set
- One 1.25" hob Arbor, outboard bearing, Arbor wrench
- Two copies of the machine operators manual
- Two copies of all electrical and mechanical prints
- Can be tooled up to customers as per customers requirement
- Machine is ready for immediate delivery subject to prior sale.
The Advantages of New Siemens 808 Advance System are as below:- The benefits are as per below:- 1. It is close loop system so positioning accuracy of axis is far better. 2. It has Auto servo tuning (AST) facility so that load can be tuned with servo motor for better performance with torque. 3. It has Direct servo control (DSC) by Drive Bus communication so that drives can perform better with controller commands. 4. It has friction compensation facility. 5. Servo motors available up to 40Nm whereas in 808D it was only 4,7,10Nm only.(e.g. for Z-axis we used 15Nm 6. Absolute encoder available with Servo motor so that referencing is not required (like 828D) 7. It has Ethernet communication port so that PLC and Data Upload/Download is much faster. 8. It has Ethernet Interface so that it can be monitored remotely (like 828D) for a. Transfer of Part program, user cycles, Machine data, R-parameter, PLC data, HMI data etc.. b. PLC Logic can be monitored c. PLC upload/download d. Part program send/receive e. Execute part program f. Screen shots can be taken. This machine is recontrol or recertification with SIEMENS 808 Advance System Exactly as per Pfauter Standards.
All recontrolled and recertified machines are fully cleaned.
All moving slides, spindles and parts handling systems are inspected for problems.
Any gibs or adjustable backlash systems are adjusted to the best possible settings.
All hydraulic, coolant, lubrication and pneumatic systems are checked for proper functionality and leaks.
All filters are replaced. All worn hoses, broken cables, connectors, buttons, lamps and wires are replaced.
All guarding is installed and checked.
All machine cycles are tested. Parts are cut to verify the machine capability.
Charts from the test cutting are documented for your viewing.
|
