| Location |
: |
Mumbai Warehouse,India |
|
|
 |
| Category |
: |
Gear Related Machines |
|
|
|
|
|
| Type of Machine |
: |
Gear Shaper |
|
|
|
|
|
|
|
|
|
|
| Specification : |
|

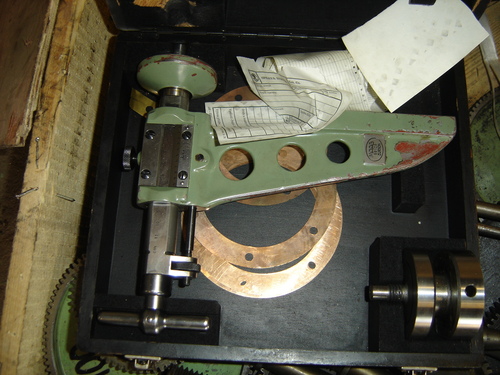

The MAAG SH-45 Gear Cutting Machine is suitable for machining of:
* External & internal cylindrical gears * Pinions * Spur & helical gears * Gear teeth with longitudinal and profile corrections * Cluster gears * Double helical gears * Sprocket wheels * PARTICULAR ADVANTAGES:
* Wide range of applications (gear diameters 0.8" to 18")
* High economy (Thanks to simple, inexpensive tooling and high rate of
metal removal)
* High accuracy (Long life assured by operating principle and robust
machine construction)
* Automatic machining cycles (A large number of automatic working cycles
are available for the various fields of application)
PRINCIPAL SPECIFICATIONS AS PER CATALOGUE:
Maximum/minimum rated diametrical pitch... 4.2/25
Maximum/minimum rated gear blank... 18"/0.8"
Maximum rated spur gear face width... 4.75"
Maximum/minimum number of teeth... 250/6
Maximum helix angle... 60 Deg.
Maximum weight of gear and fixture... 880 lbs.
Maximum/minimum stroke of cutter slide... 5.7/0
Maximum/minimum position of cutter above table at stroke... 12.6/5.5
Range of cutter strokes (12)... 37-235 SPM
Strokes per pitch, steplessly adjusted... 9 half 80
|
|
|
|
|
|
