| Dimensions |
: |
1800x1600x1700 |
|
|
|
|
|
|
 |
| Category |
: |
Gear Related Machines |
|
|
|
|
|
| Type of Machine |
: |
used gear lapper |
|
|
|
|
|
|
|
|
|
|
| Specification : |
|

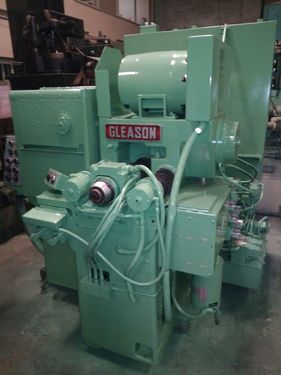

Used Hypoid Gear Lapper ,overhauled in 1999 and since then it has been in use very little. Brake,Hydraulic chucking to both heads.
Pinion and cone motion switches 4 front and 6 at side.
Very good machine
Maximum Gear Diameter 266mm,
Maximum Pinion Diameter 152mm
Pinion Spindle : Diameter of taper hole at large end 100mm,
taper /foot 15mm,
depth of taper
Diameter of hole through spindle 63mm.
Gear Spindle :- Diameter of taper at large end 58mm
Taper/foot 13mm
Depth of Taper 76mm
Diameter of hole through spindle 55m.
Maximum Gear Diameter | : 266mm | Maximum Pinion Diameter | : 152mm | Pinion Spindle : | | Diameter of taper hole at large end | : 100mm | taper /foot , depth of taper | : 15mm | Diameter of hole through spindle | : 63mm | Gear Spindle : | | Diameter of taper at large end | : 58mm | Taper/foot | : 13mm | Depth of Taper | : 76mm | Diameter of hole through spindle | : 55mm |
|
|
|
| Description : |
|
Used Hypoid Gear Lapper , overhauled in 1999 and since then it has been in use very little.. Eddy Brake,Hydraulic chucking to both heads.Pinion and cone motion switches 4 front and 6 at side.Very good machine
|
|
|
