| Location |
: |
Mumbai Warehouse,India |
|
|
 |
| Category |
: |
Gear Related Machines |
|
|
|
|
|
| Type of Machine |
: |

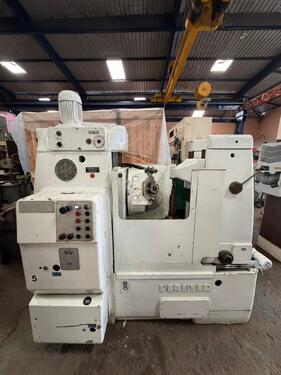

used gear hobbing machine |
|
|
|
|
|
|
|
|
|
|
| Specification : |
|
Max. Gear Diameter : 400 mm
Module : 6
Hobbing Length : 300 mm
Max. Length of Workpiece appr. : 600 MM
Table Diameter : 400 mm
Table Bore, appr. : 90 mm
Hob Carriage, swivelling : 240 degr.hOB sIZE
Hob Size : 160 mm dia x 160 mm
Hob Shifting, max. : 100 / 120 mm
Hob Spindle Speeds : 80 - 480 rpm
Feed Range, axial, infinitely variable : 0.4 - 4.95 mm / rev
Feed Range, radial, infinitely variable : 0.1 - 1.22 mm / rev
Feed Range, tangential, infinitely variable : 017 -2.1 mm / rev
Spindle Drive, appr. : 7.5 kW
Total electrical load, appr. : 10 kW - 380 V - 50 Hz
|
|
|
| Description : |
|
Good condition
Special Features
Selection Switch for various hobbing programmes, radial/axial quick feed. Hob shifting device. Differential drive for helical teeth. Set of change gears. Separate hob mandrel. Built-on chip conveyor. Coolant device
|
|
|
