| Location |
: |
Mumbai Warehouse,India |
|
|
 |
| Category |
: |
Gear Related Machines |
|
|
|
|
|
| Type of Machine |
: |

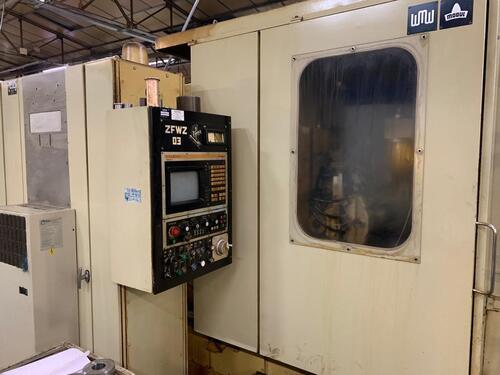

CNC Gear Hobbing Machine |
|
|
|
|
|
|
|
|
|
|
| Specification : |
- Year of manufacture: 1992
- Control system: SINUMERIK 3M (6 controlled axes: X, Y, Z, A, B, C)
Technical data: - Max. module
- -for plain milling cutters: 8
- -for forming cutters: 14
- Max. diameter of gear: 250 mm (315 mm)
- Max. axial travel: 280 mm
- Max. tangential (milling) travel: 160 mm
- Max. angle of teeth incline: 45°
- Diameter of clamping surface of table: 295 mm
- Max. diameter of milling cutter: 160 mm
- Max. length of milling cutter: 200 mm
- Distance between clamping surface of table and center of milling cutter: 190–470 mm
- Cutter revolutions: 50–400 rpm
- Rapid traverses:
- -axial: 1600 mm/min.
- -tangential: 800 mm/min.
- -radial: 2000 mm/min.
- Machine dimensions: 3930×3460×2500 mm
- Machine weight: cca 8500 kg
|
|
|
|
|
|
