| Dimensions |
: |
1880x1300x1970mm |
|
|
|
| Location |
: |
Mumbai India...Under Power |
|
|
 |
| Category |
: |
Gear Related Machines |
|
|
|
|
|
| Type of Machine |
: |
gear tester / lead & involute measuringwithout base circle disc |
|
|
|
|
|
|
|
|
|
|
| Specification : |
|

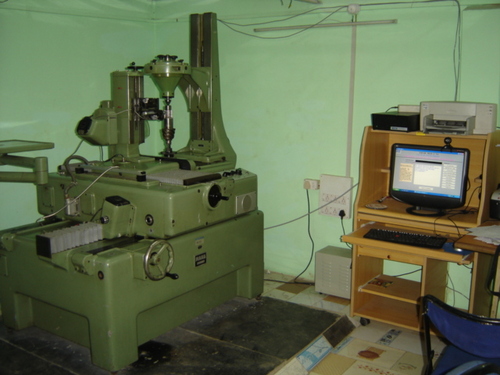

Please see Working Video To See 2008 Rebuilt Machine Under Power. Please click online on links to see machines underpower Video Number 1 Video Number 2 This Machine Is Completly Rebuilt & Installed With Brand New Software from Prime Technology India . This Machine Can be Inspected Under Power, All Dimensions of componet Can be Tested & Print Out Shall Be Taken out. The Photo Of The Machine Is At Actuals & Is Testing A Component after Rebuilding & Installing Brand New Software System, Probs etc. Tailstock type SPA-F-65/75. Excellent condition Various accessories. Maximum/Minimum base circle diameter 600/25mm Maximum Module 20 Minimum Module 1 Maximum Generative cross travel 400m Maximum Tip circle diameter 650mm Max.Pinion Shaft diameter at max. height between centre 370mm Maximum tracable facewidth at helix angle Zero Deg 150mm , at 60 deg angle 75mm Maximum Pinion Shaft length 750mm Maximum Permissible gear weight 500kg
|
|
|
| Description : |
|
This Particular Maag Model :- SP 60 does not use base circle disc. Gear diameter (mm) 600 Gearwheel width (mm) 600
|
|
|
