Machine pulled from production
Machine came from UK
Excellent Condition

Machine Id: 695 Serial No:
Model: H 250 D2P Asking Price: onrequest

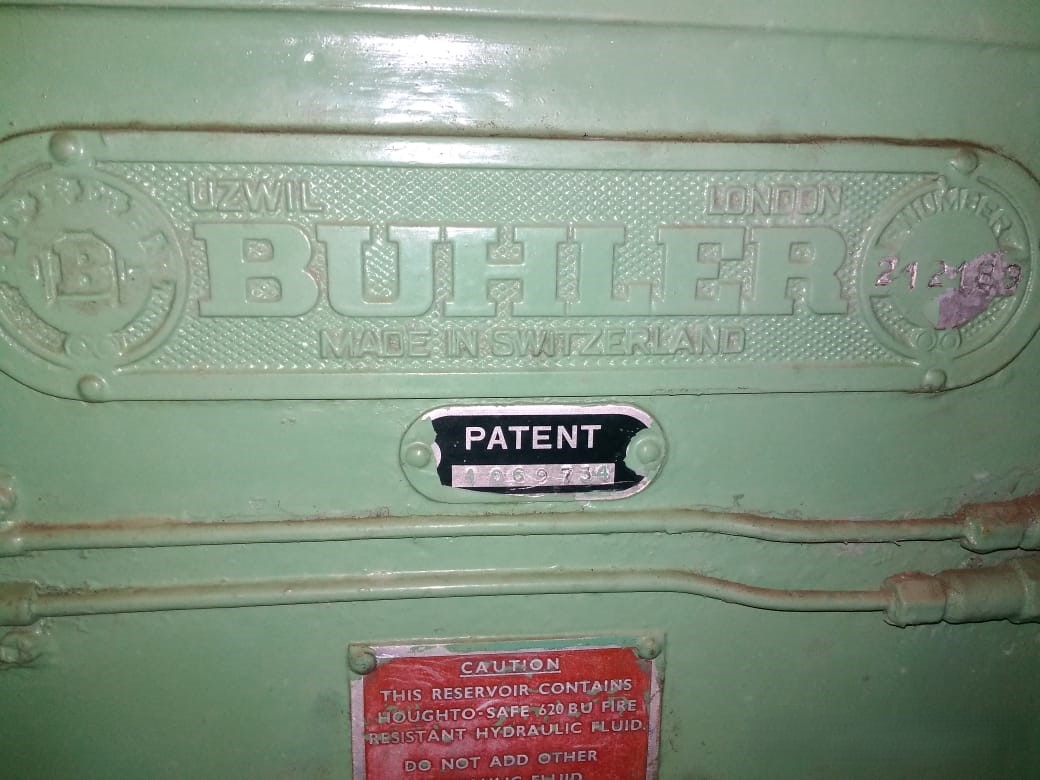

Make: buhler Country: Switzerland
Year: 1980 Weight: 0.0
Dimensions: 5900 X 1600 X 2000 Location: Mumbai Warehosue, India
Power: 22.4 kw
Category: Pressure Die Casting Machines (PDC)
Type of Machine: pressure die casting machines

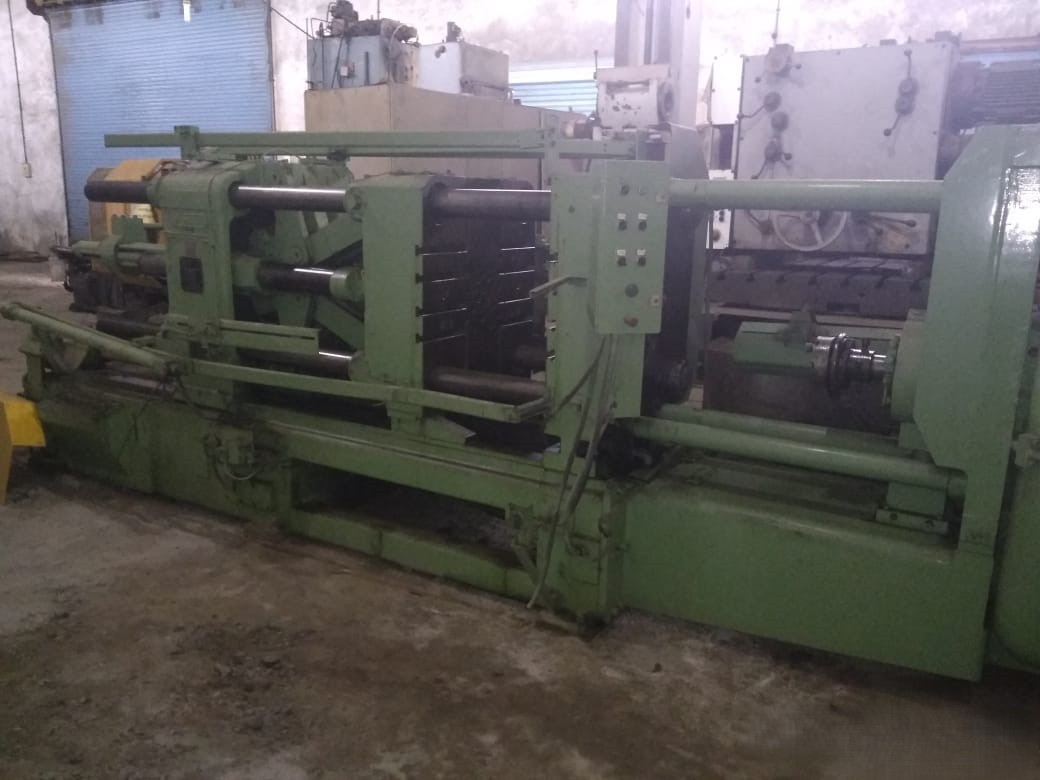

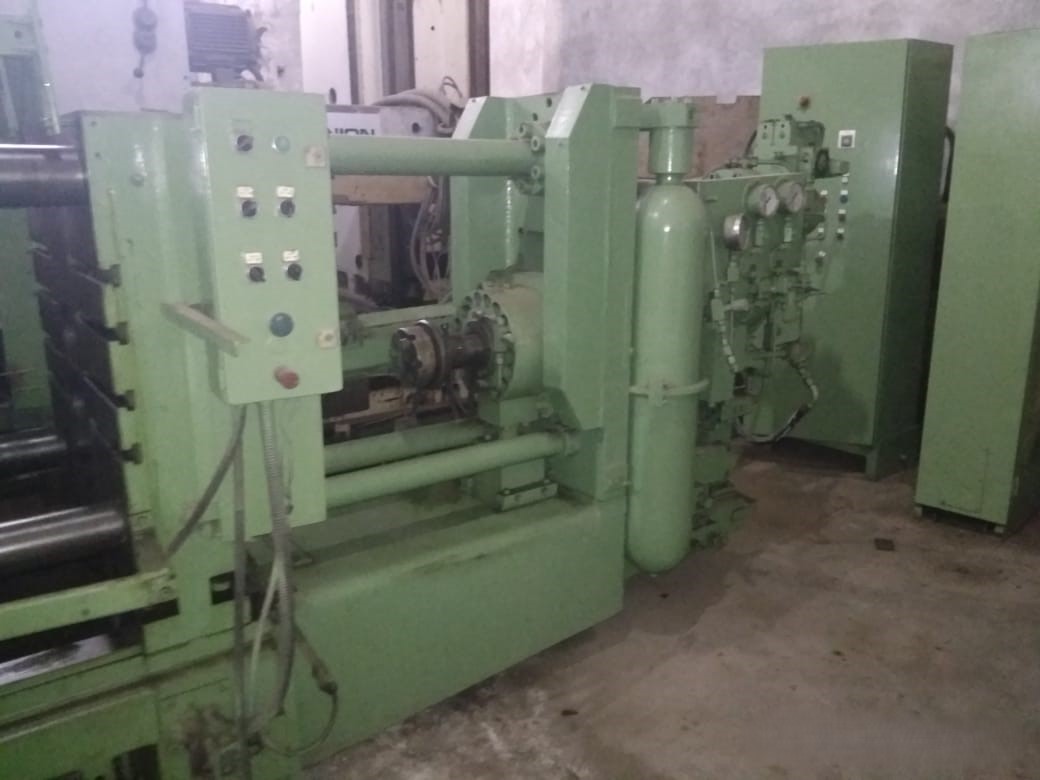

 250 ton locking force, with Buhler Direct injection with parashot


Central Dieheight adjument, Central Lubrication etc.

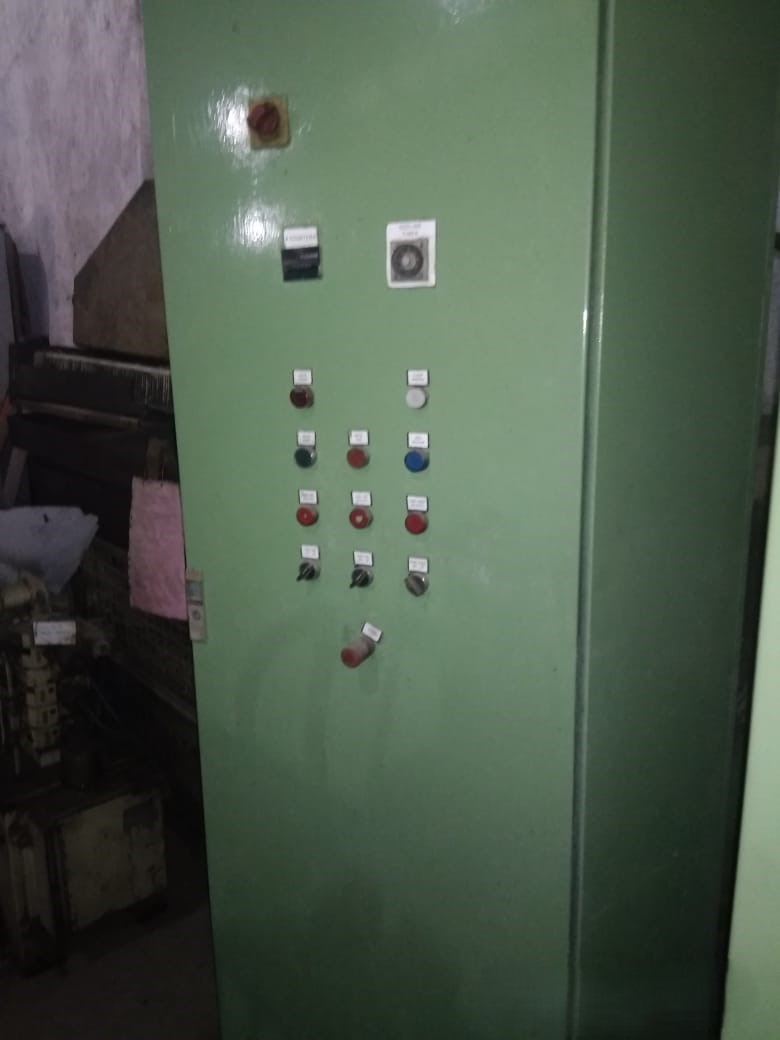

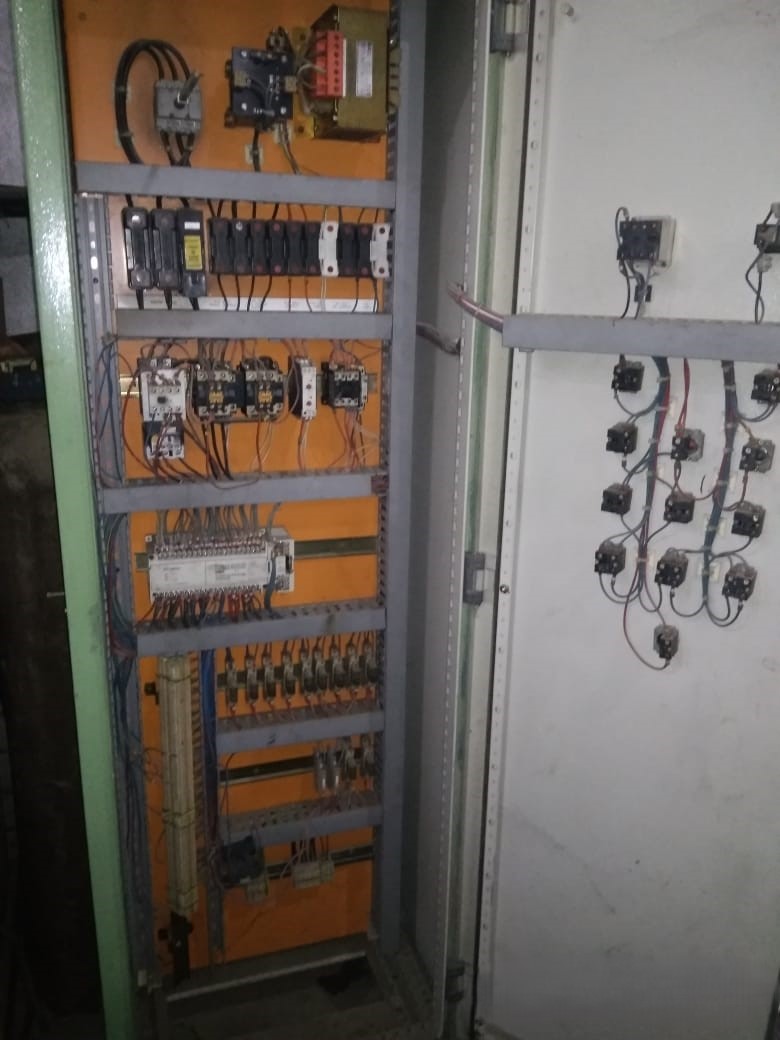

Excellent condition. Full guarding, Intercirc Control


Locking force 250 tonnes, Injection force adjustable (with itensifier) 35 tonnes

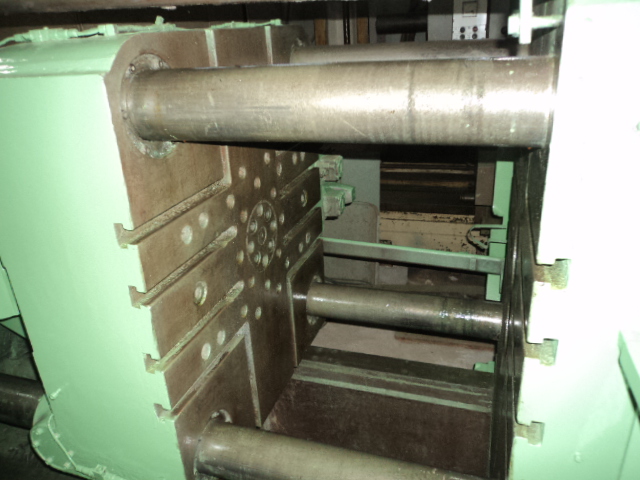

Hydraulic ejection force 15 tonnes, Die mounting plates H x V mm 800 x 850

Space between tie bars H x V mm 500 x 550, Tie bar diameter 100mm

Max die height 750mm, Min die height 225mm

Die opening stroke 500mm

injection plunger stroke 350mm

Ejector stroke adjustable 100mm

Free cycle time 4.5sec

Motor capacity 22.4kw

Machine area 5900 x 1600 mm,

Capacity of oil tank 550 litres
