Machine Id: 892 Serial No:
Model: RS 1203 & RS 2003 Asking Price: onrequest

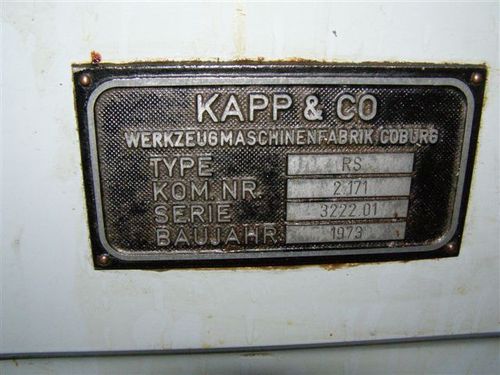

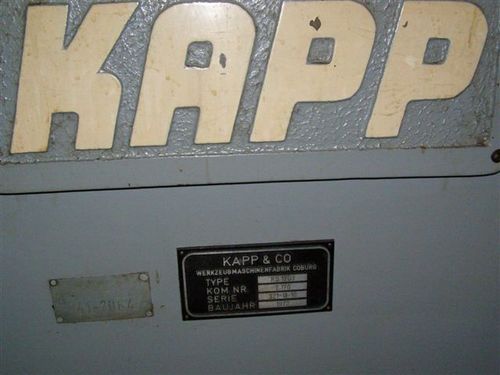

Make: Kapp Country: Germany
Year: 1973 Weight: 0.0
Dimensions: Location: Mumbai Warehouse,India
Power:
Category: Spline Grinders

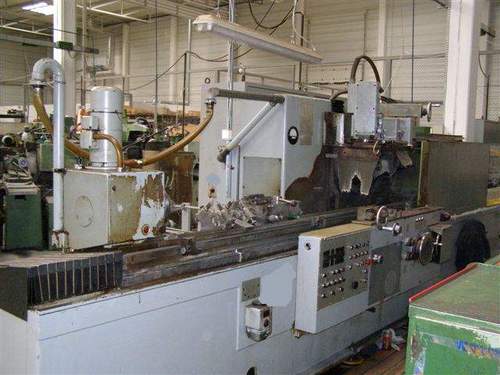

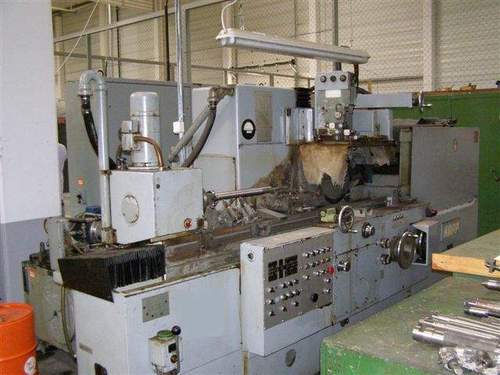

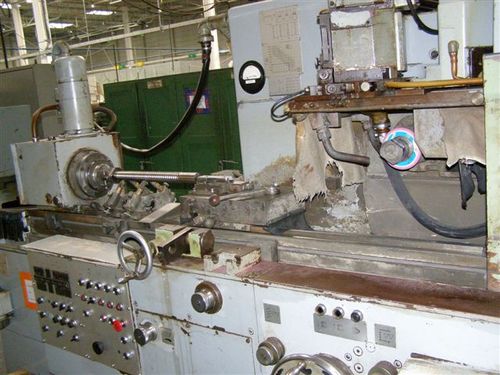

Type of Machine: Spline Grinding machine with full set of Index Plates
Specification

Model : RS1203
Qty :  1
Manufacturer : KAPP
Year : 1975
State :  Excellent
Status :  Visible
Dimensions :     Weight 6900 Kg
Manual :  yes
Description :
Distance between Broach holding centers 2000 mm

Max Profile face width 1230 mm

Max/Min Broach Profile range 10mm - 130mm
Max Feed rate 30m/min
Coolant supply 100 l/min
Inf. variable speed range 2000 - 16000 rpm

Centers height 150 mm
Machine complete with:
Auto cycle
KAPP RS1203

KAPP 2003

Model :  RS2003

Qty :  1

Manufacturer :  KAPP

Year :  1975

State :  Excellent

Status :  Visible

Dimensions :   Weight 8500 Kg

Manual :  yes

Description :
Distance between Broach holding centers 2000 mm
Max Profile face width 150 mm
Max Broach Profile range 1.970 mm
Max Feed rate 1 - 30 m/min.
Coolant supply 100 l/min
Inf. variable speed range 2.000 - 6.000 RPM.
Shpindel 88 mm
Centers height 150 mm
Grinding wheels 100 - 250 mm
Shpindel power 3,5 kW
Grinder Power 15 kW - 380 V - 50 Hz
