Machine Complete In All Aspects
Clean Slides
Ready to use Machine
2000mm



Video
Machine Id: 570 Serial No:
Model: 72 Asking Price: onrequest
Make: JONES N SHIPMAN Country: United Kingdom
Year: Weight: 0.0
Dimensions: Location:
Power:
Category: Spline Grinders

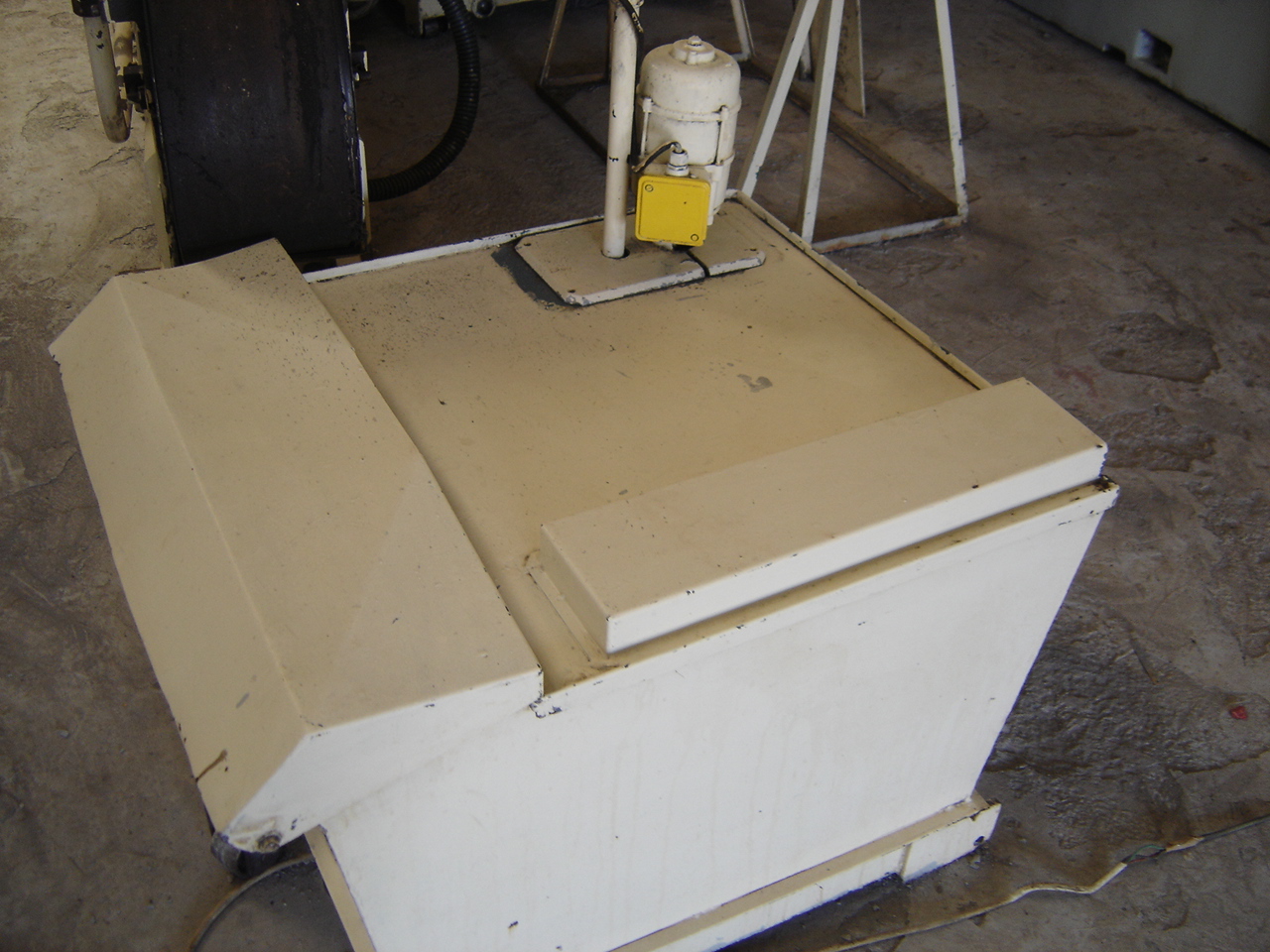

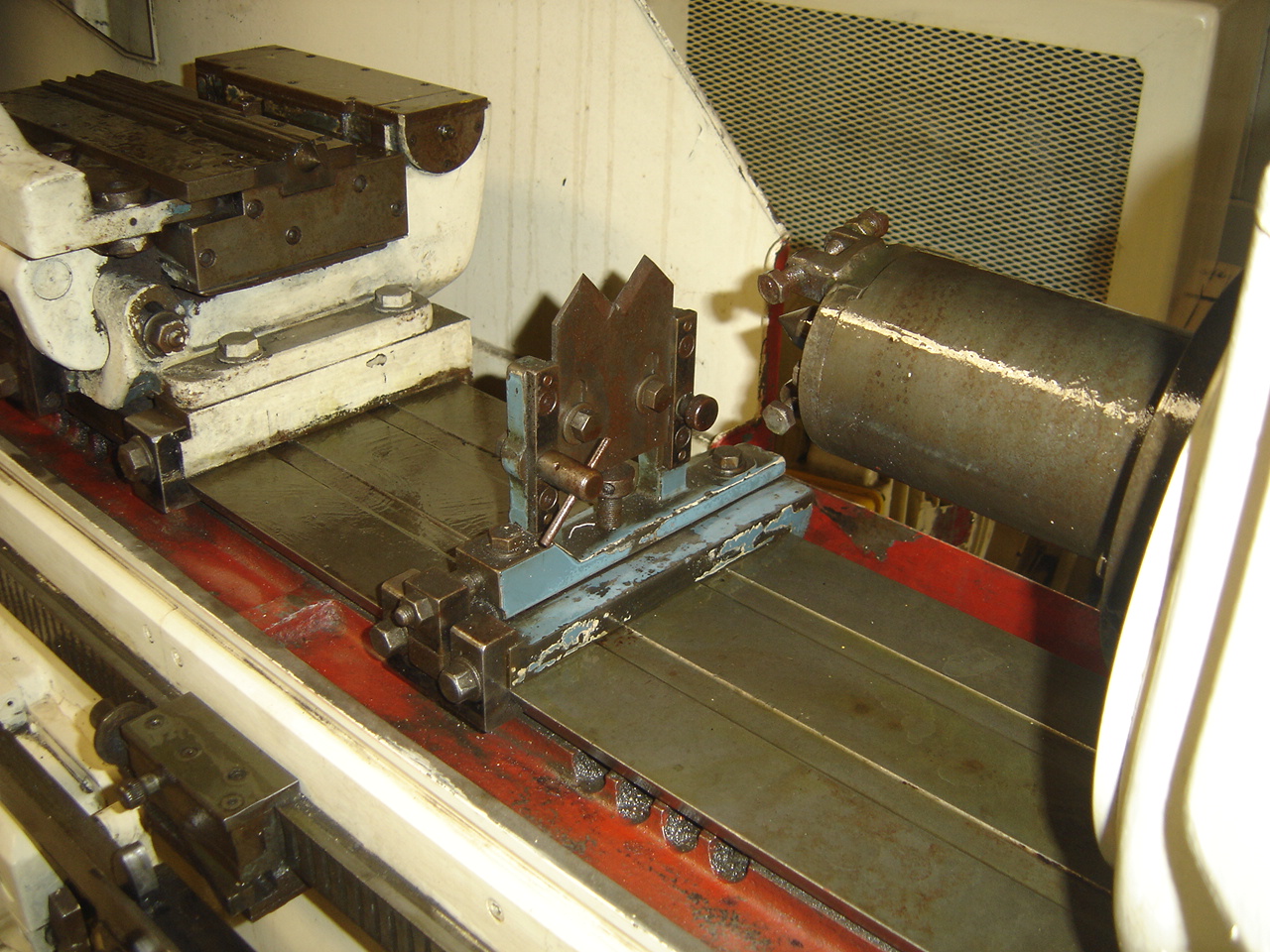

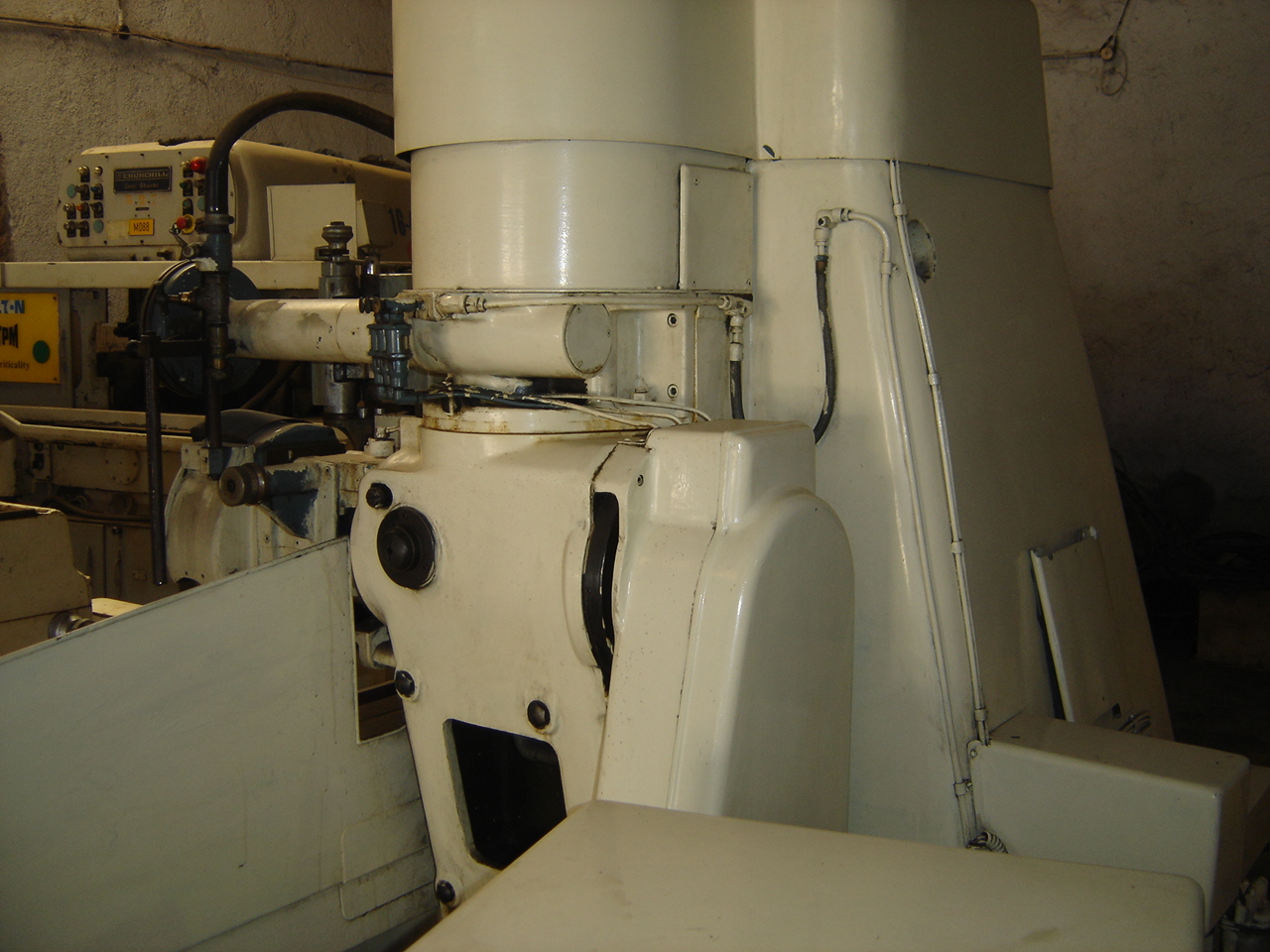

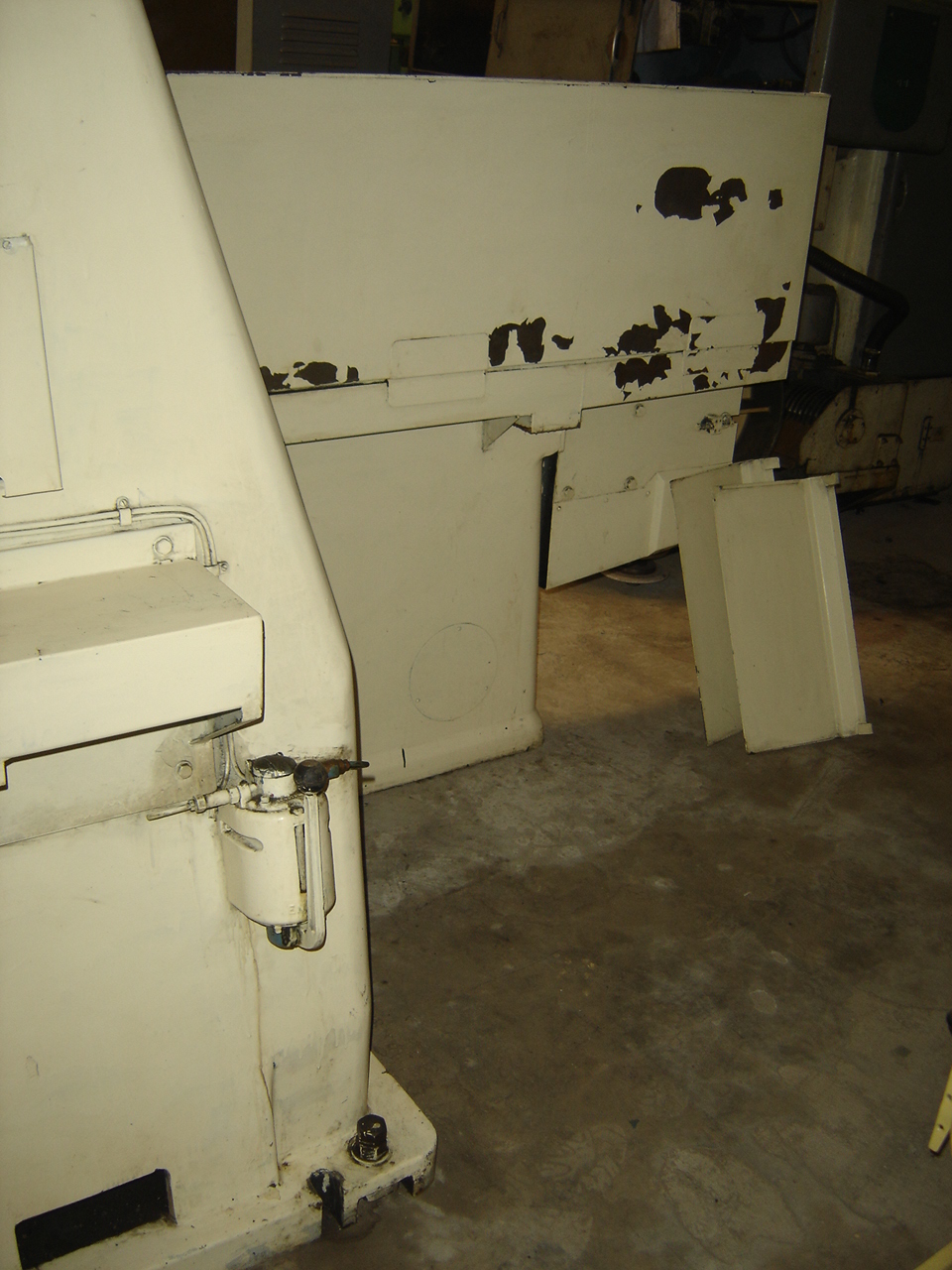

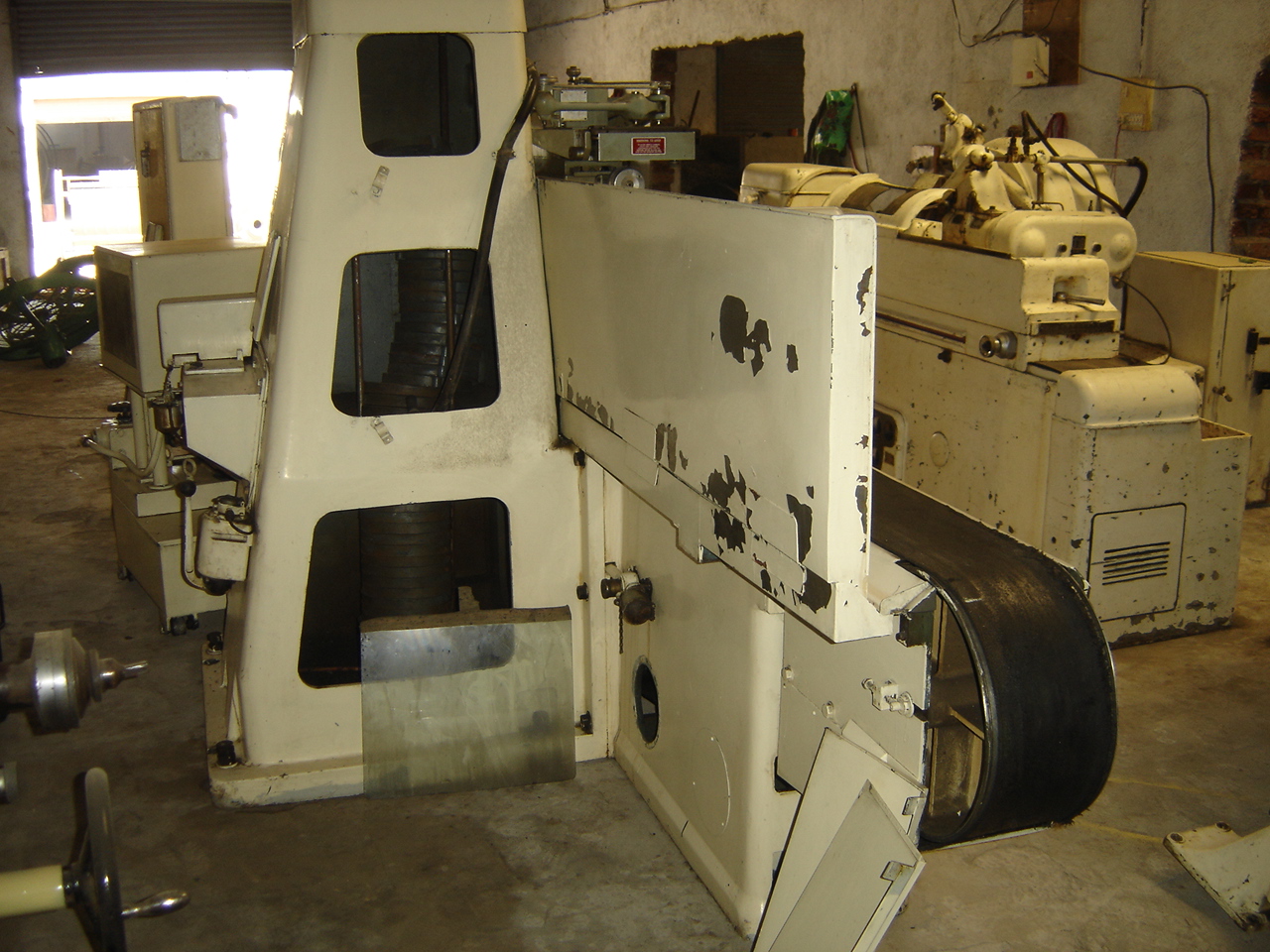

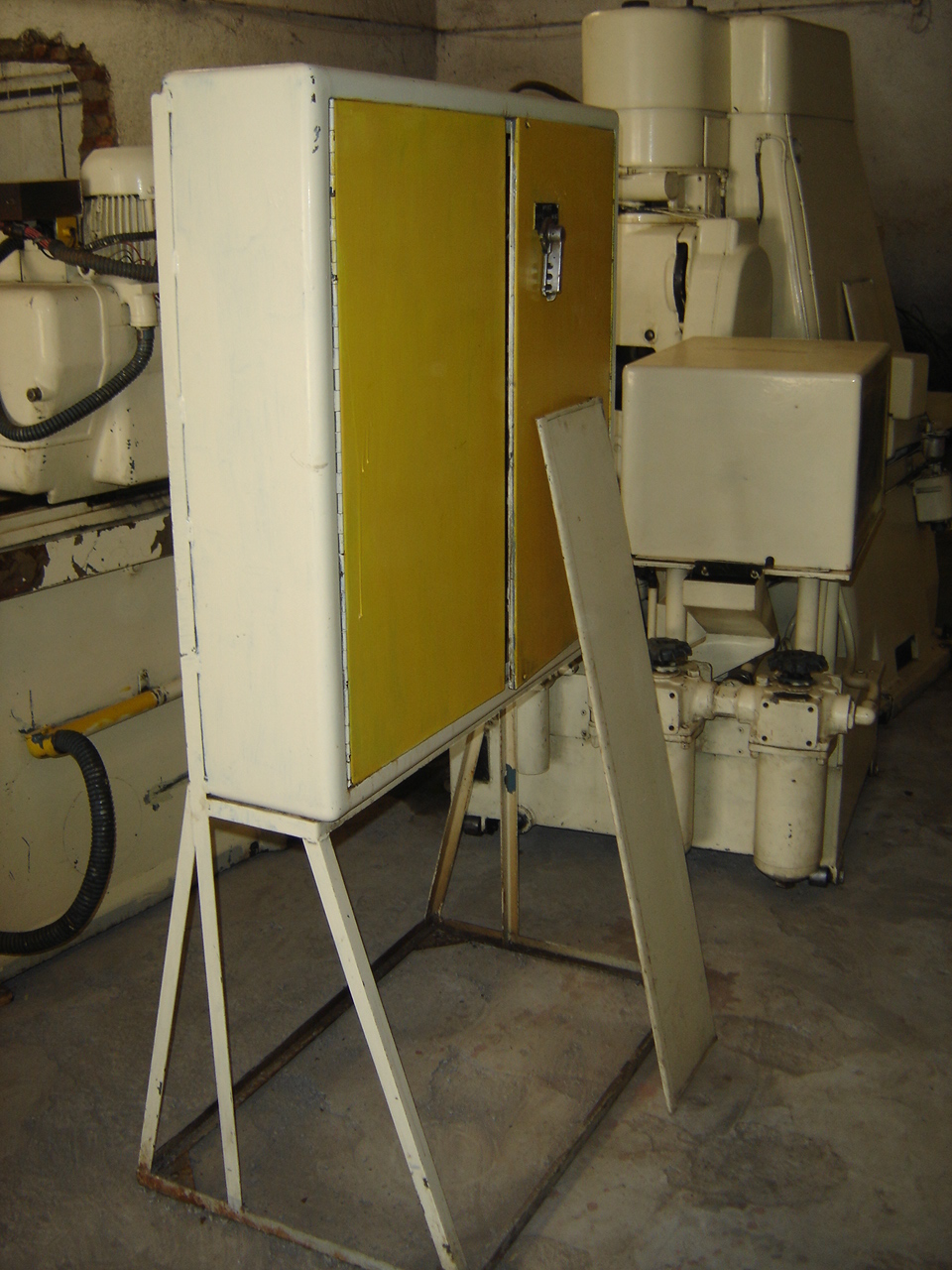

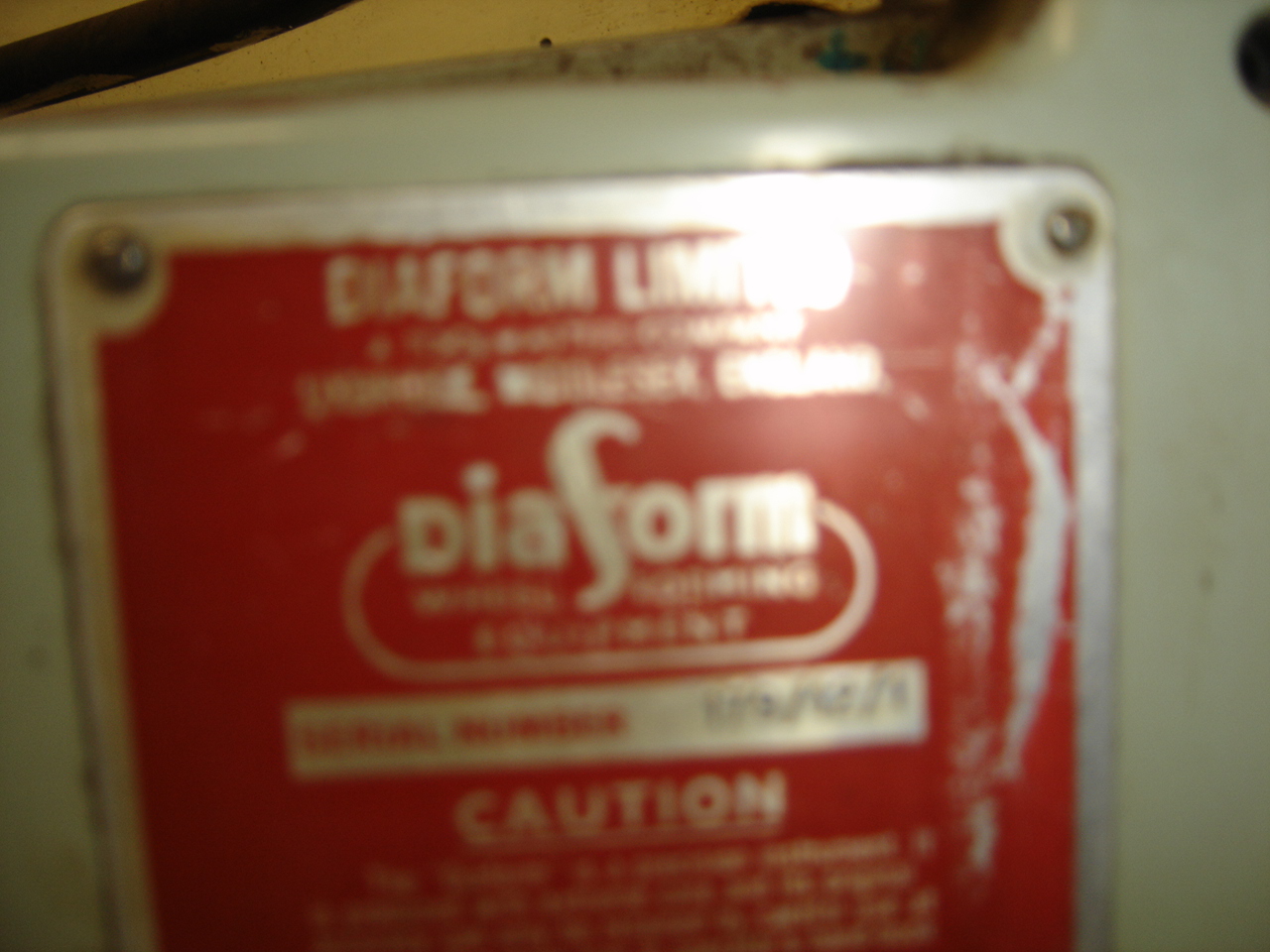

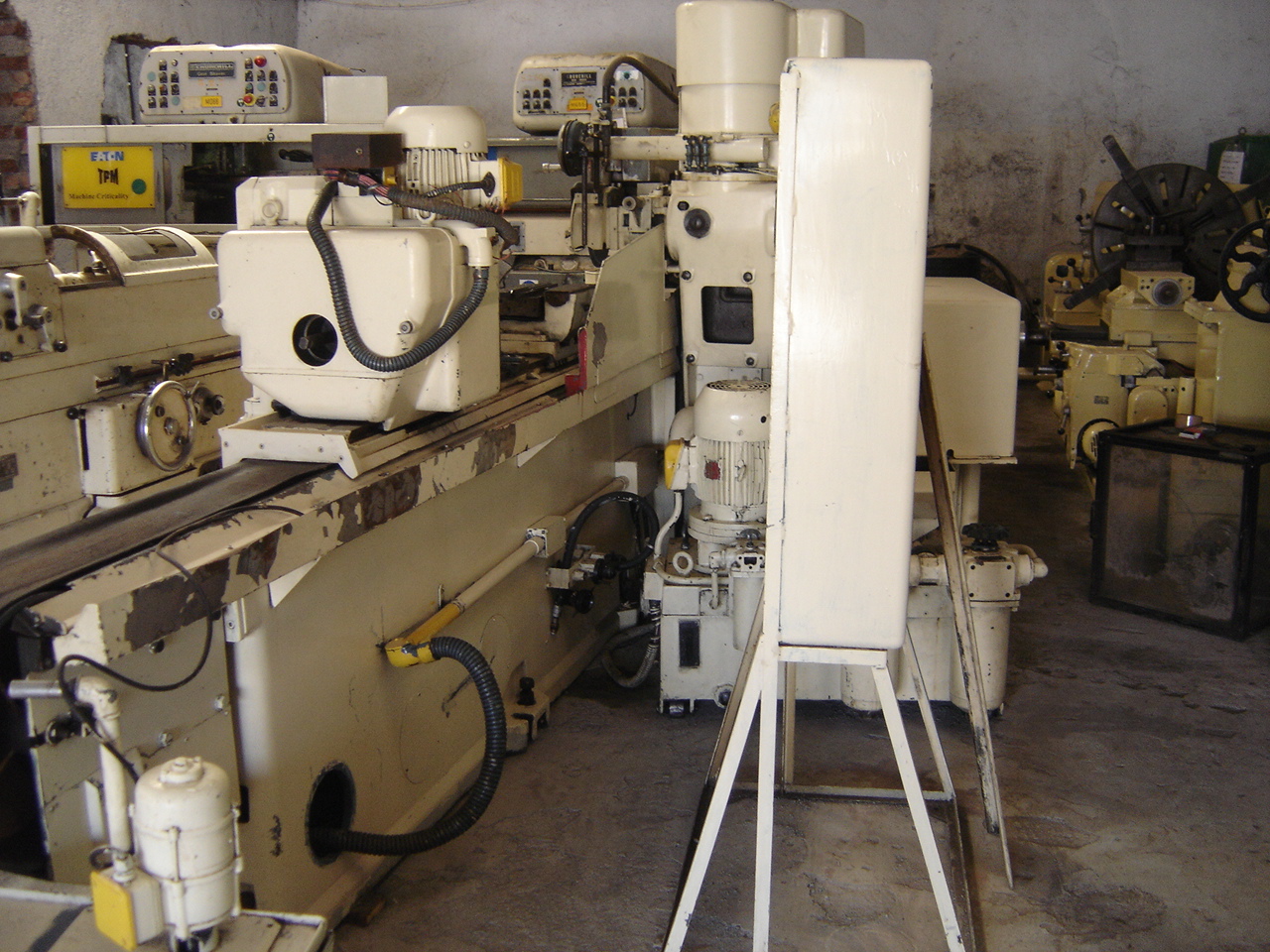

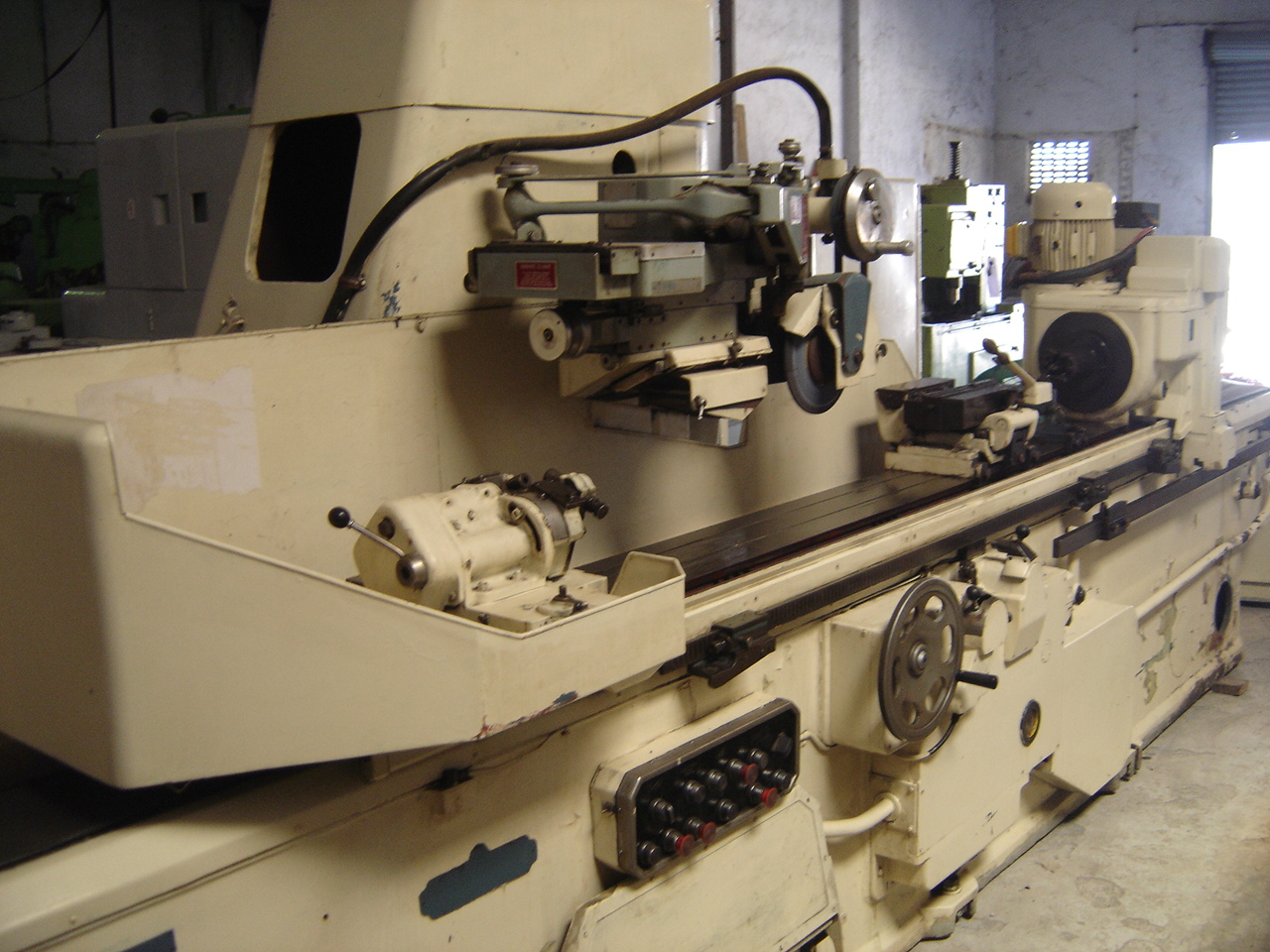

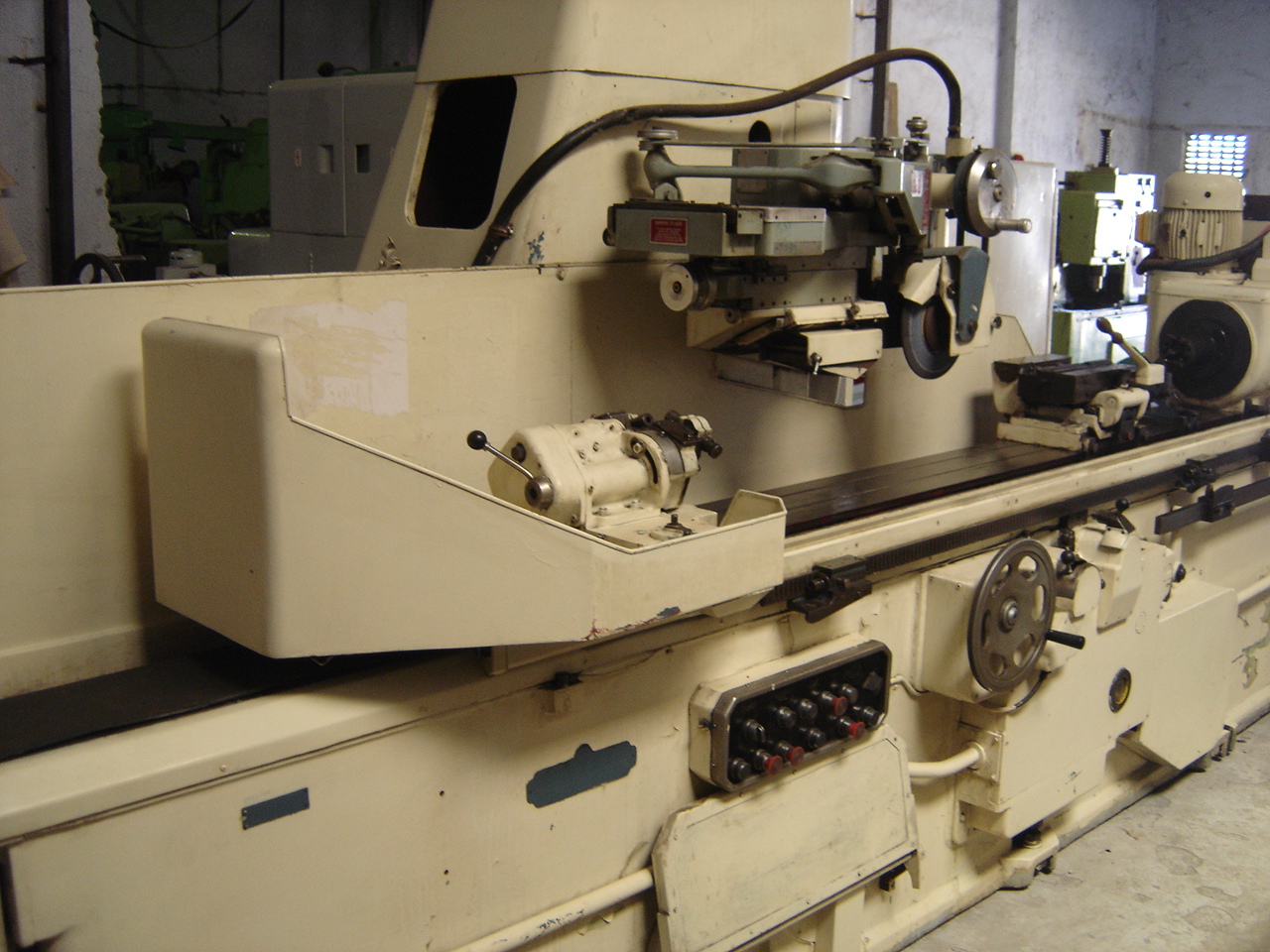

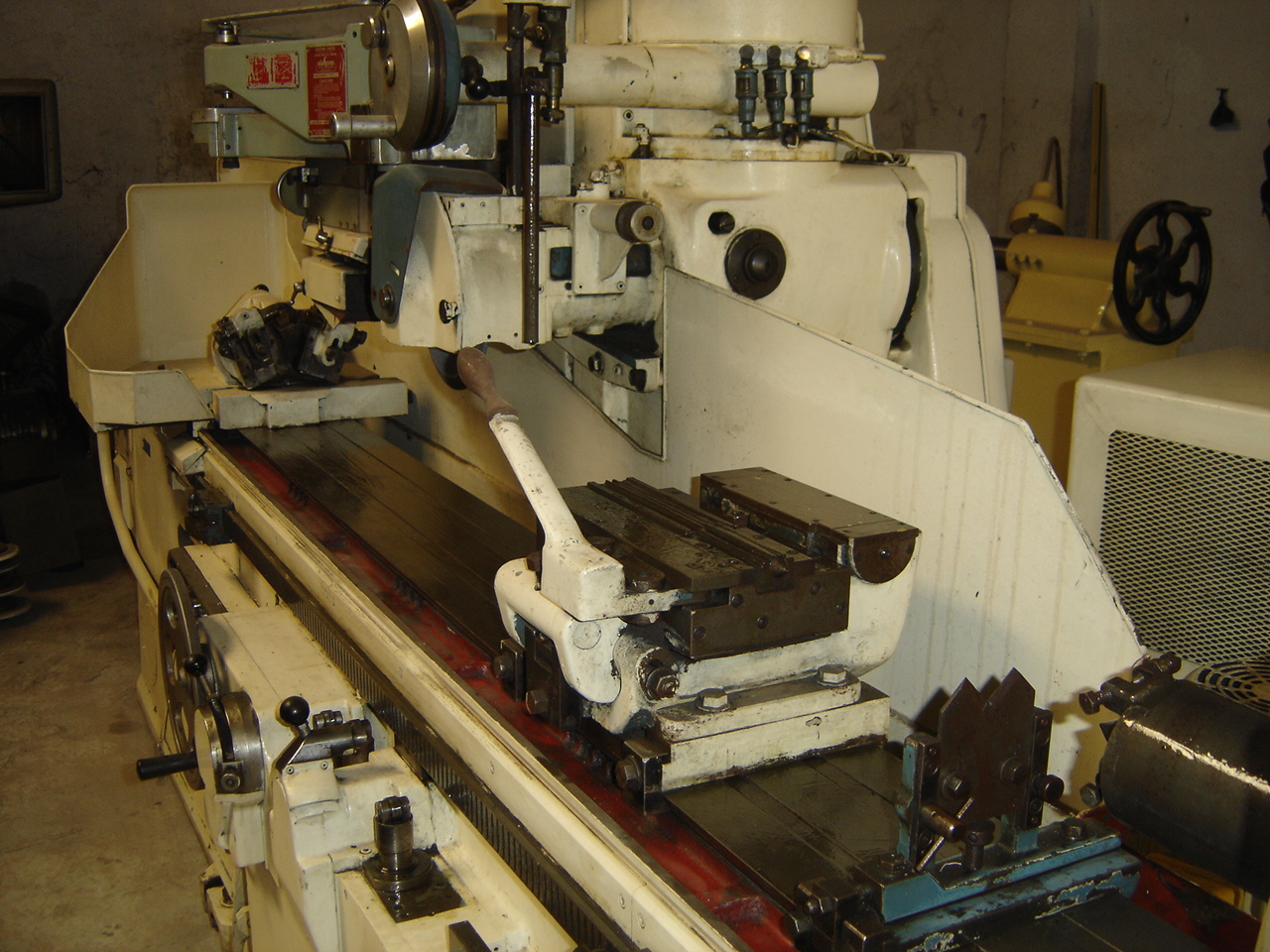

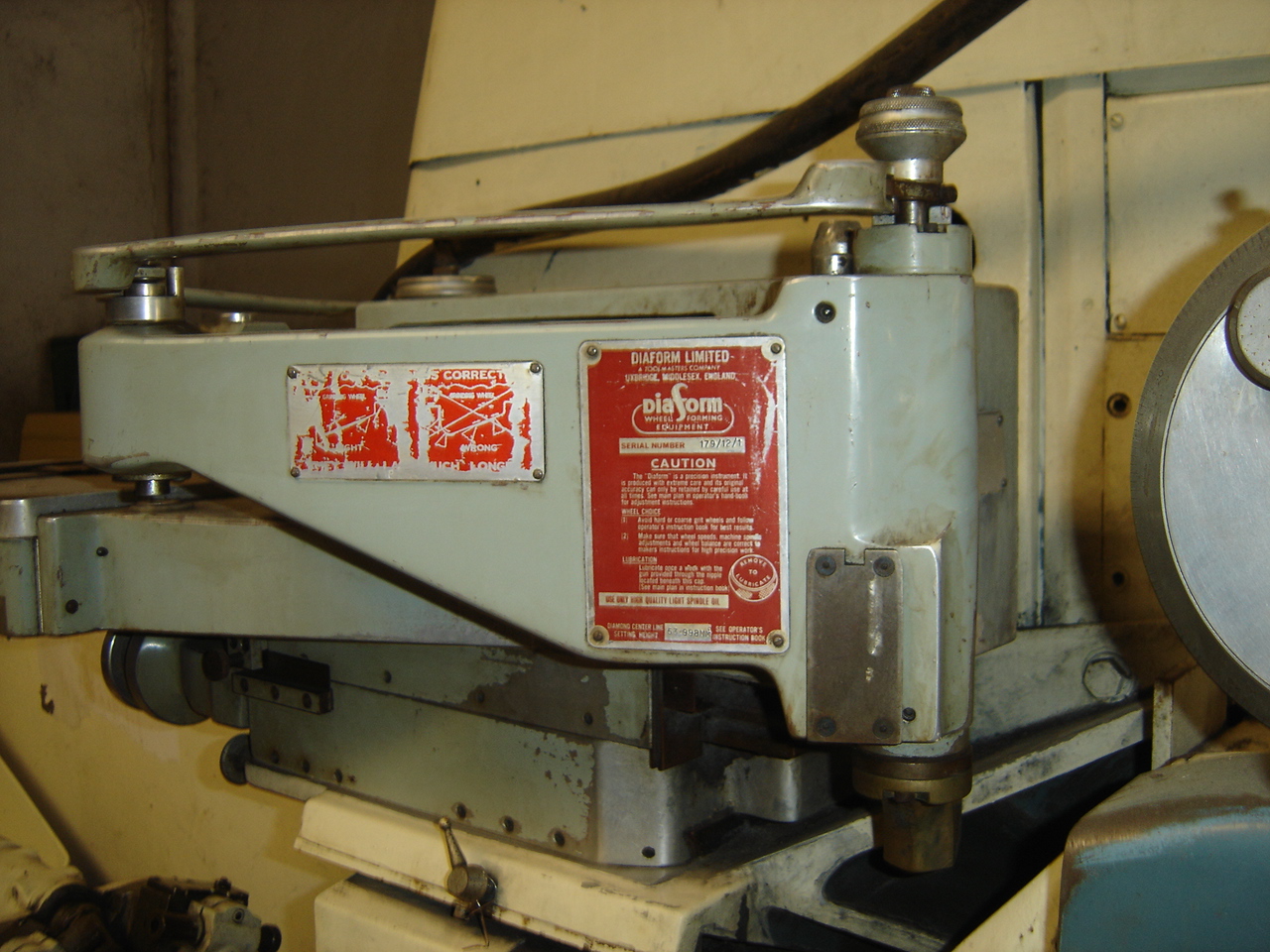

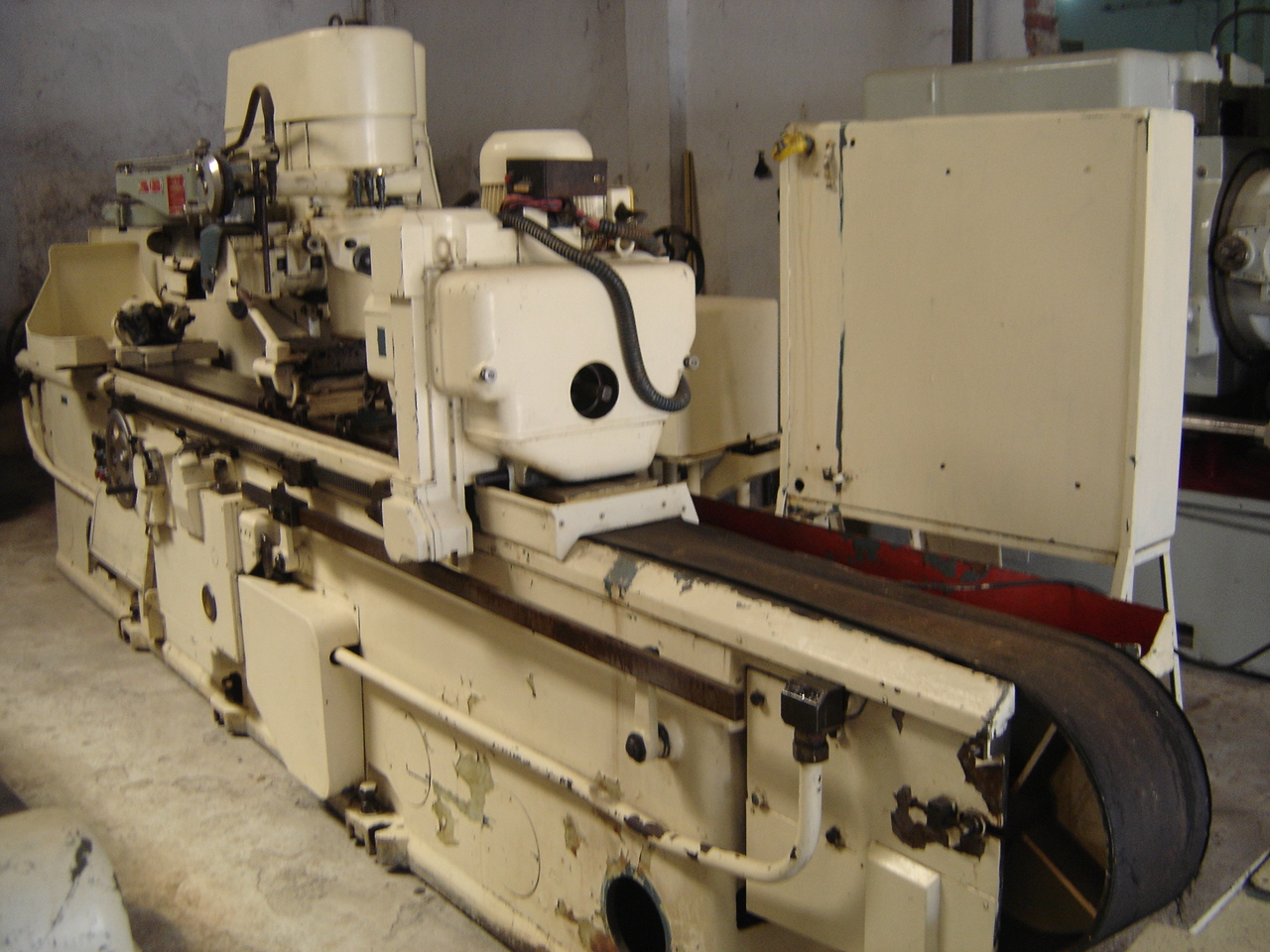

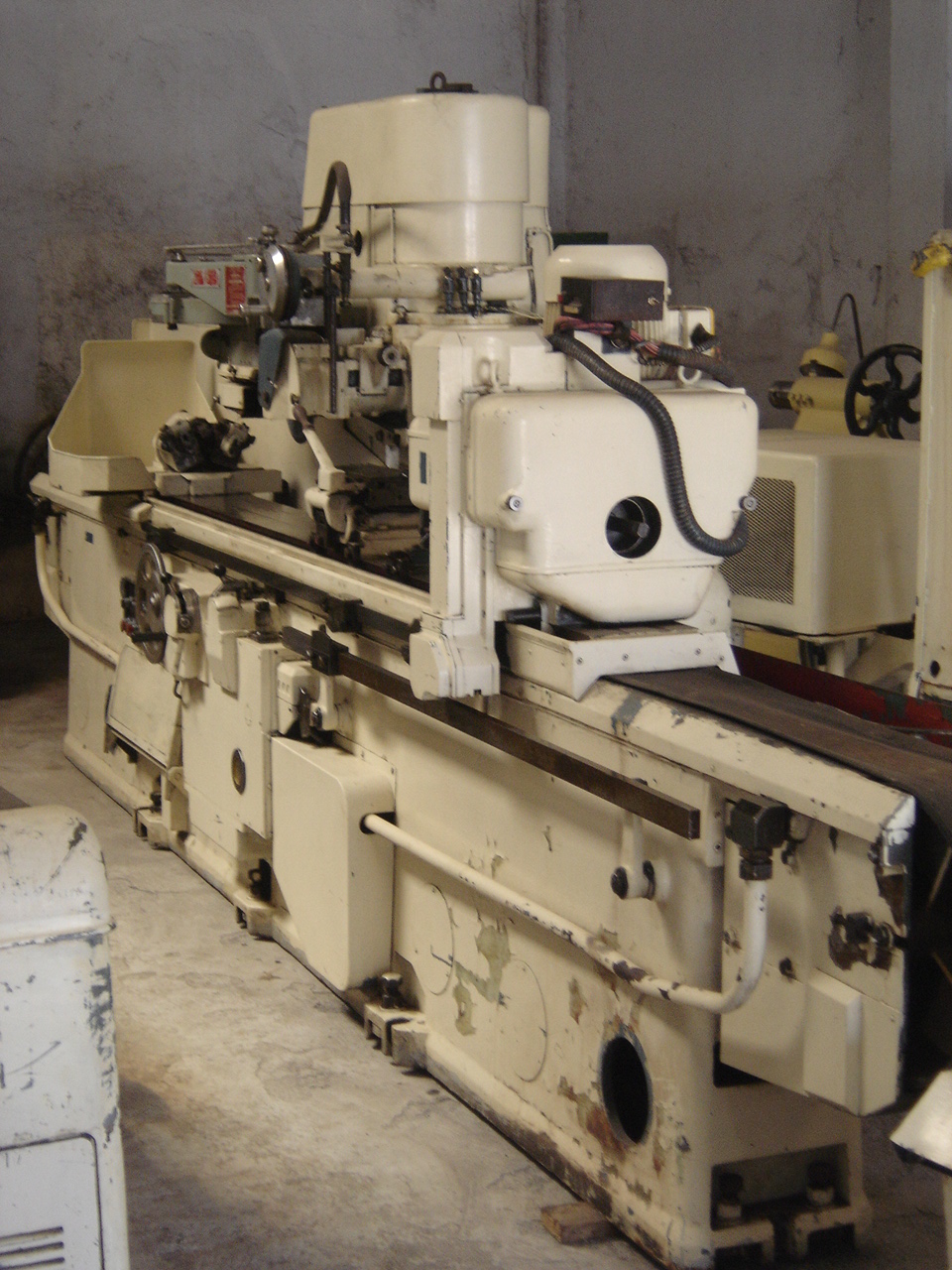

Type of Machine: Spline Grinder With Diaform Grinding attchment
Specification

Maximum length between centres                                               1890 mm



Maximum length ground                                                            1750 mm



Maximum table traverse                                                             2130 mm



Work centre height from table top                                              175 mm



Vertical traverse of wheel head                                                   200 mm



Spindle axis to work centre-line maximum                                   295 mm



Spindle axis to work centre-line maximum                                   90 mm



Wheel spindle cross-feed either side of



Work centre line                                                                        6.35 mm

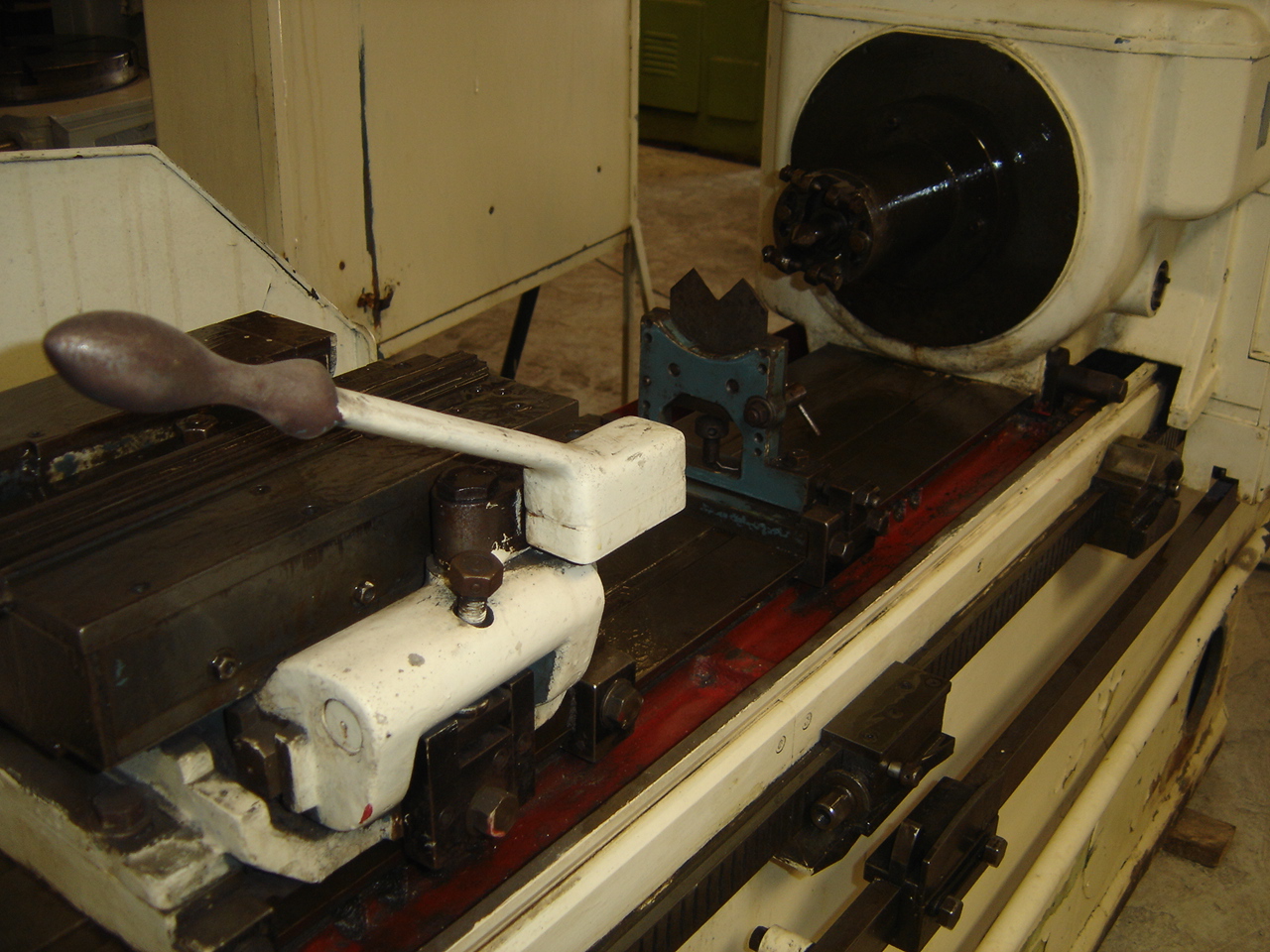

TABLE TRAVERSE



            Hand - 1- Revolution of handwheel moves table              12.7 mm



            Power - Infinitely variable - maximum                              60ft / min                   18.28metres /min



                                                   - minimum                              3in / min                        76.2 mm / min





DOWN-FEED



            1-Revolution of feed handwheel moves wheel head                                             1mm



            1-Revolution of feed knob moves wheel head                                                     0.01 mm



            1-Station of feed knob moves wheel head                                                          0.001 mm

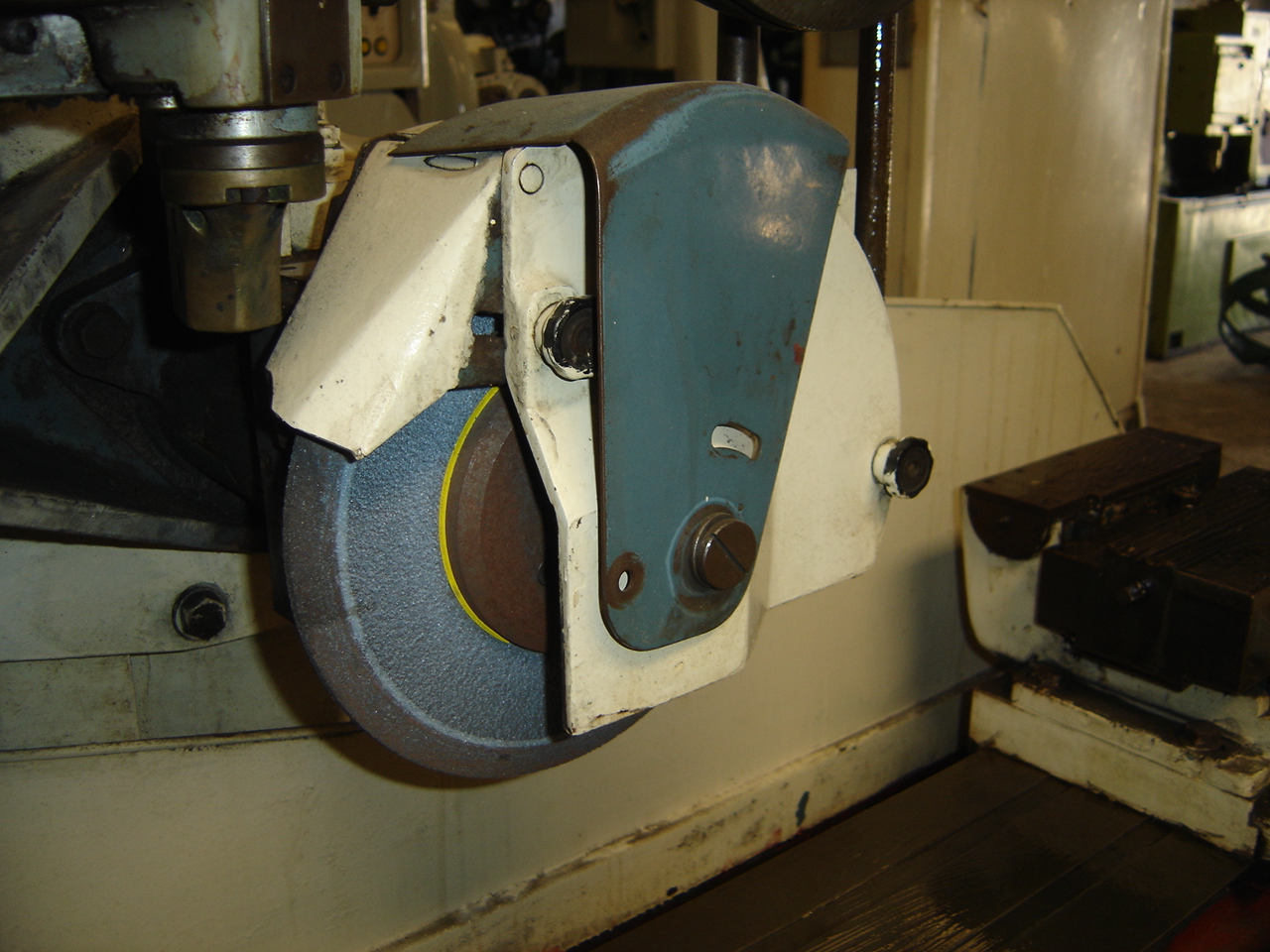

WHEEL SPEEDS







            Wheel speeds (giving 5,300 ft/minute -



                                                1,615 metres/minute)                             2                                  2







            New Wheel 10" (254 mm) Diameter                                 2,050 r.p.m.                  2050 T.M.







            Reduced to 190 m Diameter                                           2,600 r.p.m.                  2600 T.M.







MOTORS







            H.P. of wheelhead motor                                                           3                                  3c.v.



            Speed                                                                          1440 r.p.m.                   1440 T.M.

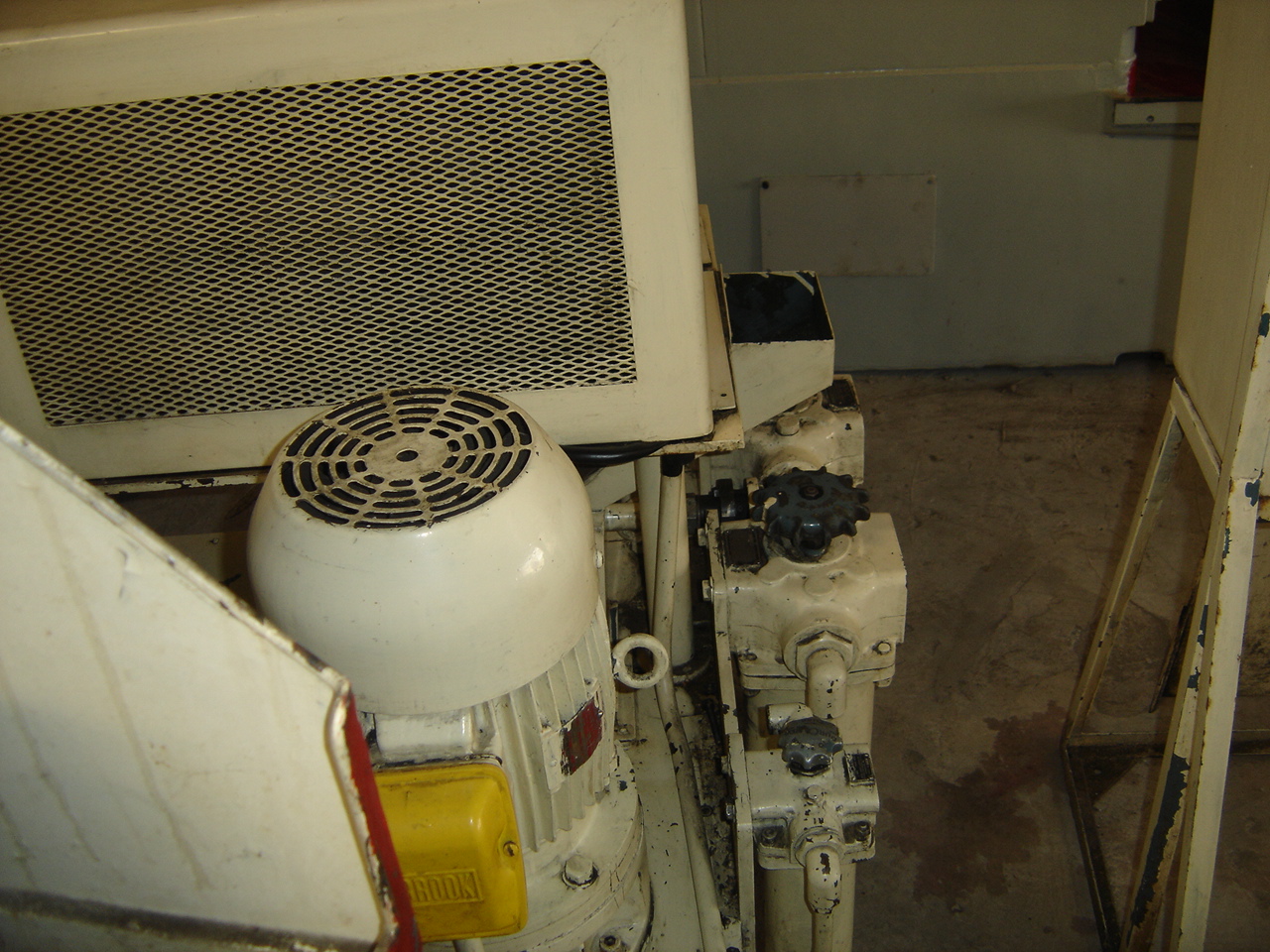

            H.P. of Hydraulic pump motor                                       5                                  5 c.v.



            Speed                                                                          1425 r.p.m.                   1425 T.M.







            H.P. of wheelhead lubrication pump motor                     0.04                              0.04 c.v.



            Speed                                                                          2850r.p.m.                    2850 T.M.

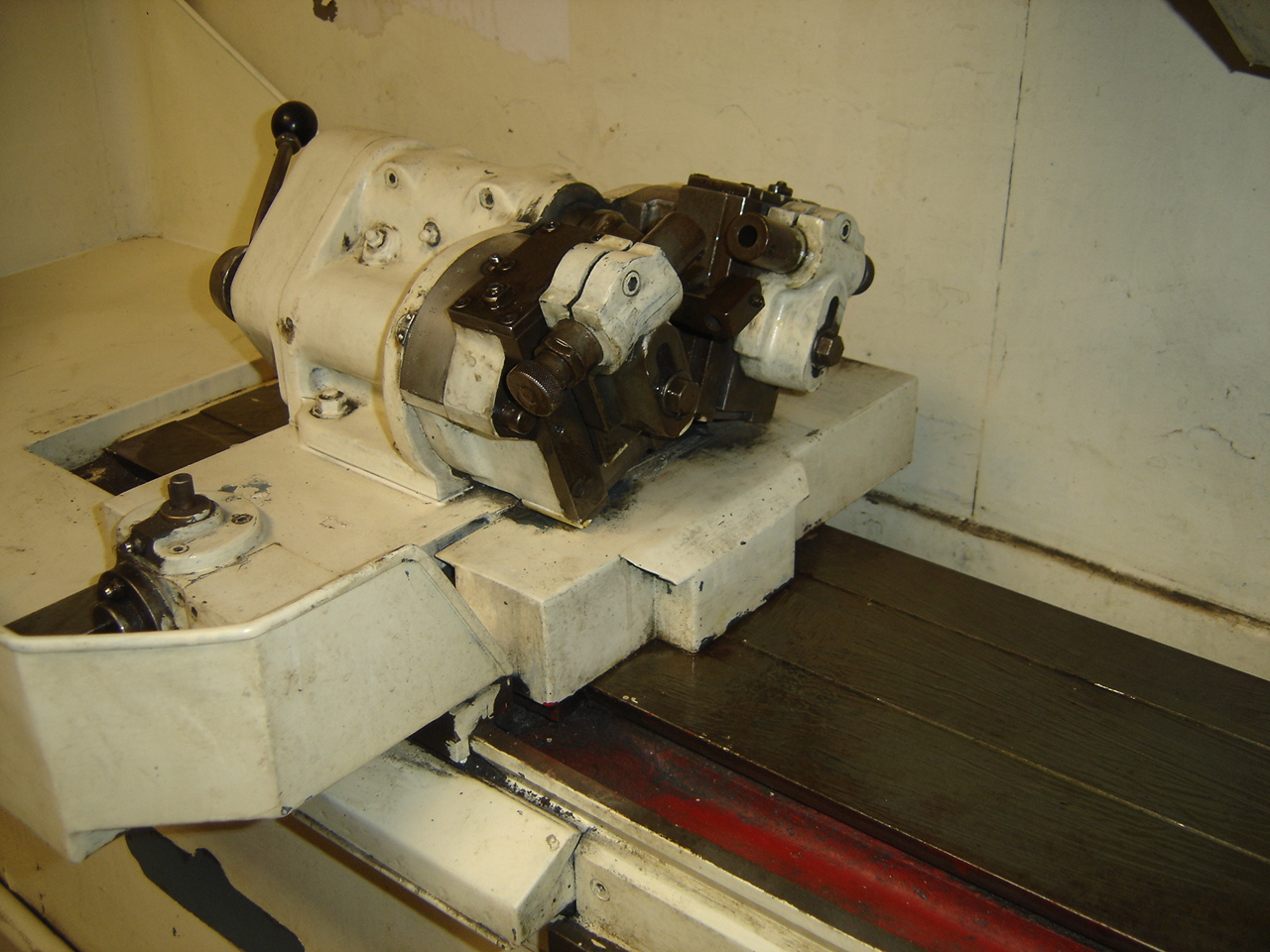

            H.P. of Indexing Workhead Motor                                              1                                  1 c.v.





             Speed                                                                          930 r.p.m.                     930 T.M.
