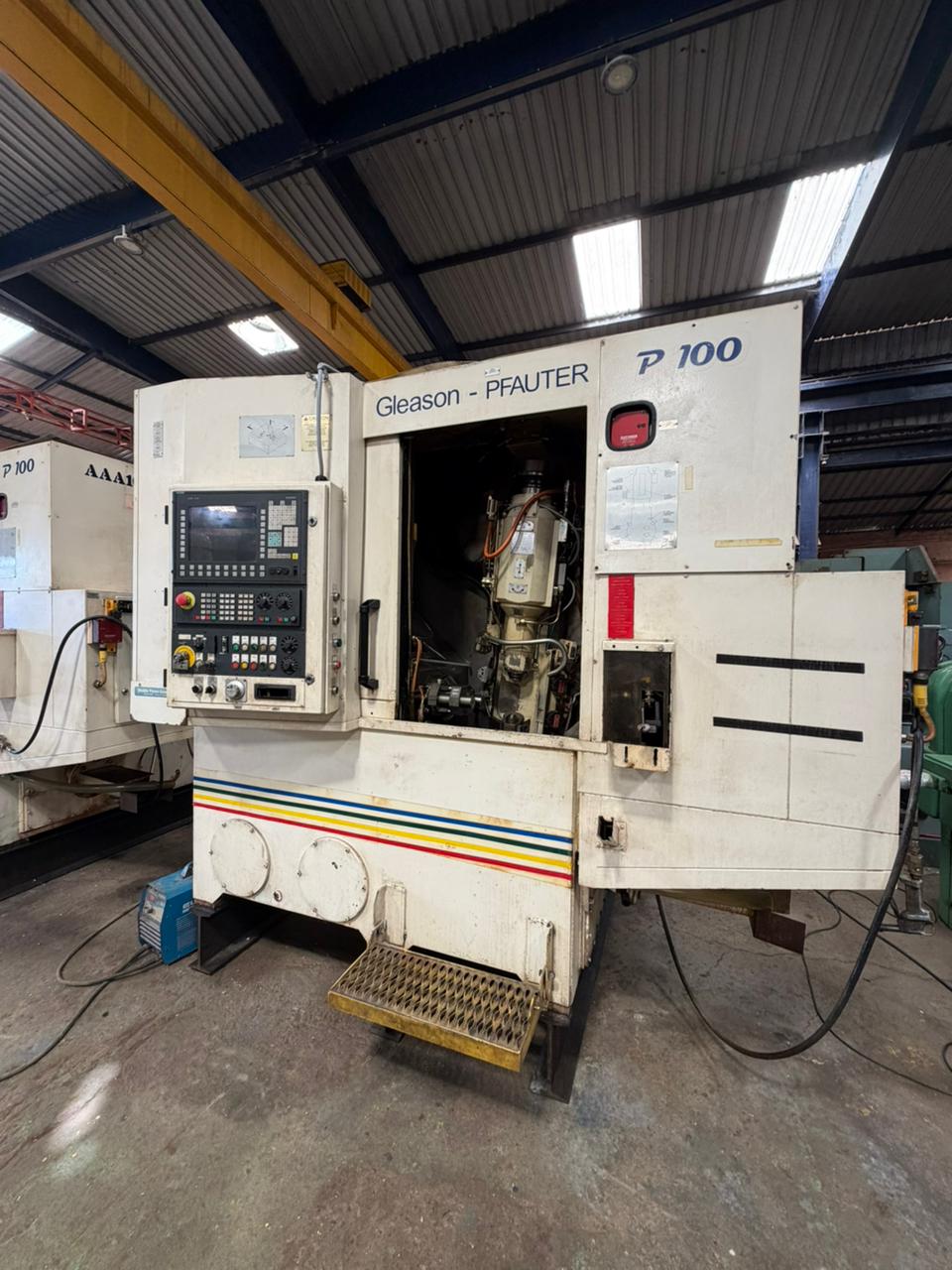

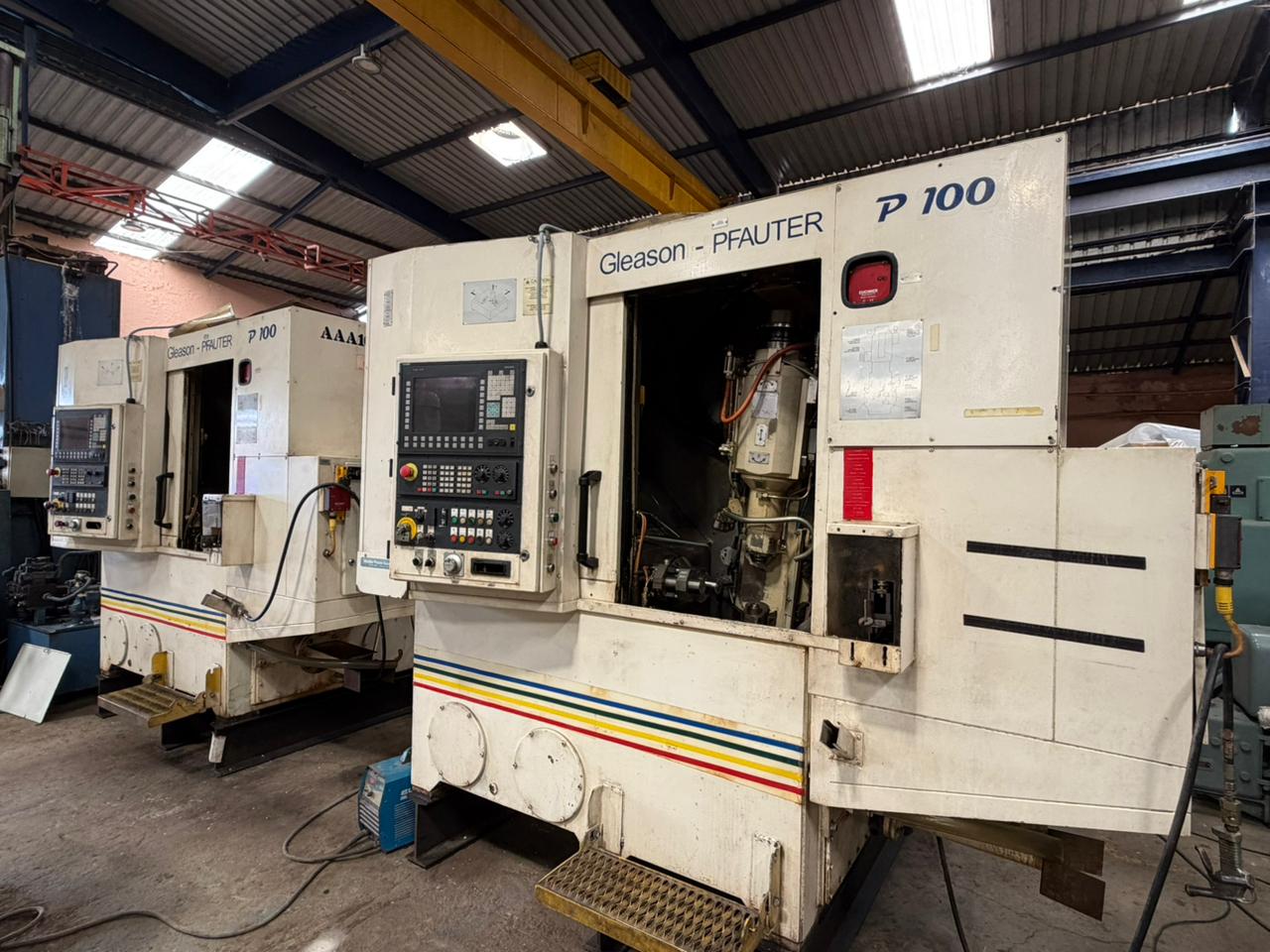

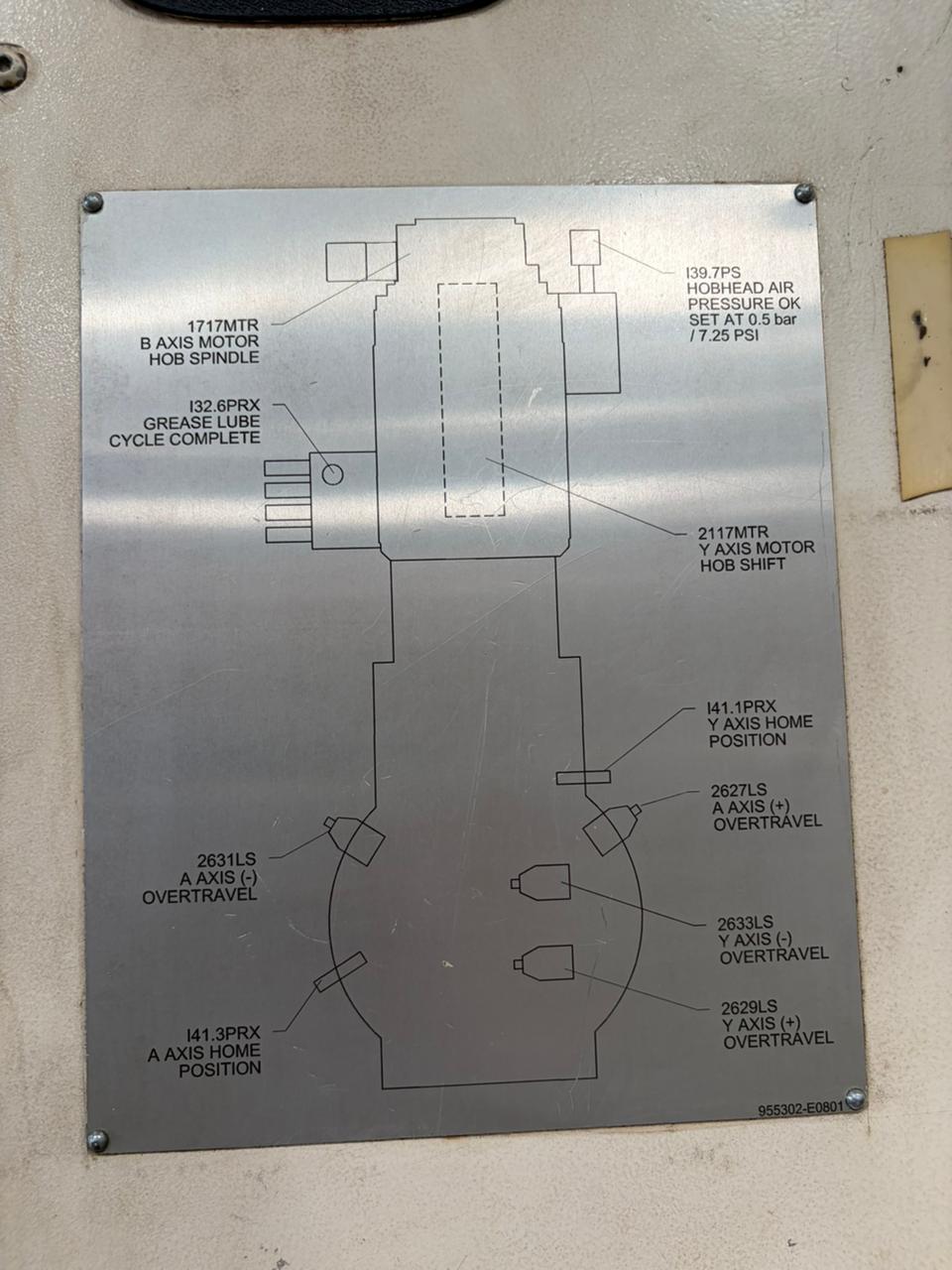

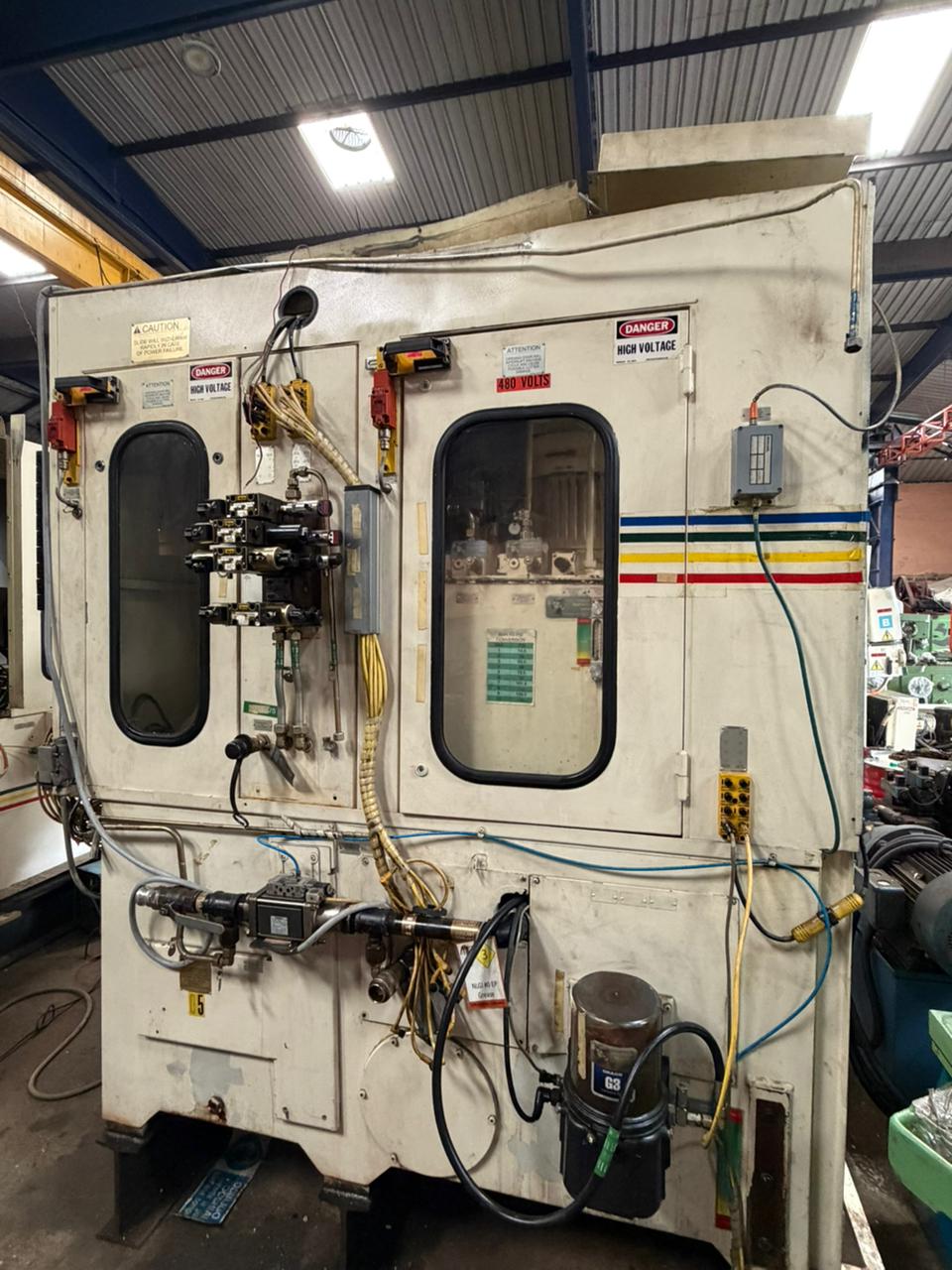

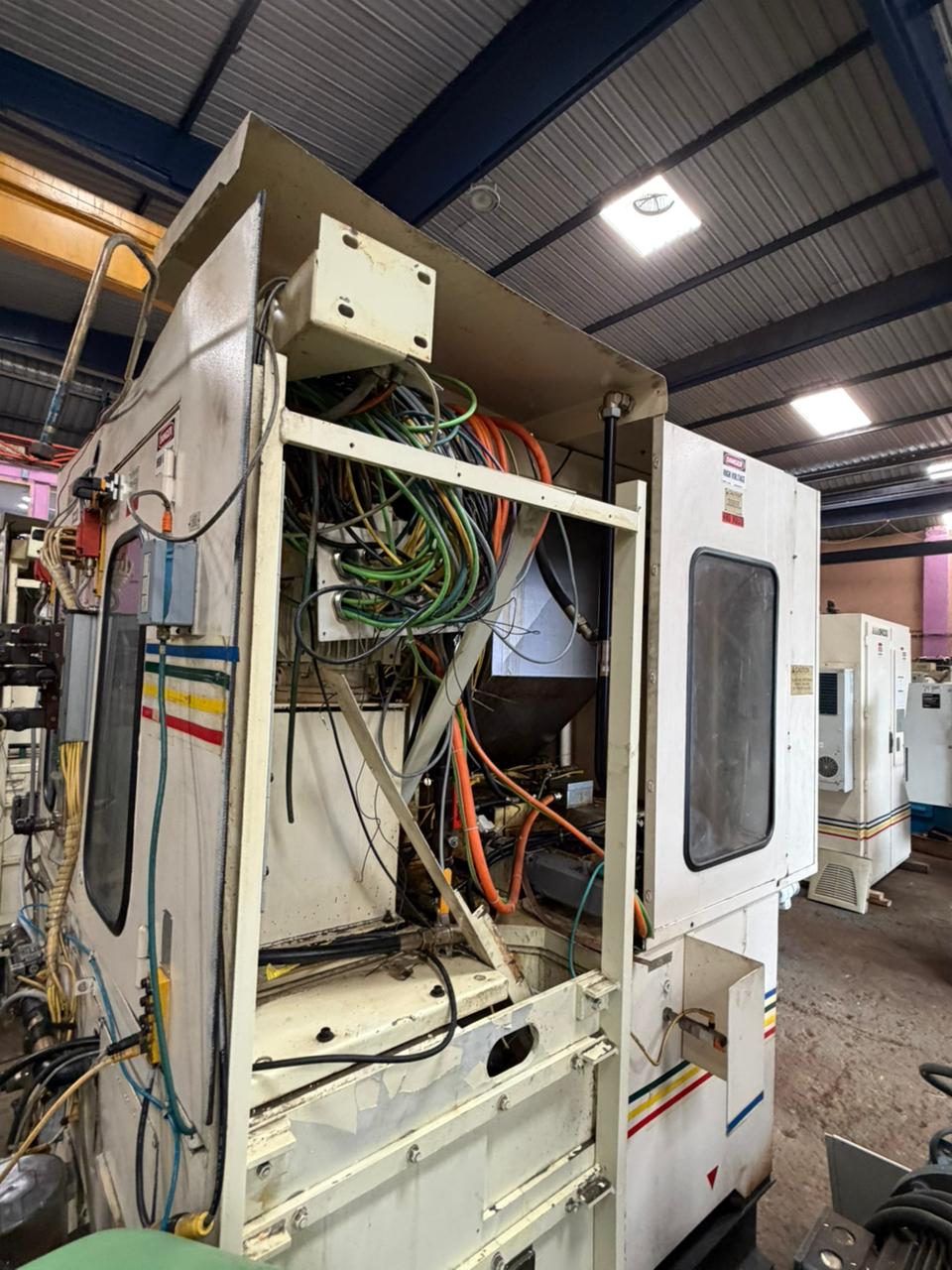

GLEASON-PFAUTER P100 • 6-AXIS CNC GEAR HOBBER • CHOICE OF 2 MACHINES •SIEMENS 840D• MAX. Ø120 MM • MAX. MODULE 3.0 MM • 300–3,500 RPM HOB SPEED
Machine Specifications:

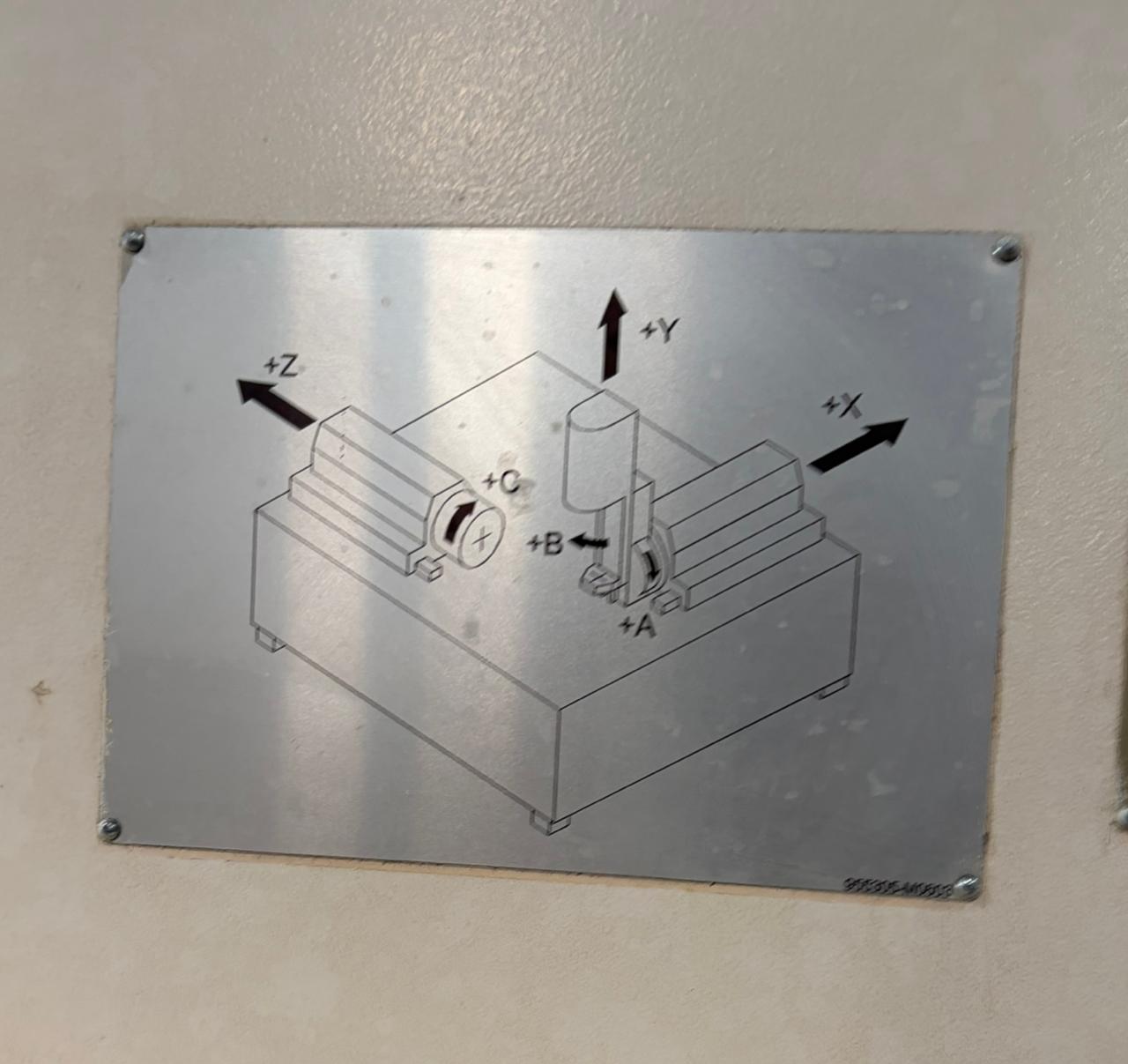

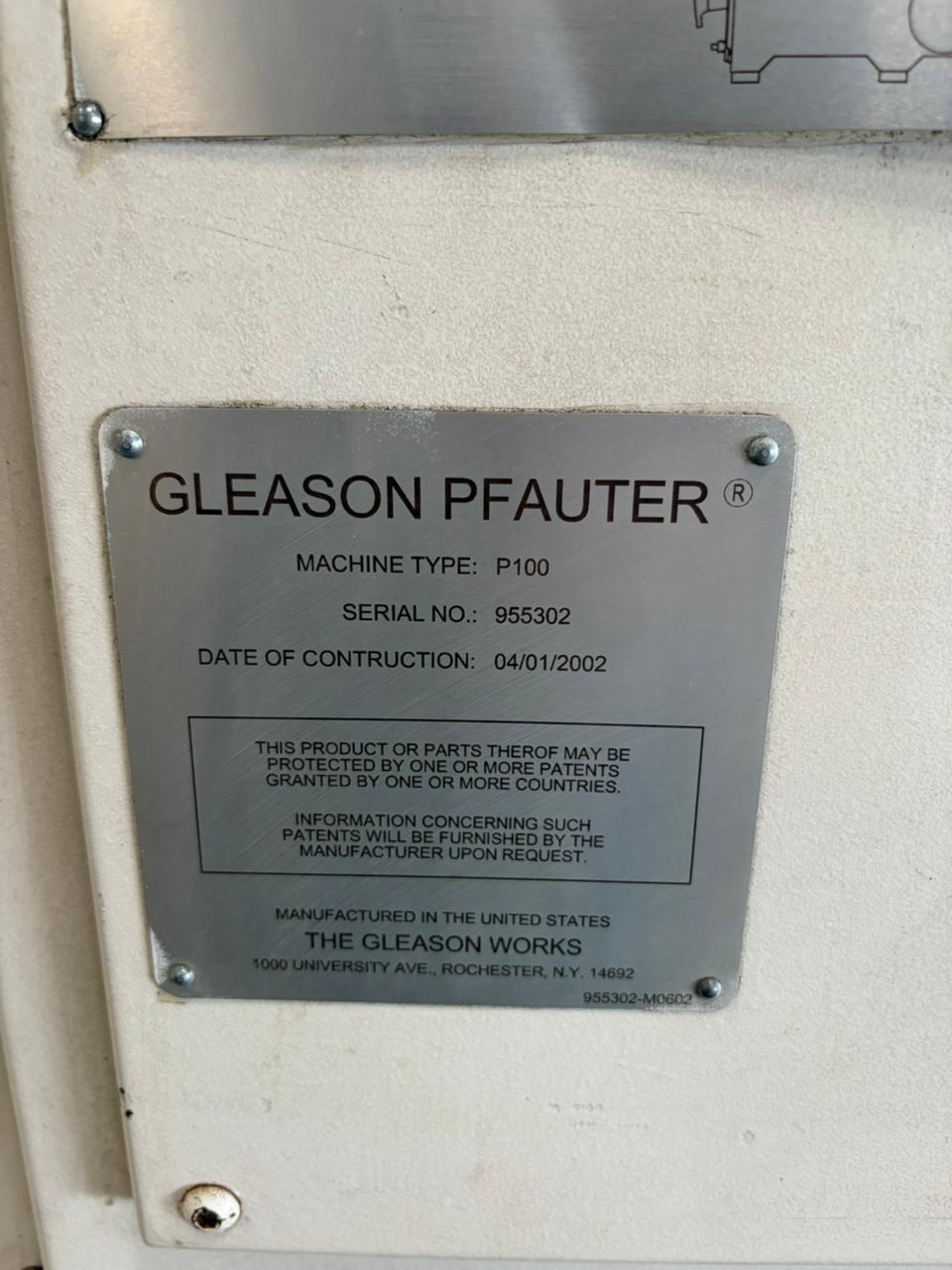

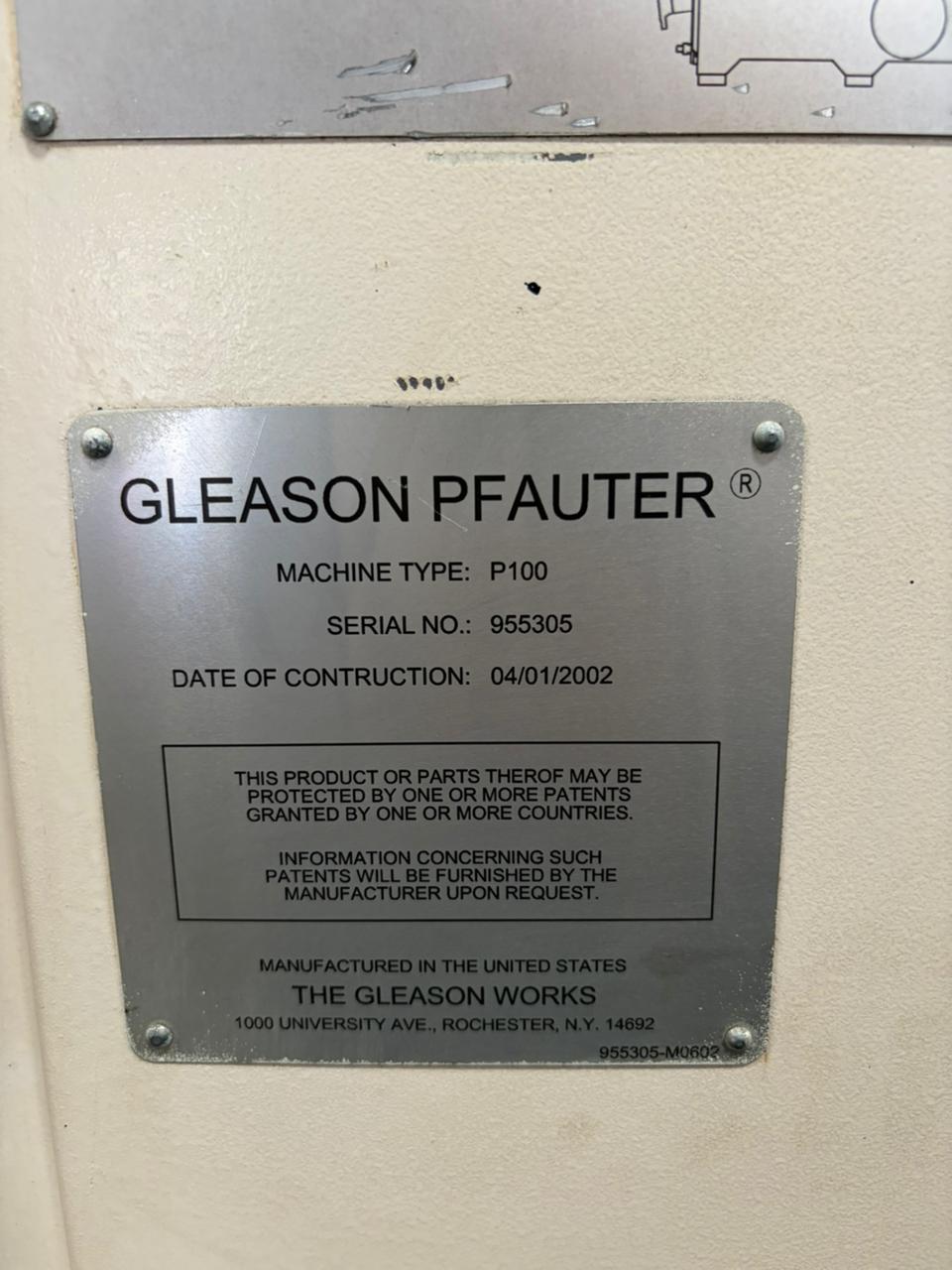

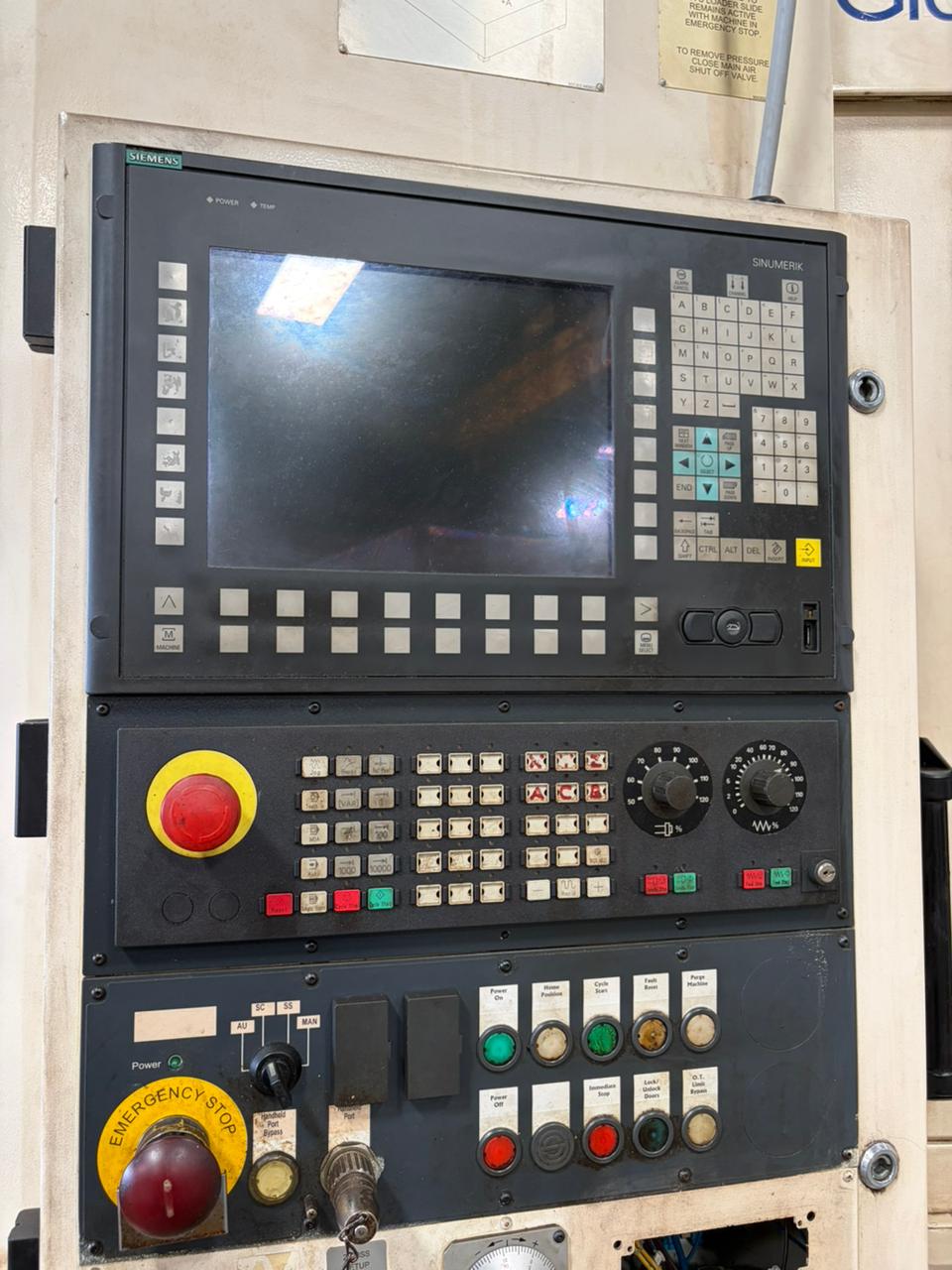

Machine Type: CNC Gear Hobbing MachineManufacturer: Gleason-PfauterModel: P100CNC Control: Siemens 840D CNC ControlNumber of Controlled Axes: 6Axes: X, Y, Z, A, B, C
Workpiece CapacityMaximum Module in Steel: 3.0 mm (0.118")Maximum Workpiece Diameter: 120 mm (4.72")Maximum Number of Teeth: 120Work Spindle External Diameter: 120 mm (4.72")Work Spindle Bore: 45 mm (1.77")
Hob / Cutting ToolMaximum Hob Tip Diameter: 65 mm (2.56")Minimum Hob Tip Diameter: 28 mm (1.10")Maximum Geared Length: 150 mm (5.91")Maximum Hob Length: 203 mm (8.00")

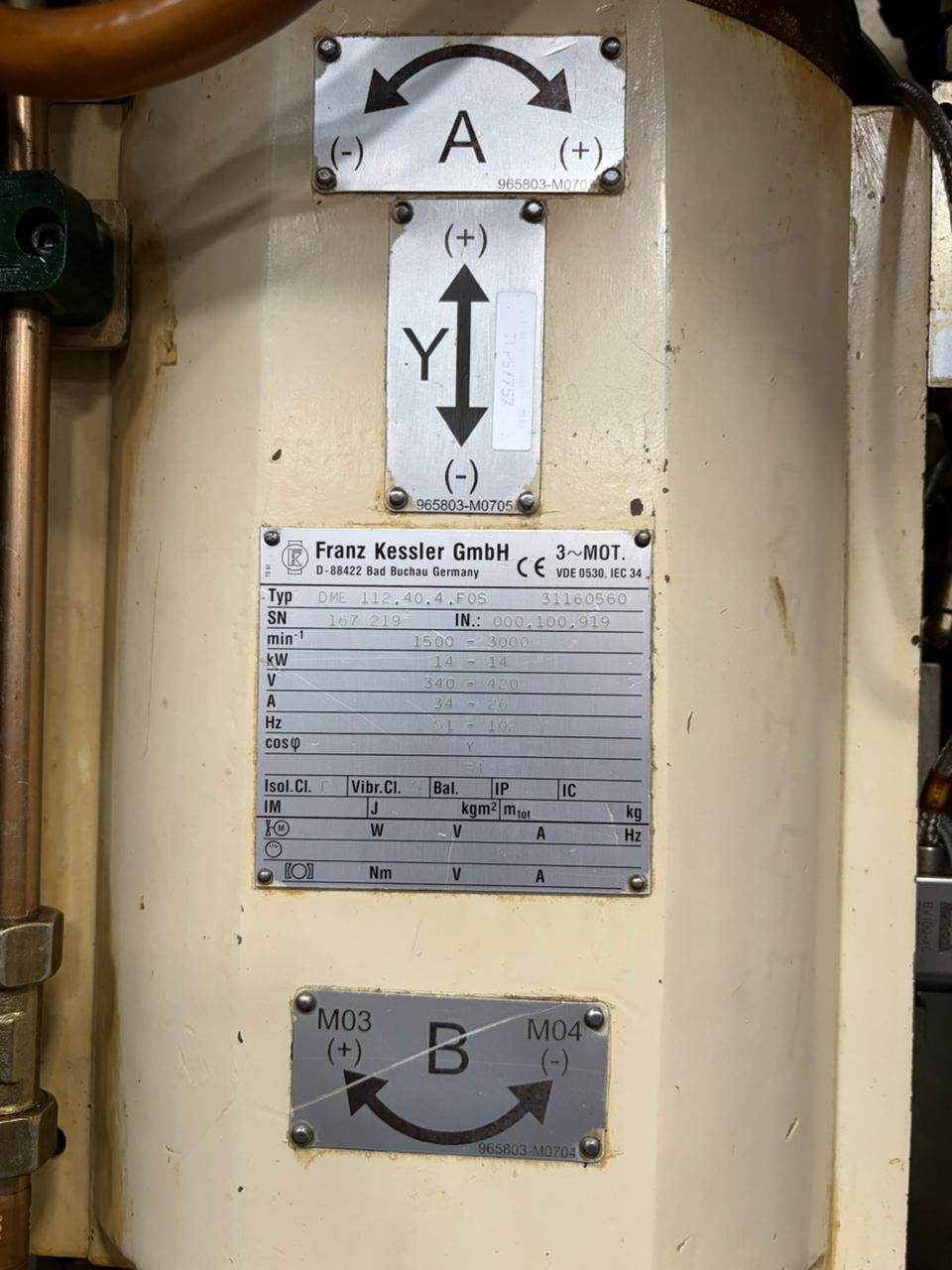

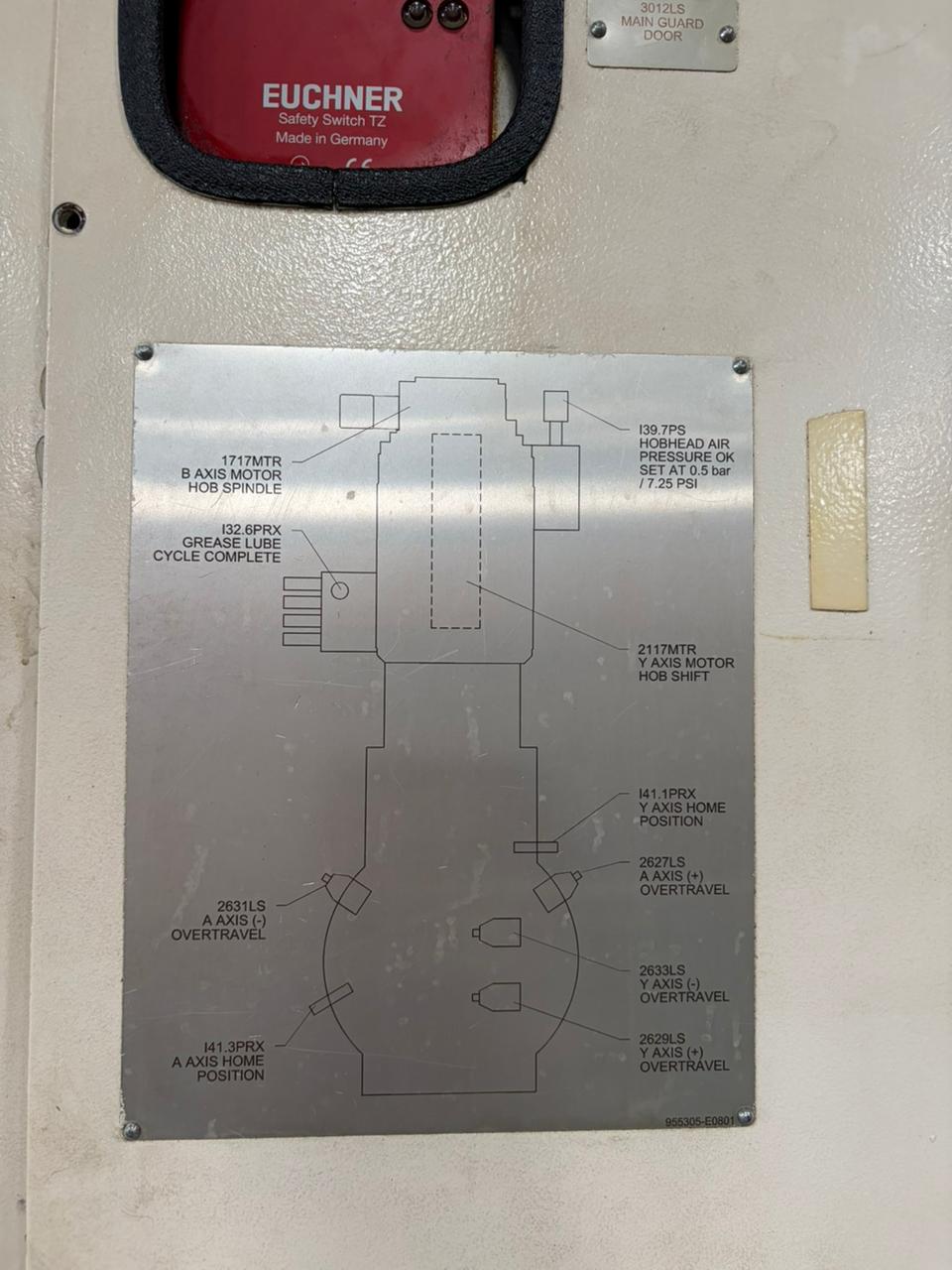

Axis TravelsX-Axis / Radial Slide Travel: 90 mm (3.54")Y-Axis / Tangential Slide Travel: 140 mm (5.51")Z-Axis / Axial Slide Travel: 100 mm (3.94")Maximum Hob Head Swivel: ±30°
Speeds & FeedsX & Z Axis Maximum Feed: 10,000 mm/minY-Axis Maximum Feed: 10,000 mm/minX-Axis Feed: 5,000 mm/minTool / Hob Speed: 300–3,500 rpmWork Spindle Speed: 0–1,000 rpm
Hydraulic SystemHydraulic Pump Motor: 2.0 HPMotor Speed: 1,180 rpmElectrical Supply: 480 V / 60 HzHydraulic Capacity: 20 US gal. (75.71 L)Hydraulic Oil: Mobil DTE 26 or equivalent

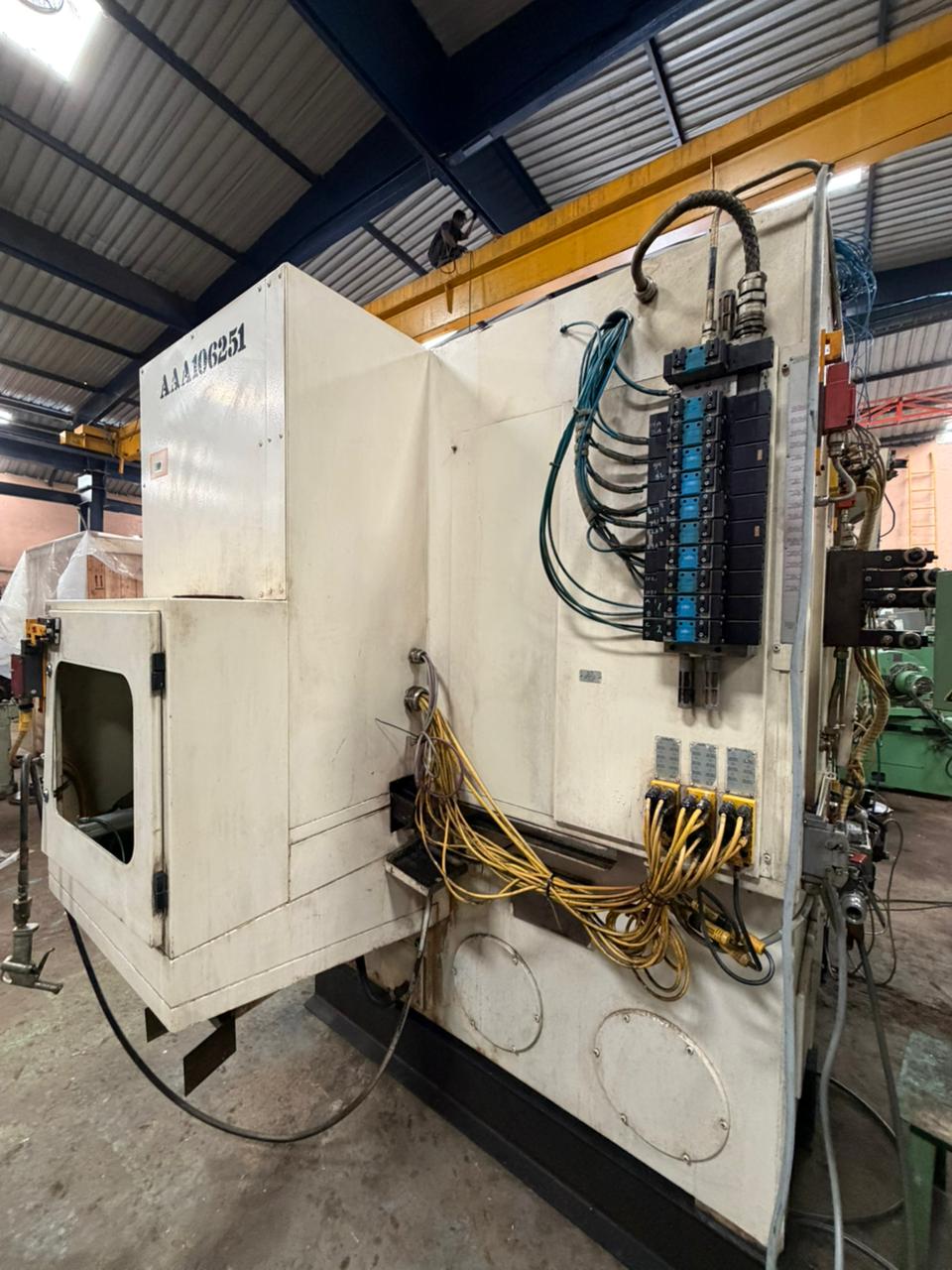

Pneumatic SystemMain Line Air Pressure: 4 bar (60 psi)Air Requirement: 25 SCFM

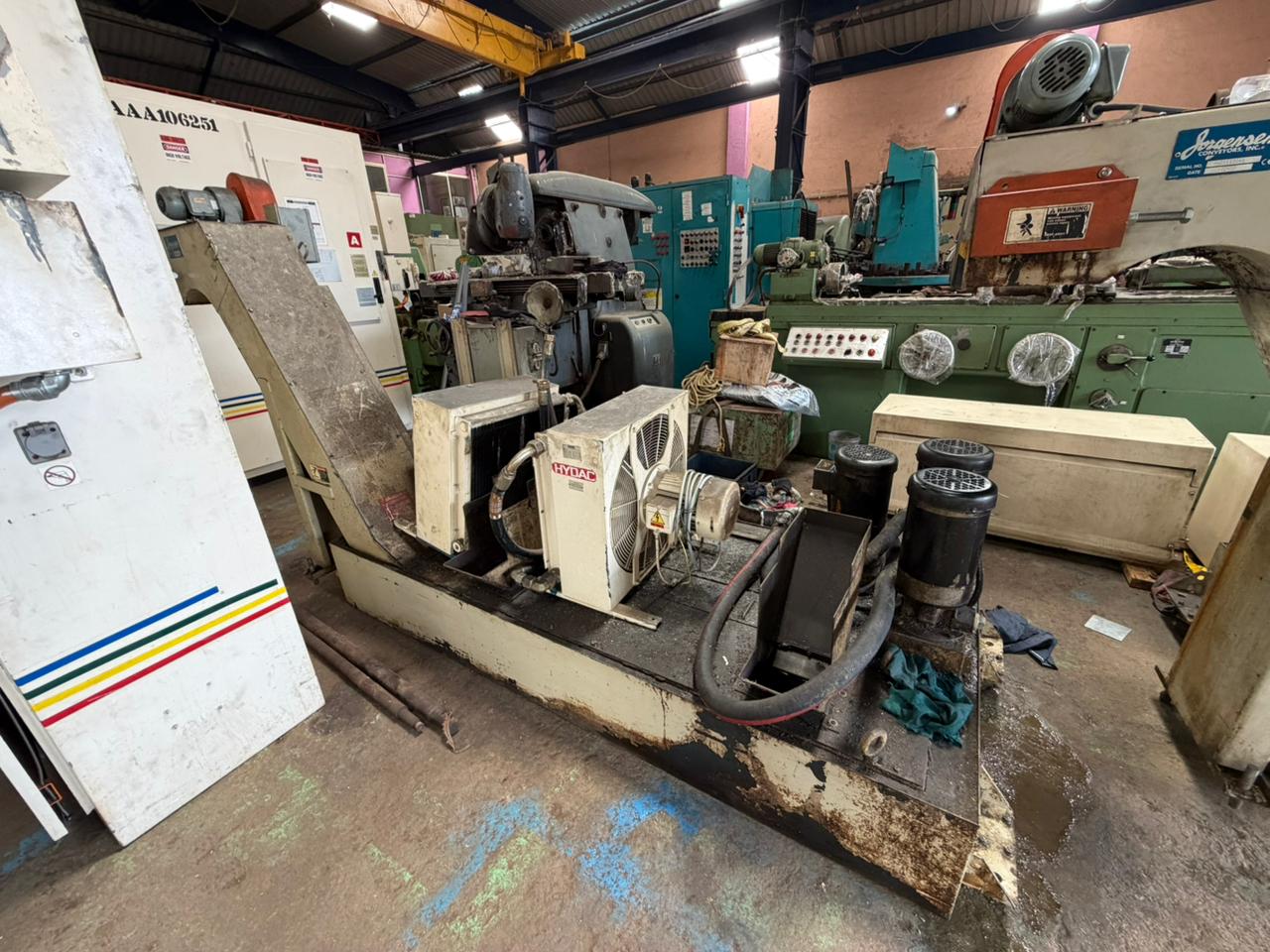

Spindle Coolant SystemCoolant Pump Motor: 1.5 HPMotor Speed: 3,200 rpmElectrical Supply: 480 V / 60 HzCoolant: Water/glycol coolant systemCoolant: Dowfrost + water + 30% antifreeze

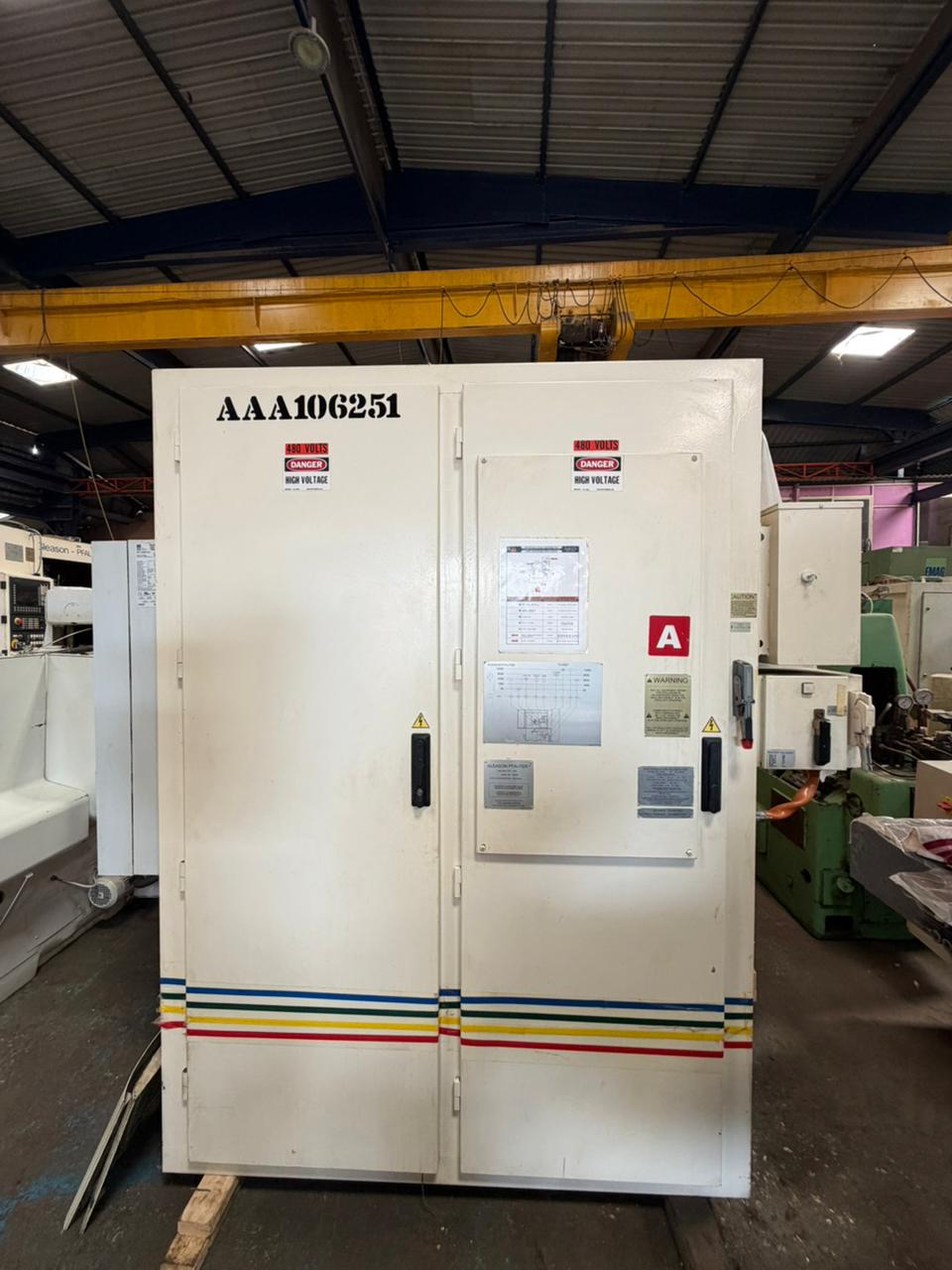

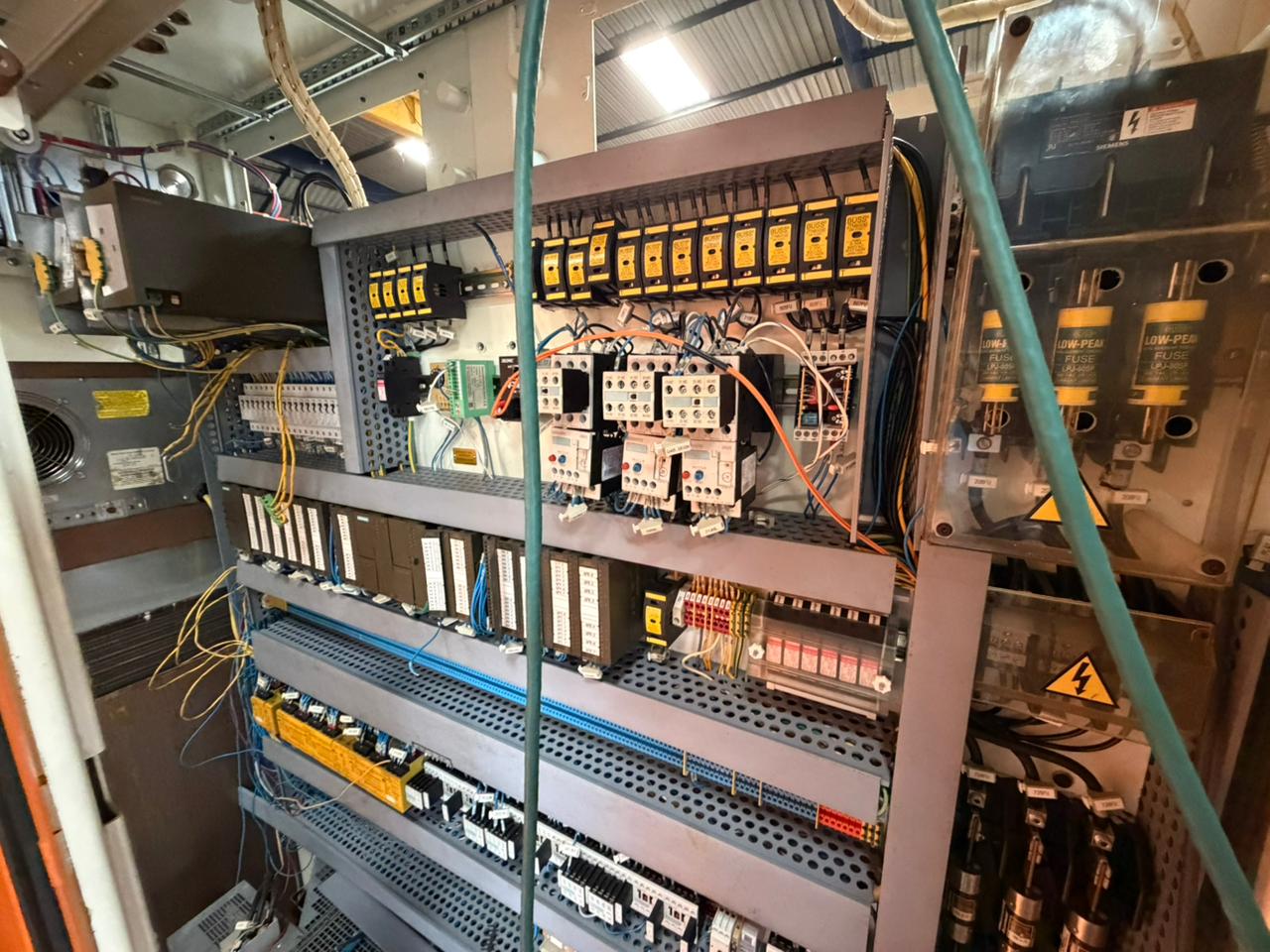

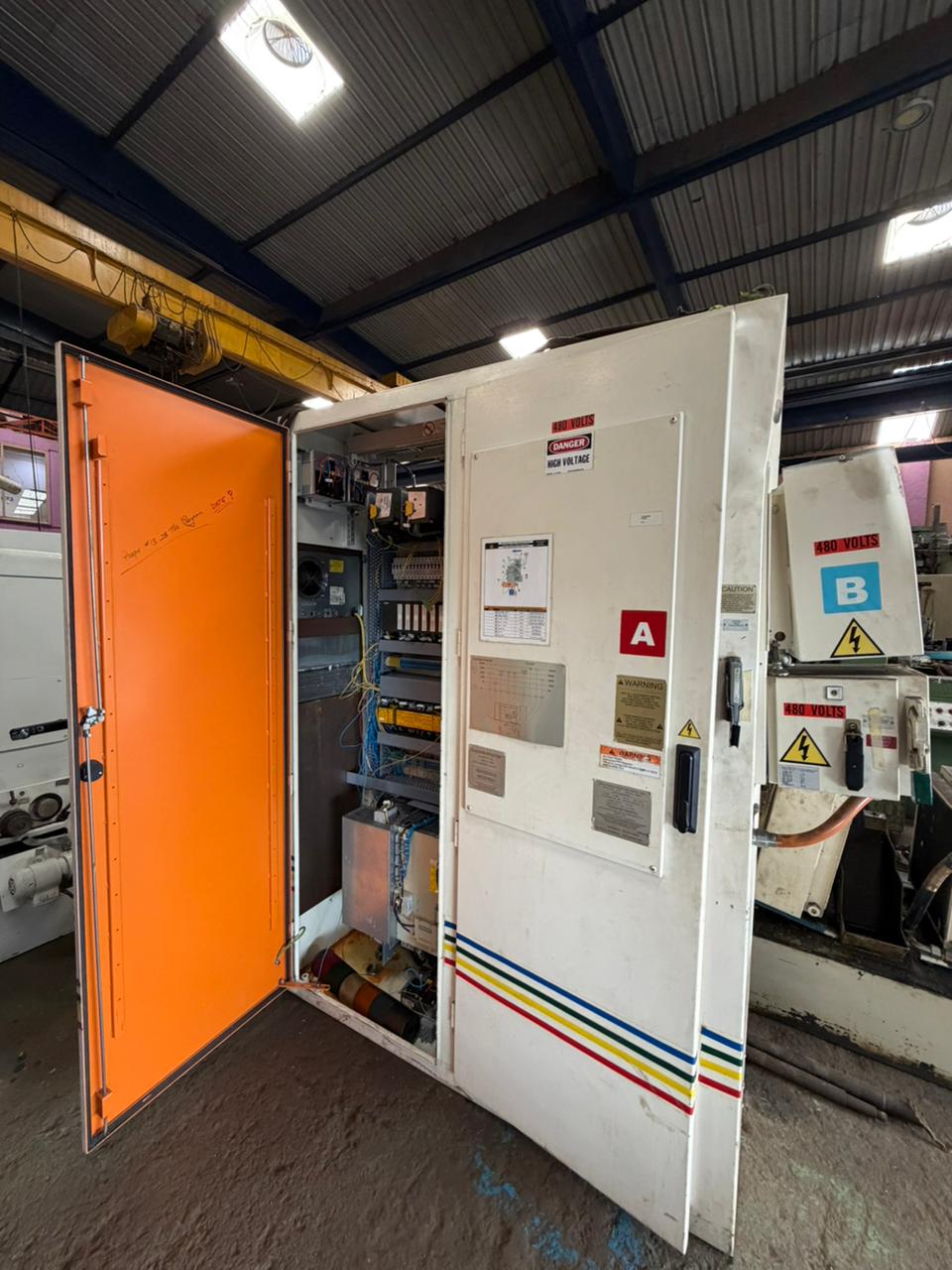

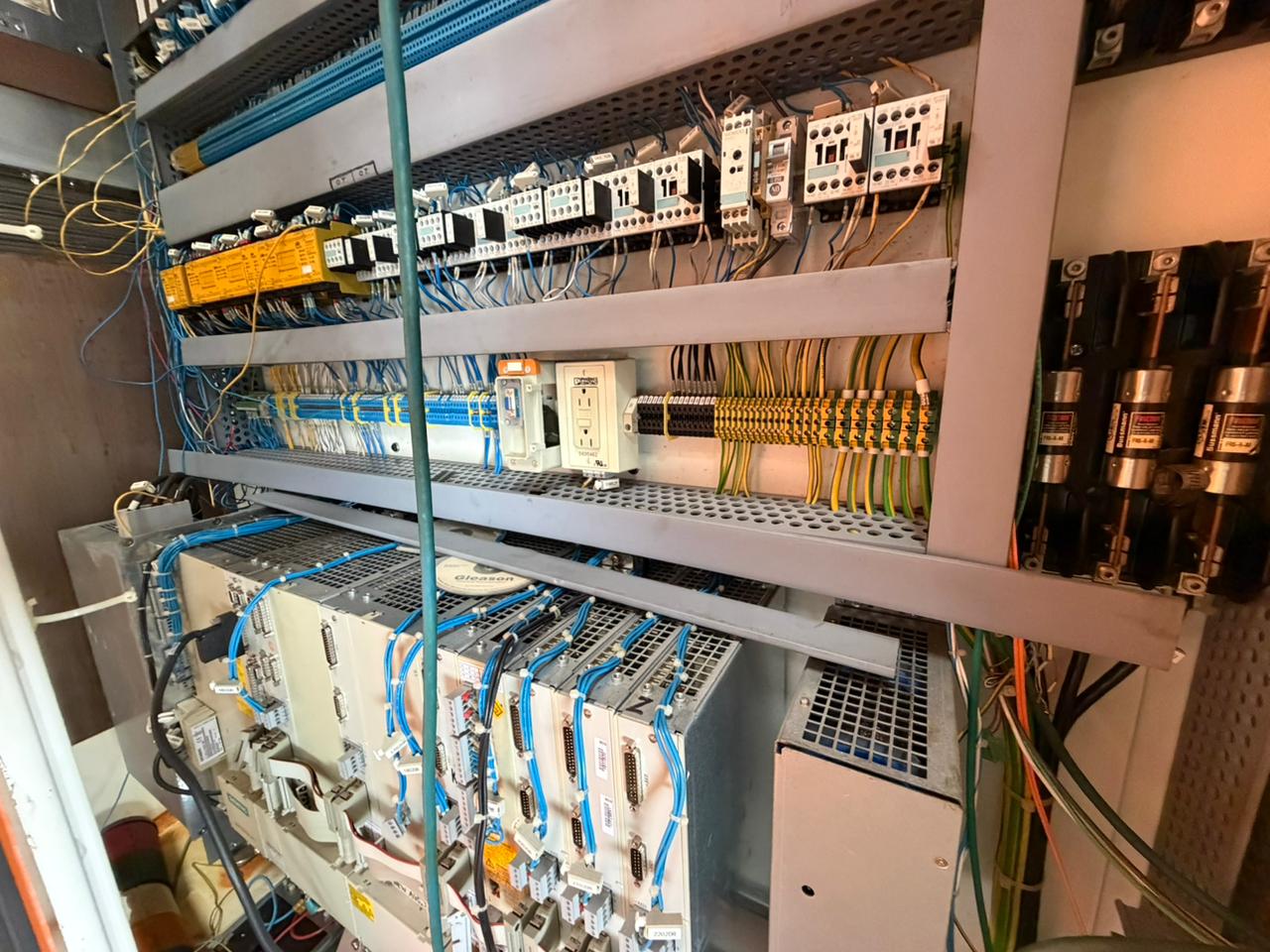

ElectricalOperating Voltage: 480 VSupply Voltage: 230 VControl Voltage: 24 VFrequency: 60 HzTotal Power Rating: 56.5 kVACable Cross-Section: 25 mm²Protection: 60 A
Machine Size & WeightLength: 4,474 mm (176.14")Width: 3,378 mm (133.00")Height: 2,808 mm (110.43")Height with Stack Light: 3,320 mm (130.71")Approx. Weight: 6,000 kg (13,227 lb)

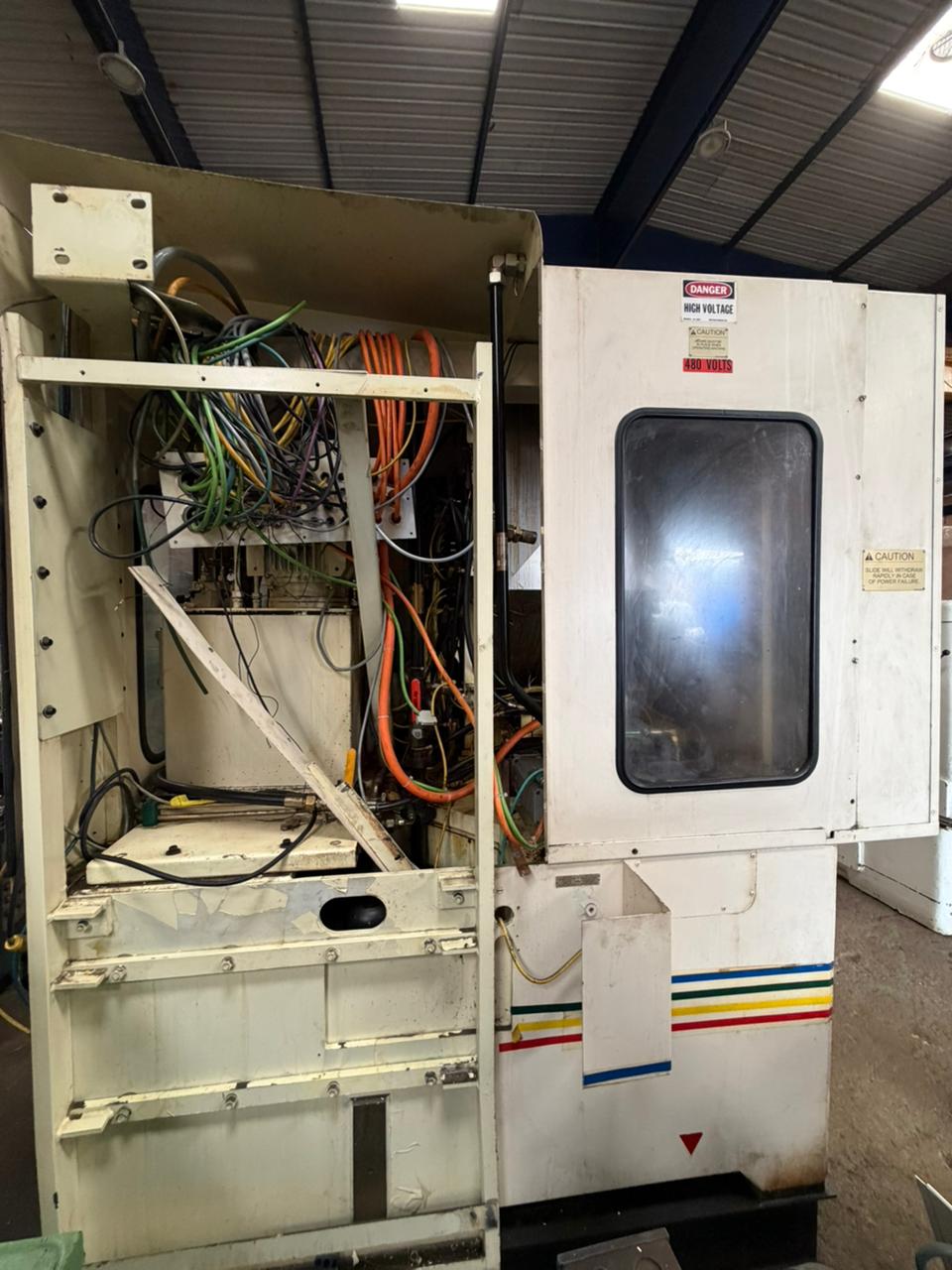

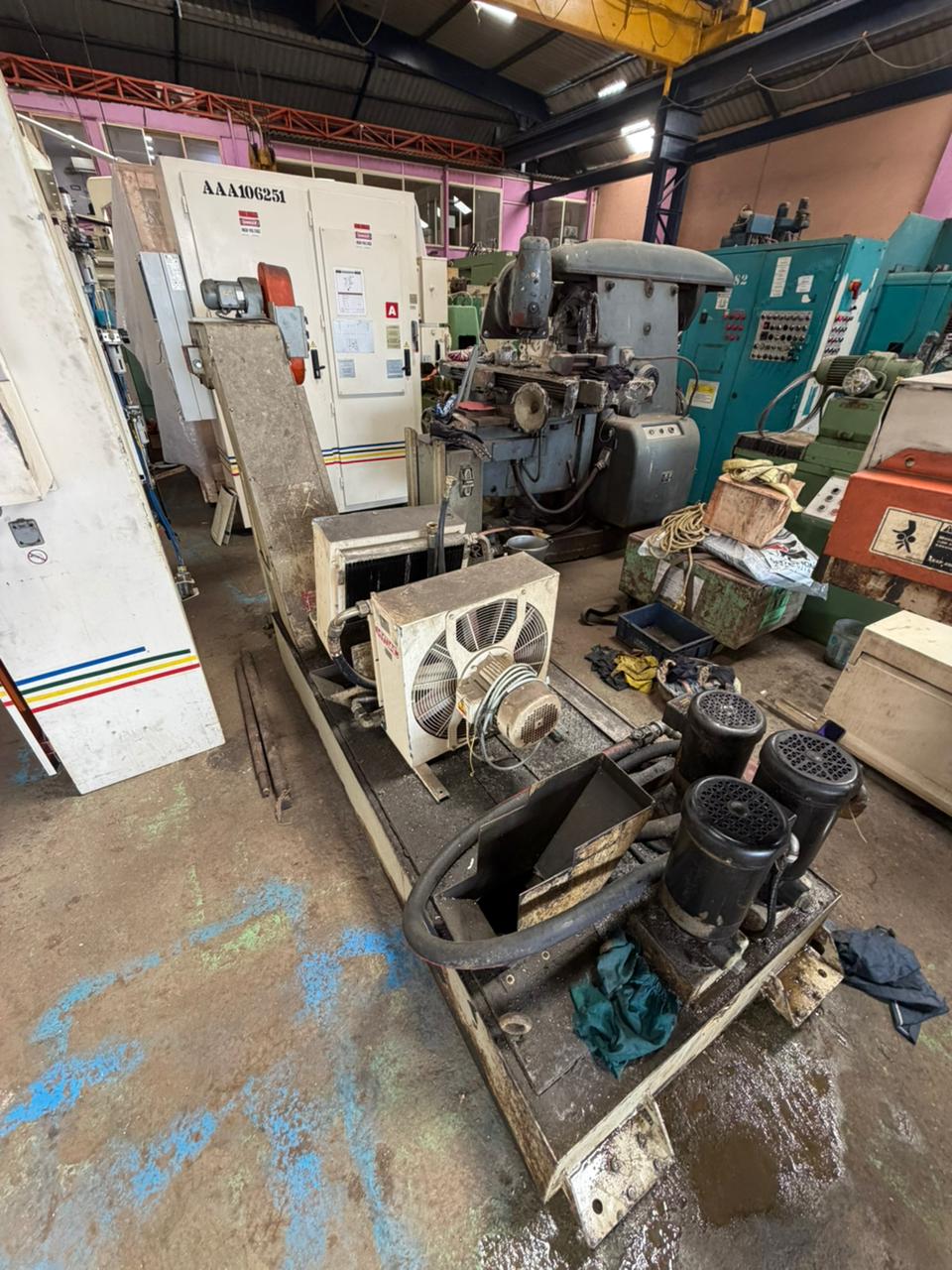

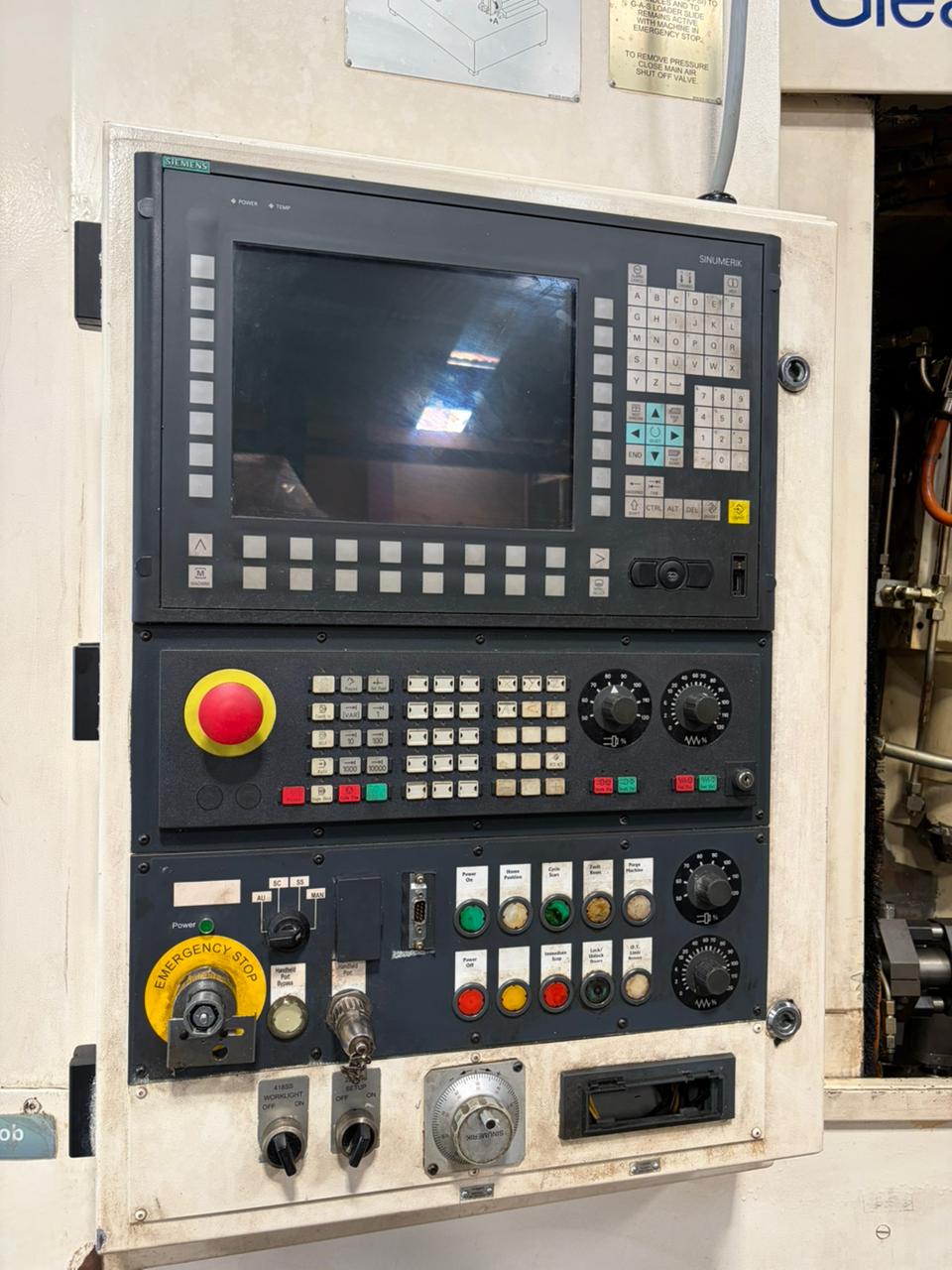

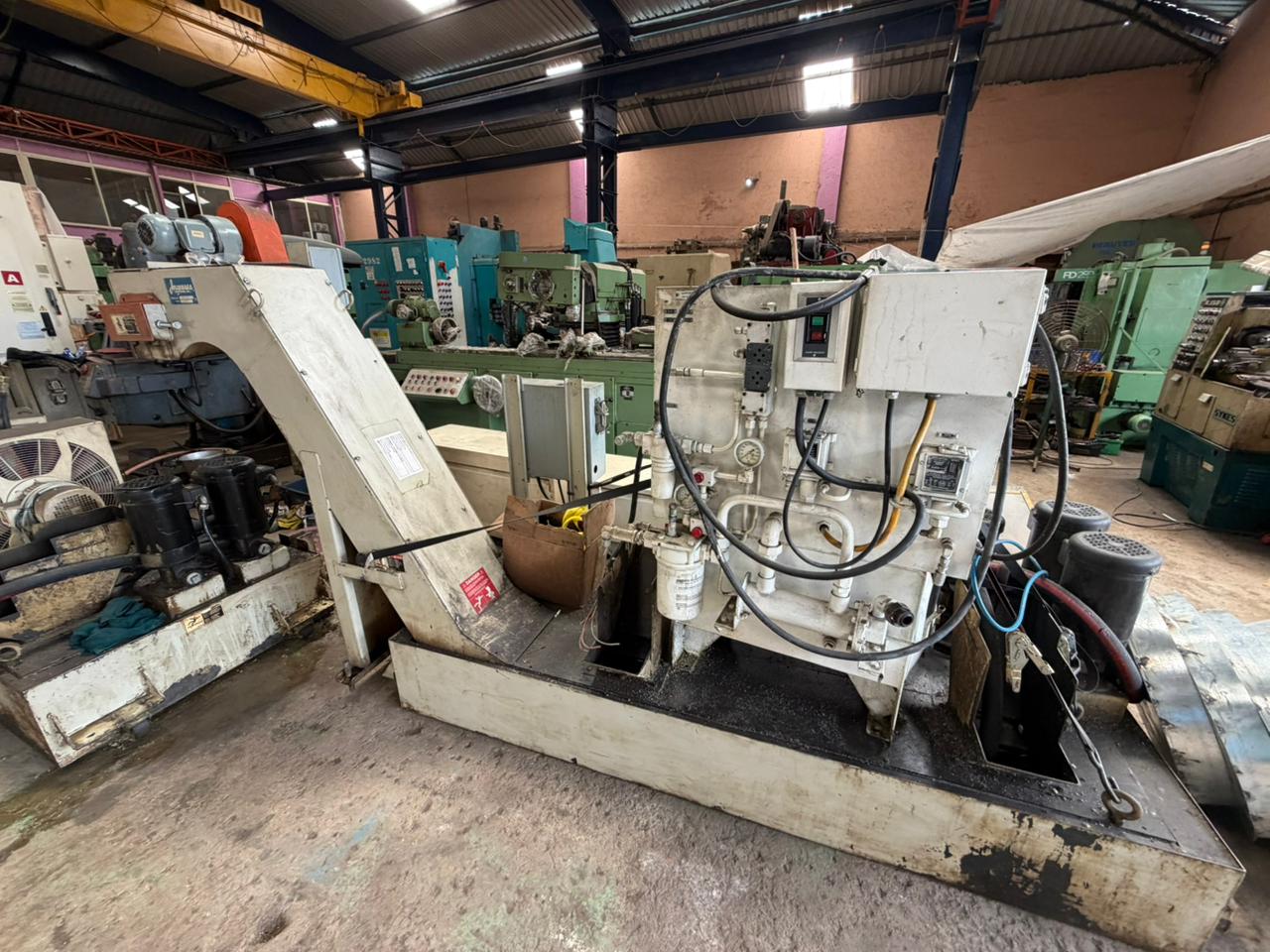

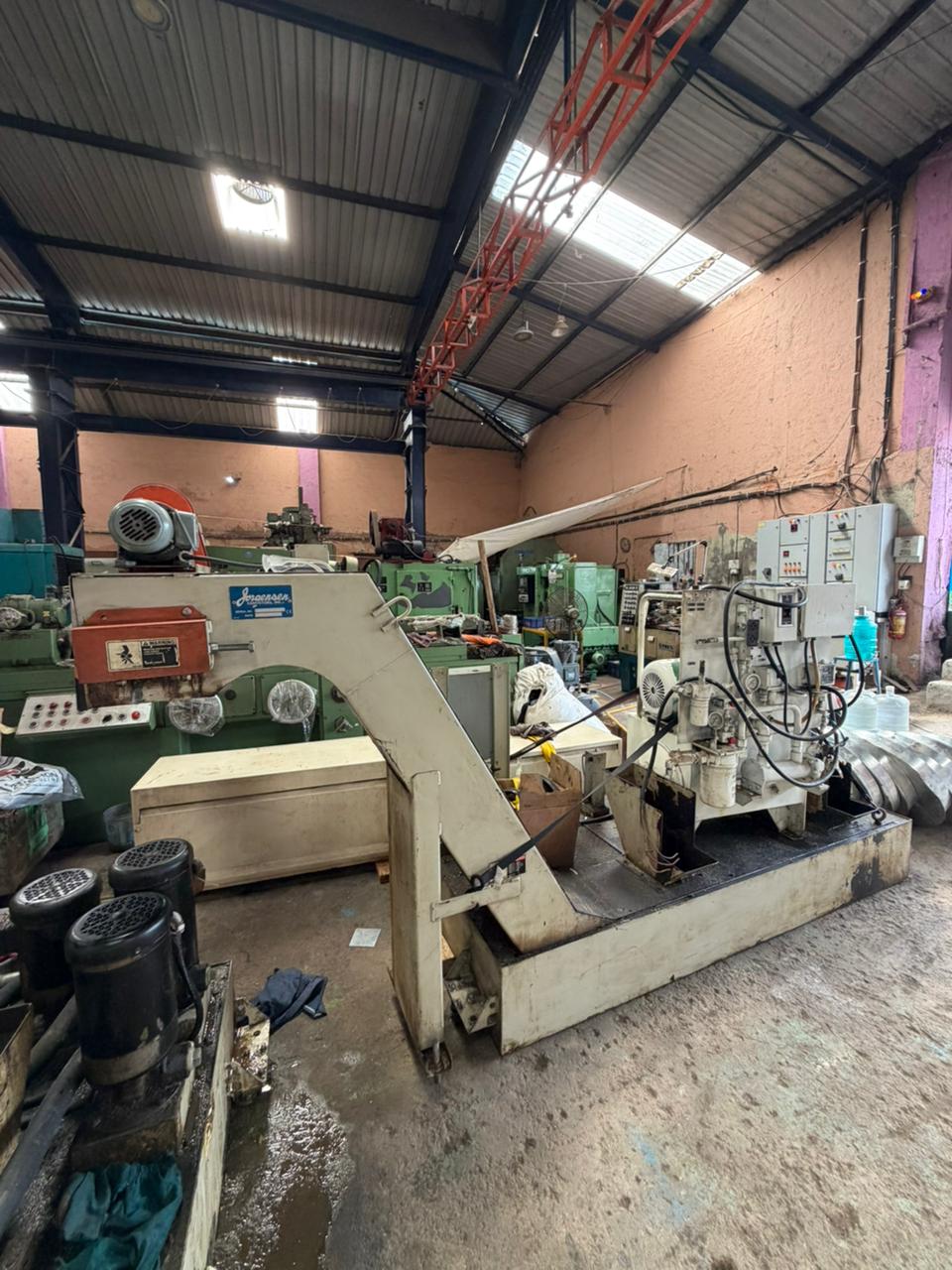

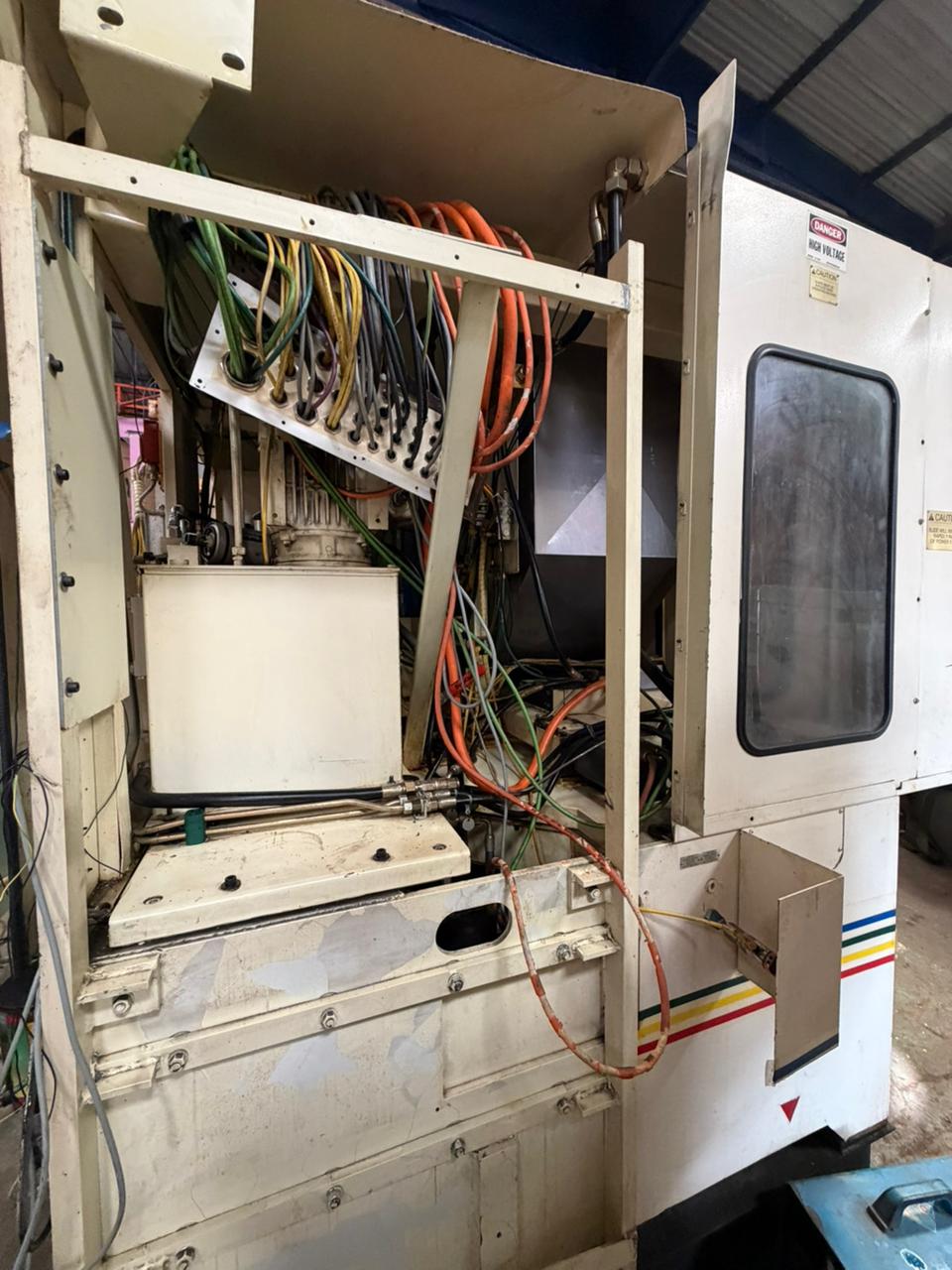

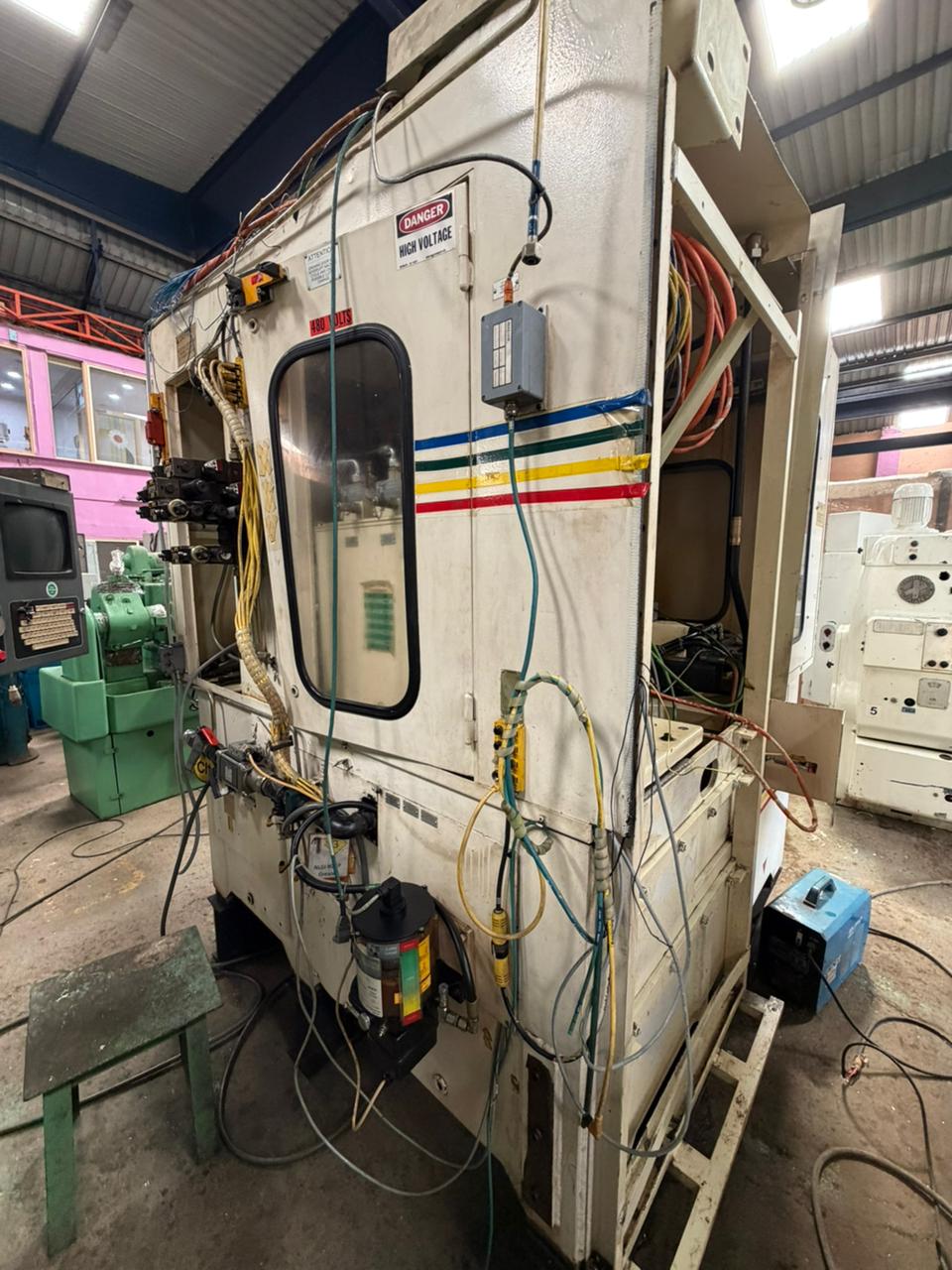

MACHINE FEATURES / EQUIPMENTStandard Machine Configuration• Siemens 840D CNC control• 6 controlled axes - X, Y, Z, A, B and C• Hydraulic clamping system• Automatic lubrication system• Spindle coolant system• Chip removal / conveyor system• Enclosed work chamber• Operator control pendant• Axes Control Panel (MCP)• Lower Operator Panel• Automatic and manual operating modes• Automatic workpiece loading/unloading system• Hob spindle and work spindle• Hob head swivel• Automatic deburring-tool system
Description

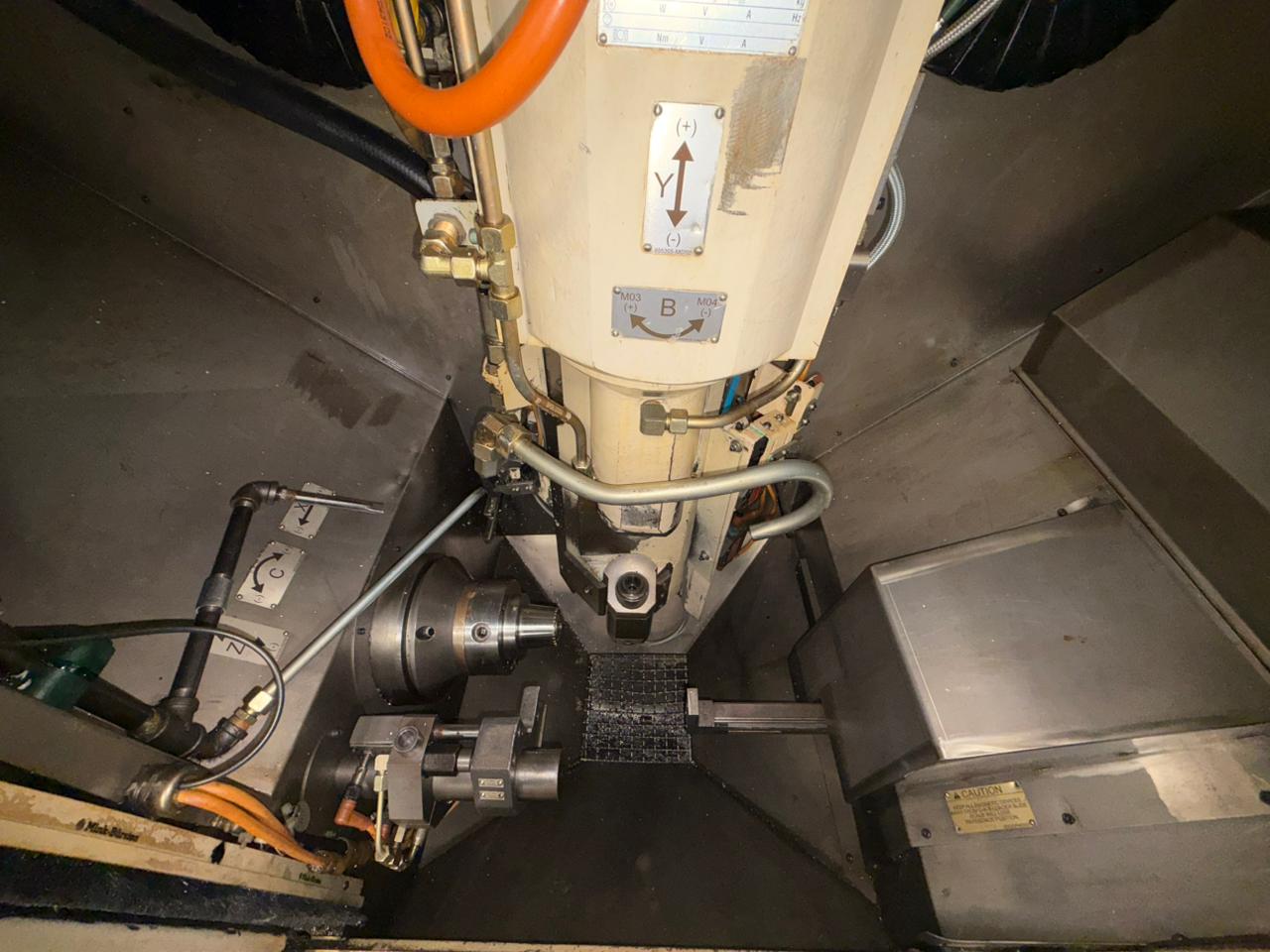

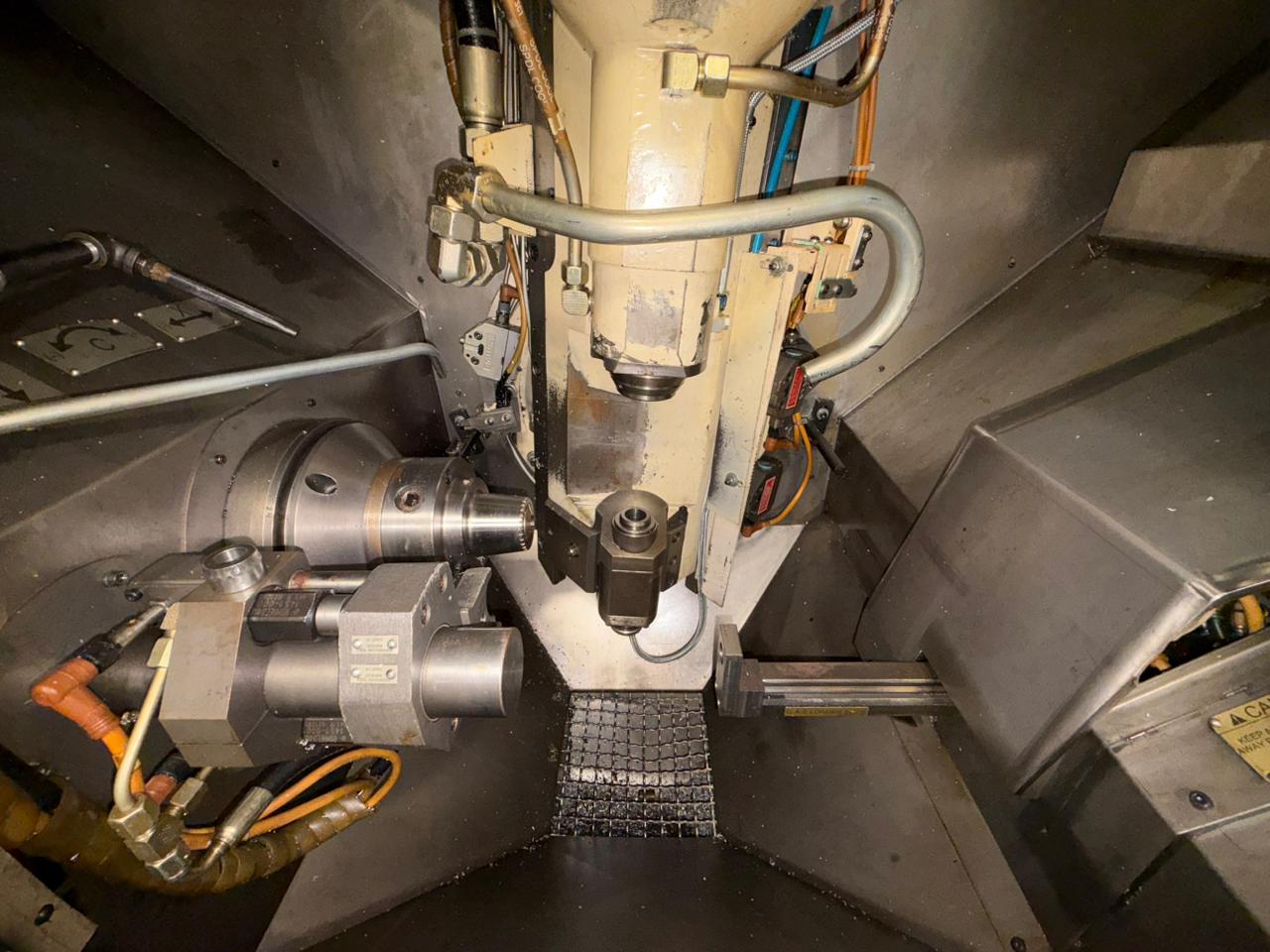

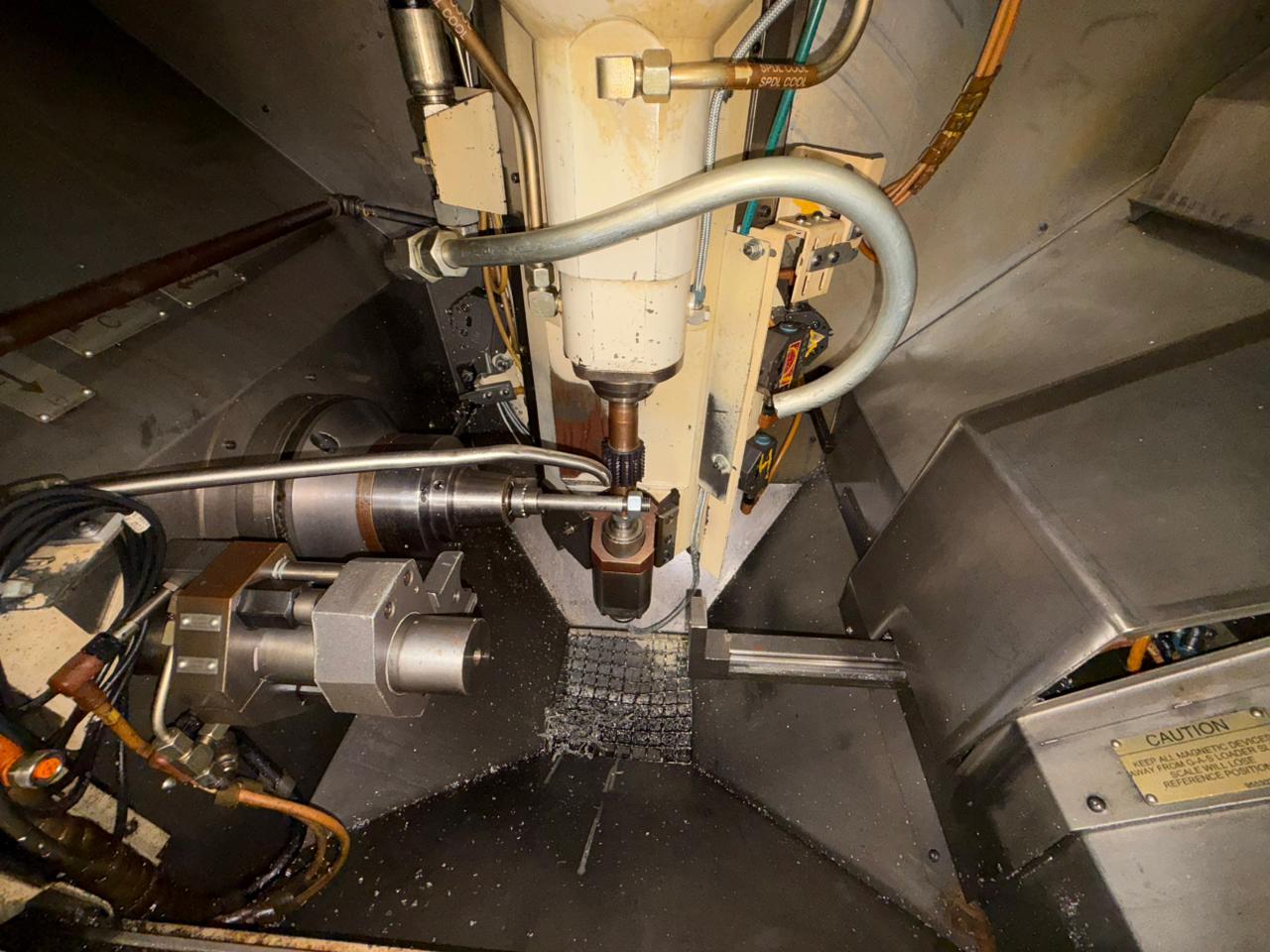

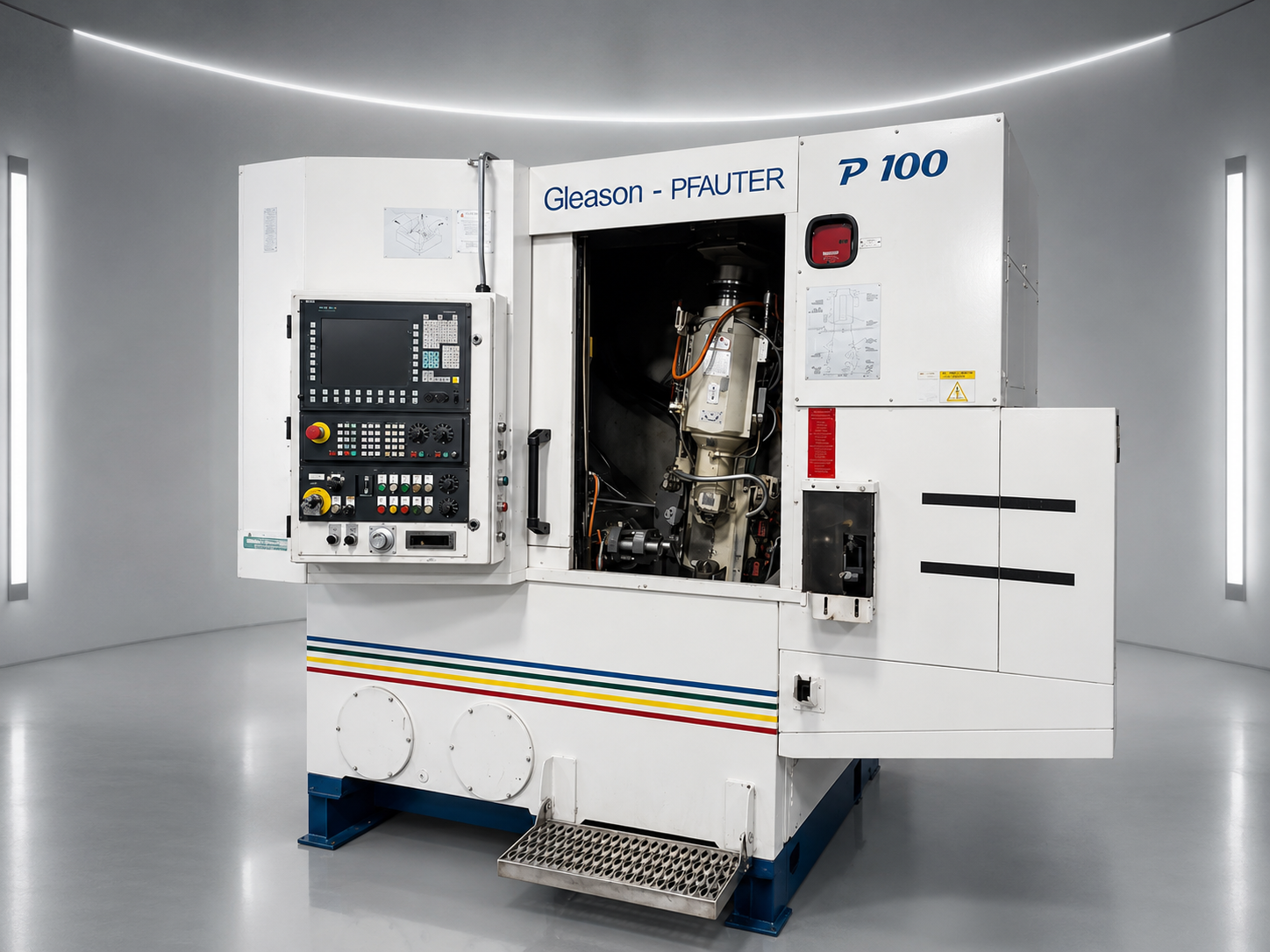

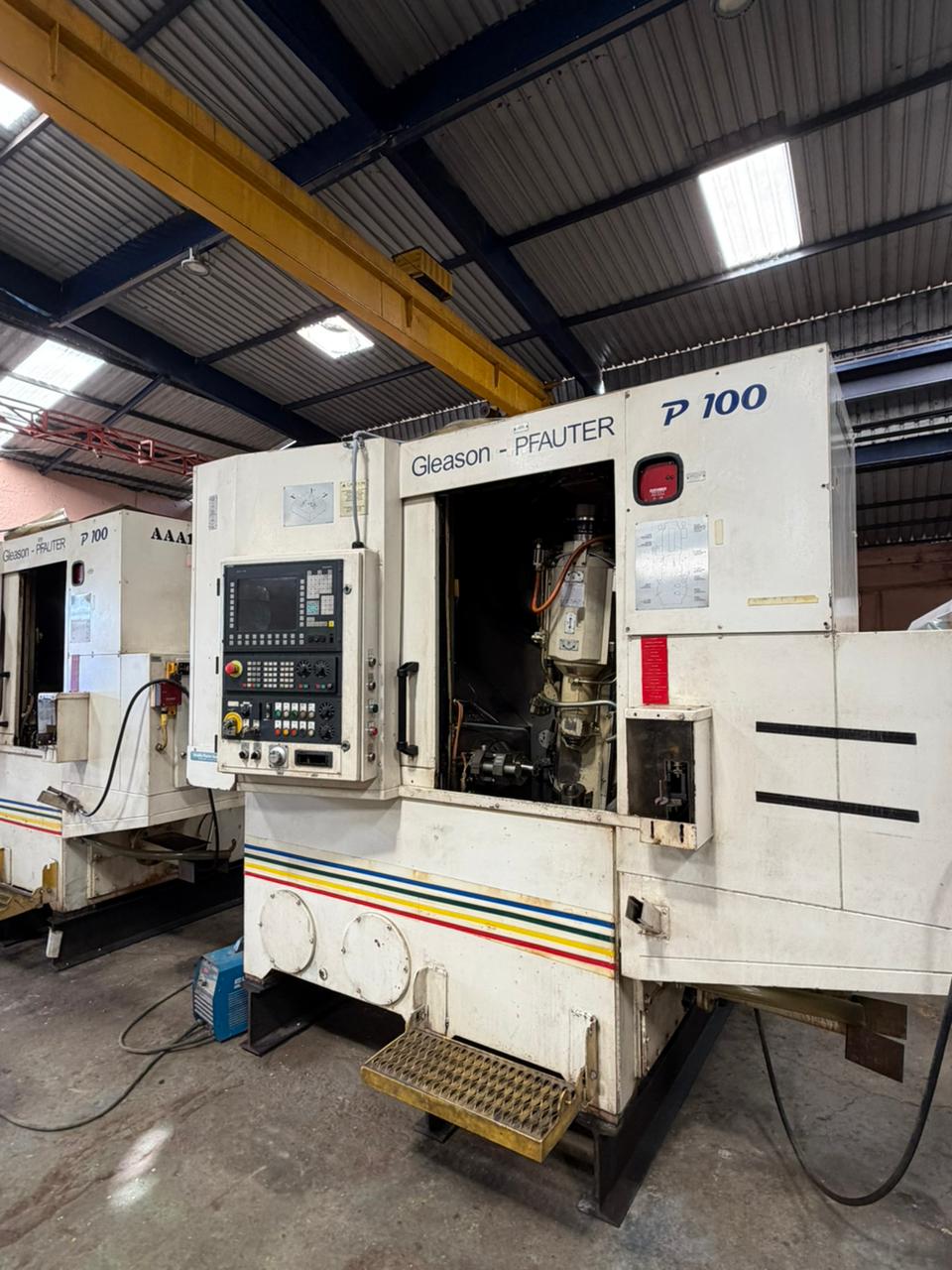

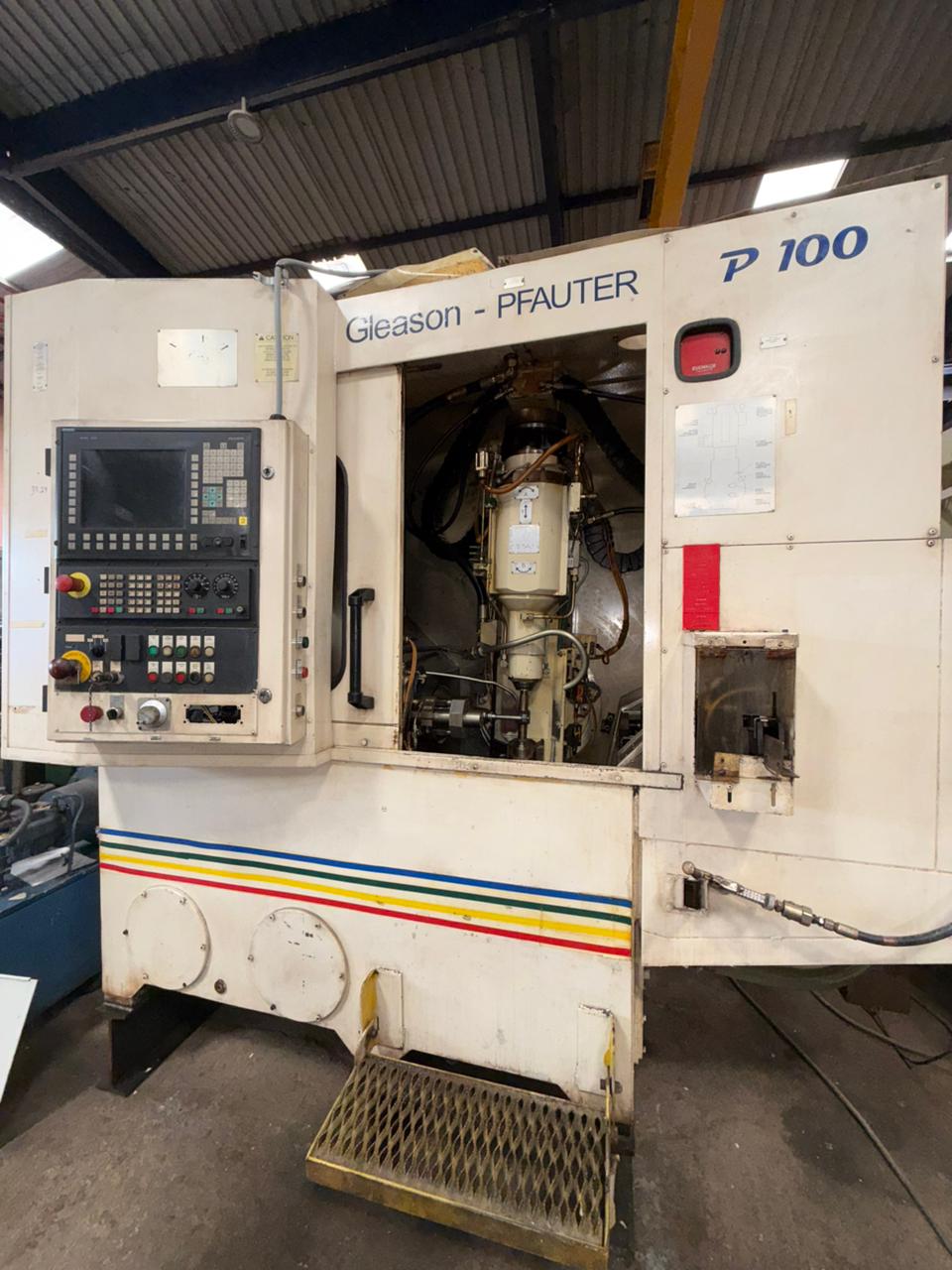

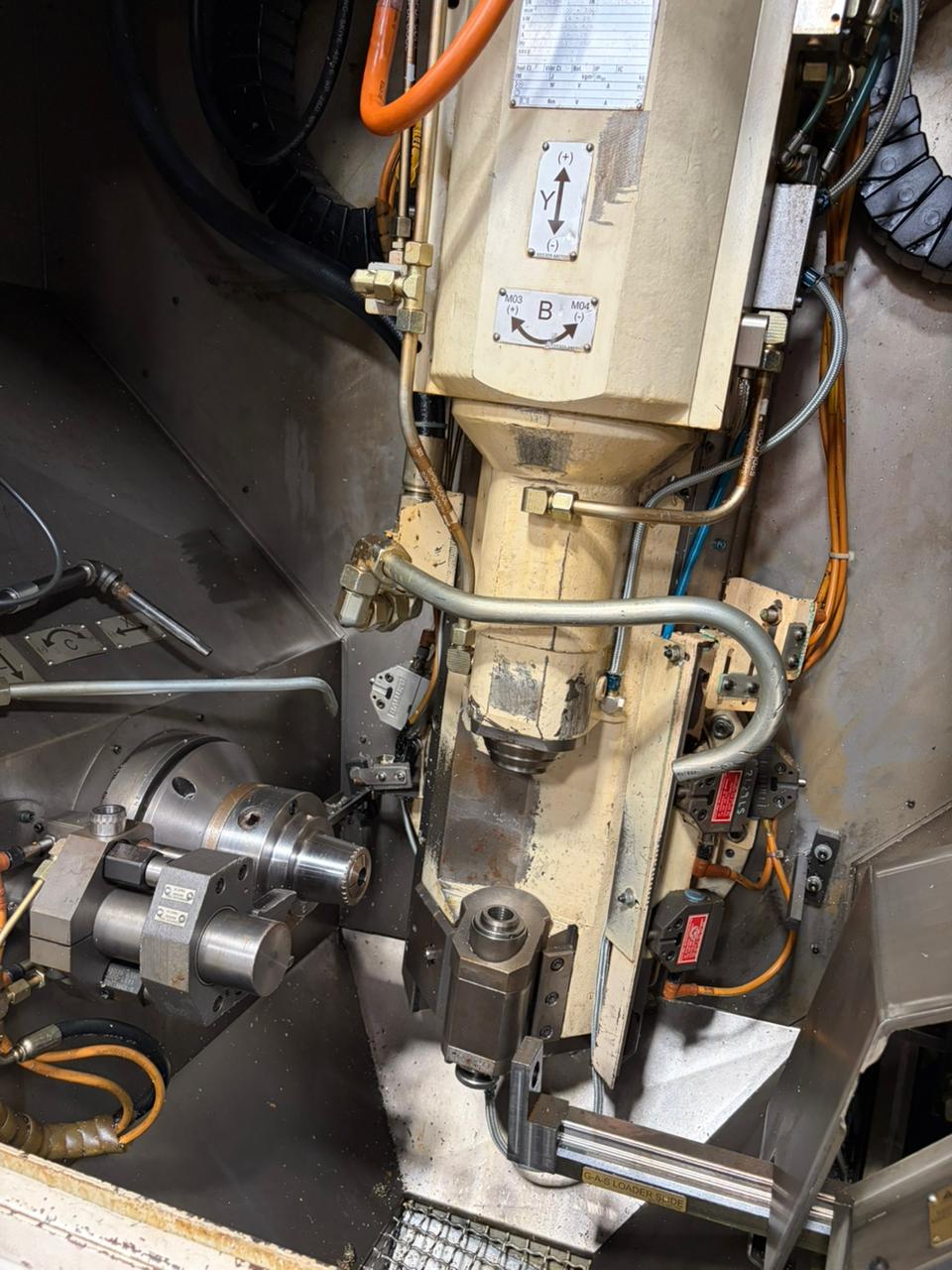

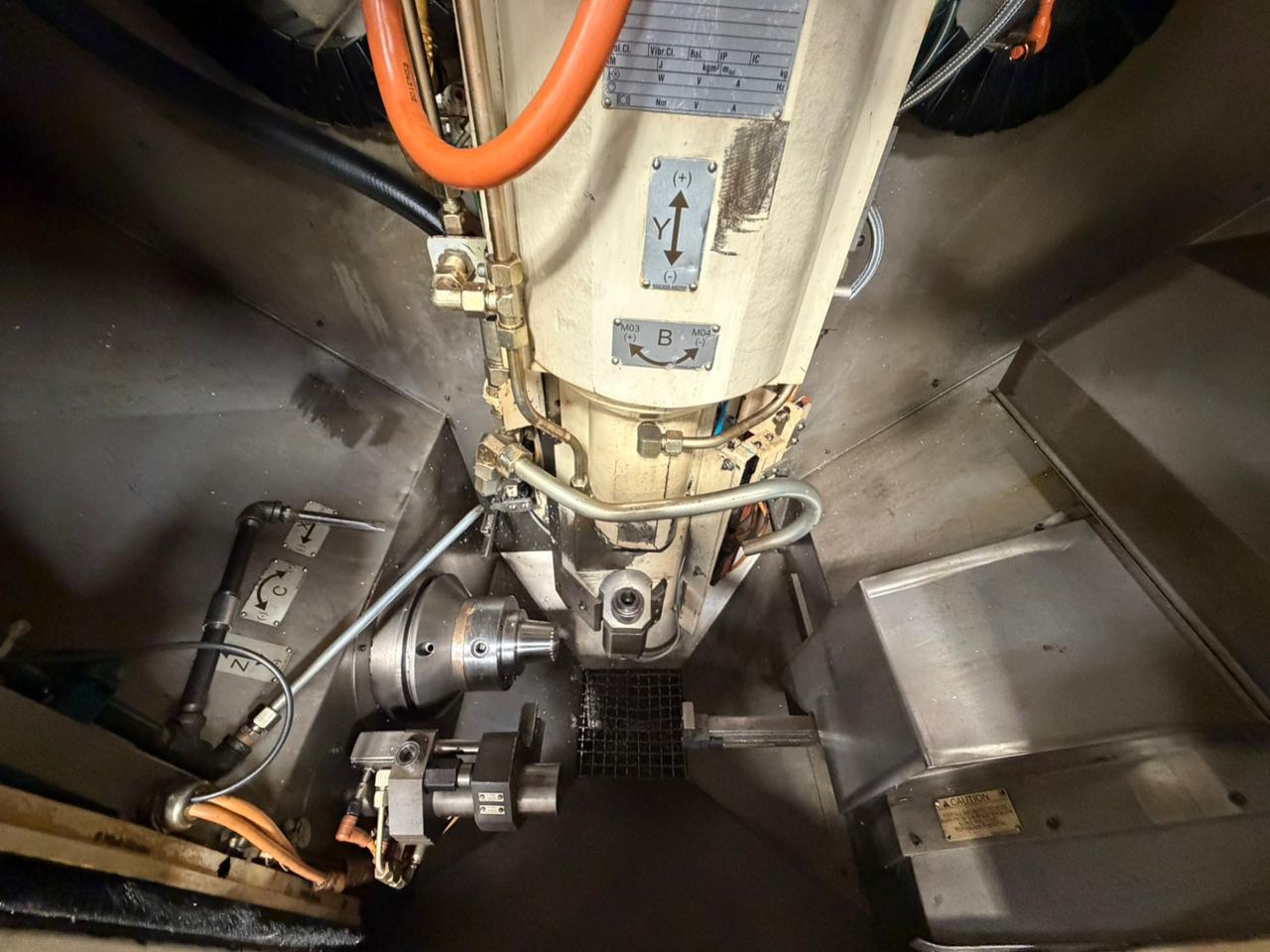

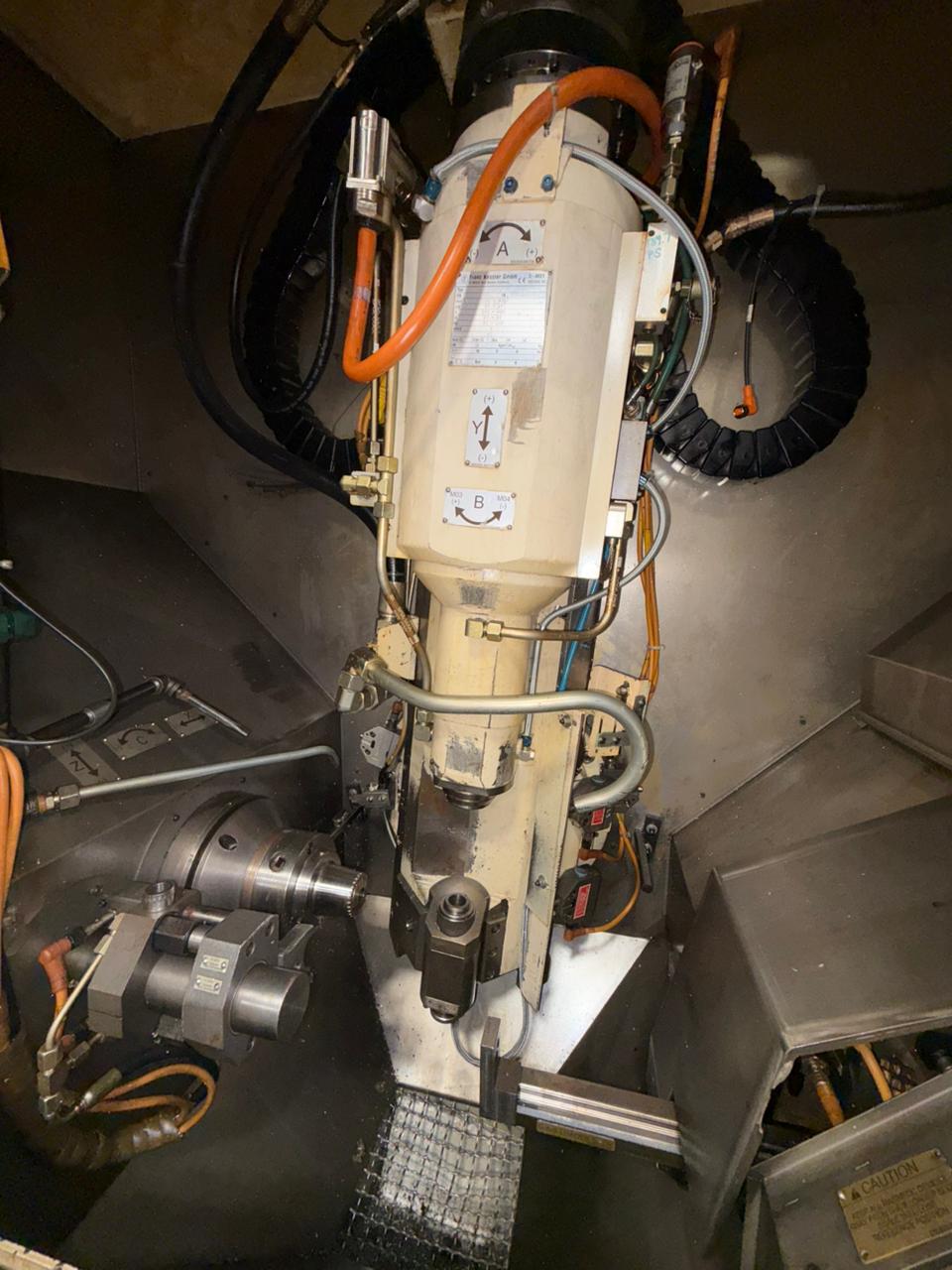

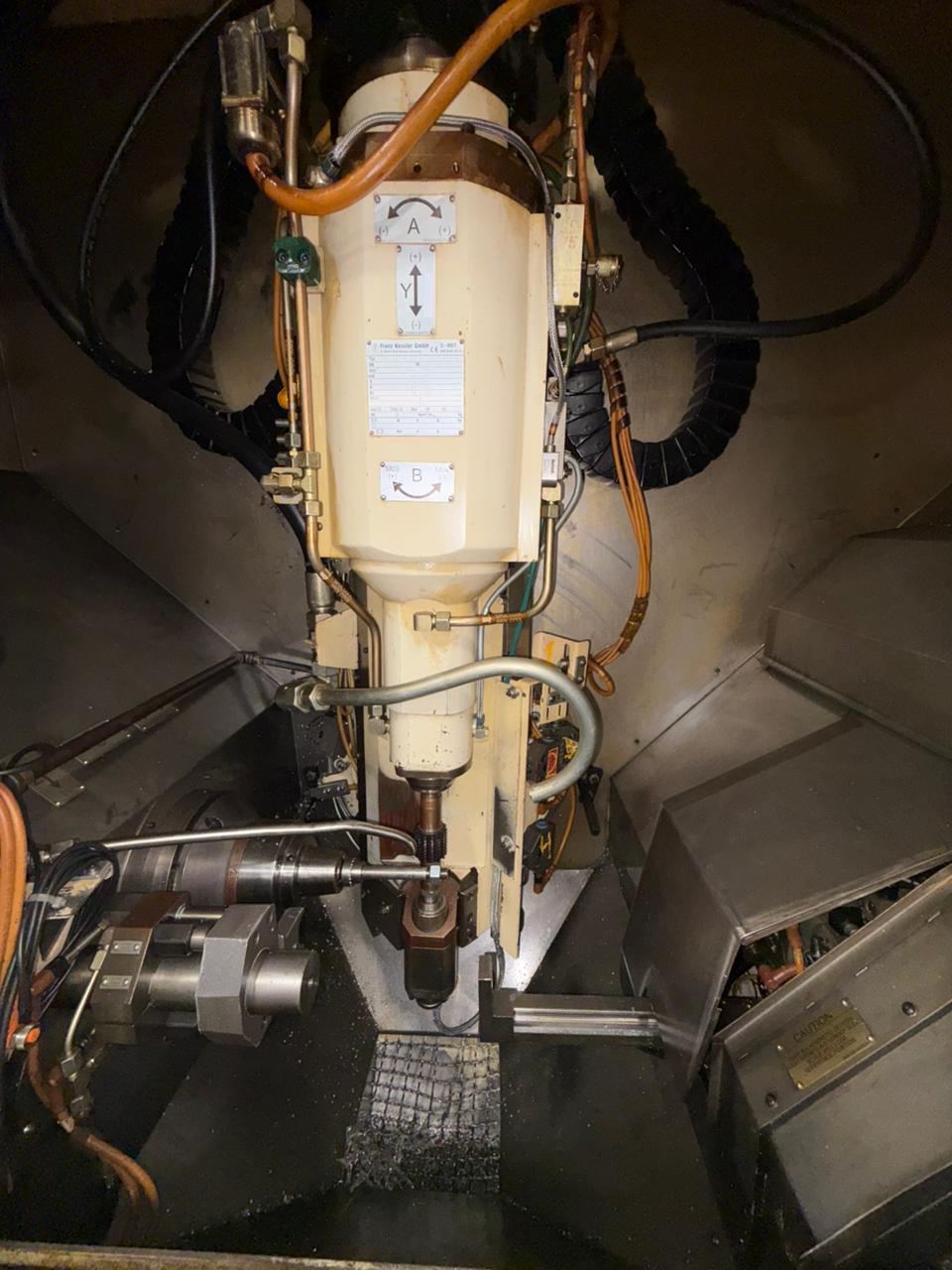

Gleason-Pfauter P100 CNC Gear Hobbing Machine equipped with a Siemens 840D CNC control and six controlled axes - X, Y, Z, A, B and C.The P100 is a compact CNC gear hobbing machine designed for precision production of small and medium-sized gears. According to the manufacturer's technical data, the machine accommodates workpieces up to 120 mm diameter, with a maximum module of 3.0 mm in steel.The machine features an enclosed hobbing chamber, hydraulic workholding, automatic lubrication, spindle coolant system and automatic chip removal system. Attached gear deburring tool is also part of the machine.The P100 provides radial, tangential and axial slide movements of 90 mm, 140 mm and 100 mm respectively, with a maximum hob head swivel of ±30°. Hob speeds are specified from 300 to 3,500 rpm, while the work spindle is rated from 0 to 1,000 rpm.The machine has an approximate overall footprint of 4,474 × 3,378 mm, a height of 2,808 mm (3,320 mm including the stack light), and an approximate weight of 6,000 kg.CNC Control: Siemens 840DMachine Type: 6-Axis CNC Gear Hobbing MachineMaximum Workpiece Diameter: 120 mmMaximum Module: 3.0 mmHob Speed: 300–3,500 rpmWork Spindle Speed: 0–1,000 rpmWeight: Approx. 6,000 kgSpecifications are based on the manufacturer's operating documentation and may vary according to machine configuration.
