Mazatrol CAM M-2, X-:1000 mm, Y-:500 mm, Z-:320 mm, No. Of Tools: 24,

Video
Machine Id: 1150 Serial No:

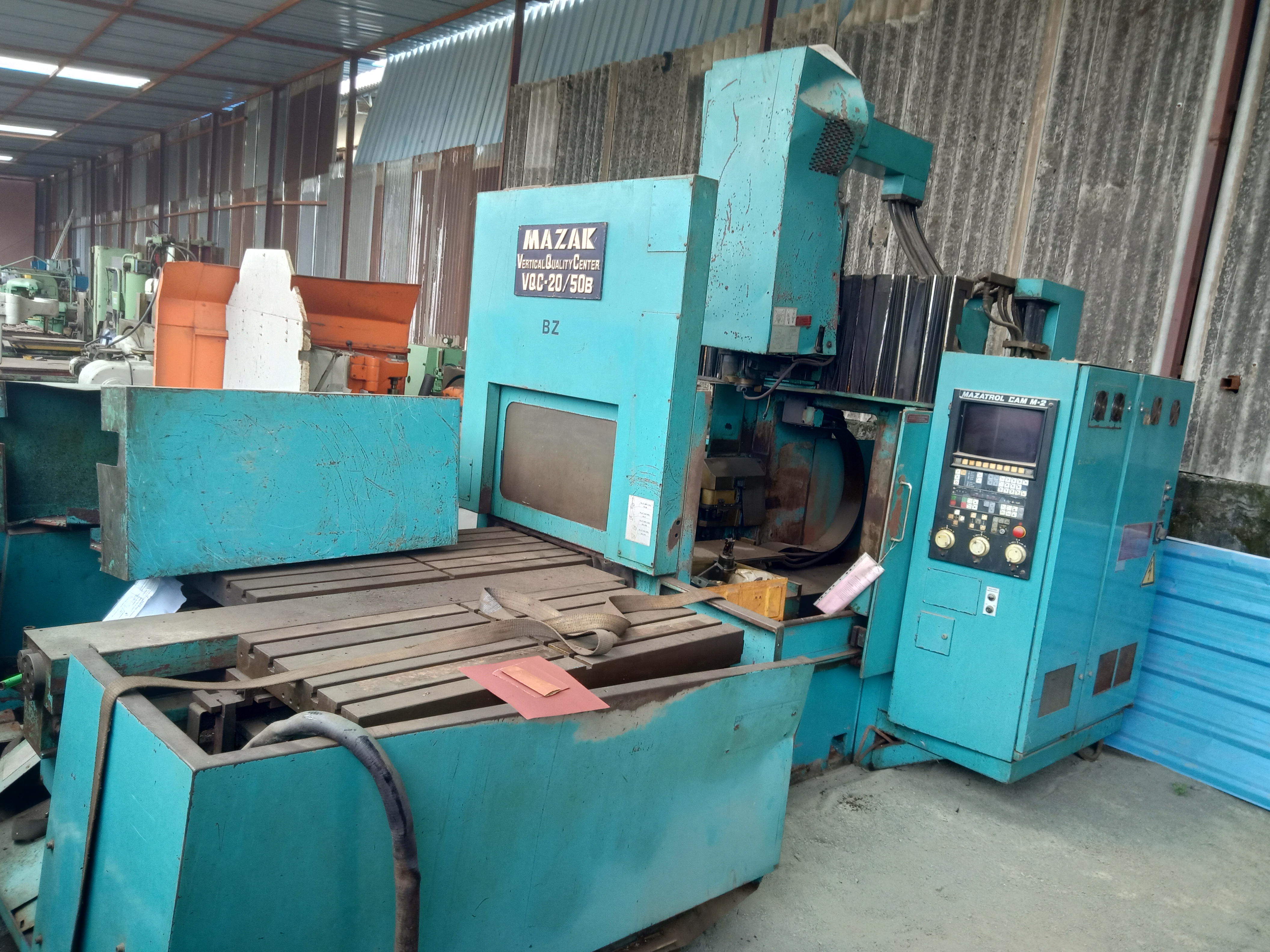

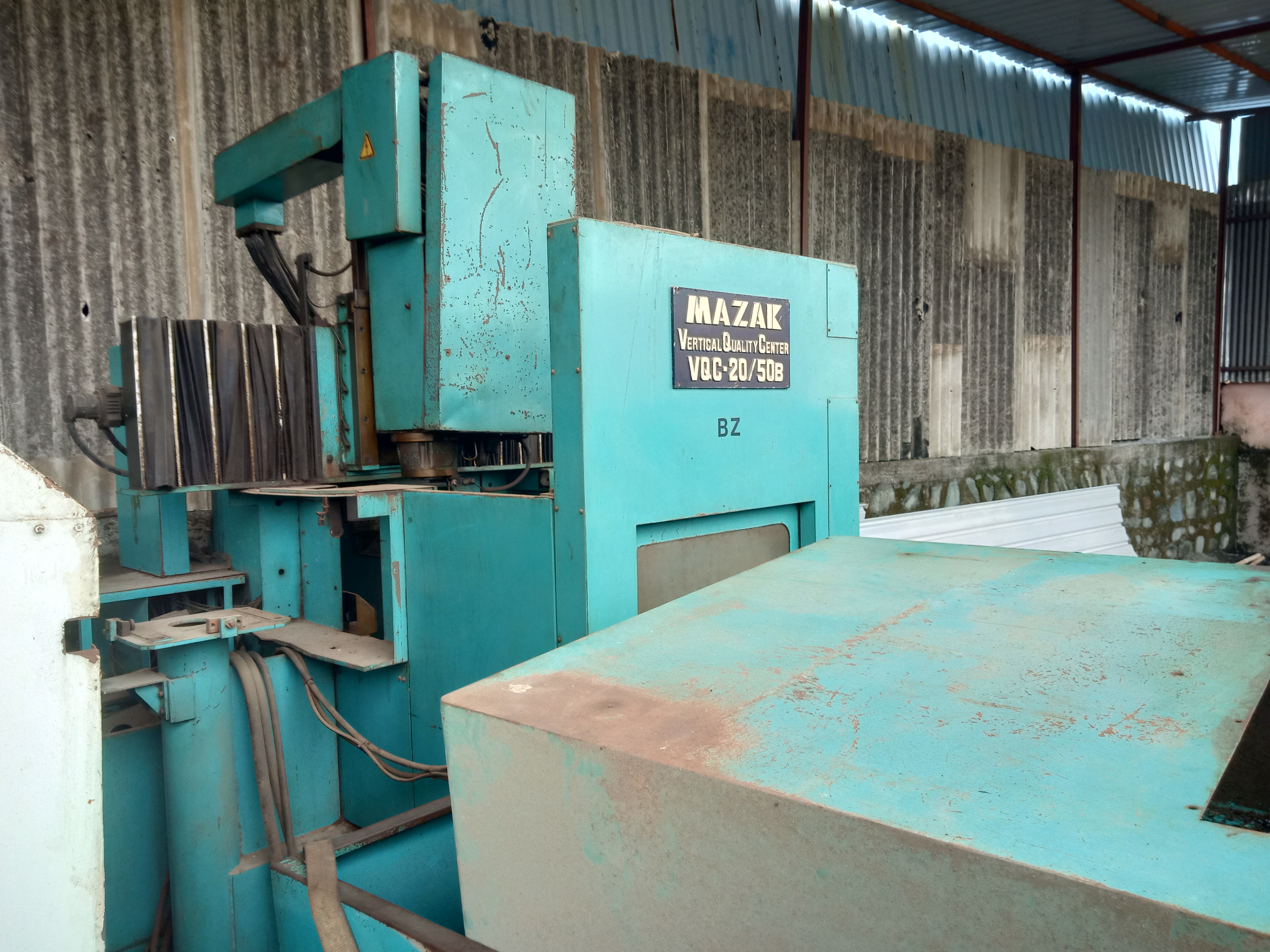

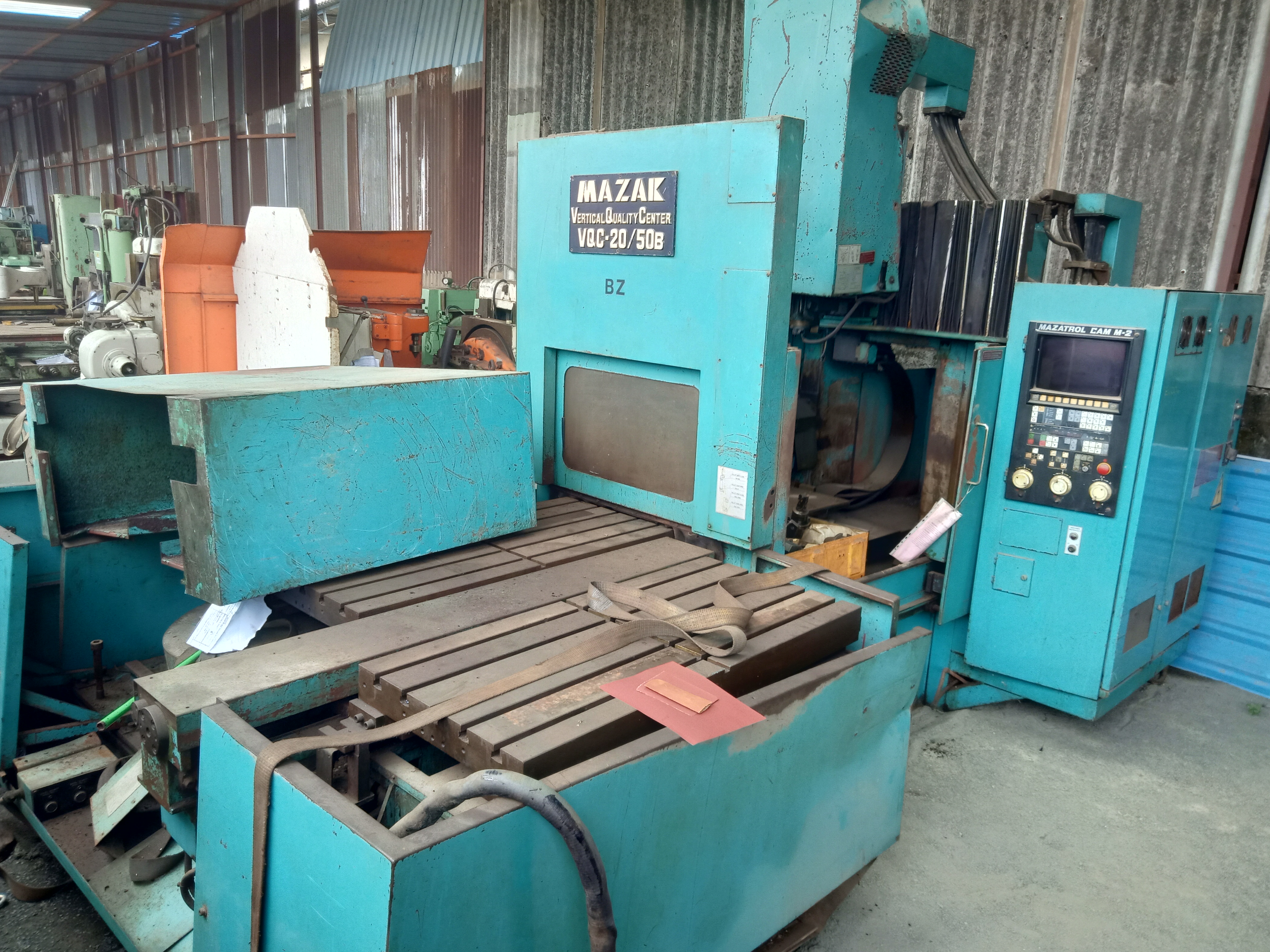

Model: mazak vqc 20/50b Asking Price: onrequest
Make: mazak Country: Germany
Year: Weight: 0.0
Dimensions: 3,1 x 2,9 x 2,9 m Location: Mumbai WareHouse, India
Power: 22 kVA
Category: Vertical Machining Centre CNC (VMC)
Type of Machine: vmc twin pallets
Specification

X-travel  : 1000 mm
Y-travel  :  500 mm
Z-travel  :  320 mm
Table-size  :  550 x 1240 mm
Max. table load :  800 kg
Spindle taper :  CAT 50
Turning Speed Range - Stepless 20-3150 U/min
Main drive motor  : 7,5 kW
Voltage   : 380 V
Rapid traverse X- and Y-axis : 14 m/min
Rapid traverse Z-axis 12 m per min
Feed speeds infinitely variable : 1to5000 mm per min
Total power requirement : 22 kVA
Weight of the machine ca. : 5600 kg
Dimensions of the machine ca. : 3,1 x 2,9 x 2,9 m

Description

Maximum Tool Diameter: 130mm
Maximum Tool Diameter with adjacent pocket empty: 150mm
Maximum Tool Weight: 13 kgs.
No. Of Tools: 24
Tool Selection system: Automatic Random short cut System
Maximum Drilling Capacity:
40mm
Maximum Tapping: M36 X  P 3-1/2- 8 UNF

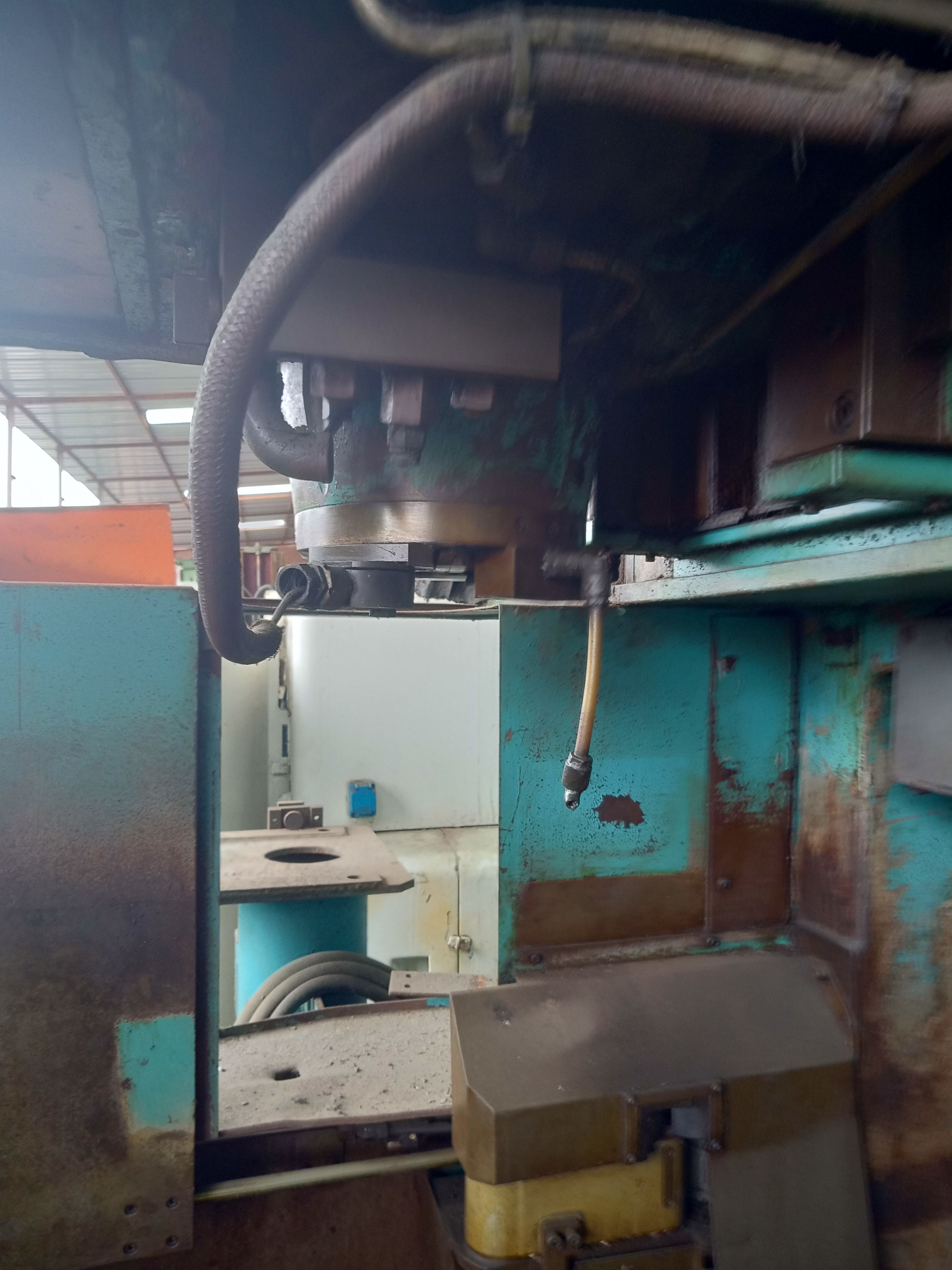

Spindle : BT 50, 55 / 7.5 kw
AC Motor : 3150 rpm,

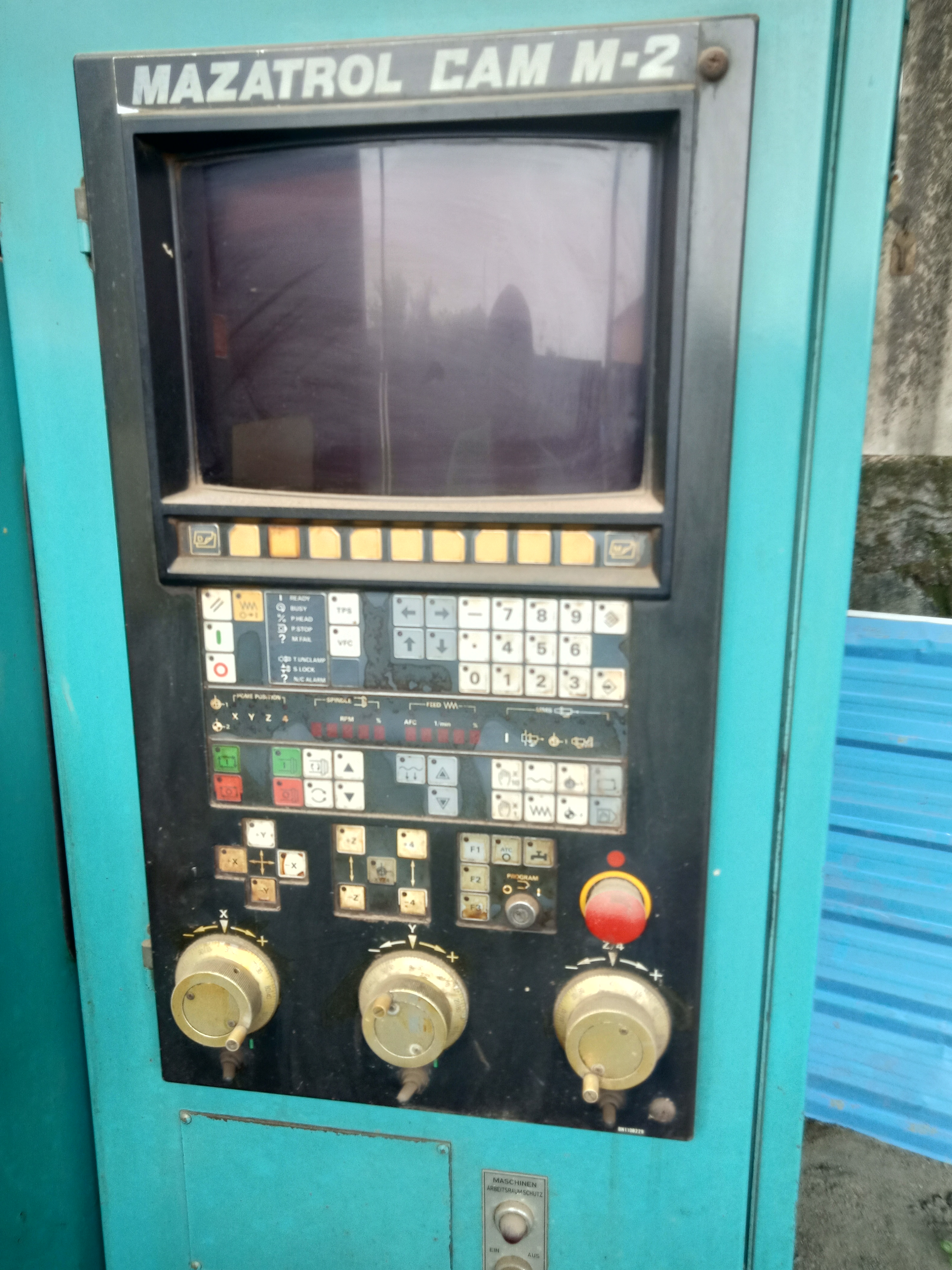

CNC Control : Mazatrol CAM M-2
