| Model |
: |
ZFWZ 800 X 10 / II MODUL |
|
|
|
|
|
|
|
|
|
| Location |
: |
Mumbai Warehouse, India (Under Power For Demo Purpose) |
|
|
 |
|
|
| Serial No |
: |
Not Available |
|
|
|
| Type of Machine |
: |

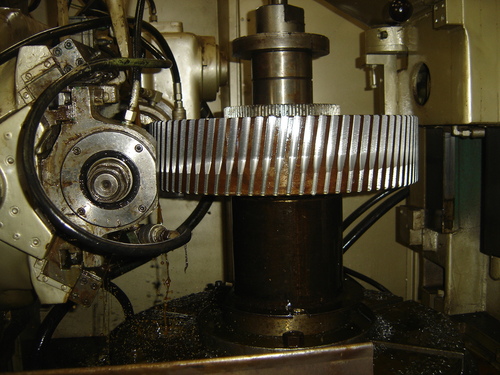

Universal Gear Hobber Heavy Duty (Rebuilt 2001) |
|
|
|
|
|
|
|
|
|
|
| Specification : |
|
EQUIPPED WITH:
Hob Arbor 26"T-Slotted Table Auto Cycle Differintial Coolant Splash Guards
Chip Conveyor
Tangertial Feed Change Gears Full Set.
SPECIFICATIONS:
Maximum Wheel Diameter.....................................800mm
Maximum Gear Width.........................................410mm
Maximum Module.............................................10 Mod
Maximum Hob Diameter.......................................195mm
Table Diameter.............................................700mm
Turning Speed Range........................................40-280 U/Min.
Power Capacity.............................................12.5 Kw
Voltage/Frequency..........................................220/50 V/Hz
Feed-Axial.................................................0.2-8 mm/min.
Feed-Radial................................................0.1-2 mm/min.
Feed-Tangential............................................0.1-2 mm/min.
|
|
|
|
|
|
