| Location |
: |
Mumbai Warehouse |
|
|
 |
|
|
|
|
|
|
| Type of Machine |
: |

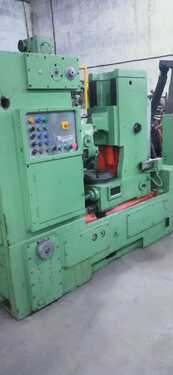

Universal Gear Hobber |
|
|
|
|
|
|
|
|
|
|
| Specification : |
|
FD 250 machine is intended to proces the helical and straight toothed spur gear , The machine can be used for one-off or small series production and for large series production.
The machine is framed into the 6-th precision category according to DIN 3962.
Technical specification: | maximum hobbing diameter | 250 mm | | maximum hobbing module | 6 mm | | minimum number of teeth | 8 | | working table diameter | 310 mm | | table bore diameter | 70 mm | | milling head inclination angle | 45o | | milling spindle cone | Morse 4 | | maximum axial travel | 280 mm | | tangential travel | 150 mm | | hobbing cutter maximumdimension Fx1 | 130x180 mm | | milling spindle speed range | 56-335 rpm | | axial working speed range | 0.71-6.3 mm/rev | | tangential working feed range | 0.10-4.0 mm/rev | | radial working feed range | 0.05-2.0 mm/rev | | main electric motor power | 5.5 kW | | settled power | 12 kW | | cooling pump outflow | 63 l/min | | machine weight | 5400 kg | | overall dimension (Lxlxh) | 2405x1320x1970 |
|
|
|
|
|
|
