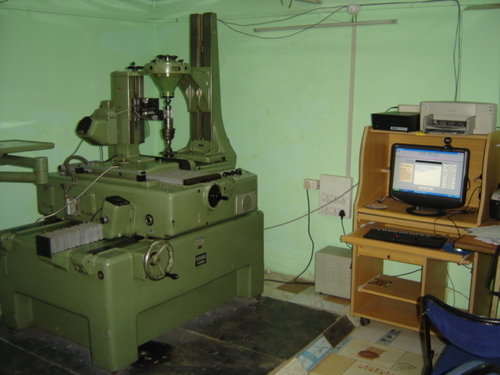

Please see Working Video To See 2008 Rebuilt Machine Under Power. Please click online on links to see machines underpower Video Number 1 Video Number 2 This Machine Is Completly Rebuilt & Installed With Brand New Software from Prime Technology India . This Machine Can be Inspected Under Power, All Dimensions of componet Can be Tested & Print Out Shall Be Taken out. The Photo Of The Machine Is At Actuals & Is Testing A Component after Rebuilding & Installing Brand New Software System, Probs etc. Tailstock type SPA-F-65/75. Excellent condition Various accessories. Maximum/Minimum base circle diameter 600/25mm Maximum Module 20 Minimum Module 1 Maximum Generative cross travel 400m Maximum Tip circle diameter 650mm Max.Pinion Shaft diameter at max. height between centre 370mm Maximum tracable facewidth at helix angle Zero Deg 150mm , at 60 deg angle 75mm Maximum Pinion Shaft length 750mm Maximum Permissible gear weight 500kg
|
