Specifications :-

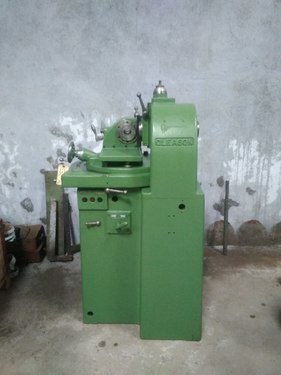

Testing Capabilities for Bevel & Hypoid Gears:

Rolling Qualities
Tooth Spacing
Tooth Profile
Concentricity
Backlash
Runout

SPINDLE RUNOUT:

Drive Spindle Bore:
Drive Spindle Face:
Driven Spindle Bore:
Driven Spindle Face:

SPECIFICATIONS:

Max. Diameter Of Gears: 7-1/2"
Range Of Angles: 0 Deg. - 180 Deg.

Range Of Pinion Spindle Offset Above/Below Center: 1-1/4"
Distance From Center Of Pinion Spindle:
To Nose Of Gear Spindle: 7"Max; 0"Min
Distance From Center Of Gear Spindle:
To Nose Of Pinion Spindle: 7"Max; 1"Min
Drive Spindle Speed (900 & 1800 RPM Motor): 1750 RPM & 3500 RPM
Diameter Of Taper Hole, Large End: 1-51/64"
Taper Per Foot: 1/2"
Depth Of Taper: 3"
Diameter Of Hole Through Spindle: 1-5/16"
Net Weight: 2100 lbs
