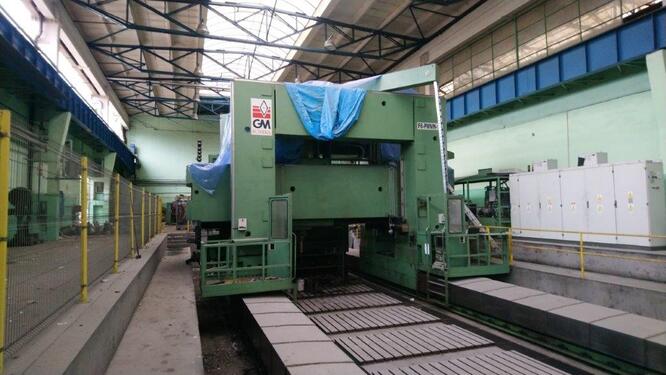

AXIS TRAVEL

• Total longitudinal                            X axis                                                  mm. 15.000
• Working longitudinal                     X Stroke                                             mm. 12.000
• Transversal                                       Y axis                                                  mm.  5.600
• Vertical                                              Z axis                                                  mm. 1.500
• Vertical                                              ZT axis (index=500 mm)                mm. 2.000
• Daylight between columns                                                                       mm.  4.200
• Daylight between columns saddles                                                        mm.  3.900
• Max. free height between spindle and tables                            ab.   mm.  3.300

FEEDINGS

• Working, with continuous variation                                                       mm./1’  5-8.000
• Rapid

X axis                                                                                                              mm./1’  25.000

Y axis                                                                                                              mm./1’  25.000

Z axis                                                                                                              mm./1’  25.000

PRECISION (**)

• Positioning precision:

         x/y/z/zt axes                                                                                                mm. 0.015/1.000

• Max. tolerance on 6.000 mm                                                                   mm. 0.08 not cumulative
• Positioning repeatability

x/y/z axes                                                                                                     mm. 0.01/1.000 up to 6.000

                                                                                                                        mm. 0.015/1.000 up to 6.000

• Axis alignment (compared to other axis)                                              mm. 0.01/300
