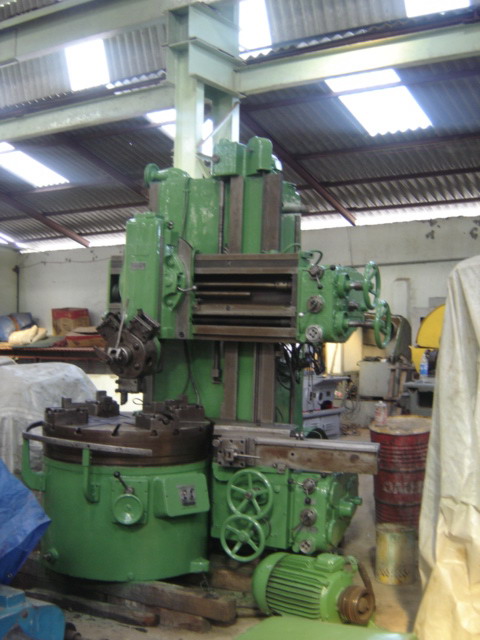

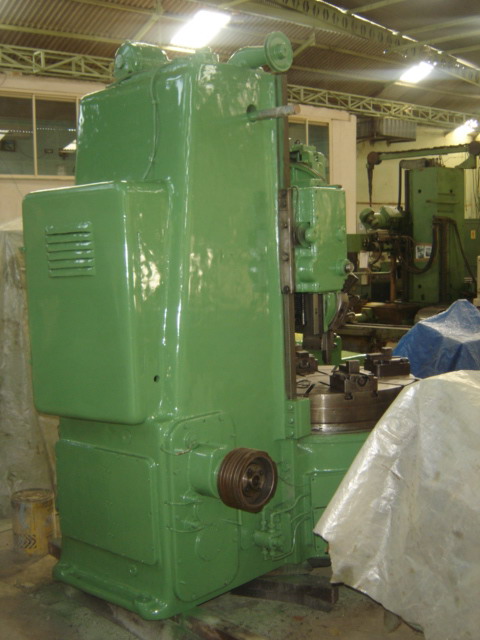

Vertical Turning Lathe (VTL) All Types Conventional & Cnc

Max turning diameter with upper carriage 1350 mm
Max turning diameter with side carriage 1100 mm
Max turning height 1000 to 1250mm

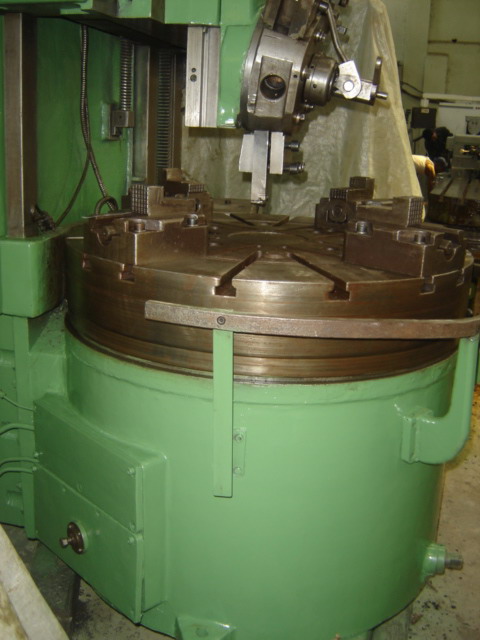

Table diameter 1100 mm
Max table loading 4000 kg
Main motor power 30 kW
Table speeds 6,3 - 200 rpm
Table speeds number 16
Distance between floor and table surface 955 mm

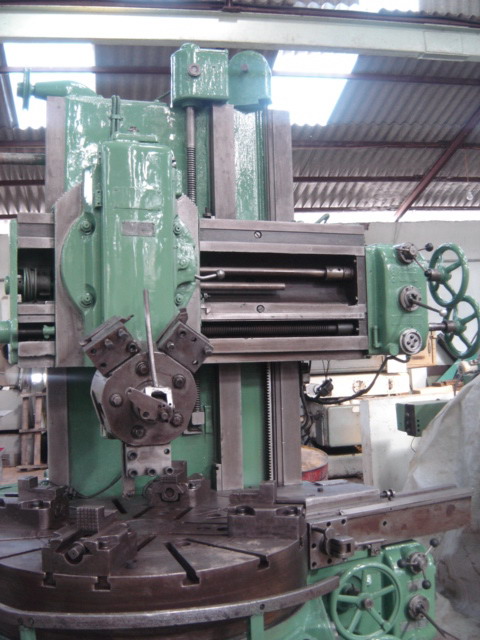

UPPER CARRIAGE:

Vertical travel of ram with tool-holder ( Z axis ) 600 mm
Longitudinal travel of carriage ( X axis ) 700 mm
Number of tool-holes in tool-holder 5
Tool-hole diameter 60 mm
Working feeds 12 ; 0,21 - 10 mm/min
Rapid feed 1880 mm/min

SIDE CARRIAGE :

Vertical travel of carriage ( R axis ) 800 mm
Ram travel ( P axis ) 630 mm
TRASVERSAL BEAM :
Vertical travel 1000 mm
Feed 500 mm/min
DIMENSIONS : 2750x2350x3100 mm
Weight 14 000 kg
