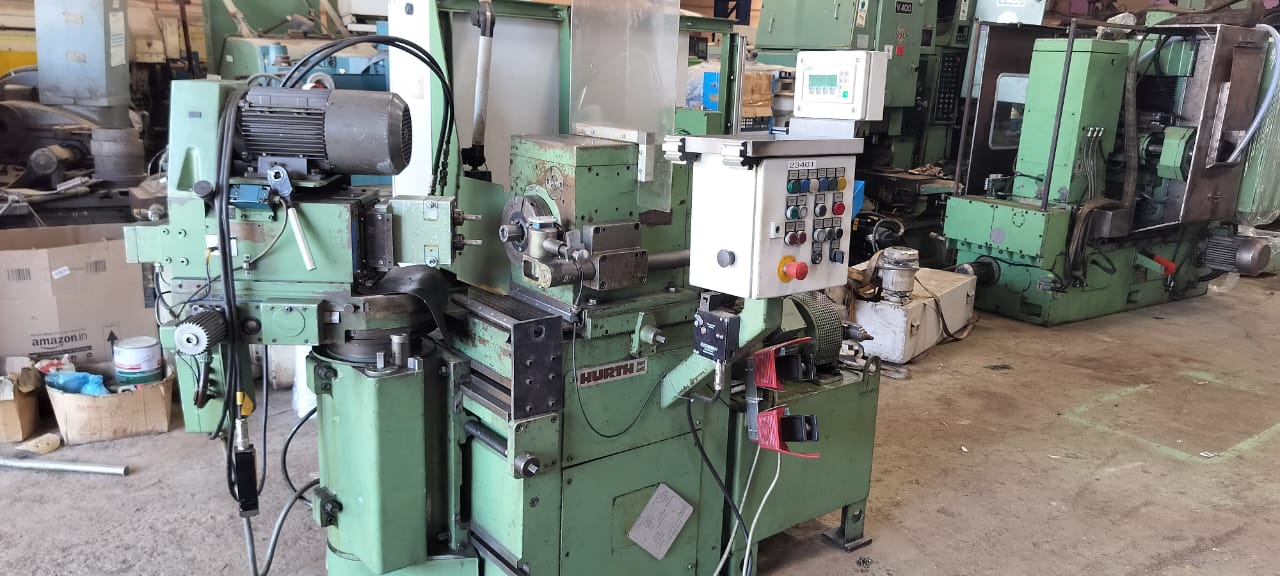

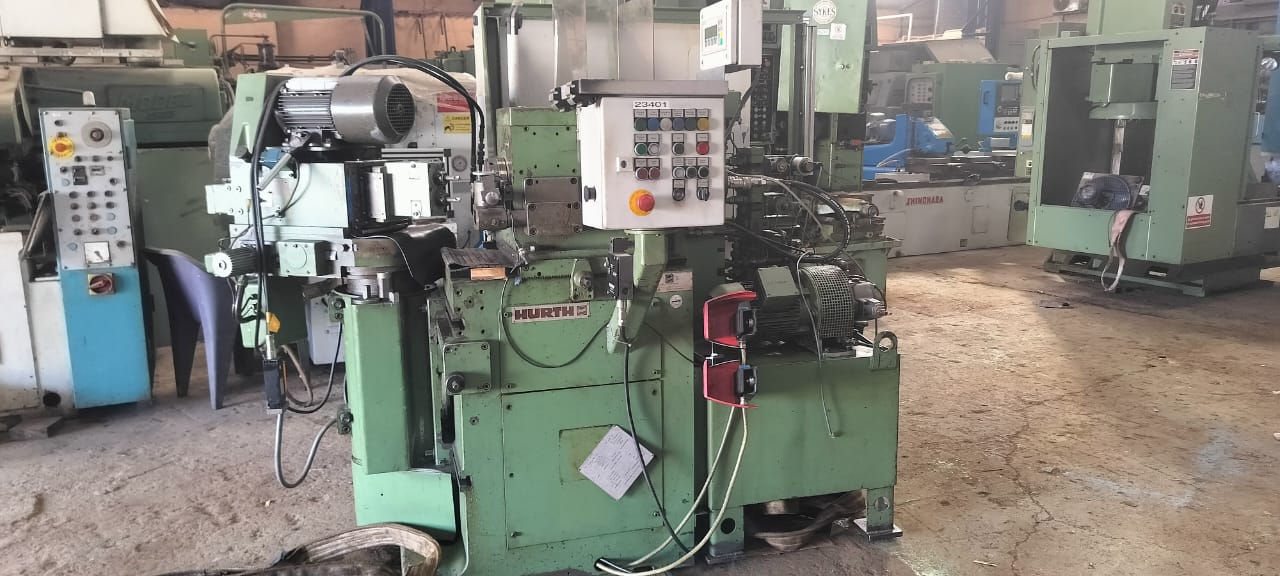

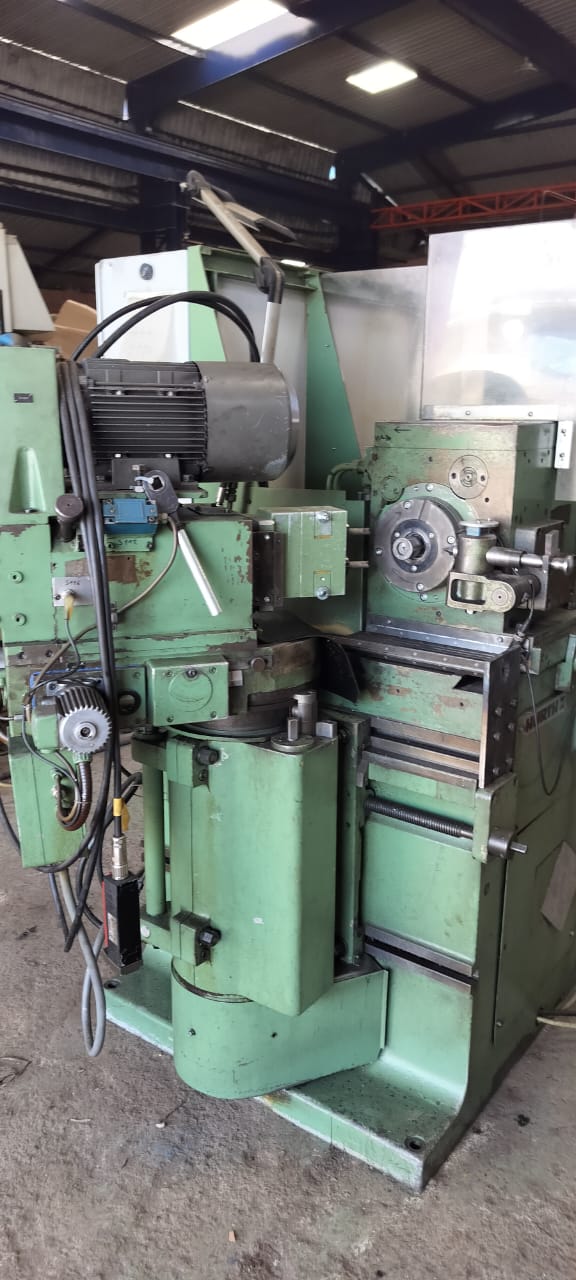

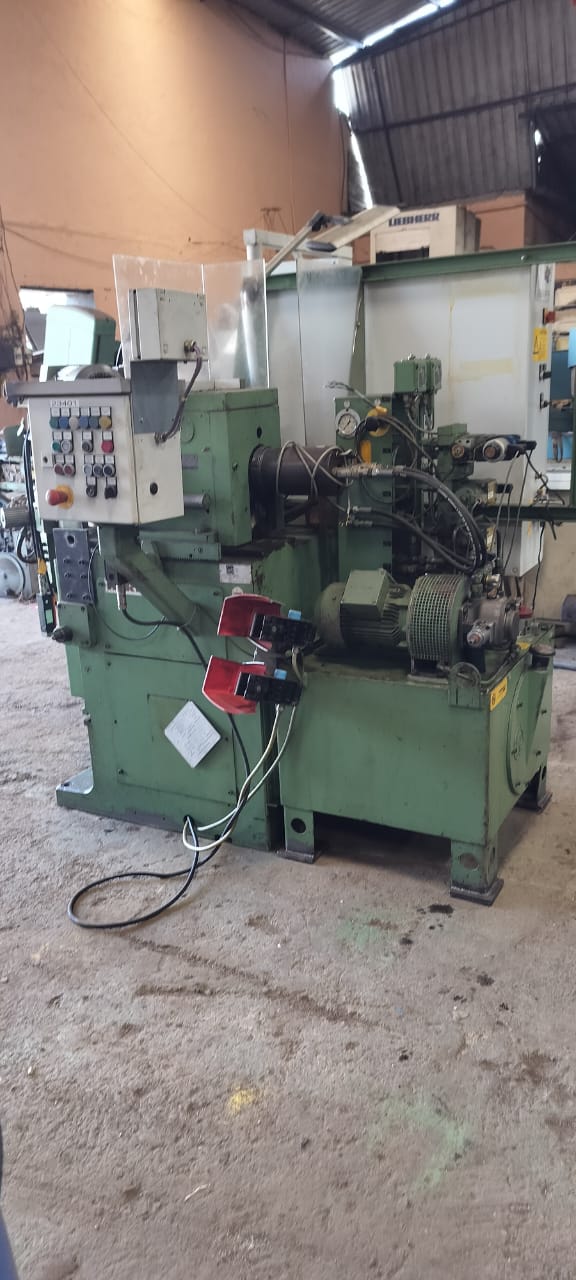

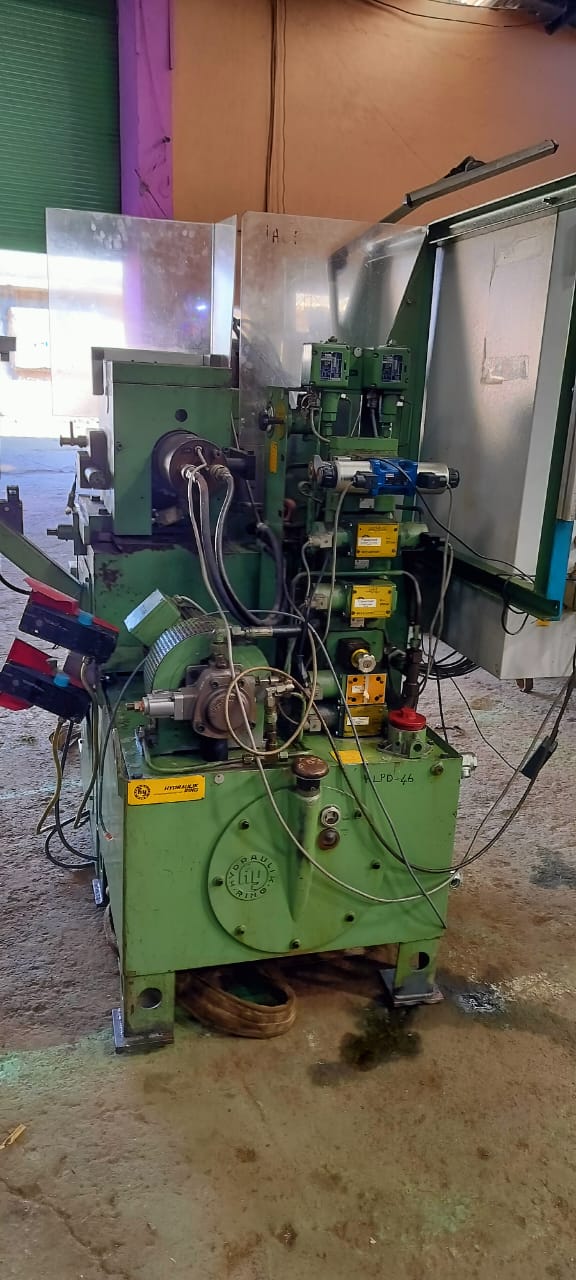

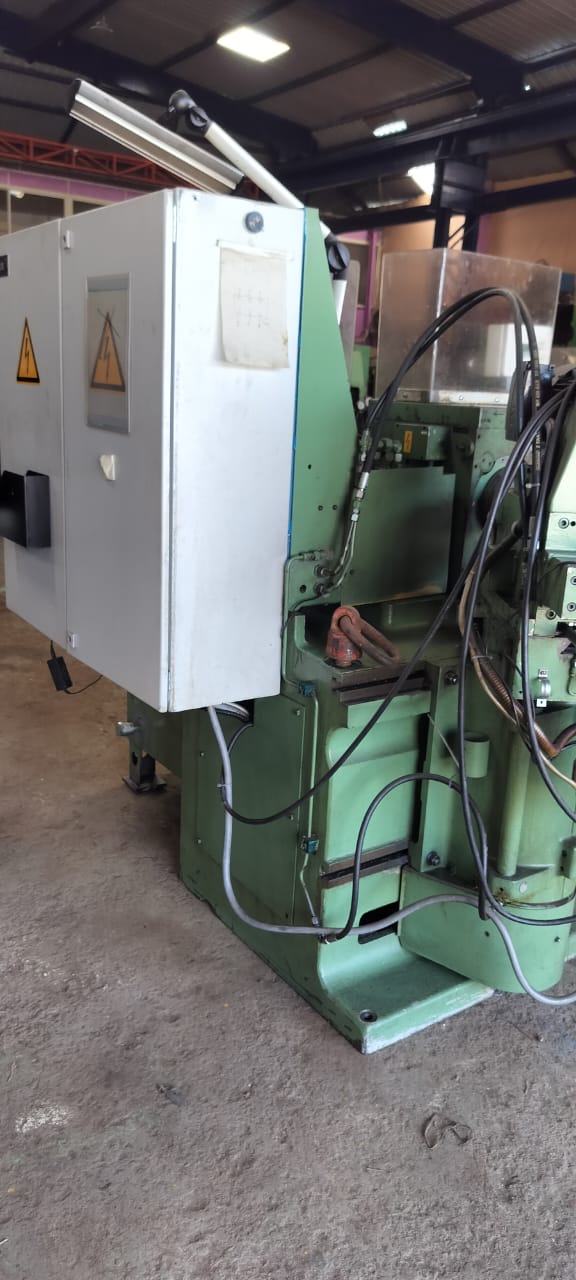

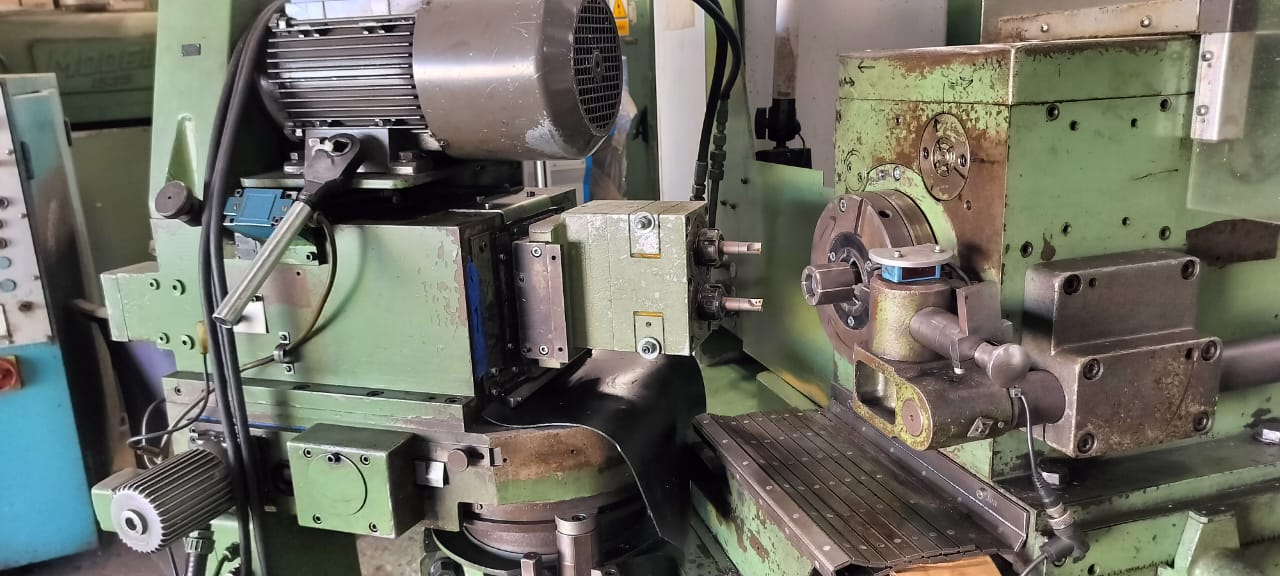

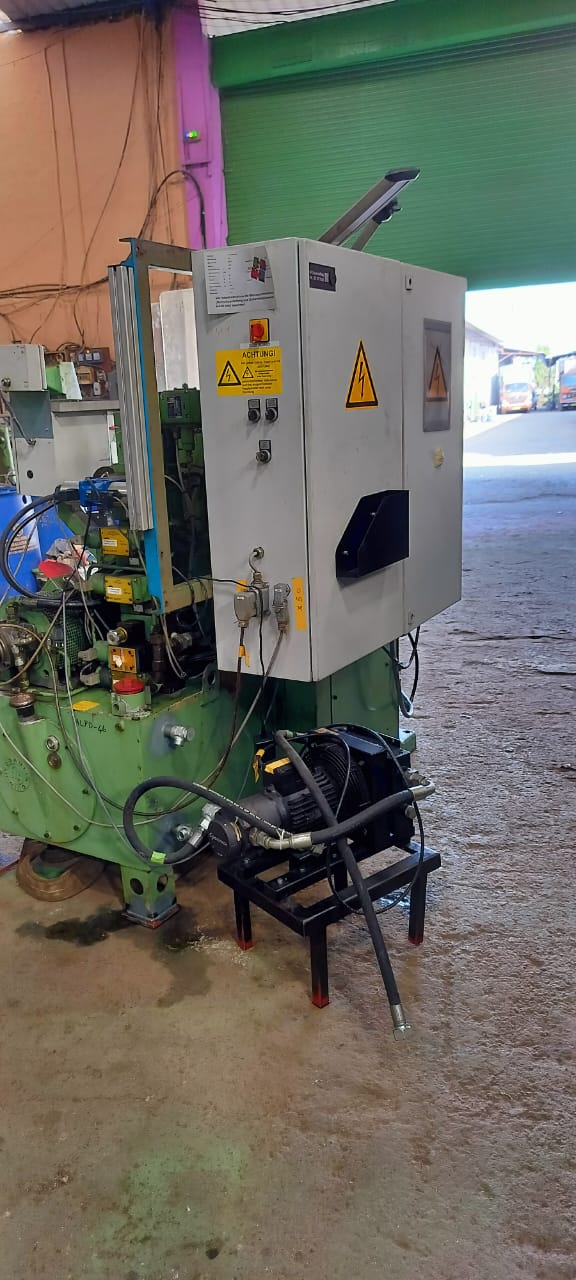

GEAR TOOTH CHAMFERING M/C ( CNC & Conventional)

Email this Page Download Product PDF Enquiry / Quote / Interested For Agents Download Pics Download Photo / Zip

Video

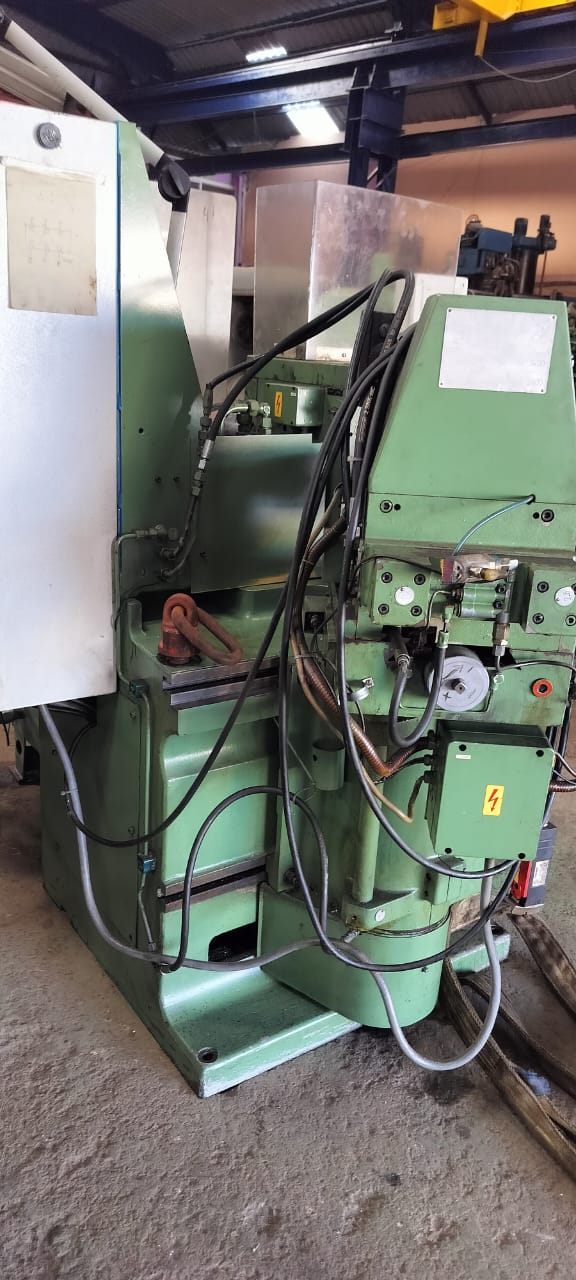

Machine Id:	1413	Serial No:

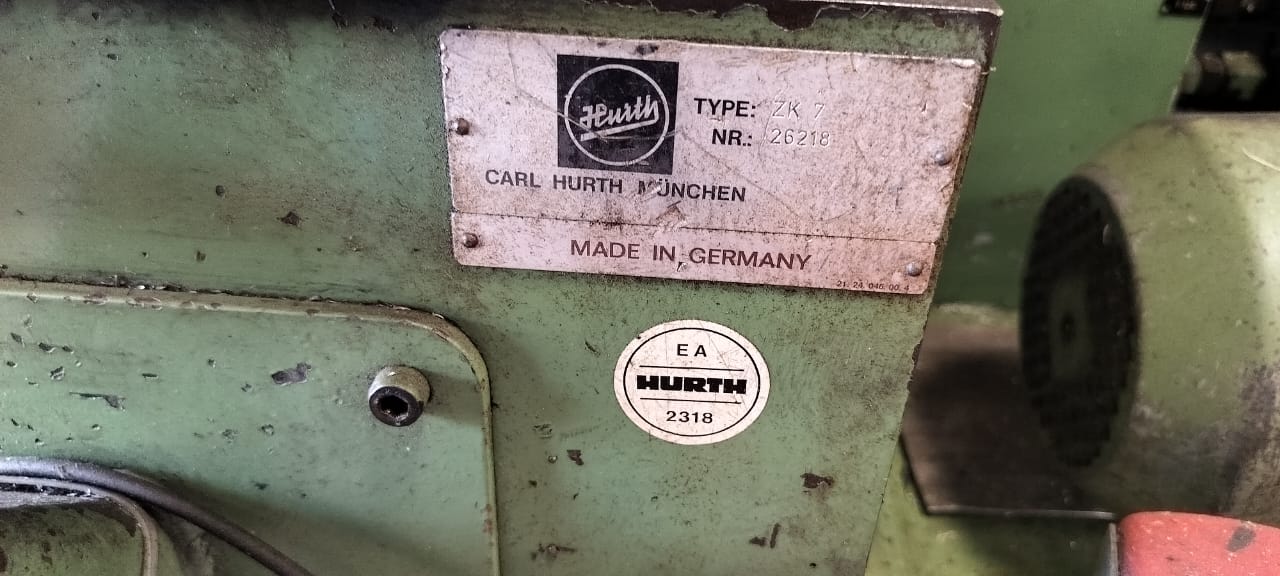

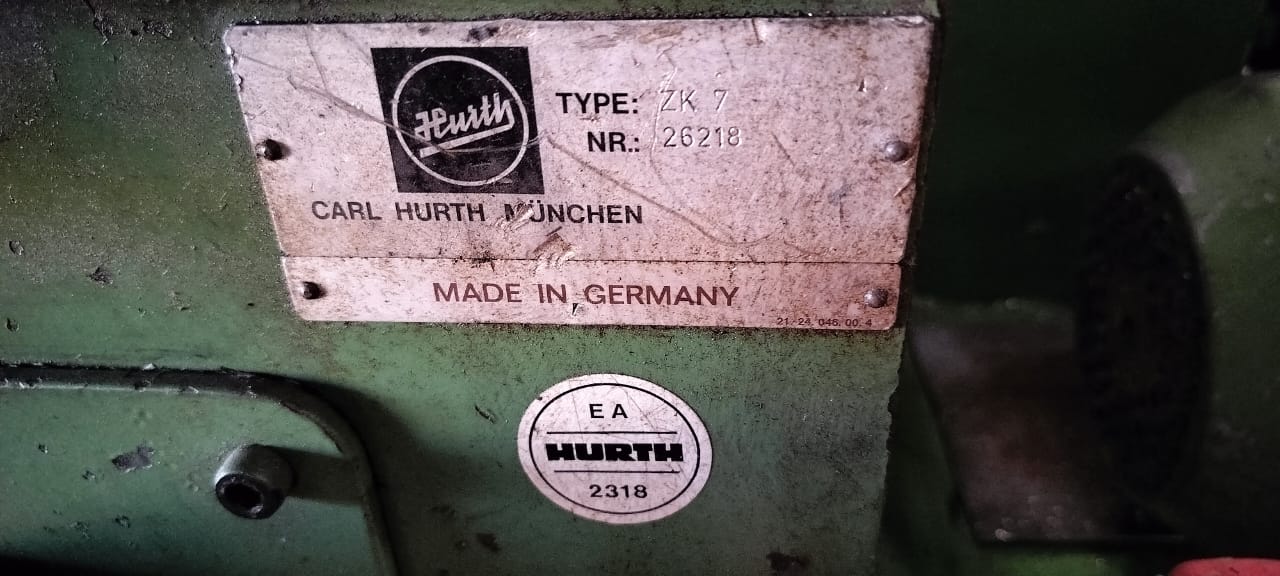

Model:	zk 7	Asking Price:	onrequest

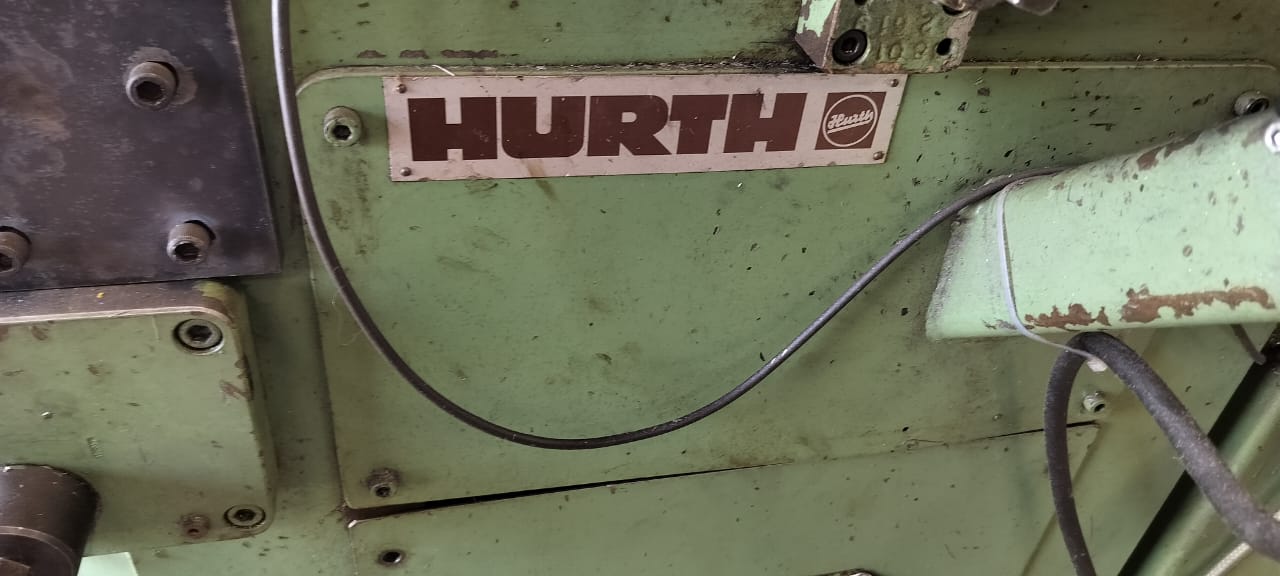

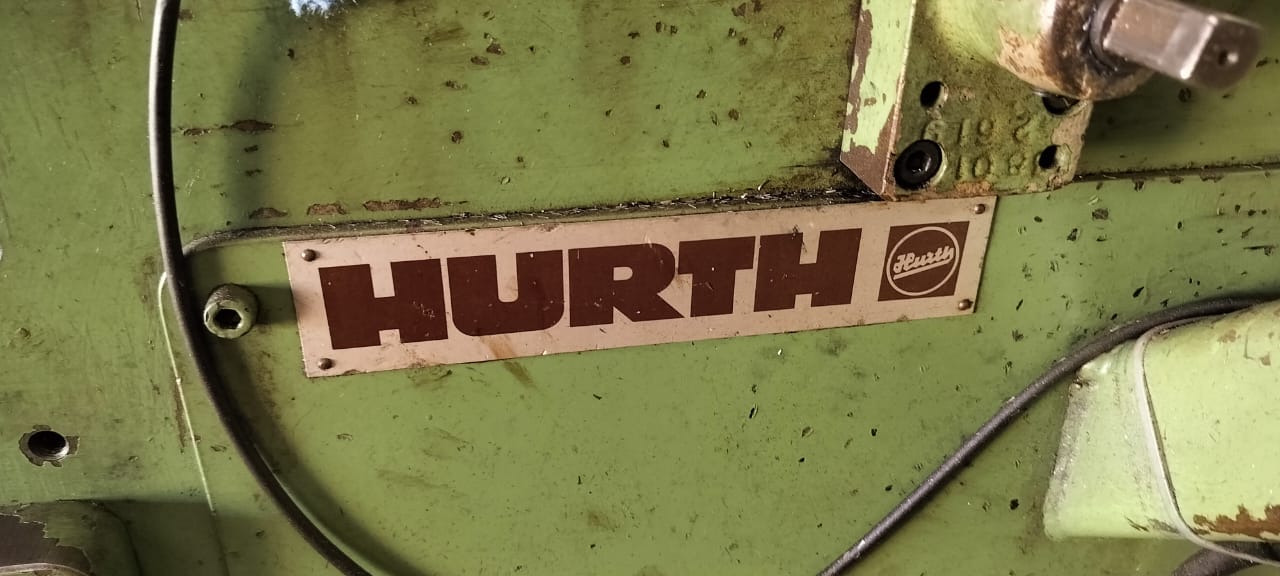

Make:	Hurth	Country:	Germany
Year:	1985	Weight:	0.0
Dimensions:		Location:	Mumbai Warehouse,India
Power:
Category:	GEAR TOOTH CHAMFERING M/C ( CNC & Conventional)
Type of Machine:	gear tooth rounding machine for heavy volume

Specification

SPECIFICATIONS:

MAX. DIAMETER OF WORK PIECE 11"

WORK PIECE SIZE/CHAMFERED 1 TO 4 MOD

WORK PIECE SIZE/DEBURRED 1 TO 6 MOD

NUMBER OF TEETH 6-100

TAPER OF CUTTER SPINDLE ISO 40

CUTTER SPINDLE SPEEDS 250/350/500/700/1000
1400/2000/2800 RPM

DIAMETER OF WORK SPINDLE BORE 4.7"

CUTTER SLIDE FINE ADJ. RANGE 1.2"

CUTTE SLIDE RETURN STROKE 3.9"

RANGE OF CUTTER SLIDE VERT. ADJ. 7.0"

CUTTER SLIDE SWIVEL RANGE 4.1"

DESCRIPTION:

RANGE OF KNEE HORZ. ADJ. 15.7"

RANGE OF INDEX HEAD HORZ. ADJ. 13.3
