Rebuilt Machine in 2001, Machine New Like.
Machine Under Power For Demo.
Very Very Little Used Machine

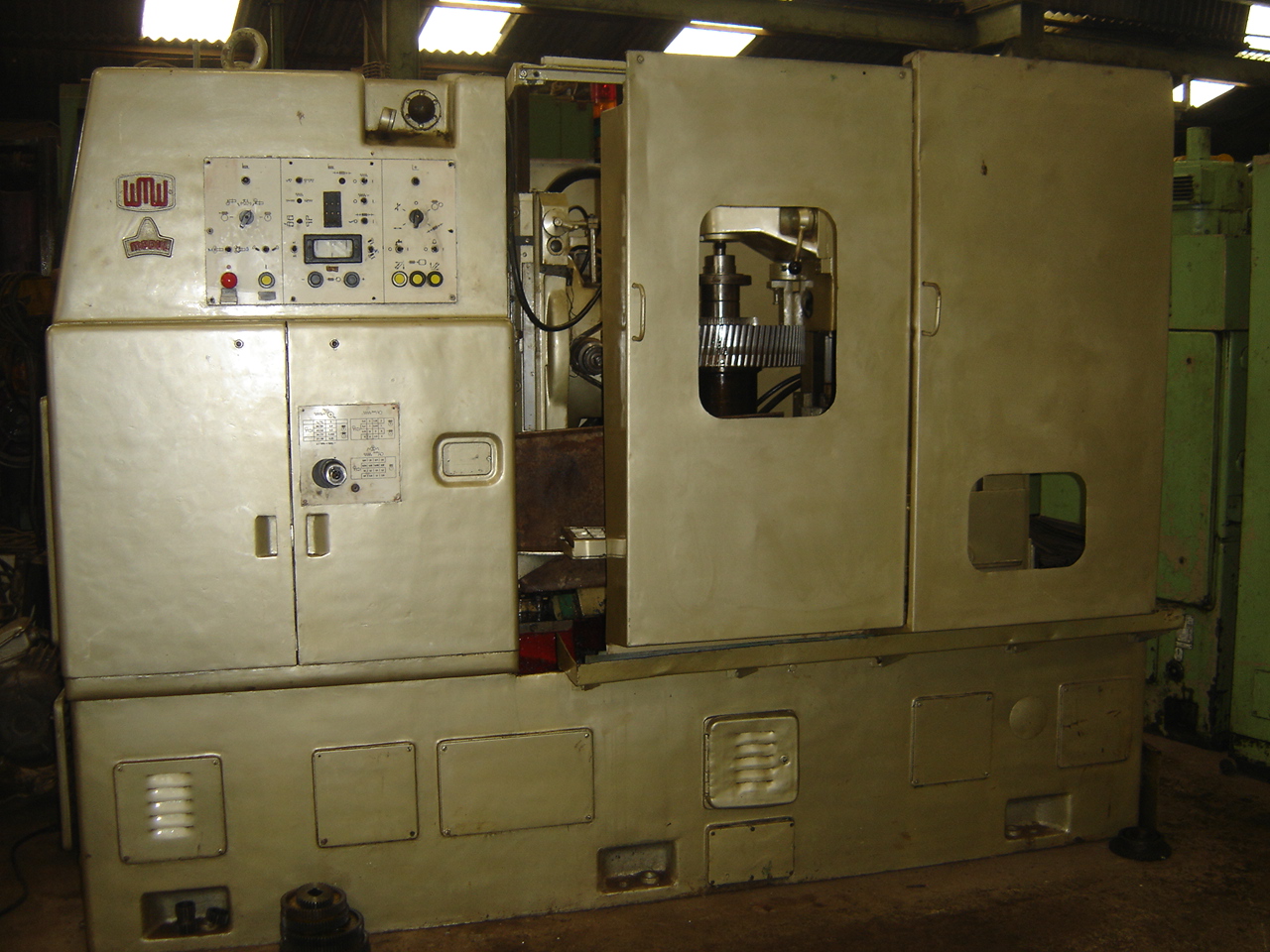

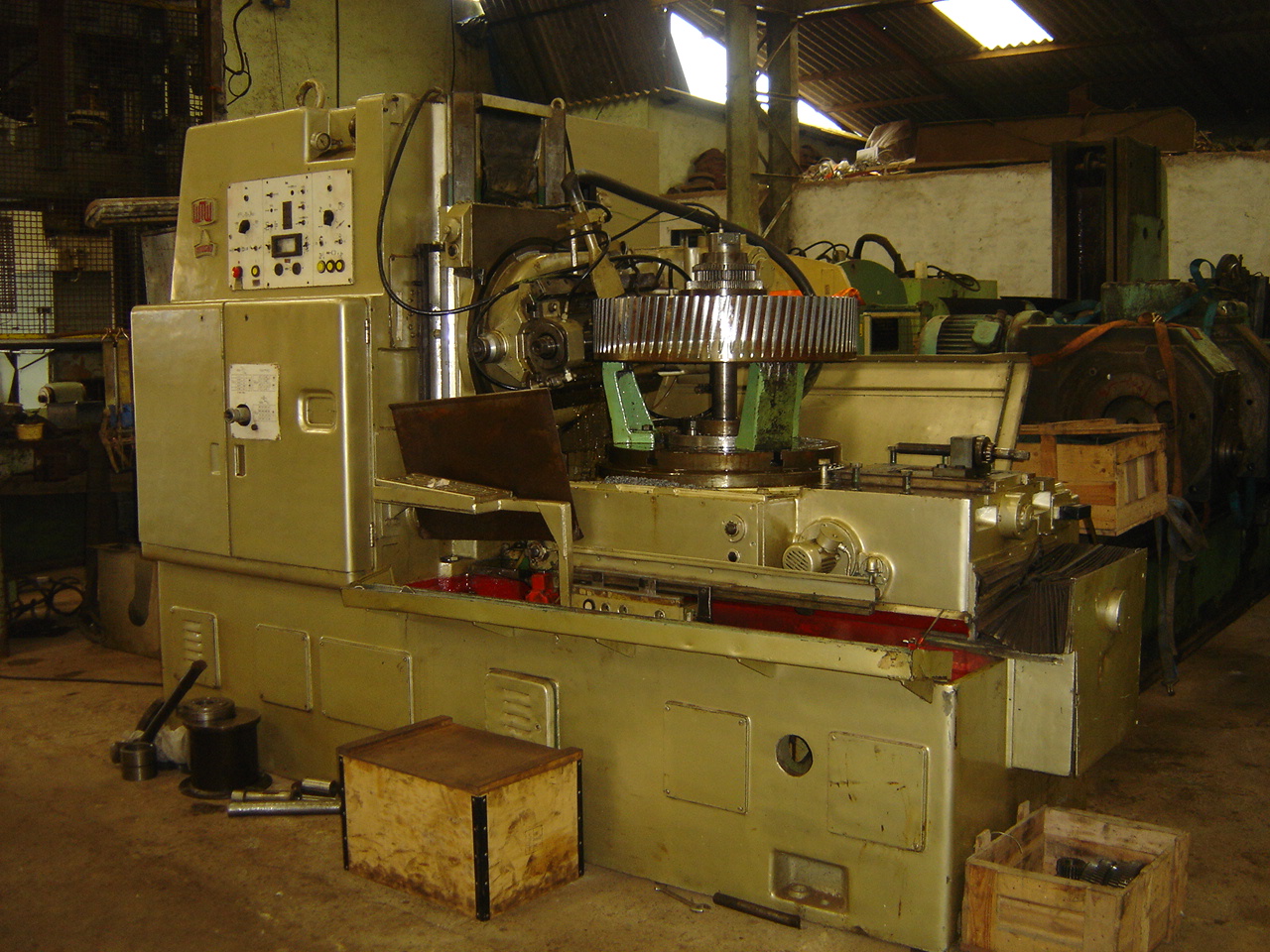

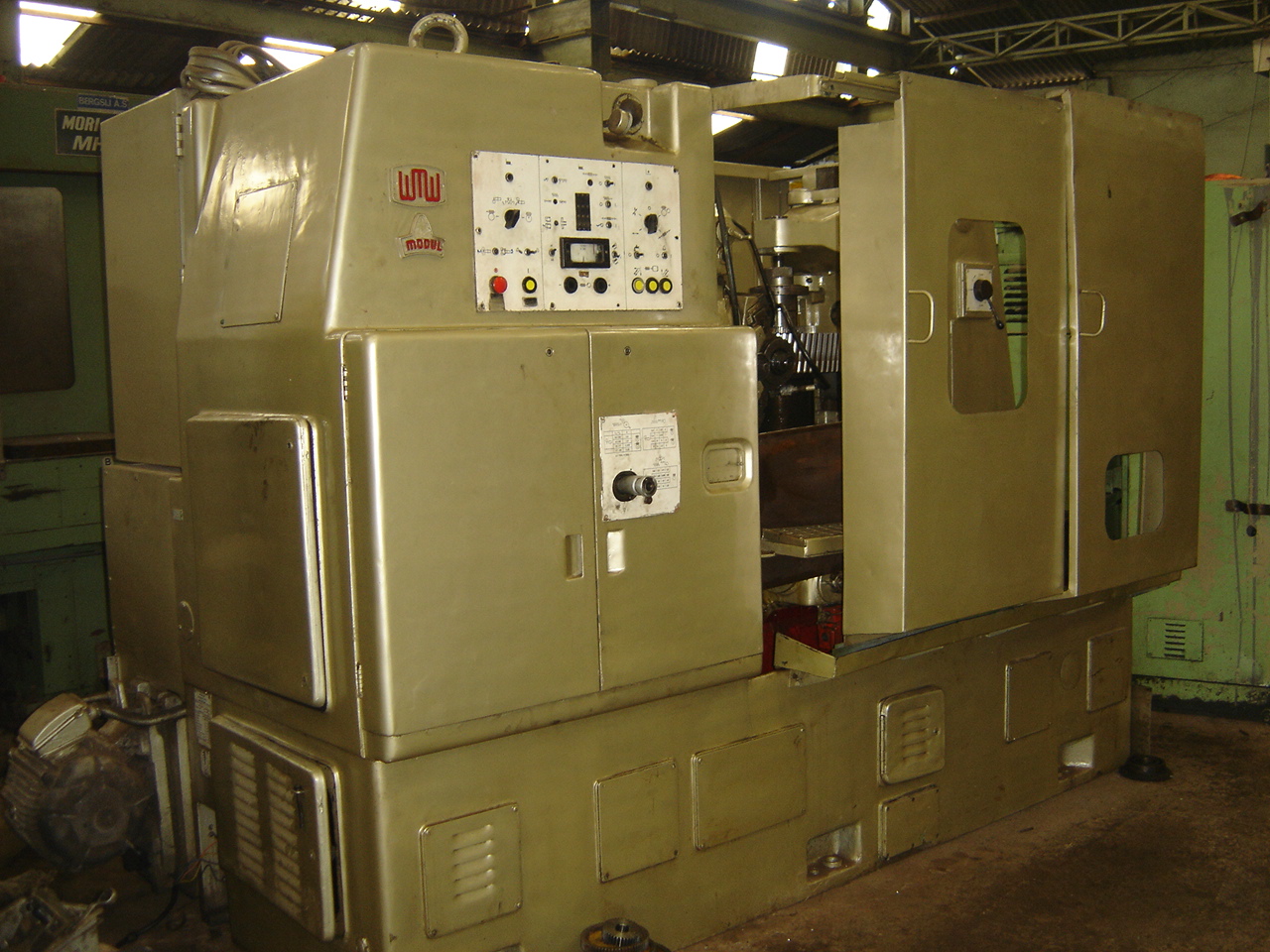

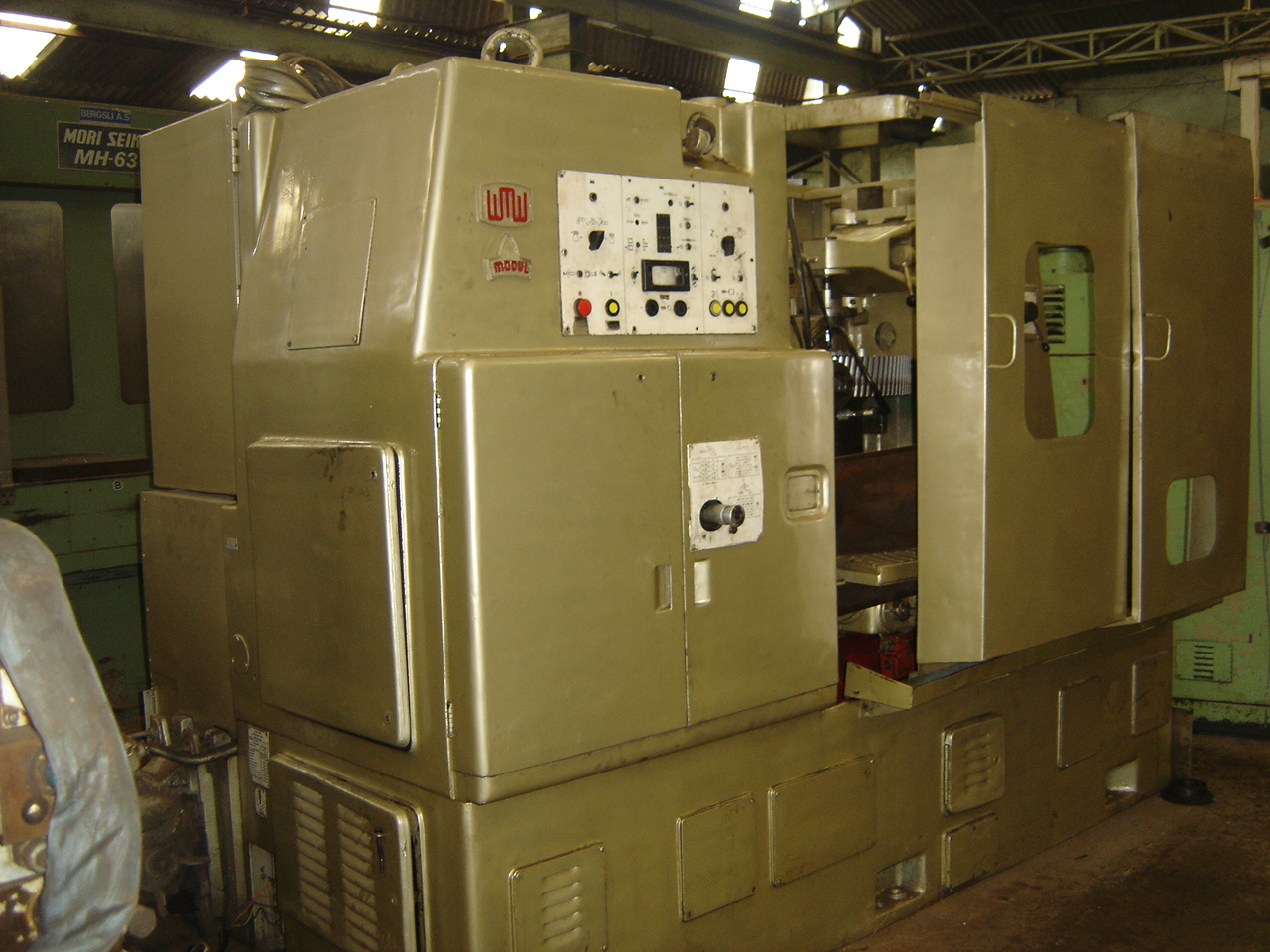

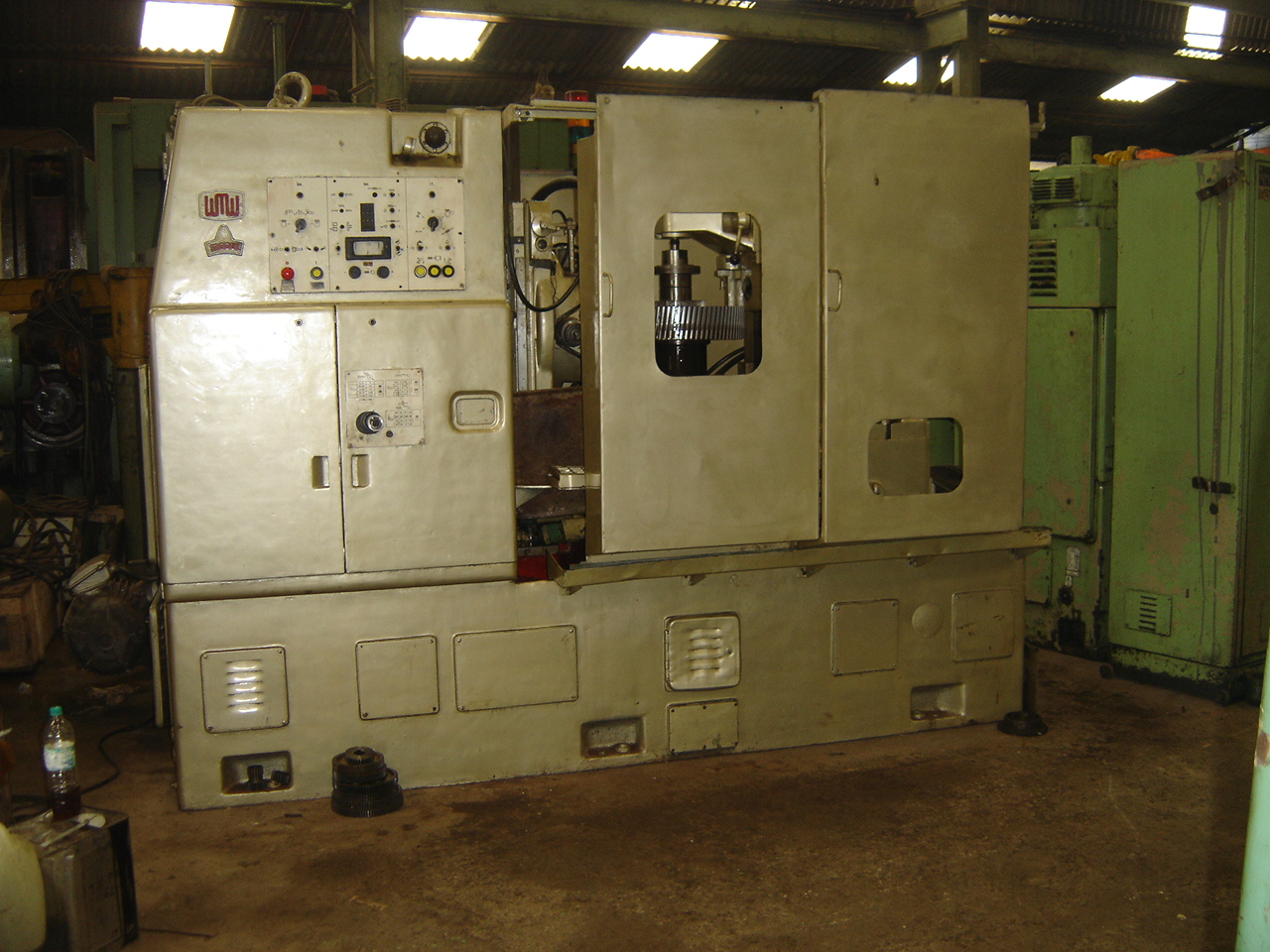

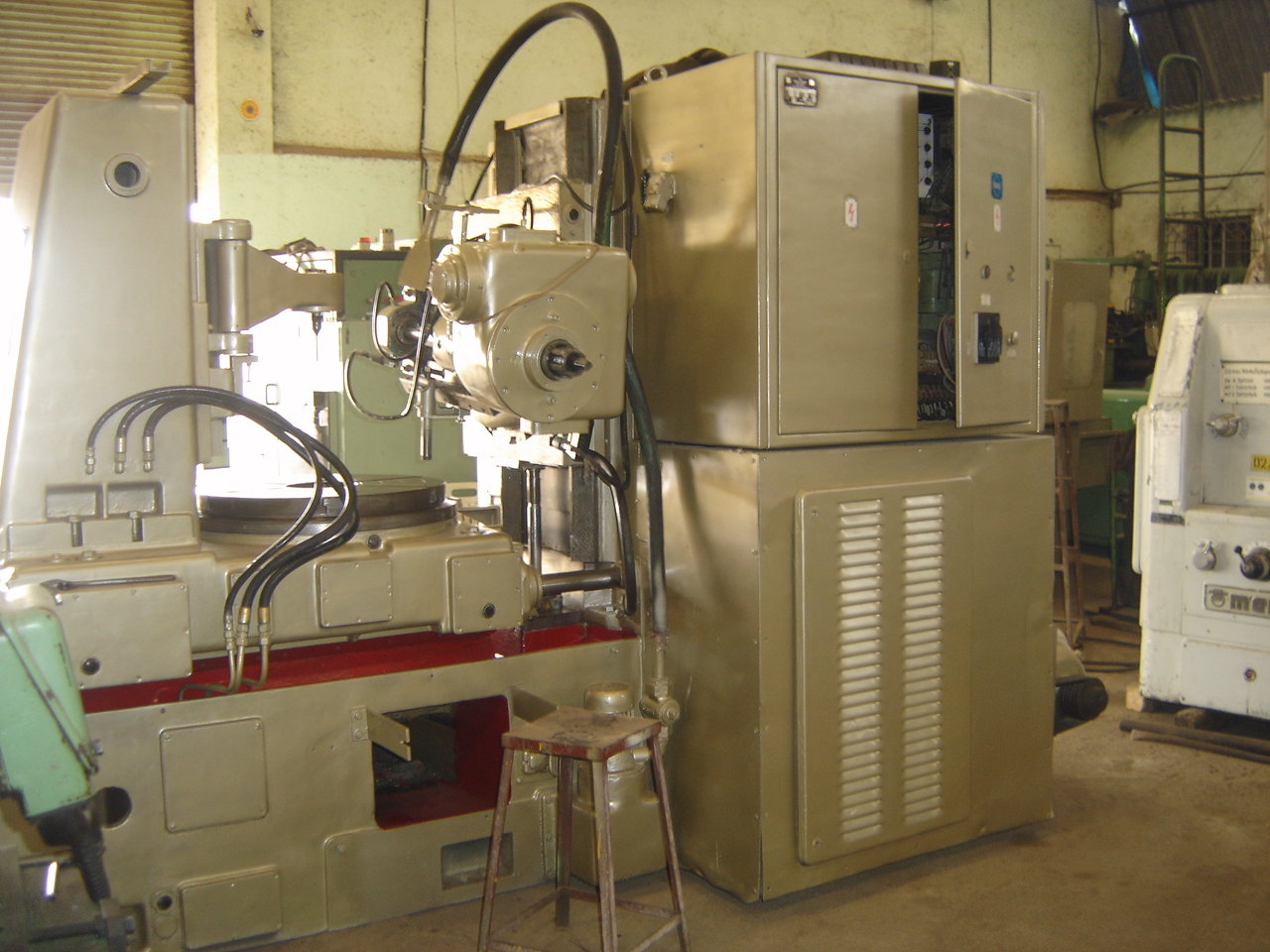

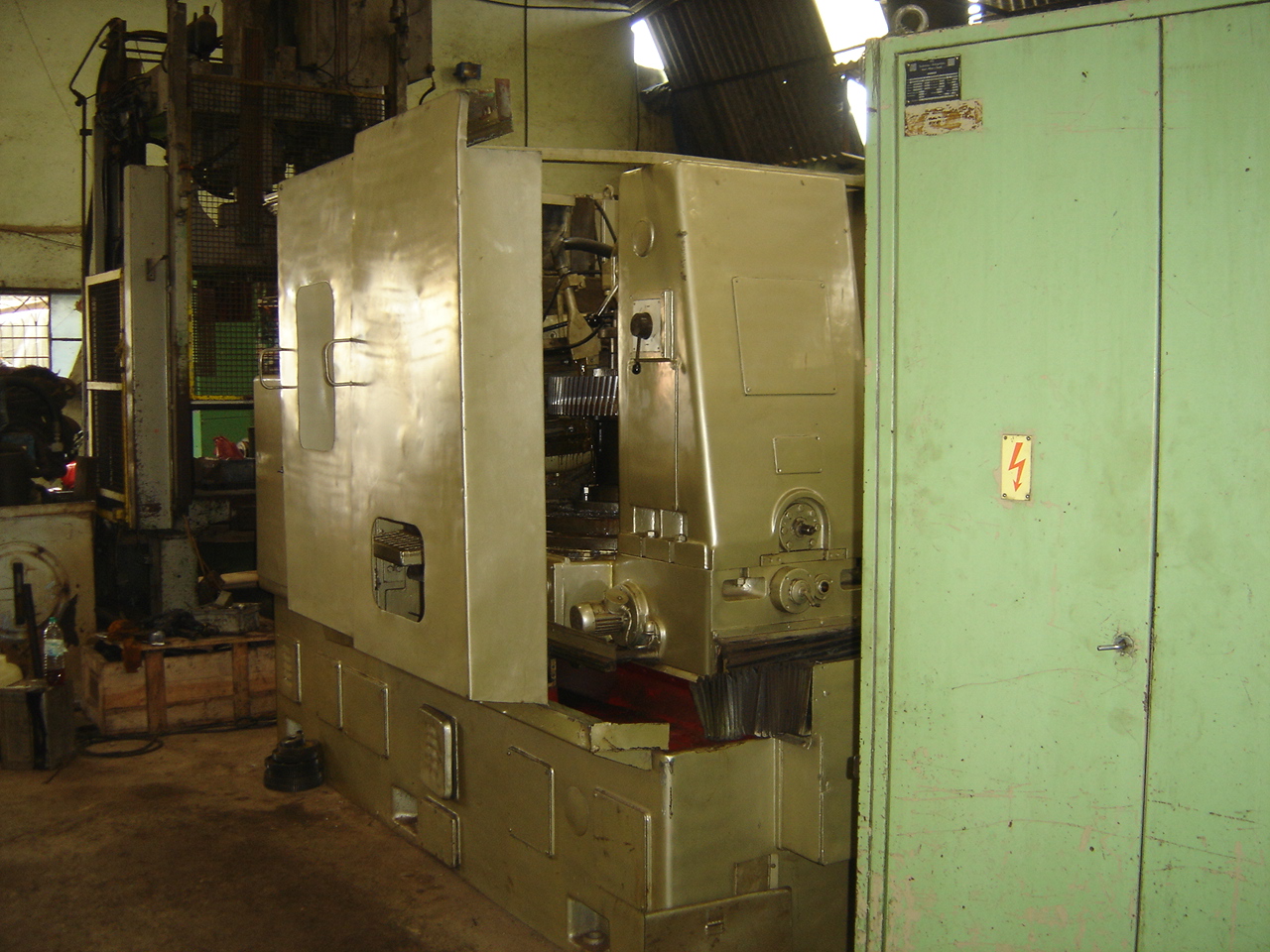

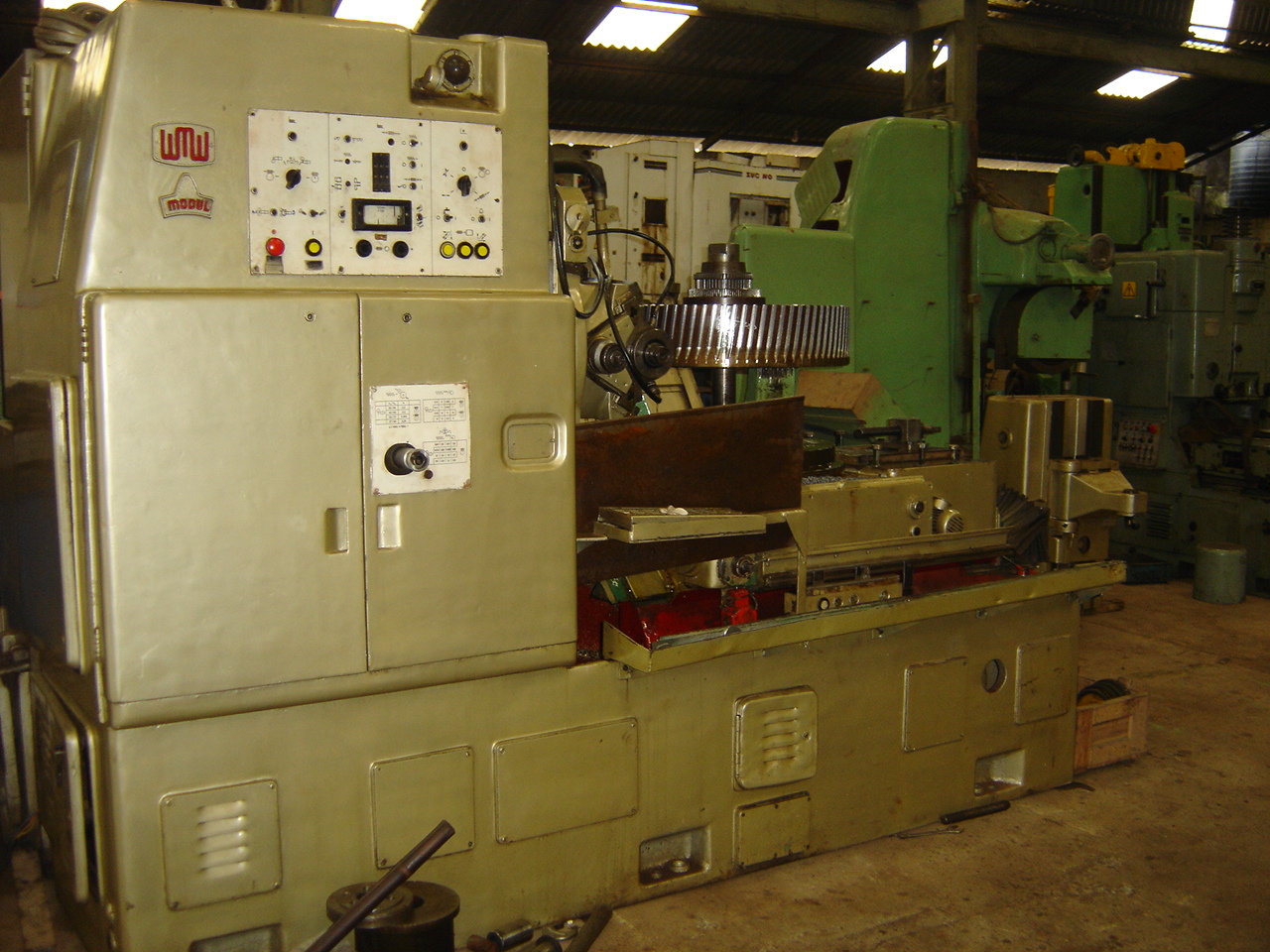

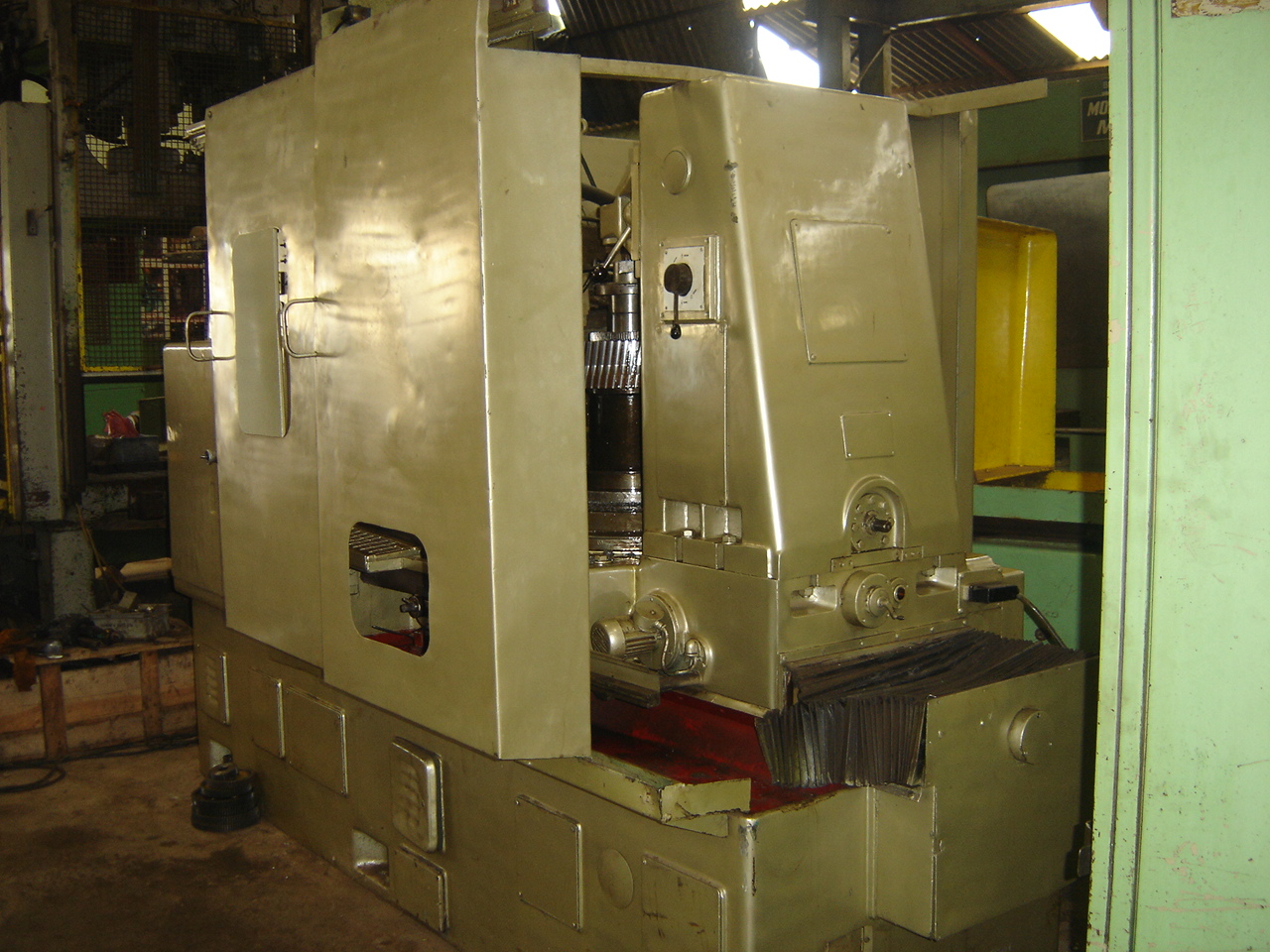

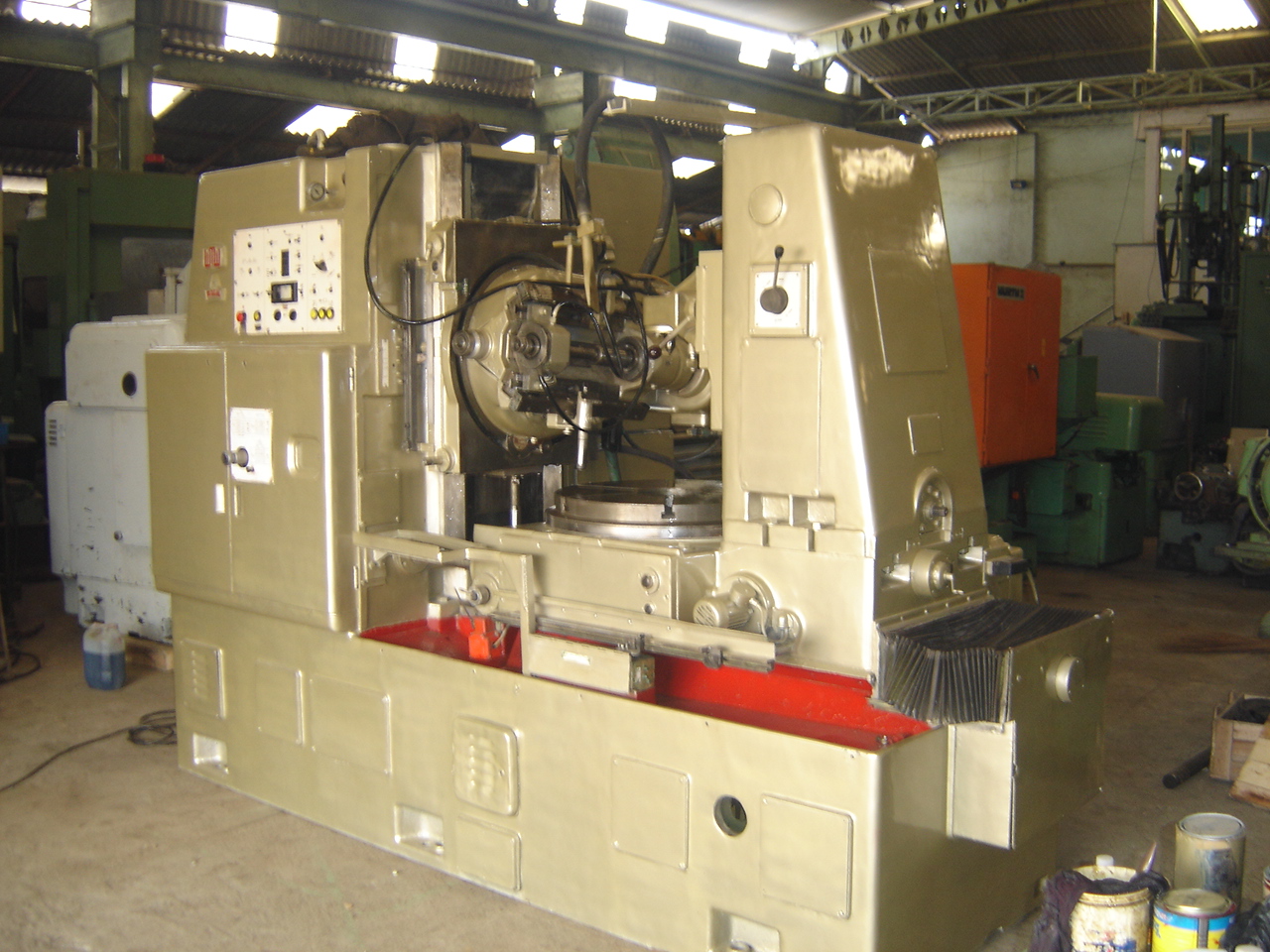

Heavy Duty Gear Hobber.

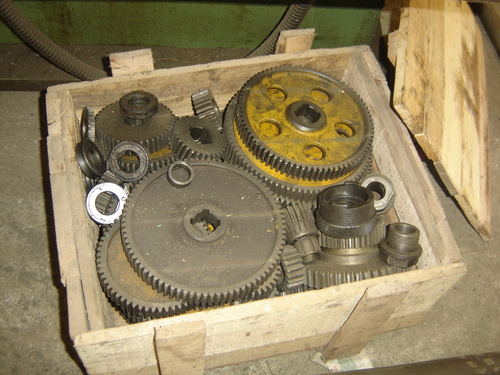

Full Change Gears Available.

Video
Machine Id: 1388 Serial No: Not Available
Model: ZFWZ 500 X 10 / II MODUL Asking Price: onrequest
Make: WMW Country: Germany
Year: Weight: 0.0
Dimensions: Location: Mumbai Warehouse, India (Under Power For Demo Purpose)
Power:
Category: Gear Hobbers
Type of Machine: Universal Gear Hobber Heavy Duty (Rebuilt 2001)
Specification

EQUIPPED WITH:

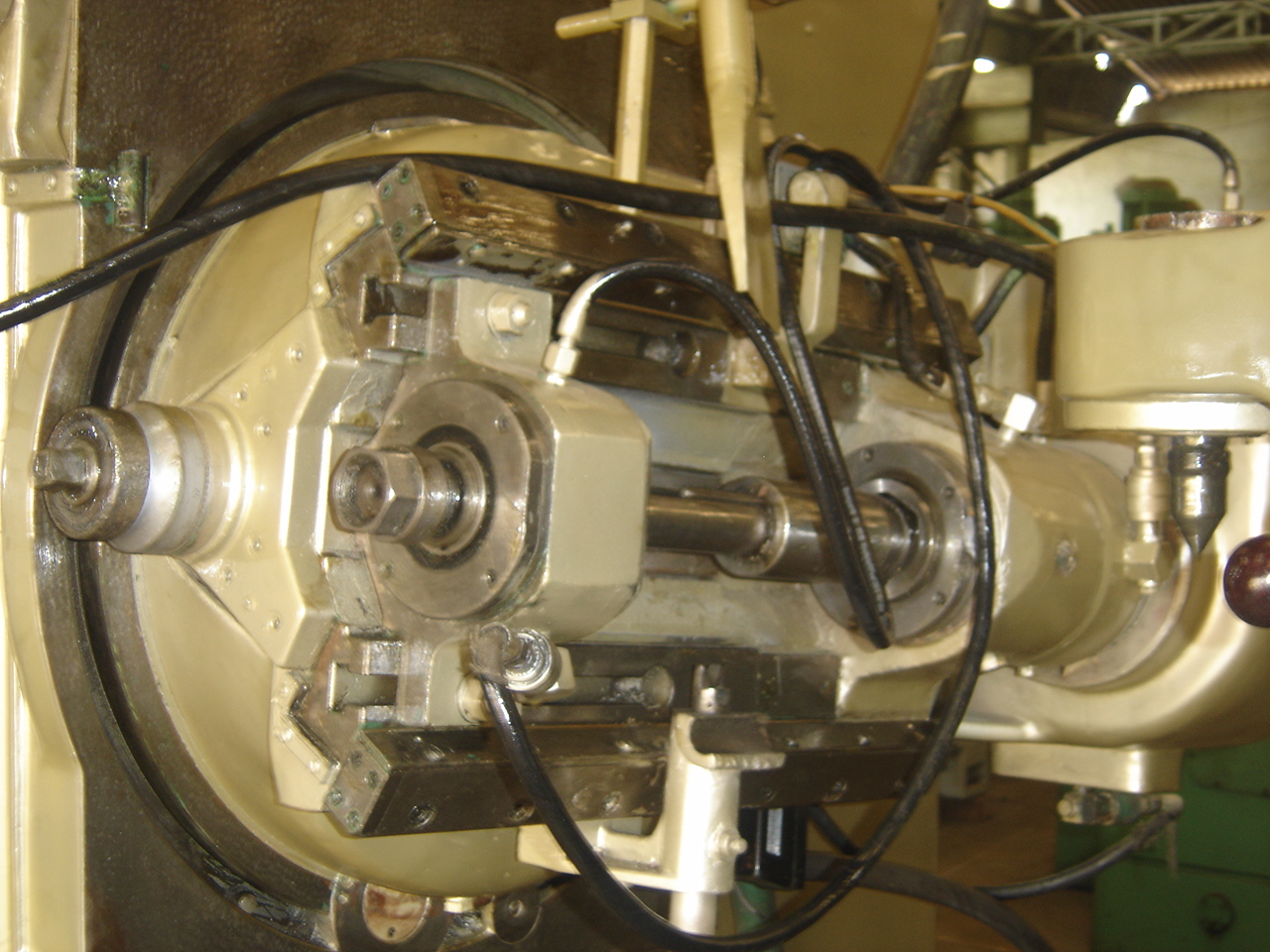

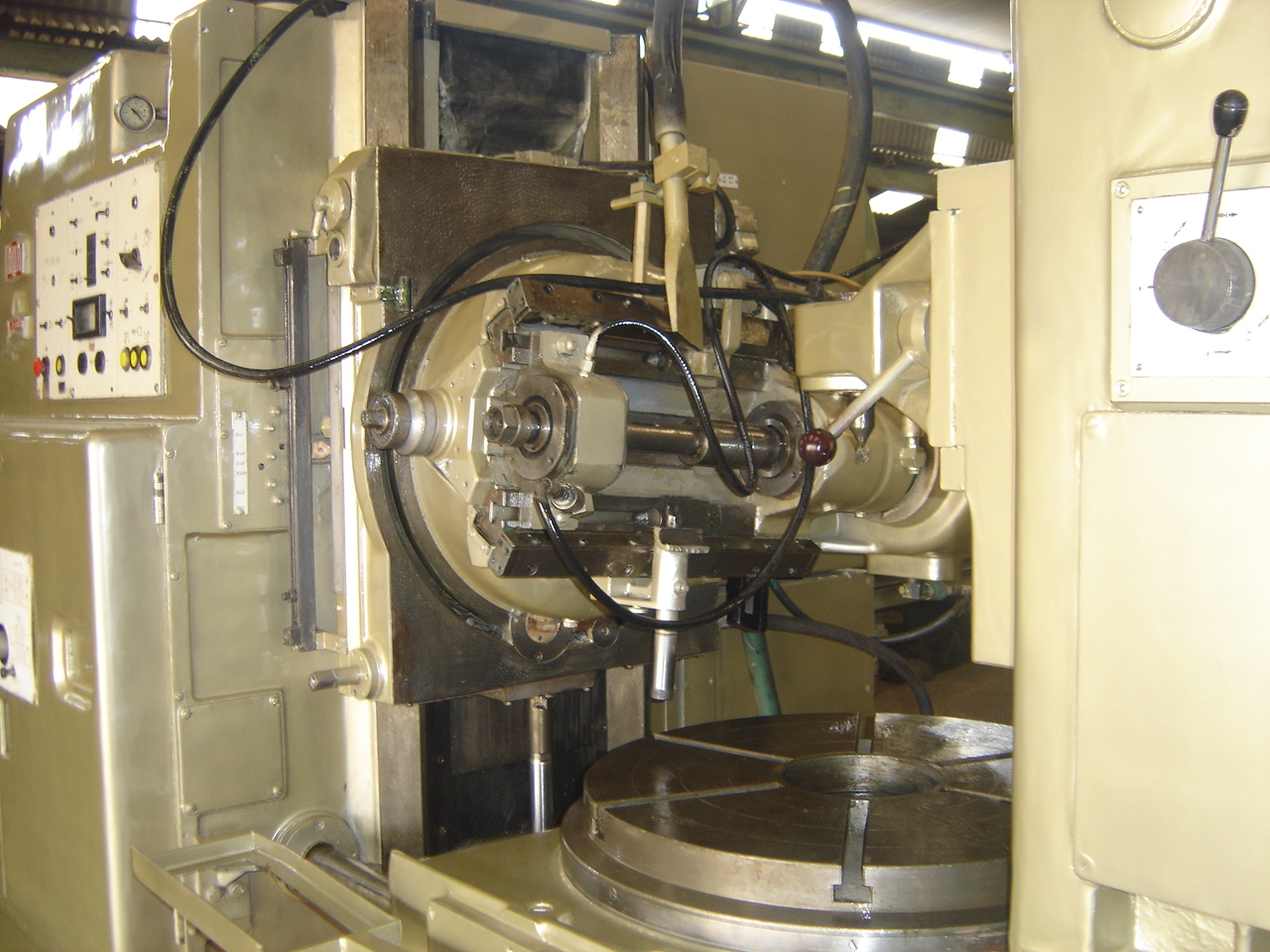

Hob Arbor

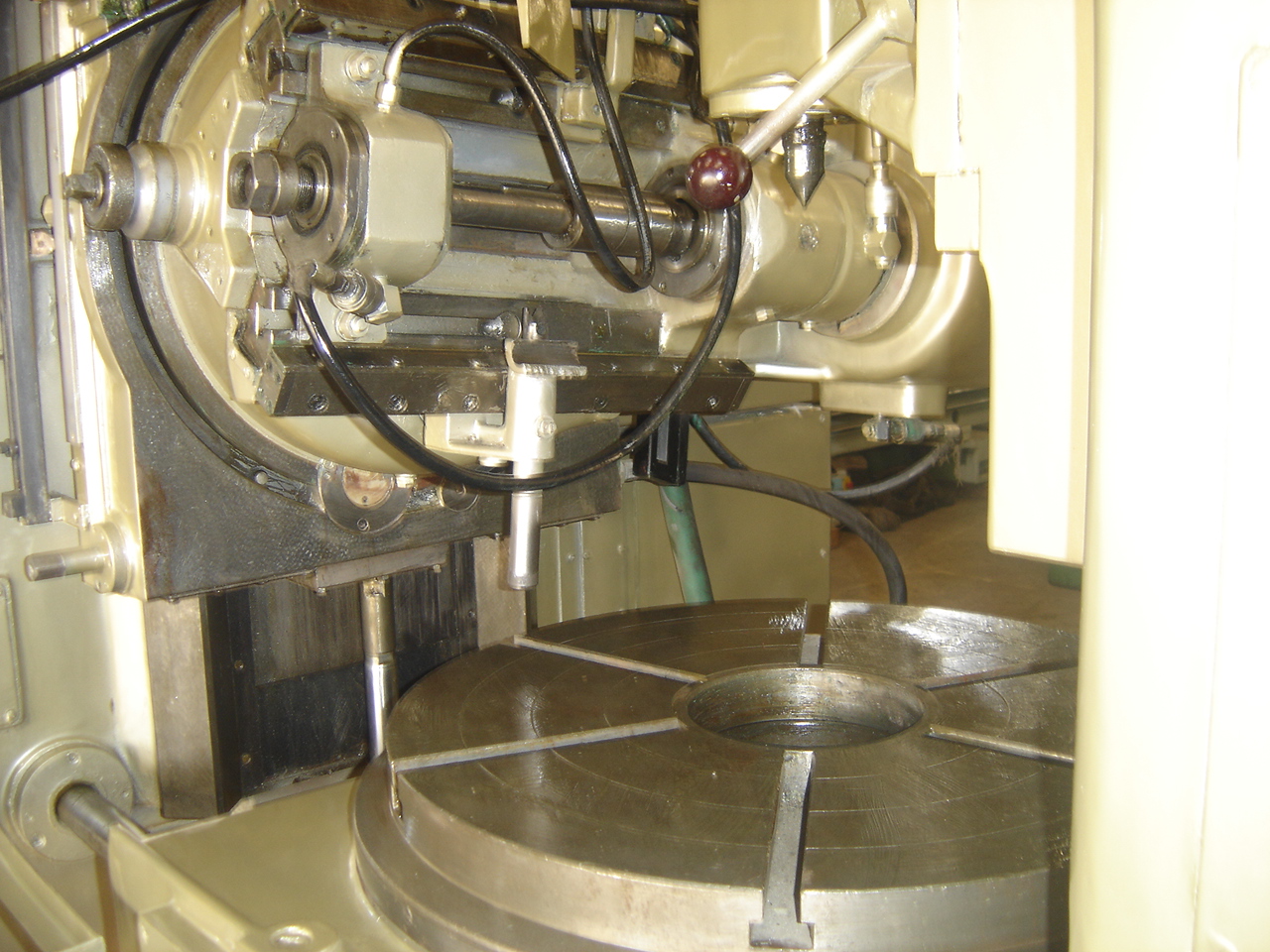

26"T-Slotted Table

Auto Cycle

Differintial

Coolant Splash Guards


Chip Conveyor

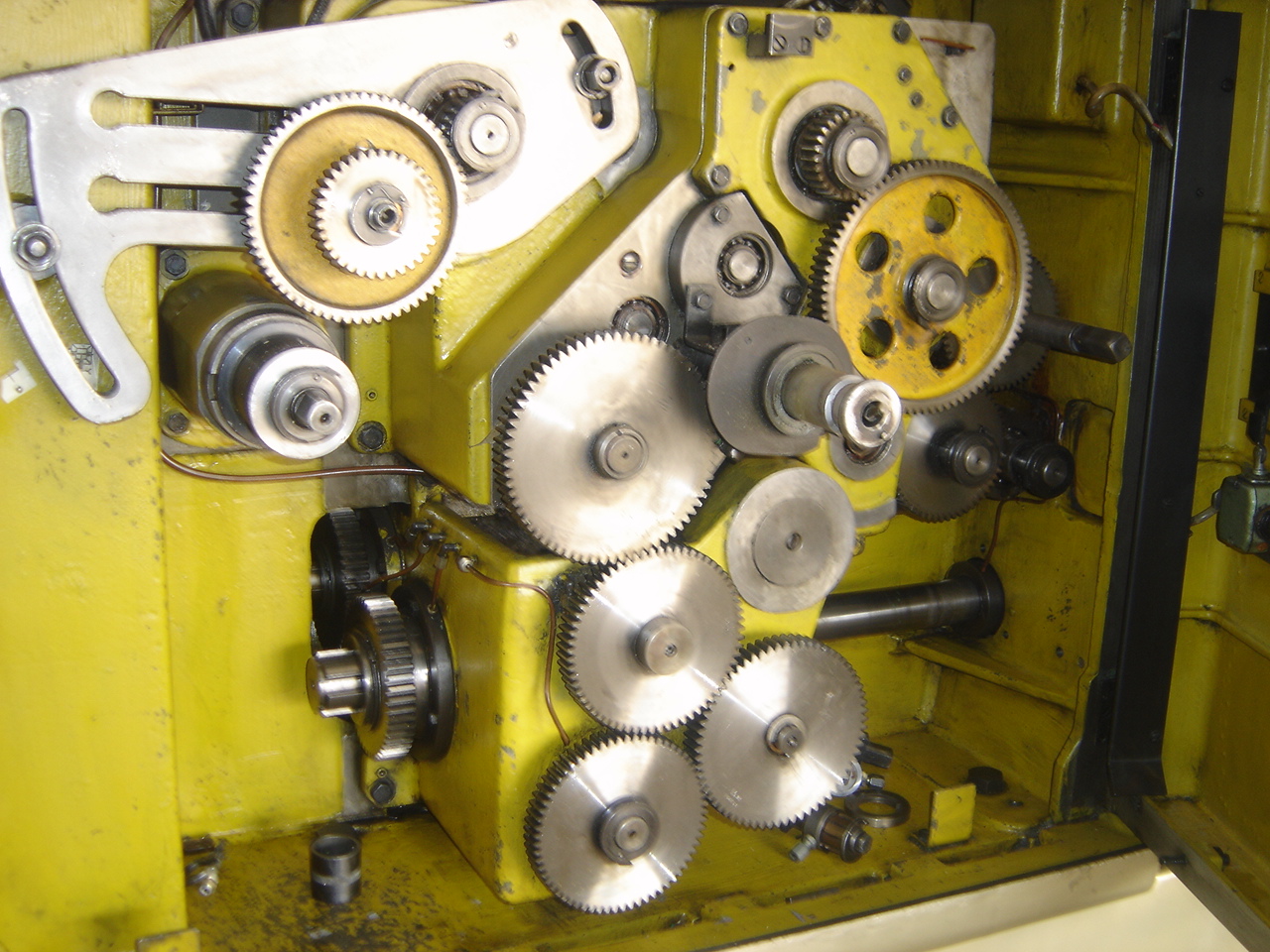

Tangertial Feed Change Gears Full Set.




SPECIFICATIONS:

Maximum Wheel Diameter.....................................500mm
Maximum Gear Width.........................................410mm
Maximum Module.............................................10 Mod
Maximum Hob Diameter.......................................195mm
Table Diameter.............................................700mm
Turning Speed Range........................................40-280 U/Min.
Power Capacity.............................................12.5 Kw
Voltage/Frequency..........................................220/50 V/Hz
Feed-Axial.................................................0.2-8 mm/min.
Feed-Radial................................................0.1-2 mm/min.
Feed-Tangential............................................0.1-2 mm/min.
