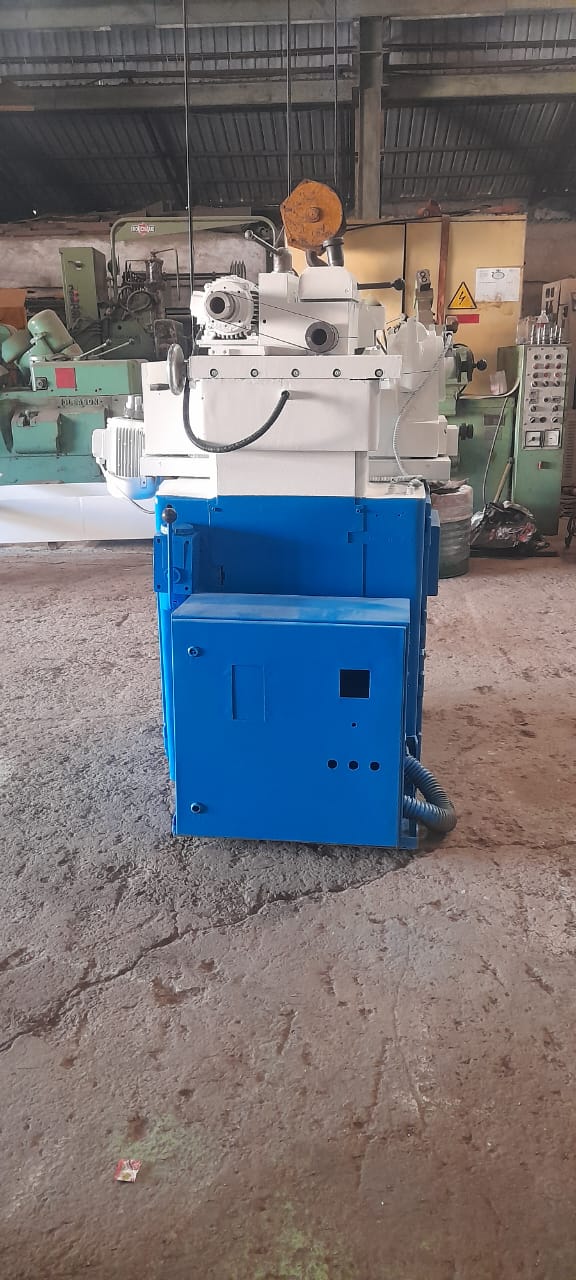

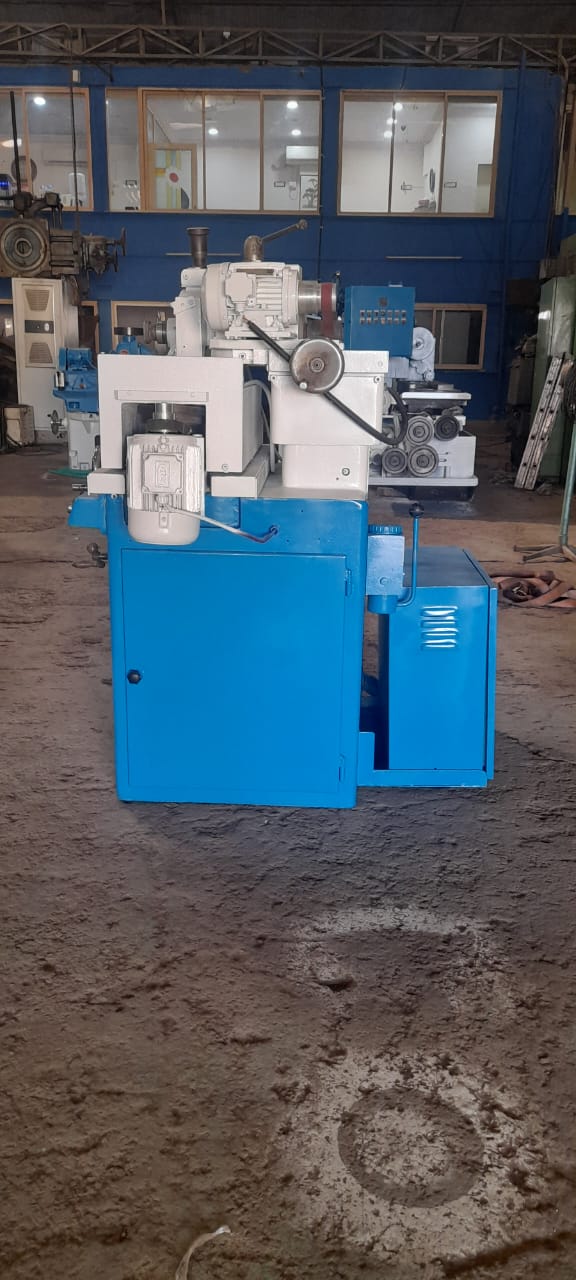

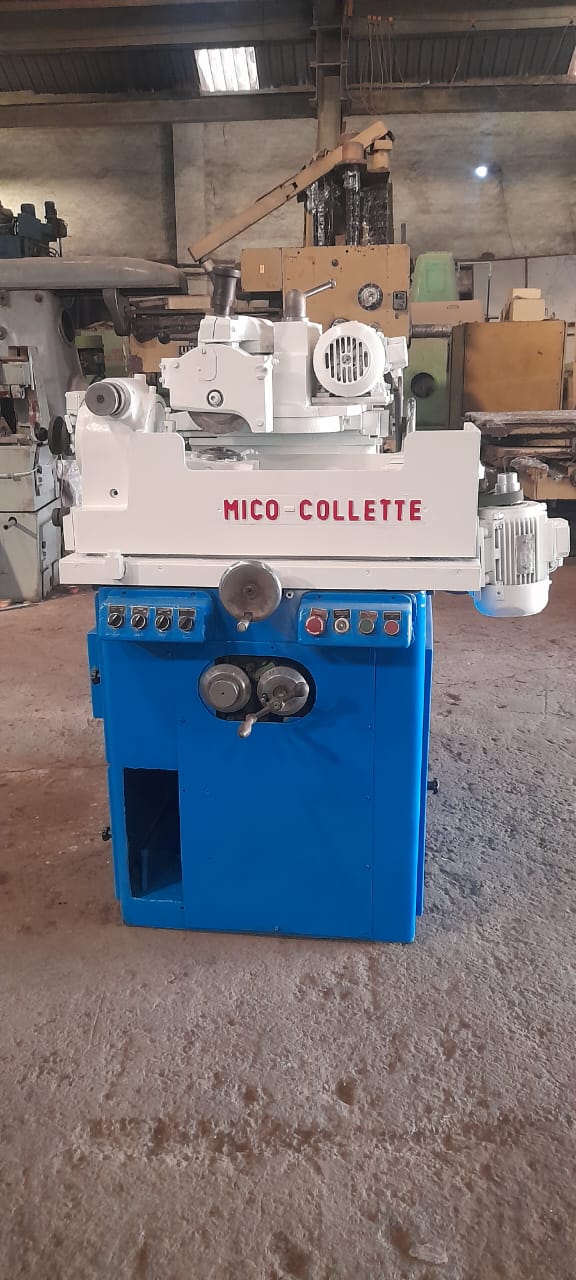

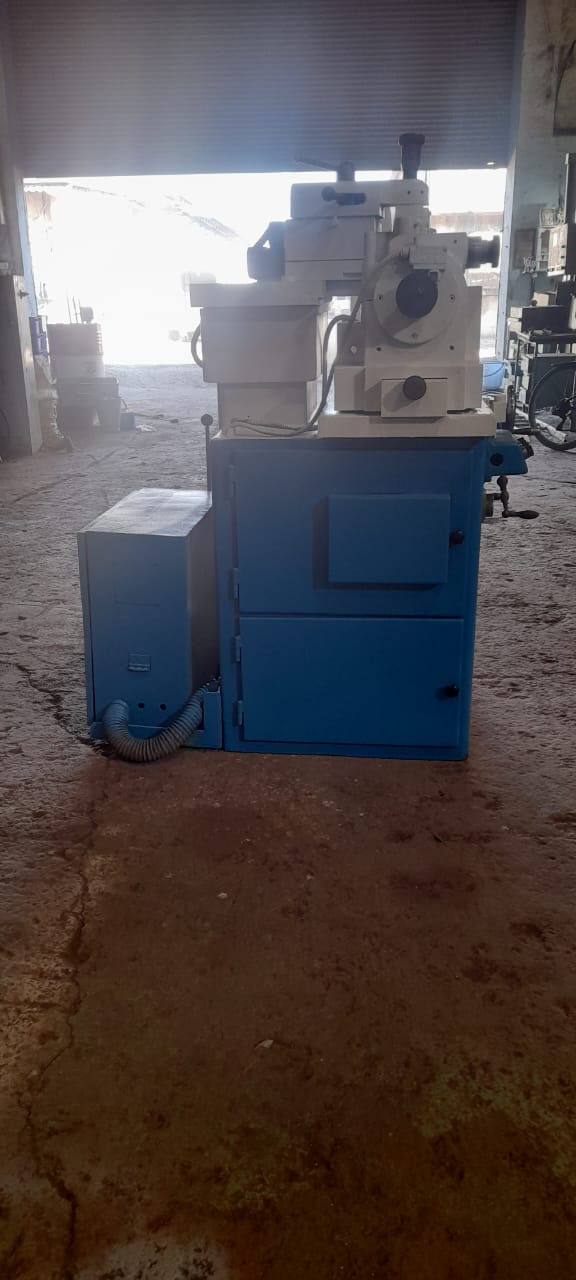

Used Gear Shaper Cutter Sharpener
Mico Collette A015 is specially designed for rapid accurate and automatic sharpening of spur and Helical gears.

Machine Id: 1373 Serial No:
Model: dh a015 Asking Price: onrequest
Make: Mico Collette Country: Germany
Year: 1985 Weight: 0.0
Dimensions: Location: Mumbai Warehouse
Power:
Category: Gear Shapers
Type of Machine: Gear Shaper Cutter Grinder
Specification

Used Gear Shaper Cutter Sharpener
Mico Collette A015 is specially designed for rapid accurate and automatic sharpening of spur and ehlical gears. It is simple and quick operation to change the machine over from spur to helical gear cutter sharpening

For sharpening helical shaper cutters and spur shaper cutters-machine with fully automatic cycle and automatic wheel dressing.


GRINDING HEADS:-Internal M.T.4 Cutter adapter 1 1/4" dia. and 1 3/4" dia.,

Location internal M.T.4

INDEXING MECHANISM:-Hydraulically

driven-faultless indexing

NUMBER OF TABLE STROKES:-per minute 20-80


LENGTH OF TABLE STROKES:-infinitely variable from 5-115mm


WHEEL SPINDLE SPEEDS:-2500 and 3200 r.p.m.


Grinding wheel diam. for standard application 200mm


max. permissible 250mm


bore diameter 76.2 mm = 3"


Advance to grinding position by means of push-button


AUTOMATIC INFEED:-Infeed range 1.1mm

Diminishing feed 0-0,035mm


AUTOMATIC GRINDING WHEEL :-Dressing infeed compensation


Provisions for manual dressing with the aid of push-button

2 Dressing speeds for rough and finish grinding


Automatic switching over of the dressing speed


Dressing performed with table in loading positions


CENTRAL LUBRICATION:- automatic


LIGHTING :-40 W - 24 Volt


MOTOR RATINGS :-Wheel motor  1 KW 3000 r.p.m.


Hydraulic motor 0,75 KW 1500 r.p.m.


Coolant pump 0,1 KW 3000 r.p.m.


Motor for spur cutters  0,25 KW 1000 r.p.m.
