partly overhauled in 2019
equipped with:
- Hobbing head & Thread Milling head
- Tailstock
- Coolant
- change gears (approx. 55)
- Indexing (ETE)

Video

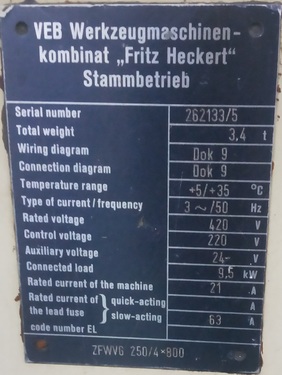

Machine Id: 1285 Serial No:
Model: ZFWVG 250 x 800 Asking Price: onrequest
Make: WMW Country: Germany
Year: Weight: 0.0
Dimensions: Location: Mumbai Warehouse,India
Power:
Category: Thread Milling / Spline Hobbing
Type of Machine: Thread Milling and Hobbing Machine
Specification

SPECIFICATION AS:-



Category

Thread Milling- and Hobbing Machine





Make

WMW



Type

ZFWVG 250 x 800



New in

1984/2019



Control





Origin

Germany























max. workpiece diameter

                                                           500 mm





threading length

800 mm



max. module

3/10



min. module

--



workpiece dia. over bed

500 mm



hobbing length

800 mm



workpiece dia. over saddle

250 mm



center height over bed

260 mm



workpiece spindle bore

102 mm



workpiece turning speeds

0,0034 - 2,65 U/min



feeds - rolls

0,027 - 5,66 mm/U



longitudinal feeds, infinitely variable

0,3 - 198 mm/min



main drive

4,0 kW



electrics - voltage/frequency

380 / 50 V/Hz



total power requirement

8,5 kW



weight of the machine ca.

3,3 t



dimensions of the machine ca.

2,8 x 2,5 x 1,6 m

Description



partly overhauled in 2019
equipped with:
- Hobbing head & Thread Milling head
- Tailstock
- Coolant
- change gears (approx. 55)
- Indexing (ETE)
