| Location |
: |
Mumbai Warehouse,India |
|
|
 |
| Category |
: |
Thread / Worm Grinders |
|
|
|
|
|
| Type of Machine |
: |

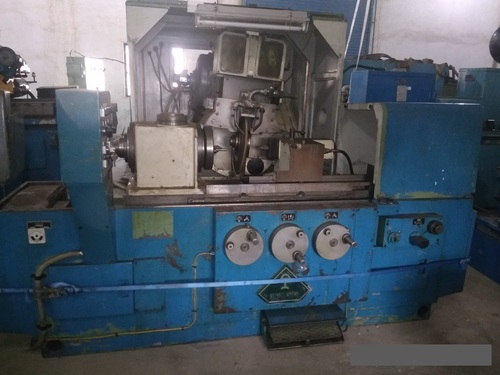

Thread Worm Grinder Machine |
|
|
|
|
|
|
|
|
|
|
| Specification : |
|
Work piece diameter: 10-350 mm
Work spindle bore: 130 mm
Max grinding length: 500 mm
Distance between centers:
-With tail-stock towards the front: 750 mm
-With tail-stock at the back of spindle head: 1200 mm
Min module: 0,5
Max module: 2,5
Pitch: 1-500 mm
Max pressure angle: 0 - 30 degrees
Wheel: 300-500 mm
Max thread inclination: 45 degrees
Machine weight: 8000 kg
|
|
|
|
|
|
|
|
|
|
|
|
|
