Table working surface, mm 320 x 600
Working capacity (diameter), mm 0,8...300
Working range X/Y, mm 400/250
Spindle vertical travel, mm 300
Max. distance from table to spindle, mm 450
Distance from spende center to column, mm 340
Spindle speed, rpm 5...300
Nos of Tee slots 5
Max. table load, kg 200
Machine weight, kg 2300 Longitudinal Table travel................................................................15-3/4".Saddle Travel.................................................................................... 9-7/8".Table Working Surface................................................... 23-5/8" x 12-5/8".Number of Tee Slots.................................................................................. 5.Vertical Head Travel....................................................................... 11-3/4".Max. Distance Table to Grinding Spindle Nose............................. 17-3/4".Distance from Spindle Center to Column Front Surface................ 13-3/4".Radial Adjustment of Planetary Motion(on diameter)......................... 5/32".Minimum Graduation of radial Adjustment( on diameter)............ 0.0001".Quill Travel............................................................................................. 4".Grinding Head Speed.................................................. 9,000 - 45,000 RPM.Hole Ground w/o Adapter ...................................................................... 4".Hole Ground w/ Adapter................................................................ 11-13/16".Taper Angle Ground............................................................ Max 3 Degrees.Dimensions (max. height)............. 55-5/8"W x 54-28/32"D x 103-5/16"H.Weight (approx.)............................................................................ 5,070 lb. Equipped with: 2 Axis DRO, 50 millionths resolution.

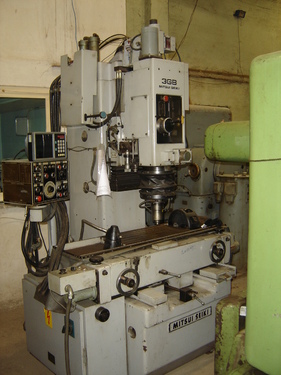

Machine like new
|
