Pressure Die Casting Machines (PDC) |
|
 |
|
| 400-B |
|
 |
|
|
 |
|
| |
|
|
|
|
|
| Product Gallery : |
 2
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Dimensions |
: |
7500 x 2500 x 2300 |
|
|
|
| Location |
: |
Mumbai Warehouse, india |
|
|
 |
| Category |
: |
Pressure Die Casting Machines (PDC) |
|
| Serial No |
: |
Not Available |
|
|
|
| Type of Machine |
: |

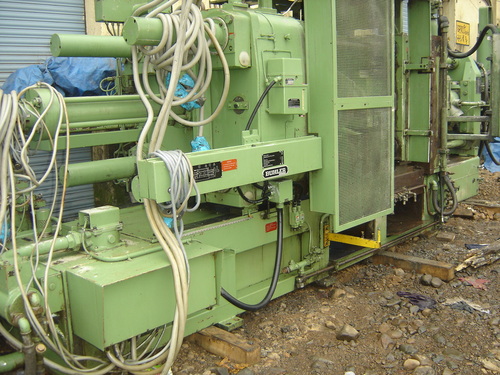

Used Cold Chamber Pressure Diecasting With B type Injection System |
|
|
|
|
|
|
|
|
|
|
| Specification : |
| Injection-force-final squeeze (adjustable) kN 420-180
Plunger stroke mm 480,
Ejection force kN 240,
Ejection Stroke (adjustable) mm 145
Fixed platens (H X V) mm 990 X 1130,
Moving platens (H X V) mm 990 X 990
Space between tie bars mm 640 X 640
Diameter of tie bars mm120,
Min. die height mm 250,
Max. die height mm 780
Stroke of moving die platen mm 640,
Idle operating cycles per hour n/h 450
Rated motor capacity kW 30,
Machine area L X W (incl. Safety gate) m 7.5 X 2.5
Machine height (incl. Safety gate) m 2.3
Machine weight (ready f. product.) kg 16000
Control cabinet L X W X H m 1.4 X 0.4 X 1.65 |
|
|
|
| Description : |
400 ton locking force , with Buhler "B" type injection system.
Central Dieheight adjument,
Central Lubrication etc.
Excellent condition.
Intercirc control system
|
|
|
|
|
|
|
|
|
|
|
|
