| Gear Related Machines
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Model |
: |
ZFWZ 250/4 (CNC 3 AXIS) |
|
|
|
|
|
|
|
|
|
| Location |
: |
Mumbai India...Under Power |
|
|
 |
| Category |
: |
Gear Related Machines |
|
|
|
|
|
| Type of Machine |
: |

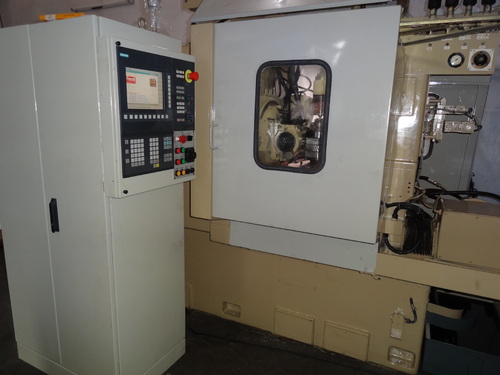

CNC Universal Gear Hobber |
|
|
|
|
|
|
|
|
|
|
| Specification : |
|
Type of machine :- 3 Axis Gear Hobbing Machine - Vertical
Make wmw MODUL:- Type ZFWZ 250/4
Three Axis CNC Controlled with Siemens 802DSL (brand new 2013) max. wheel diameter 400 mm
gear width 275 mm
max. module 6 to 10 (depending on hob dia)
max. angle of teeth 45 Degree
feeds axial 275 mm
shifting 100 mm
min. number of teeth 8
diameter of hob 145 x 170 mm
clamping table diameter 275 / 350 mm Additional information
complete with change gears, etc
complete , handbooks and machine manuals etc.
fully rebuilt with BRAND NEW 2012 YOM
Siemens 802DSL , Digital drives and AC servo motors
CNC Controlled Axis X and Z + hob shifting,
Free standing Electrical Cabinet fitted . Suitable for Spur , Helical , Crowning & slightly tapered gears both for batch and heavy production of components Machine Features - Hydraulic Clamping & Tailstock ,
- Automatic Hob shift
- Full change gear set
- One 1.25" hob arbor, outboard bearing, arbor wrench
- Two copies of the machine operators manual
- Two copies of all electrical and mechanical prints
- Can be tooled up to customers as per customers requirement
- Machine is ready for immediate delivery subject to prior sale.
|
|
|
|
|
|
