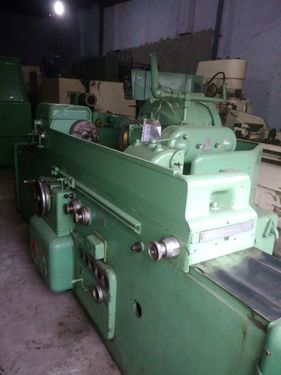

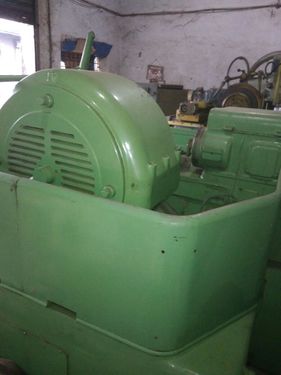

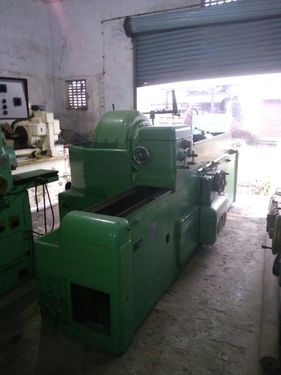

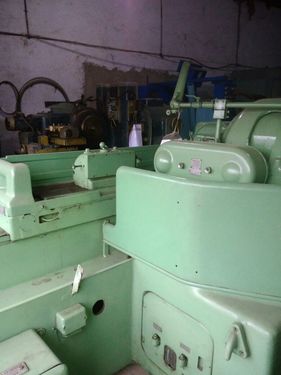

Excellent Machine
With Dresser + Crusher both
255 x 1066mm
Well Equipped Machine

Video
Machine Id: 565 Serial No:
Model: 46 Asking Price: onrequest

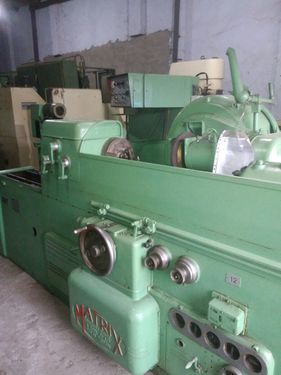

Make: Matrix Country: England
Year: 1980 Weight: 0.0
Dimensions: Location: Mumbai Warehouse,India
Power:
Category: Thread / Worm Grinders
Type of Machine: Universal Thread Grinder With Crusher and dresser both
Specification

Max Length Between Centres 1066mm

Max Length with Chuck 984mm

Max Diameter of Workpiece 254mm

Max Length Ground at one Setting A 1041mm

Max Lead Recommended 304mm

Min Pitch Recommended 60 TPI

Max Helix Adjustment 45Degree

Max Capacity of Collet 38mm

Max Including Taper per Foot 25.4mm

Relief

Variable 0-5m/m

Workhead Speed Range 21-39 RPM

Return Speed

Variable to 60 RPM

H.P. of Wheelhead Motor 3.5 / 1.75

H.P. of Workhead Motor 0.75

Max Weight of Work Recommended 100 lb

Head and Tail Stock Centres No 4 Morse

Standard Wheel Diameter 406mm
