Brand New Like Machines
100tons

Video
Machine Id: 453 Serial No: 12.364.00
Model: SEP 9-100 SPS Asking Price: onrequest
Make: REIS Country: Switzerland
Year: 1992 Weight: 0.0
Dimensions: Location: Mumbai Warehouse,India
Power:
Category: Trimming Presses
Type of Machine: 100tons trimming press
Specification

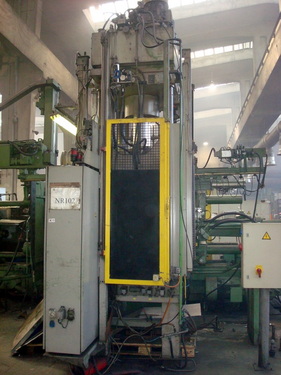

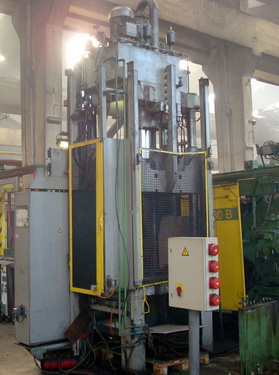

1 second-hand trimming press
----------------------------

Make:   REIS
Model:   SEP 9-100 SPS


Equipped with:
--------------

- Oil-hydr. drive
- Hydr. and electrc. control as per accident prevention rules
- Light barrier
- Protection mesh swivels laterally and at side
- Hydr. downholer / ejector cylinder
- Control device for hydr. downholder
- Ram hold-up device

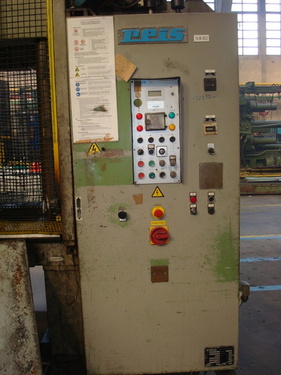

- SPS control (S5), switching cabinet

TECHNICAL DATA:
===============

Pressure                      100 t
Distance betw. tiebars               910 mm
Stroke                       600 mm
Distance table - ram:
max. stroke up, adjustment up           1000 mm
Table area:          910 x 1085 / 1340 x 680 mm
Drop hole opening in table         700 x 510 mm
Table height over floor              800 mm
Lateral passage betw. tiebars           680 mm
Ram area           910 x 1000 / 1230 x 680 mm
Ejector force                   7,5 t
Ejector stroke                   150 mm
Driving capacity                  15 kW
Floor space approx.         2300 x 1900 x 3600 mm
Weight approx.                   9,5 t
