Machine Id: 423 Serial No: Not Available
Model: s 10 x 72 inches Asking Price: onrequest
Make: matrix Country: United Kingdom
Year: Weight: 0.0
Dimensions: Not Available Location:
Power:
Category: Spline Grinders
Type of Machine: Spline Grinders
Specification

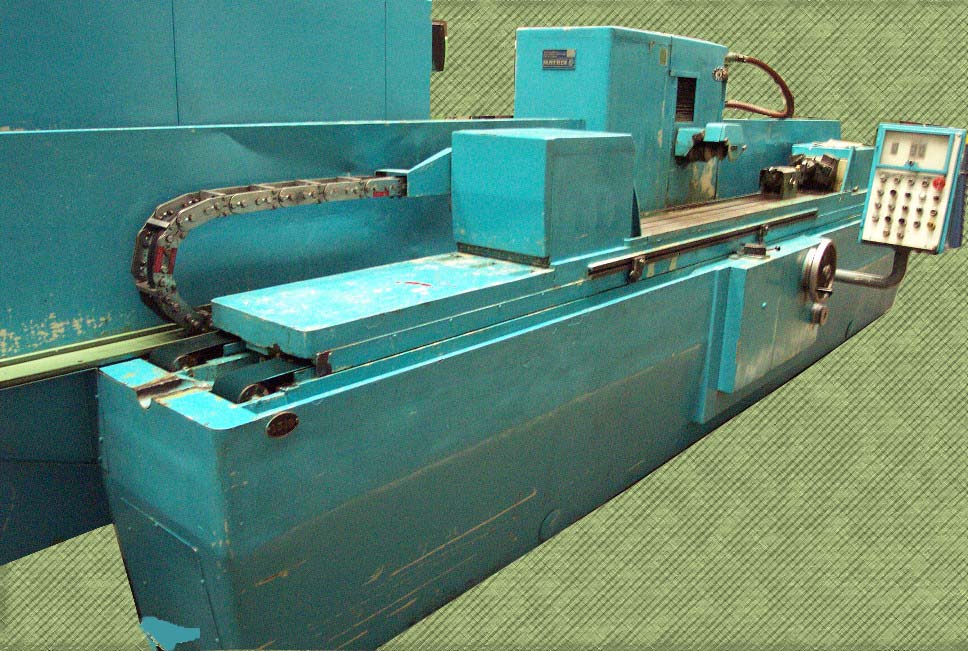

MATRIX Model S10 x 1830 BROACH GRINDING MACHINE,

Max length admitted between centres...... 1830 mm

Max diameter admitted........ 254 mm

Max diameter ground...... 152 mm



Component root diameter serrated form only.. 10 mm

Standard grinding wheel diameter....... 203 mm

Grinding wheel speeds, variable..... up to 3000 rpm

Grinding wheel motor D.C...1.5 KW

Description

Complete with:-

 3 fully automatic programmed grinding cycles,

 which include wheel dressing with compensation.

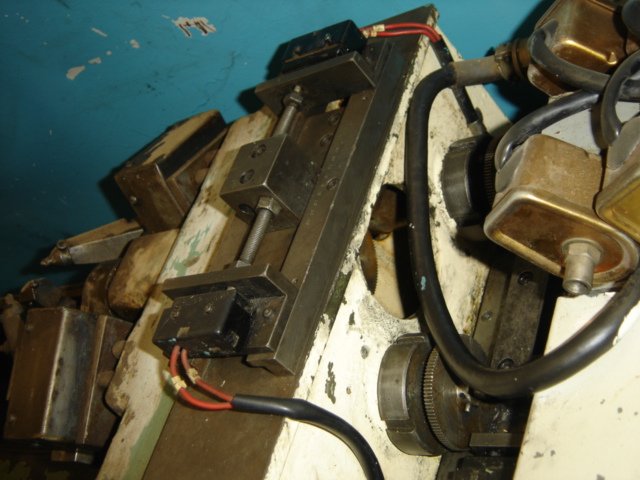

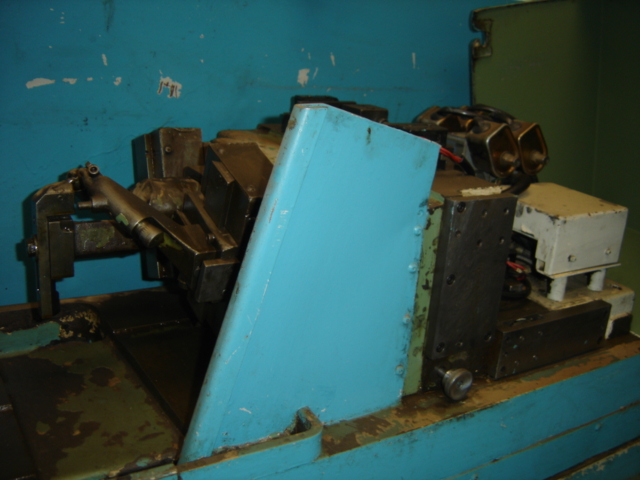

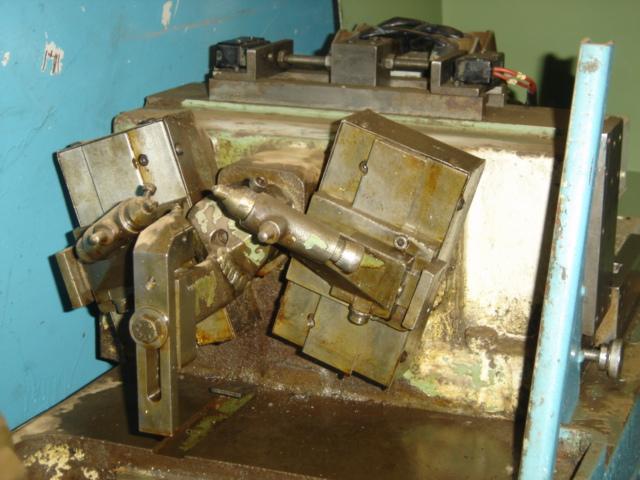

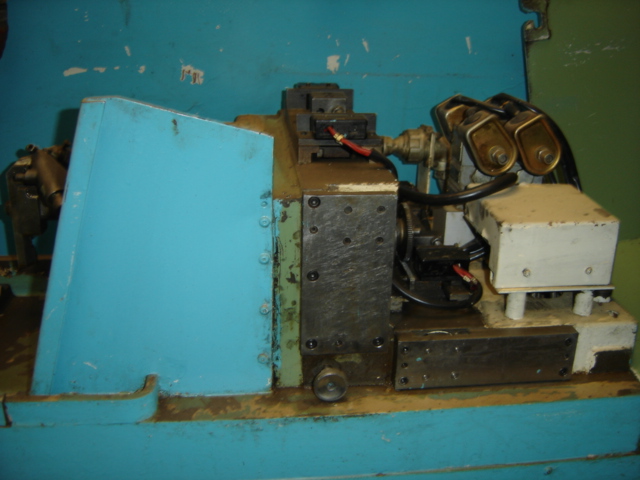

Straight-sided spline dresser type 82LD.

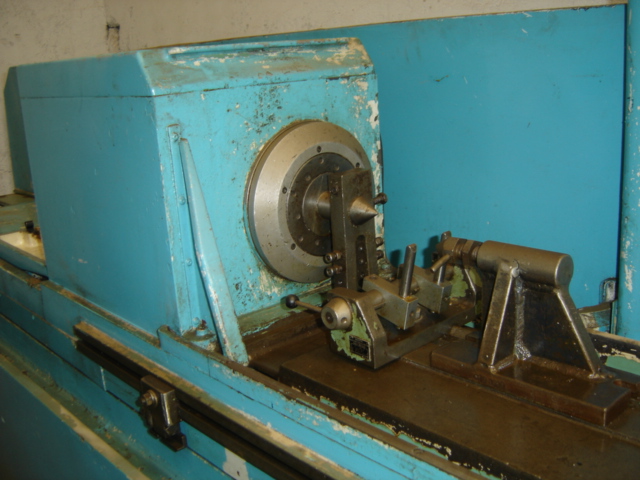

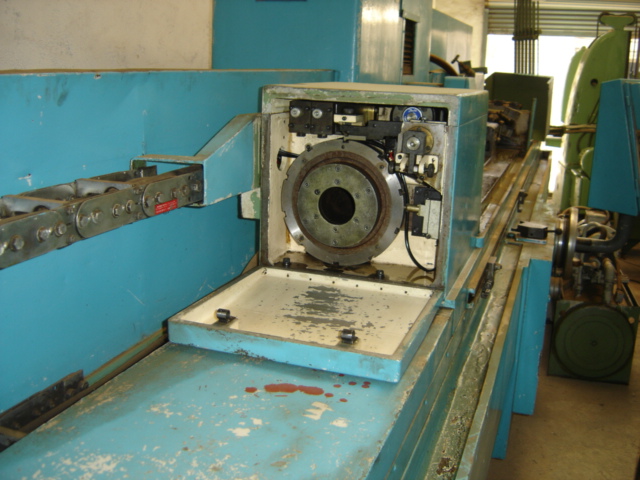

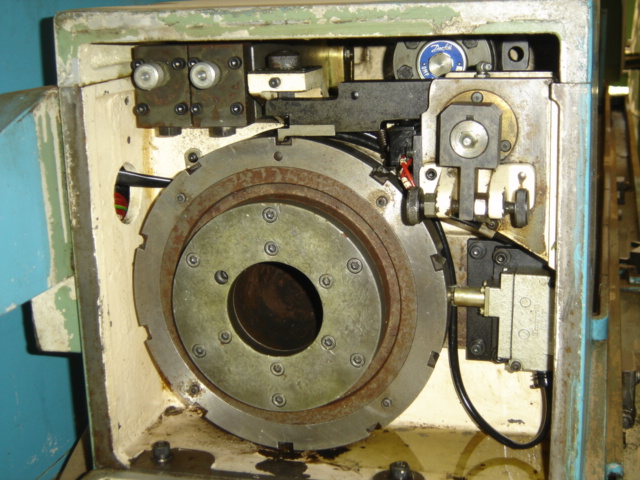

Workhead fitted with 10T index plate, selection

 of various index plates & segments also available.

 Setting fixture 82P.

Work steady.

Wheel arbor.

Guards.

Coolant supply.

 M.S.E. centrifugal clarifier.
